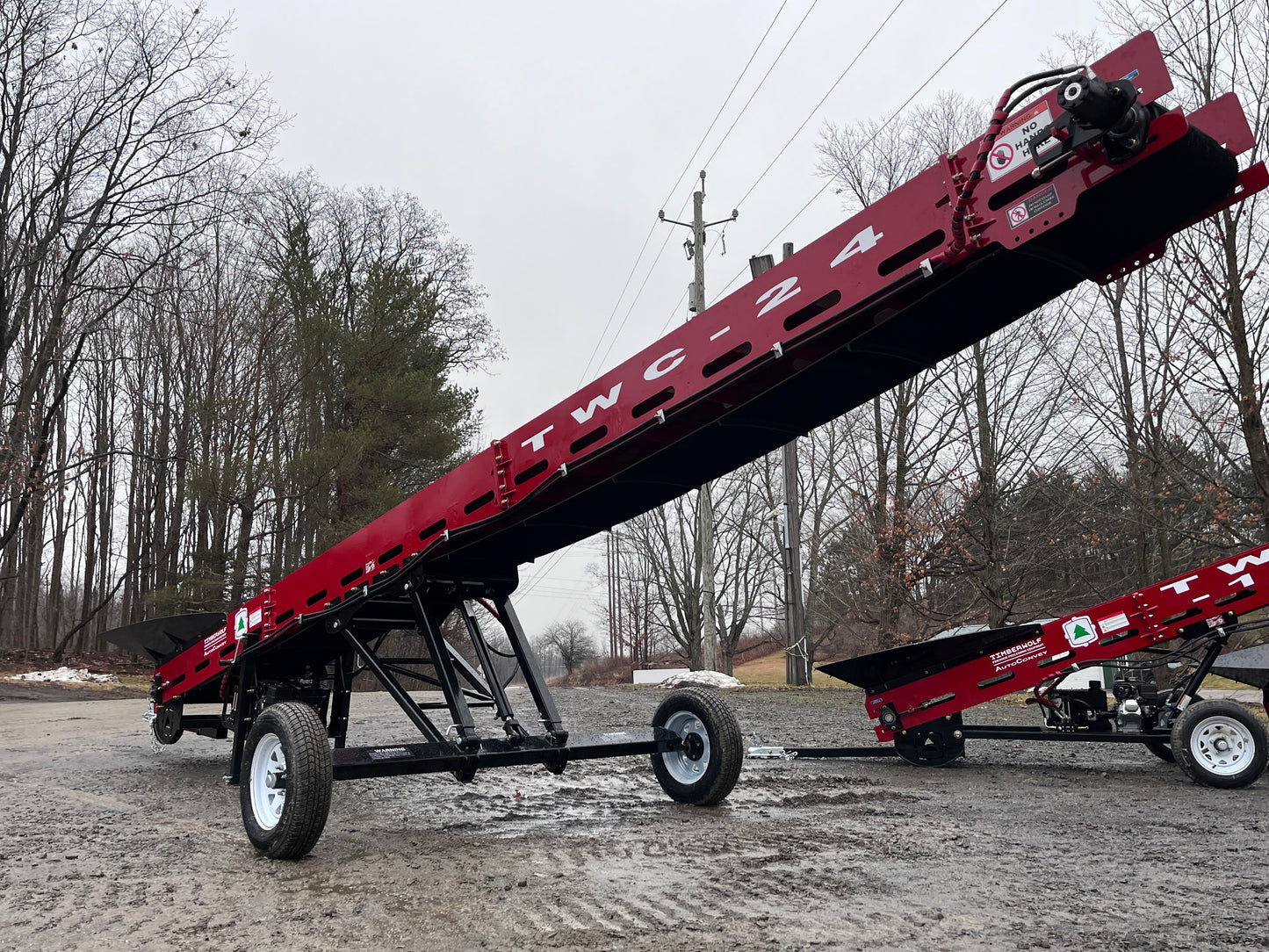

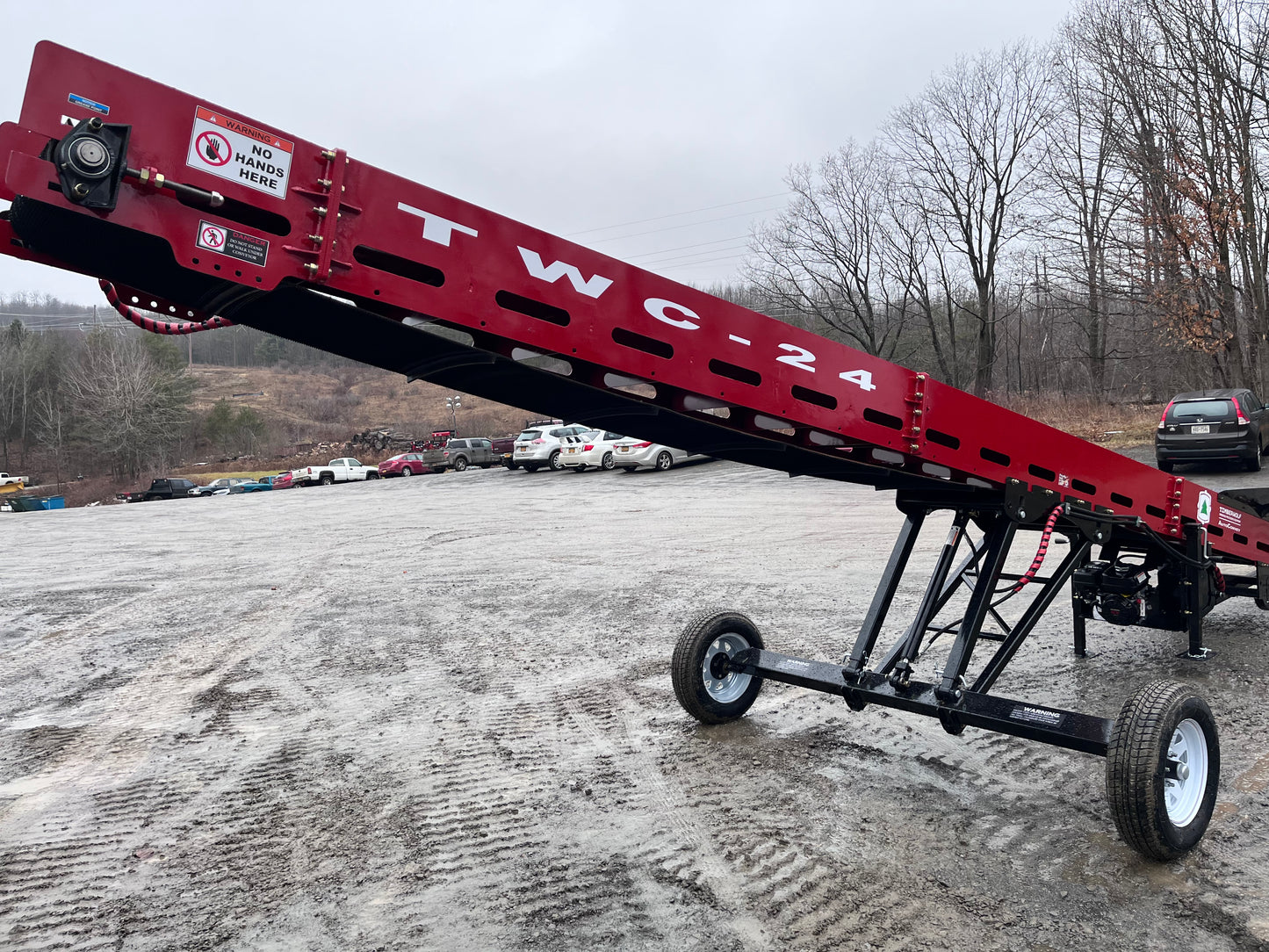

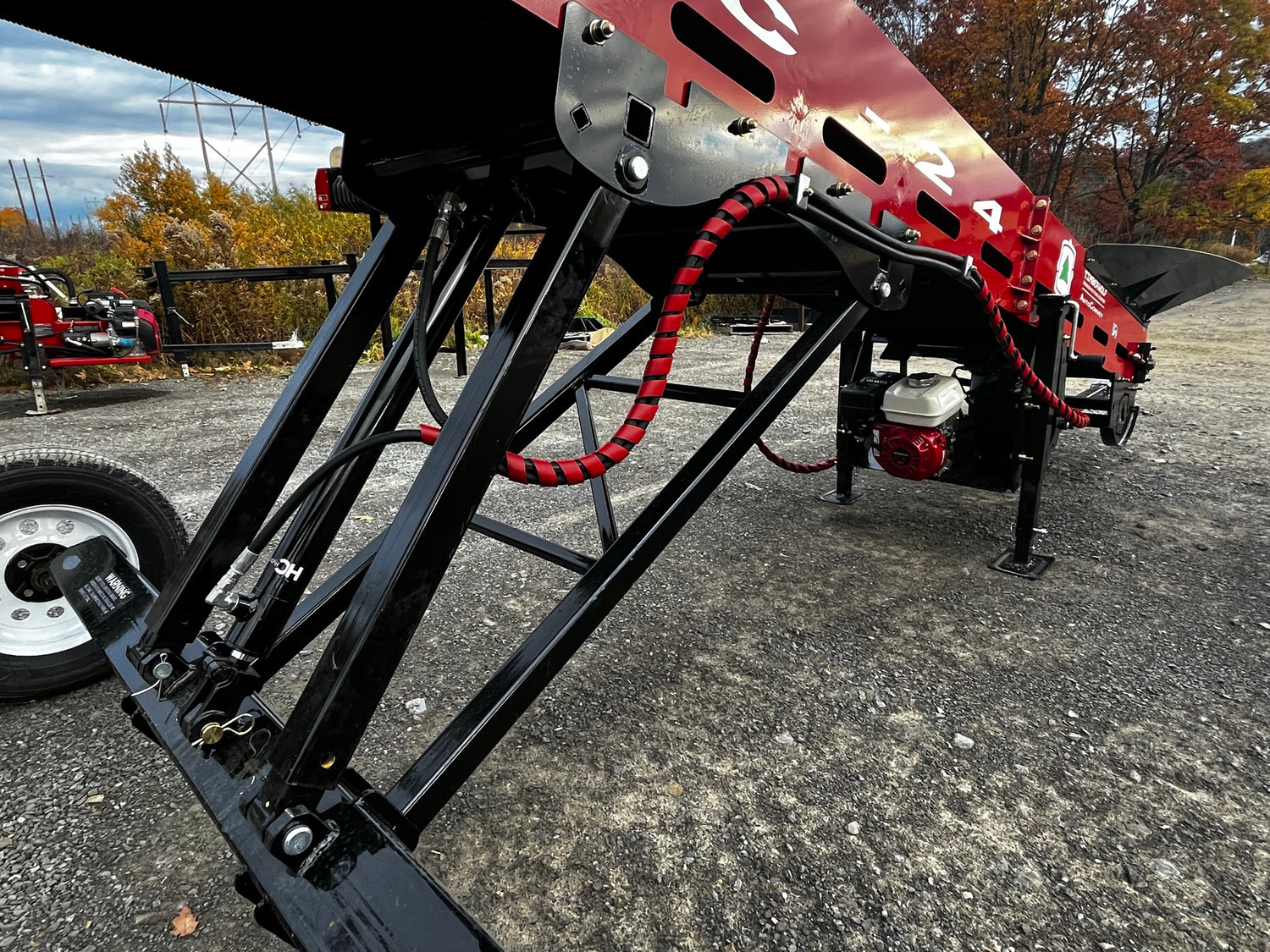

Telescopic Axle Arms

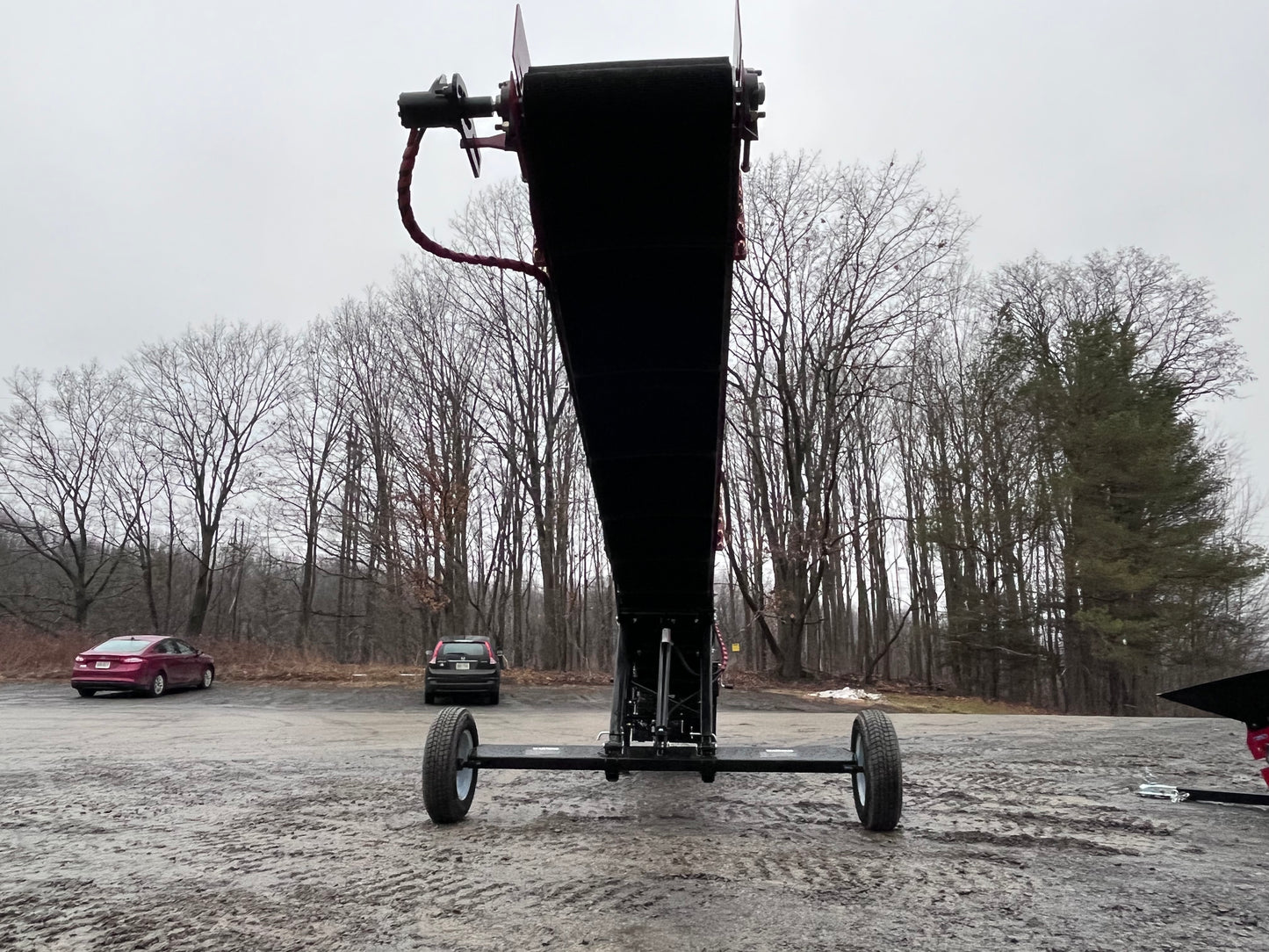

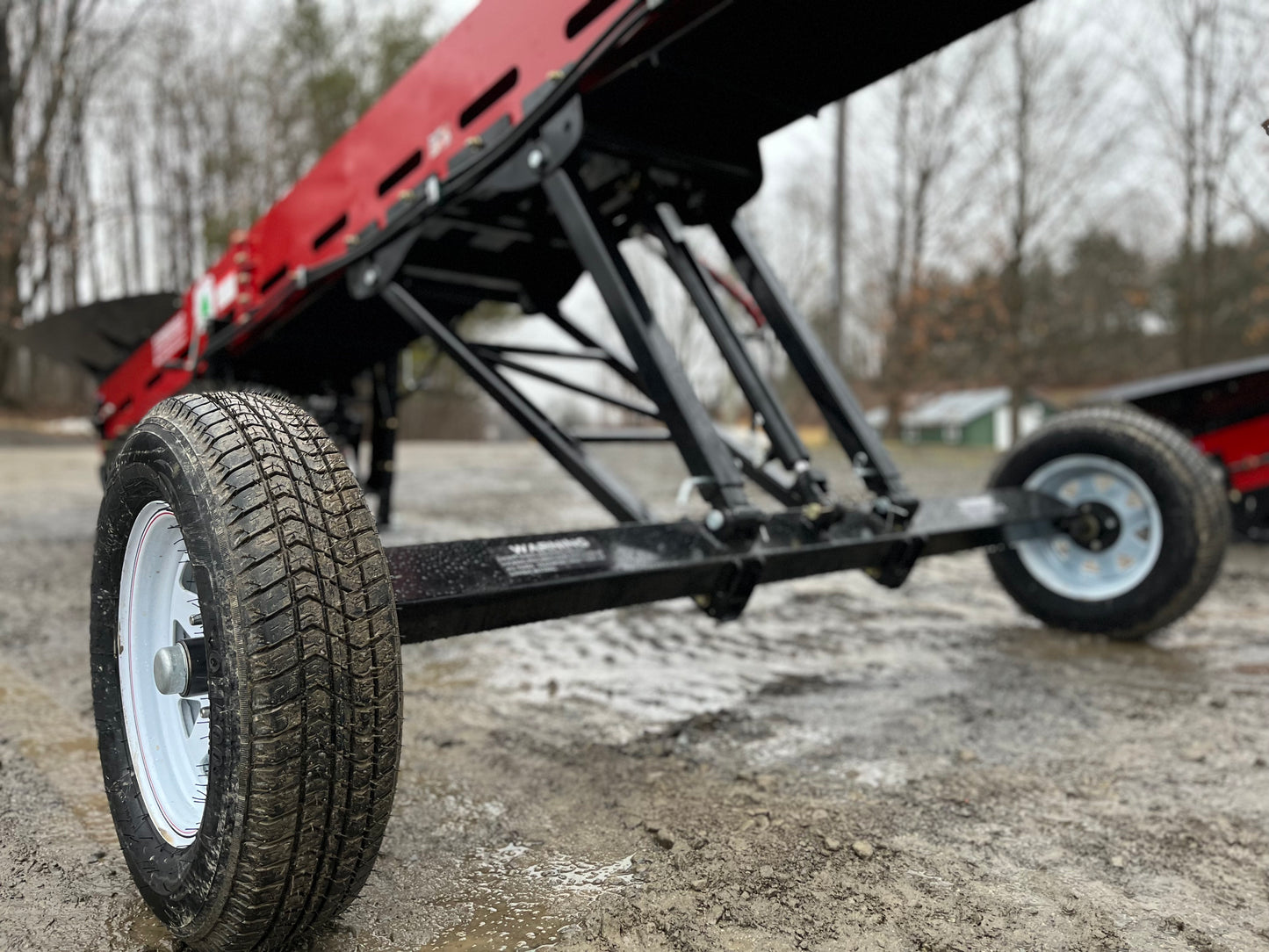

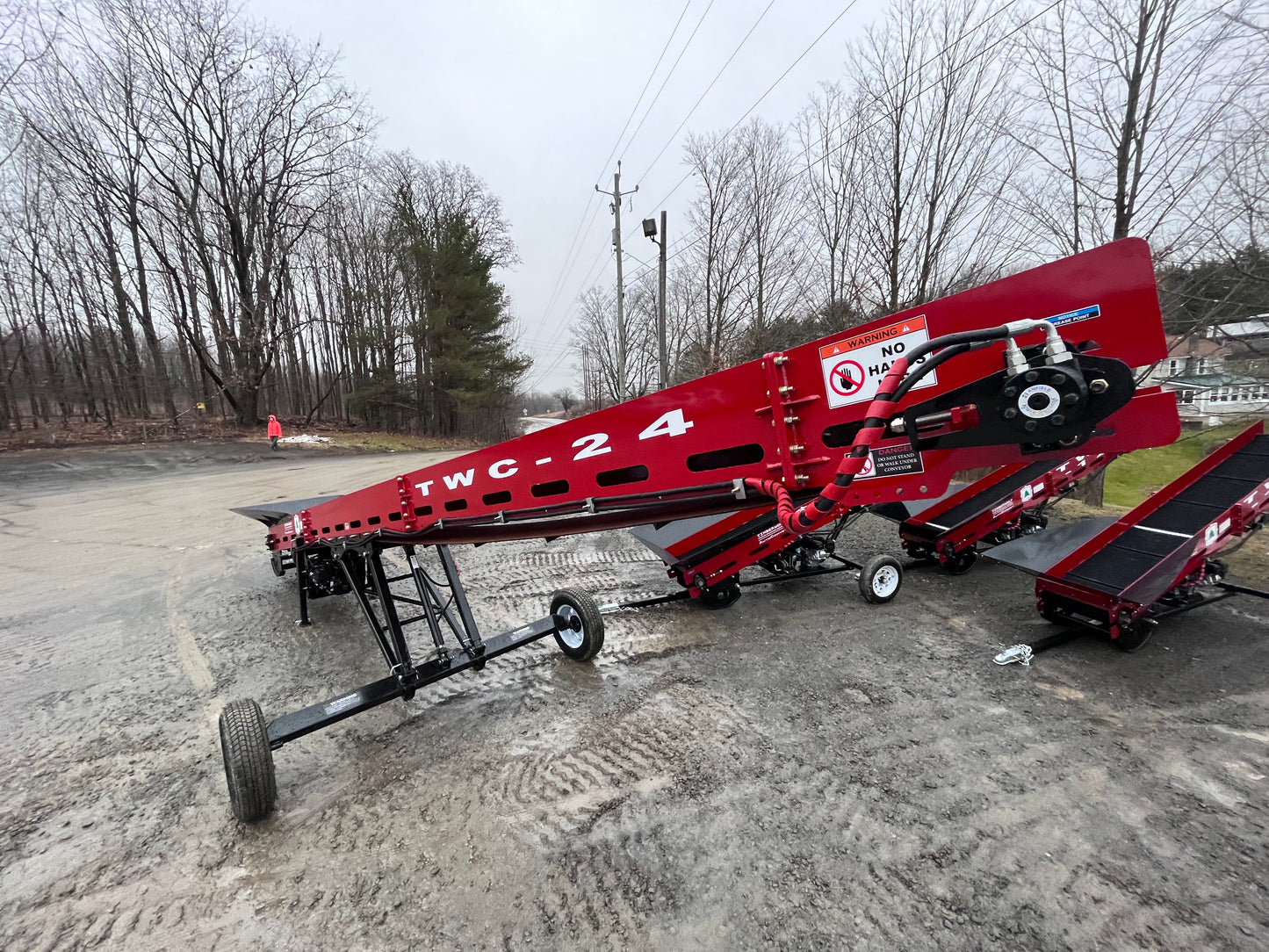

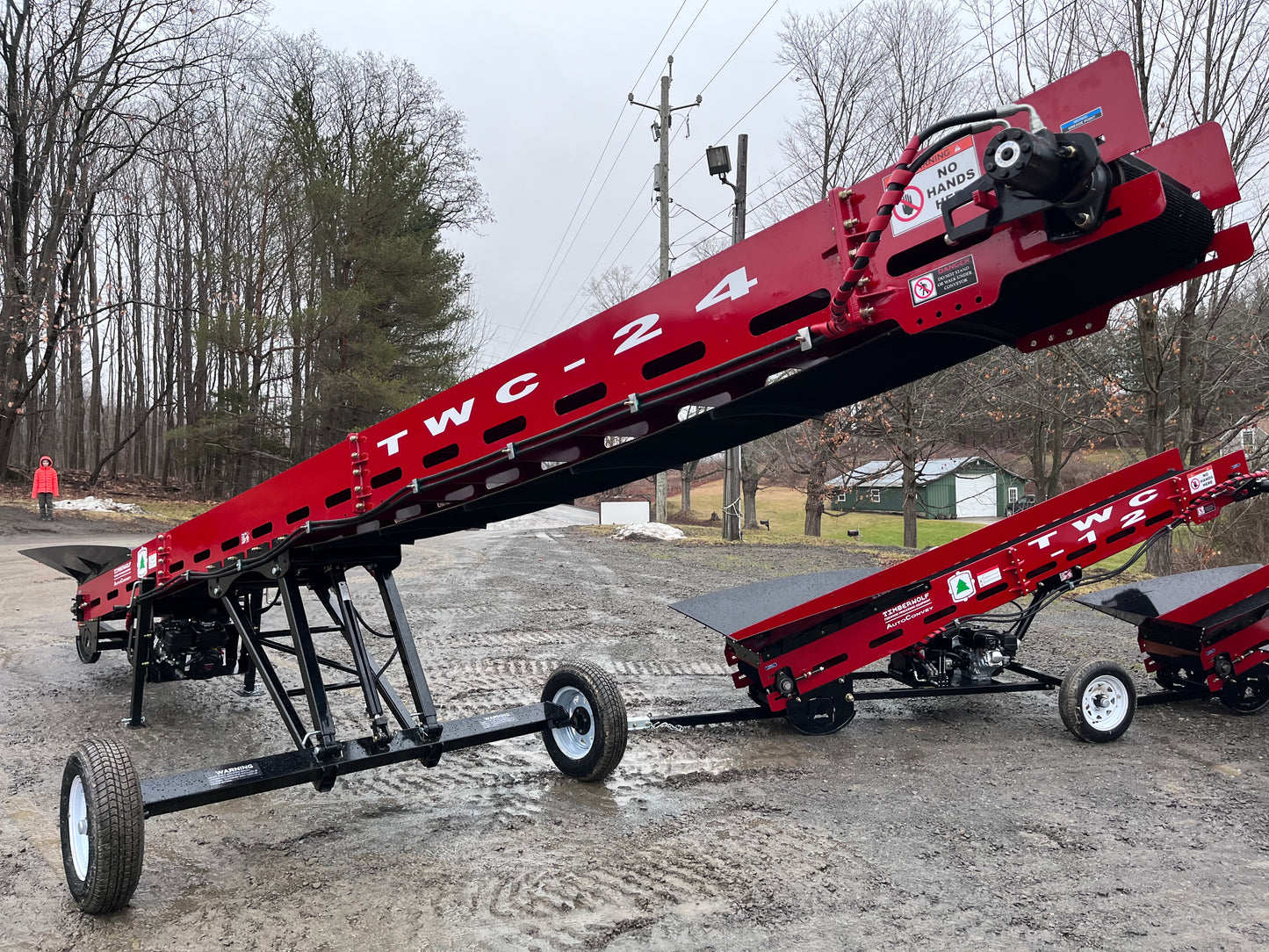

Because of the TWC-24’s extended size and operating range, it is equipped with telescopic axle arms positioned on either side of the hydraulic lift cylinder. These reinforced arms are engineered to provide a wide, stable base of support, significantly reducing the risk of tipping or instability when the conveyor is raised to higher working angles or handling heavy loads at full extension. This added structural support is especially important in high-volume firewood operations where consistent stability directly impacts safety and productivity.
The telescopic axle arms are designed to move in coordination with the hydraulic lift system, allowing the entire conveyor to maintain proper balance throughout height adjustments. Operators can quickly adapt the setup by removing the locking pull pins, adjusting the arms to match the desired conveyor height, and then securely reinserting the pins once the optimal position is reached. This simple yet robust adjustment system ensures the TWC-24 remains stable, level, and ready for continuous operation across a wide range of working conditions.

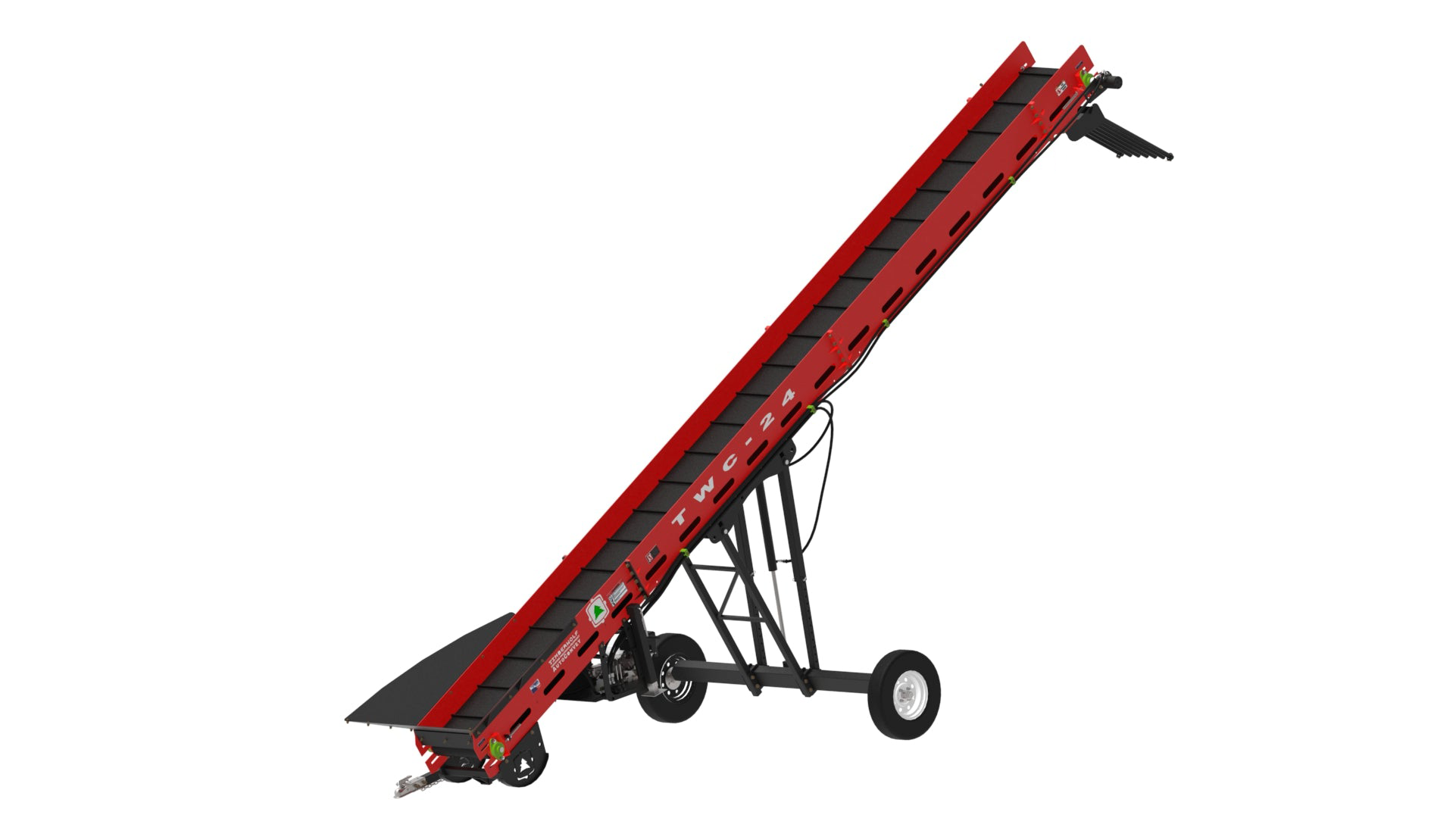

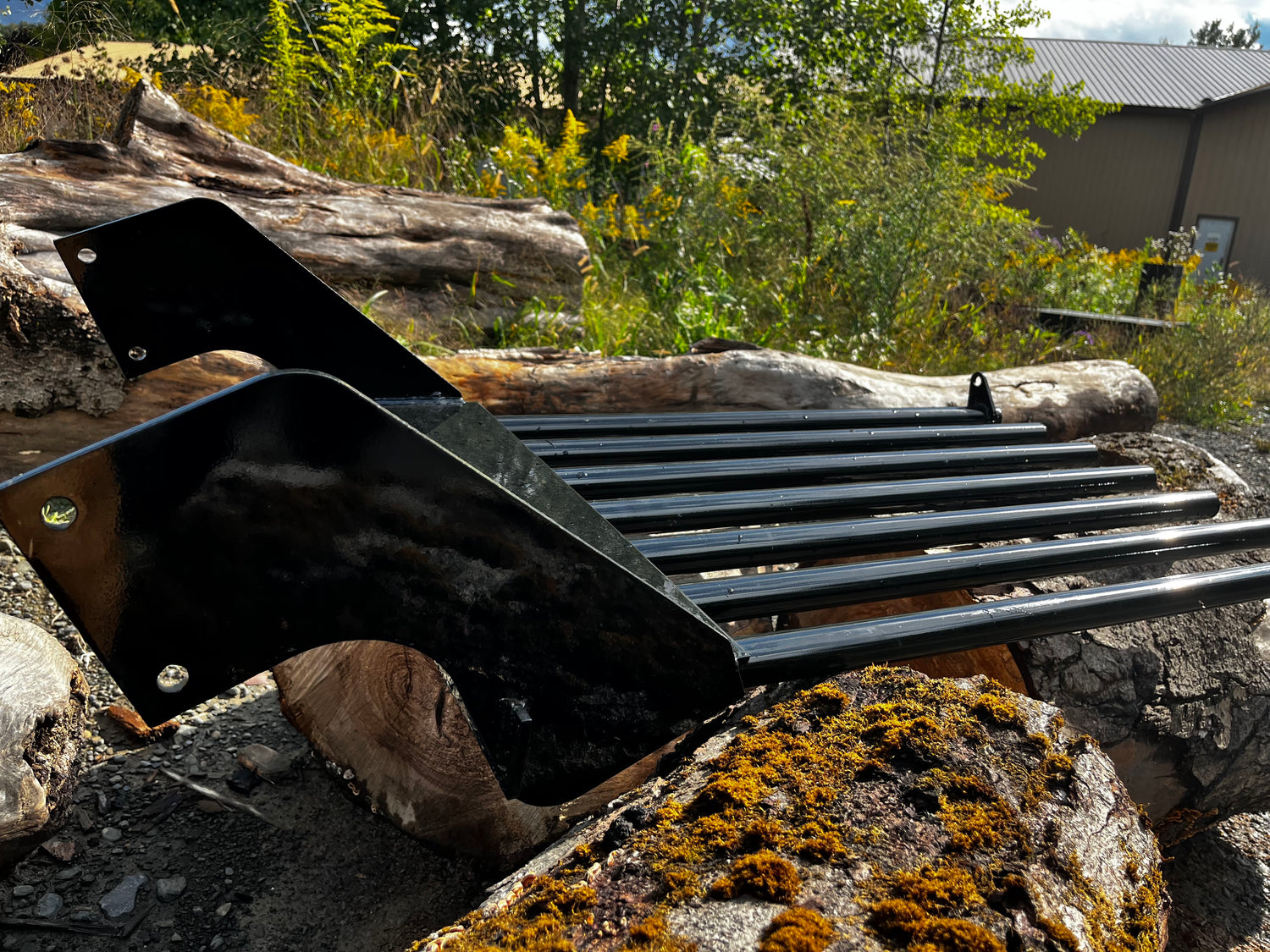

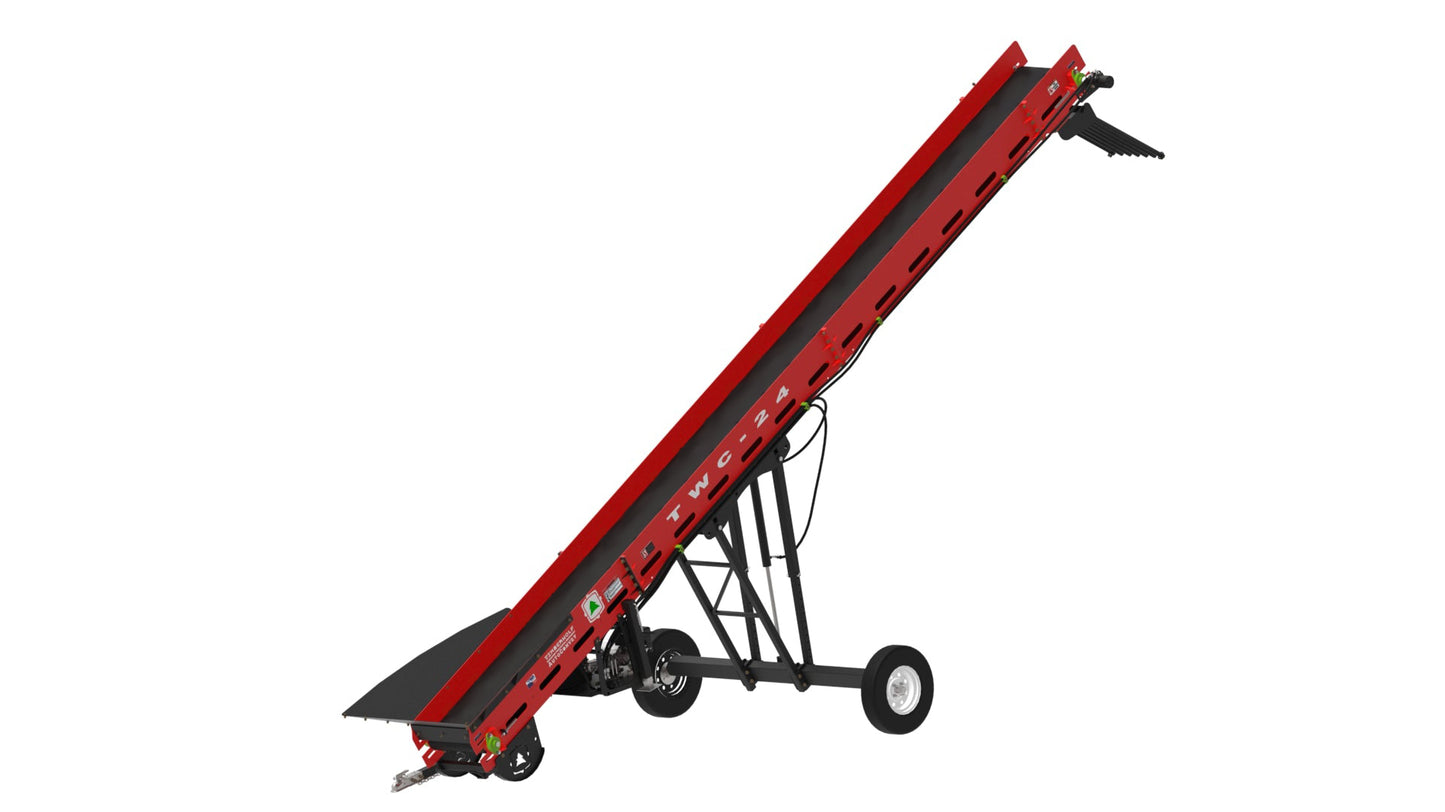

Optional Grizzly Bars
Optional 36-inch Grizzly Bars can be added to the TWC-24 wood elevator to improve final product cleanliness. This bolt-on attachment installs at the end of the conveyor and helps remove fine material, bark, and debris as firewood is offloaded. By filtering out unwanted material during discharge, the Grizzly Bars ensure a cleaner, more uniform finished product while maintaining efficient, continuous conveyor operation.

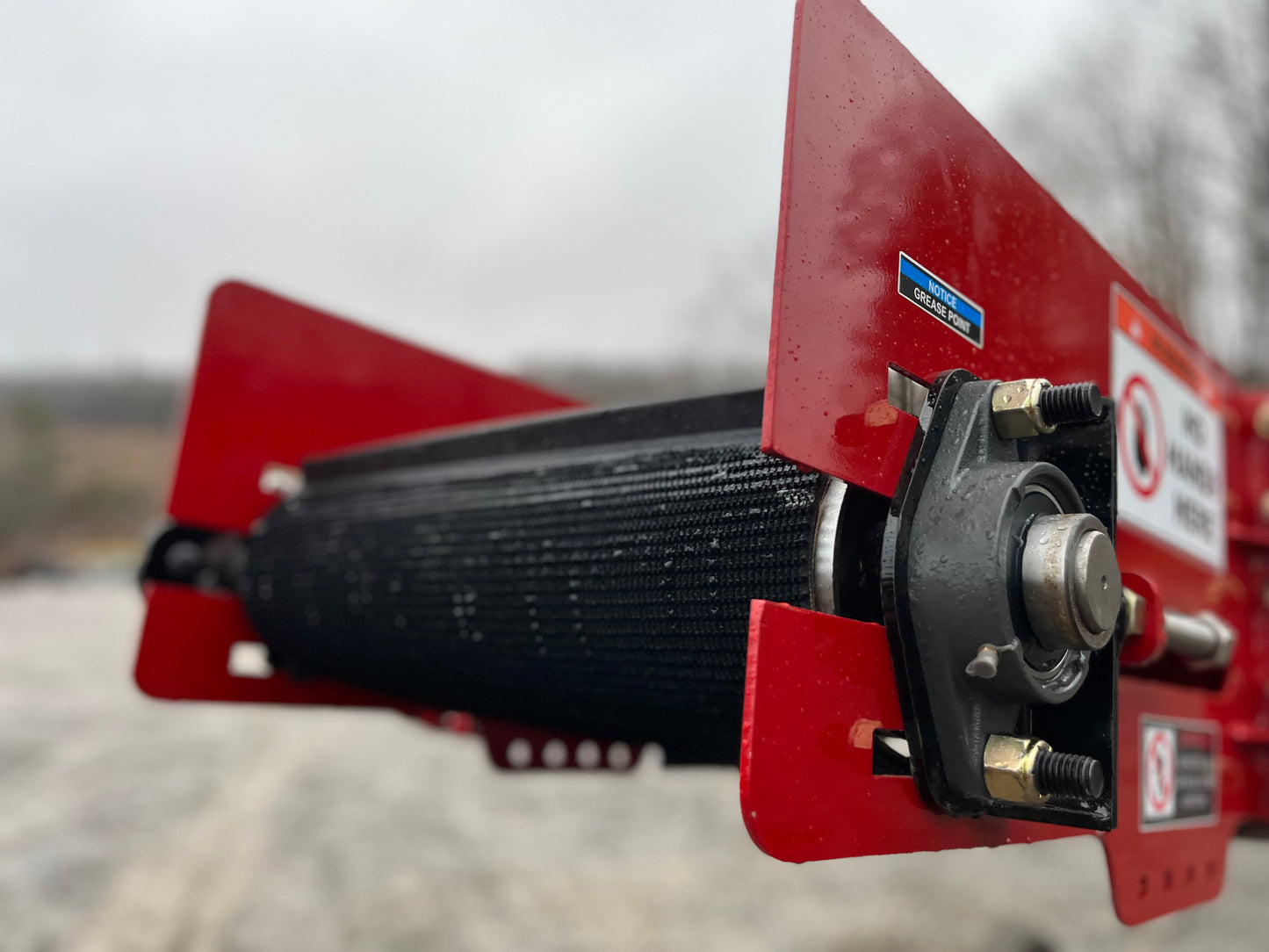

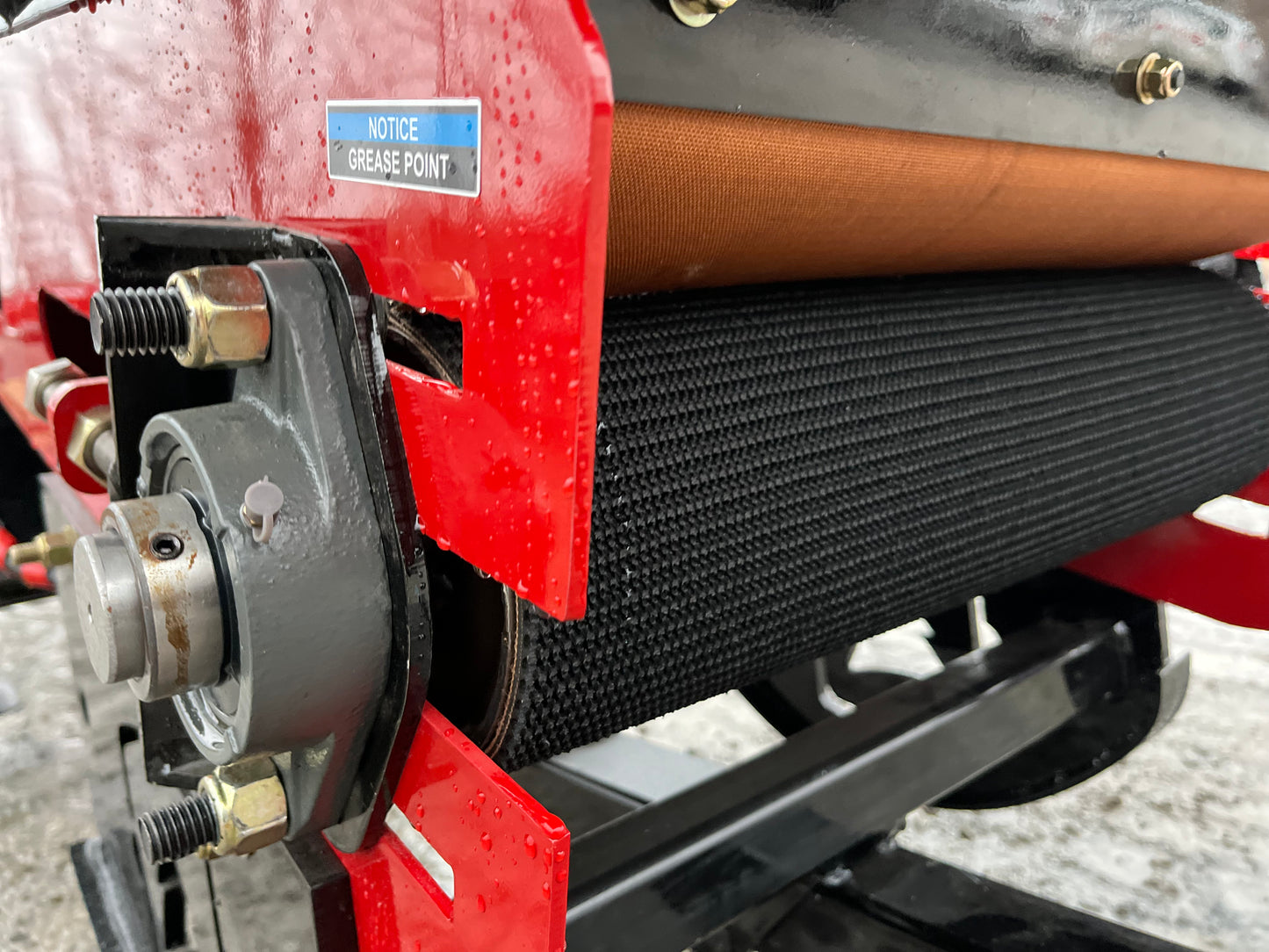

Correct Belt Tracking Made Easy

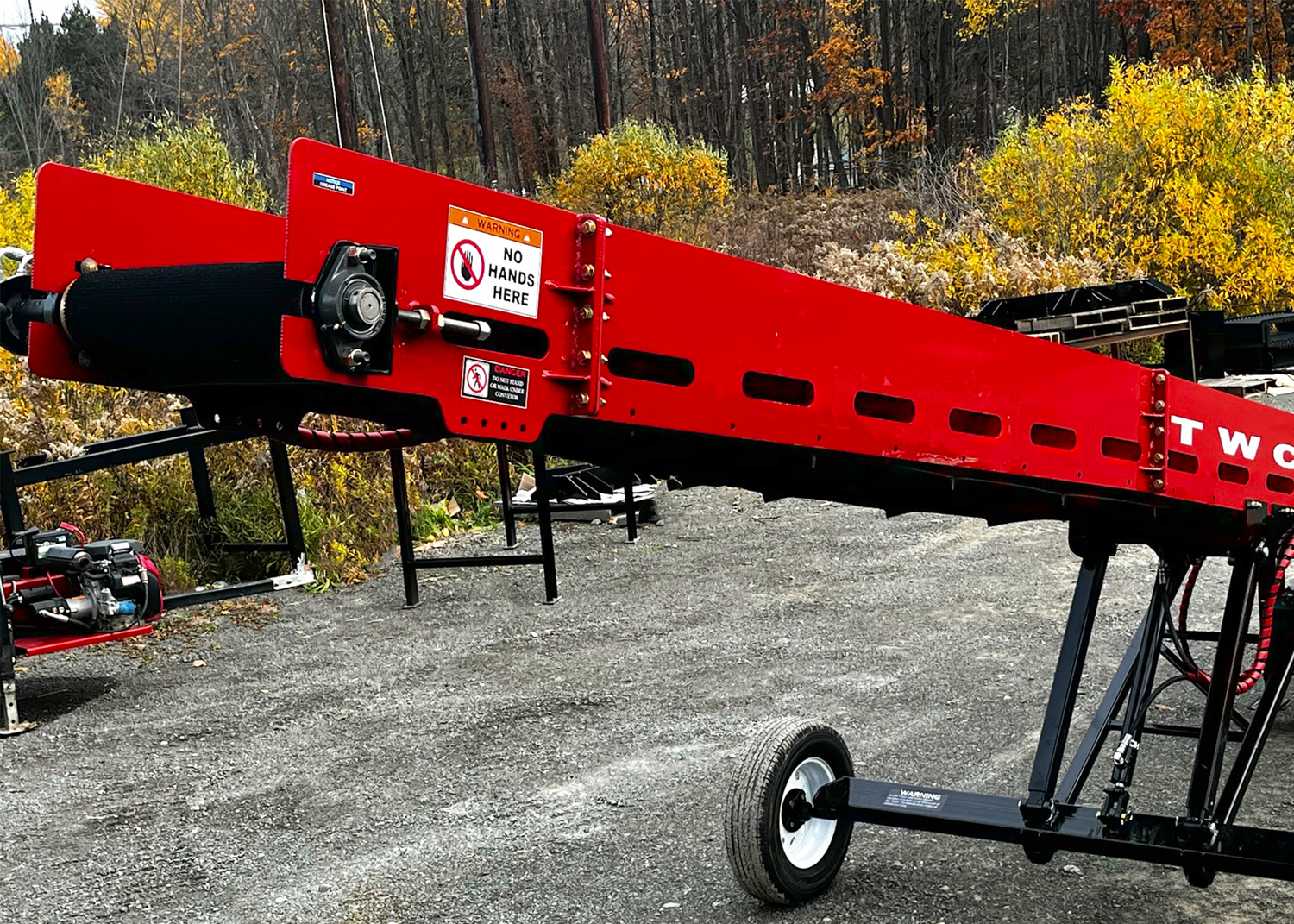

Timberwolf firewood conveyors come standard with tapered rollers designed to improve belt tracking and overall operational reliability. The slight inward taper on each roller naturally guides the conveyor belt back toward the center if it begins to drift off alignment, helping maintain smooth and consistent movement throughout production. This self-correcting design reduces the need for constant manual adjustments and minimizes downtime caused by belt misalignment.
The purpose behind the tapered roller system is simple: eliminate one of the most common frustrations in conveyor operation—belt tracking issues. Instead of requiring frequent realignment and interruptions to production, the system works continuously in the background to keep the belt properly centered, even under varying load conditions or uneven terrain. This results in a more efficient, low-maintenance conveyor system that keeps firewood moving without unnecessary stops or adjustments.
Offload Firewood Without the Debris

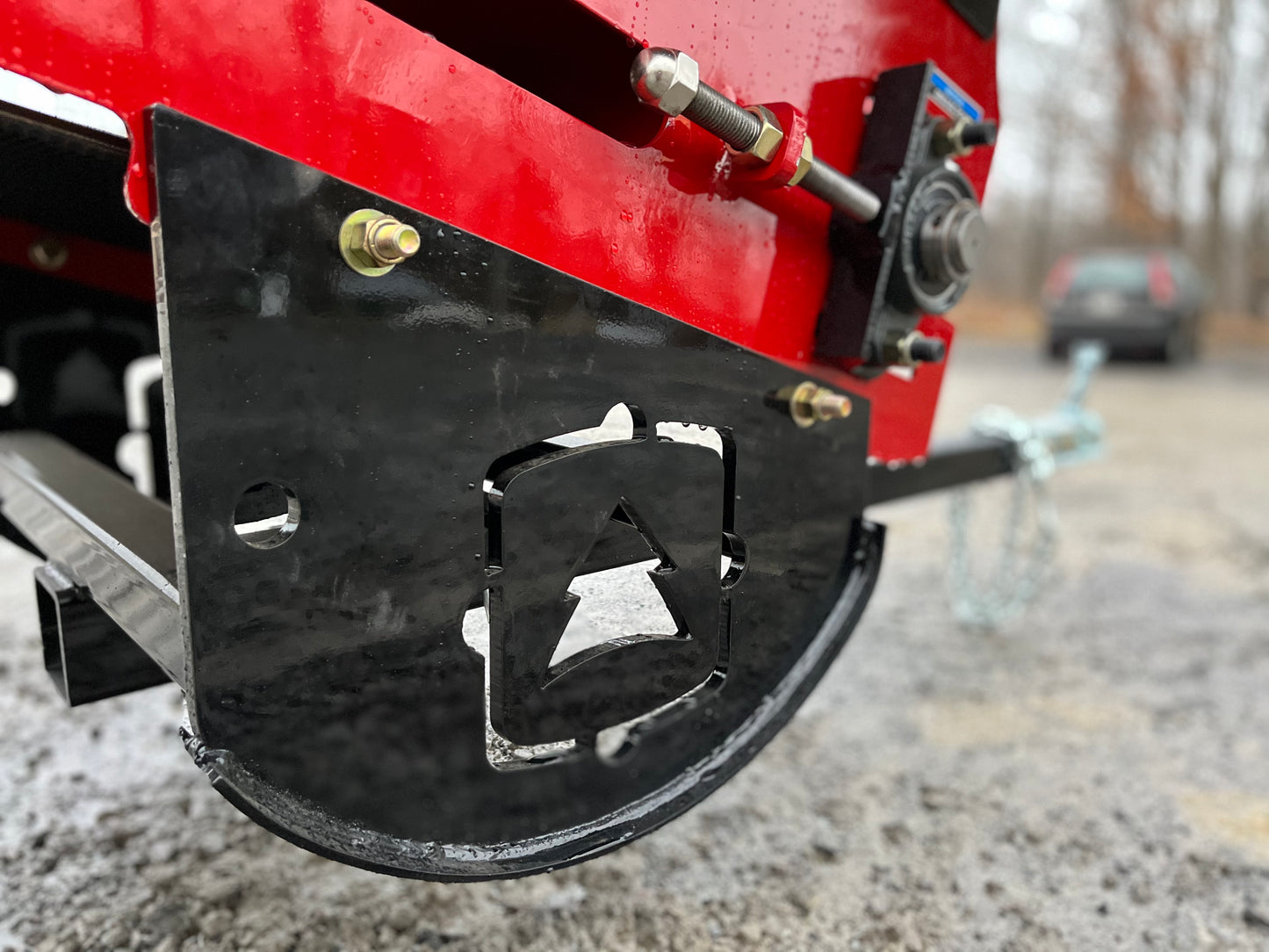

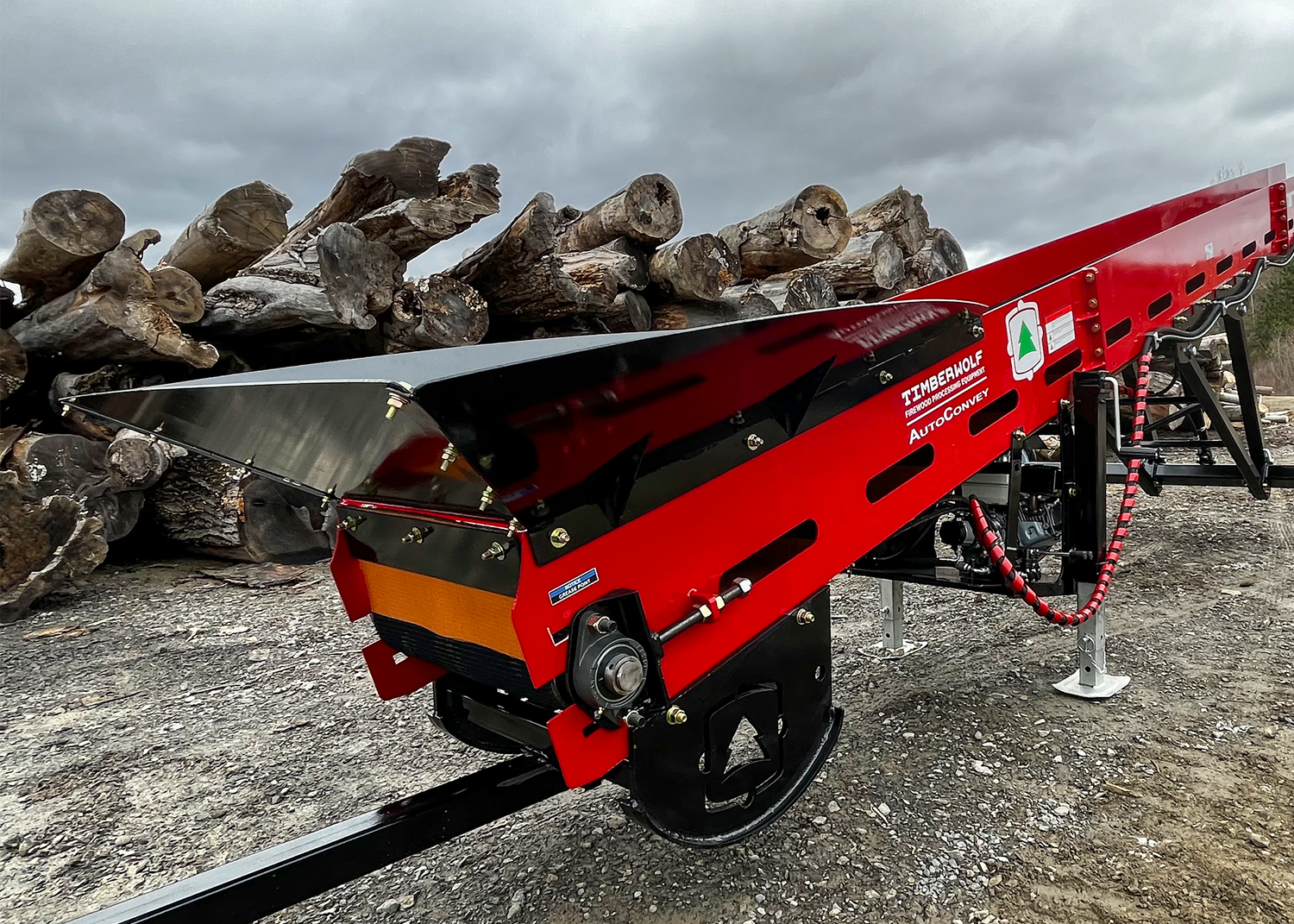

The rubber belt fines deflector may not be the most noticeable feature on the TWC-24, but it plays a critical role in maintaining system cleanliness and extending the overall lifespan of the conveyor. Positioned discreetly beneath the hopper, this simple yet effective component helps ensure that unwanted debris, bark, and fine material are directed away from the roller assembly instead of entering the belt system.
Without this protection, debris can accumulate in the roller area and eventually be carried along the belt, where it would be discharged onto already processed firewood, reducing product quality and increasing cleanup time. By preventing this contamination at the source, the fines deflector helps maintain a consistently clean final product while also reducing wear on internal components. Though small in size, this rubber flap delivers a significant impact on both operational efficiency and long-term equipment performance.

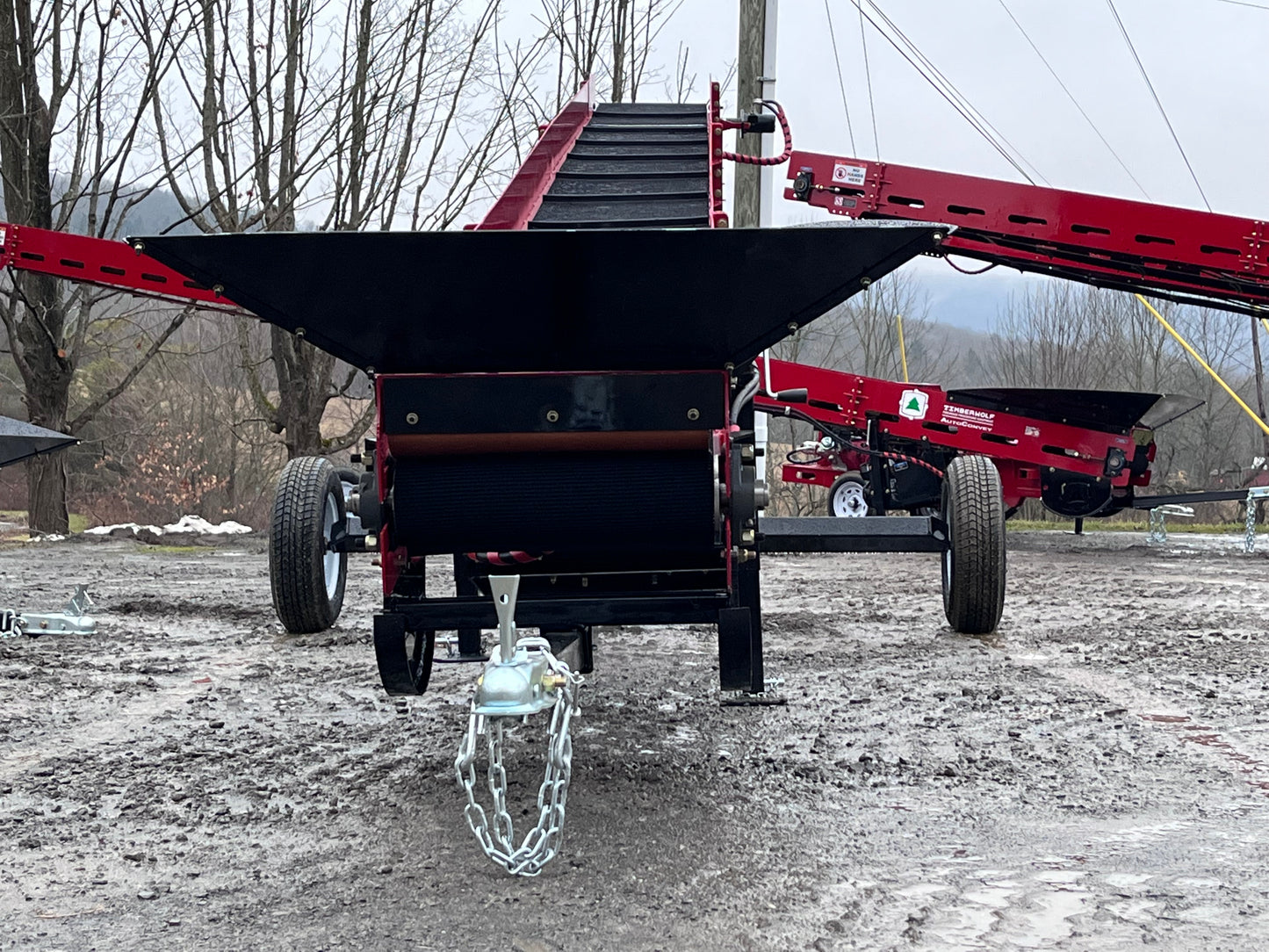

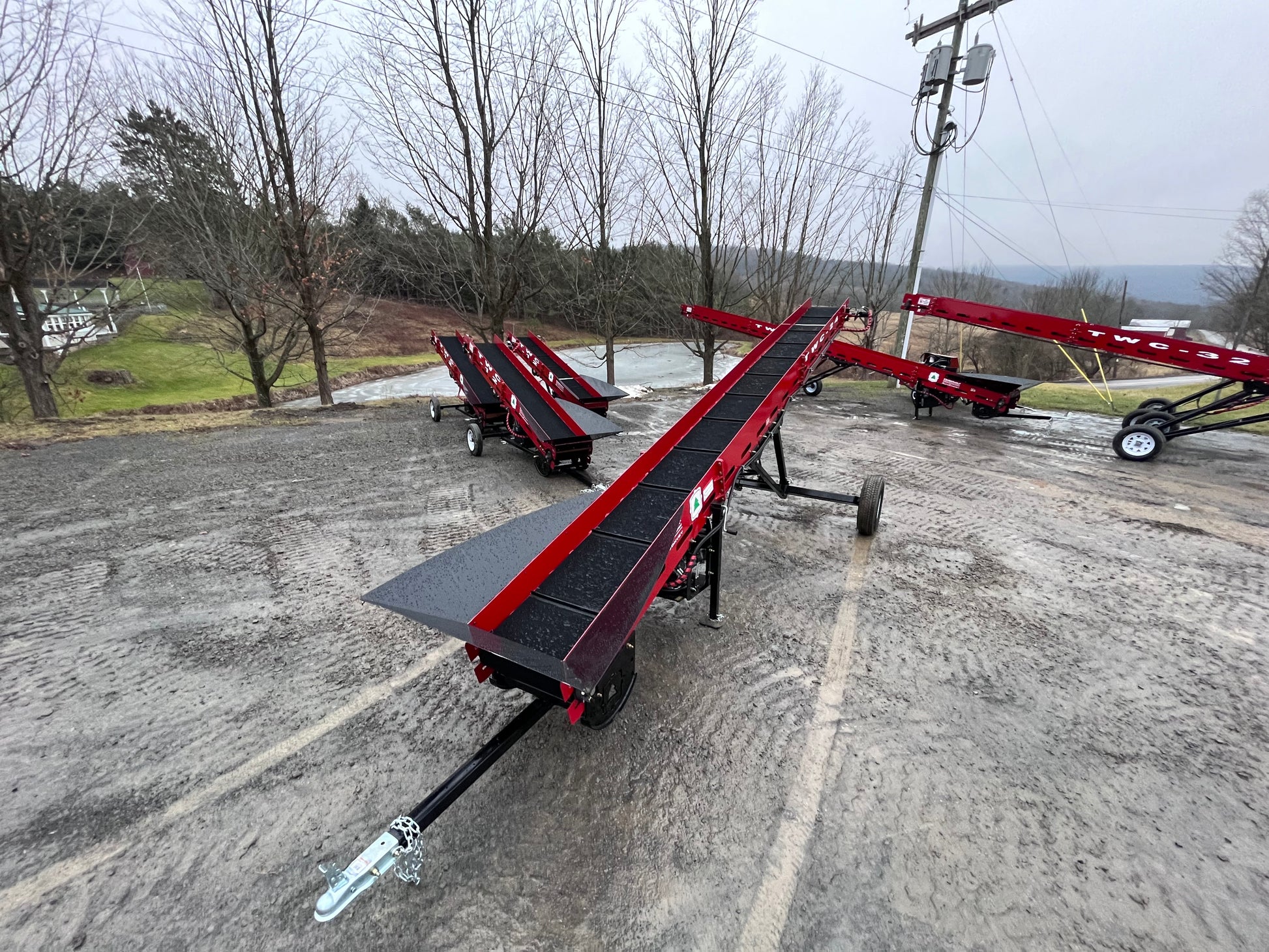

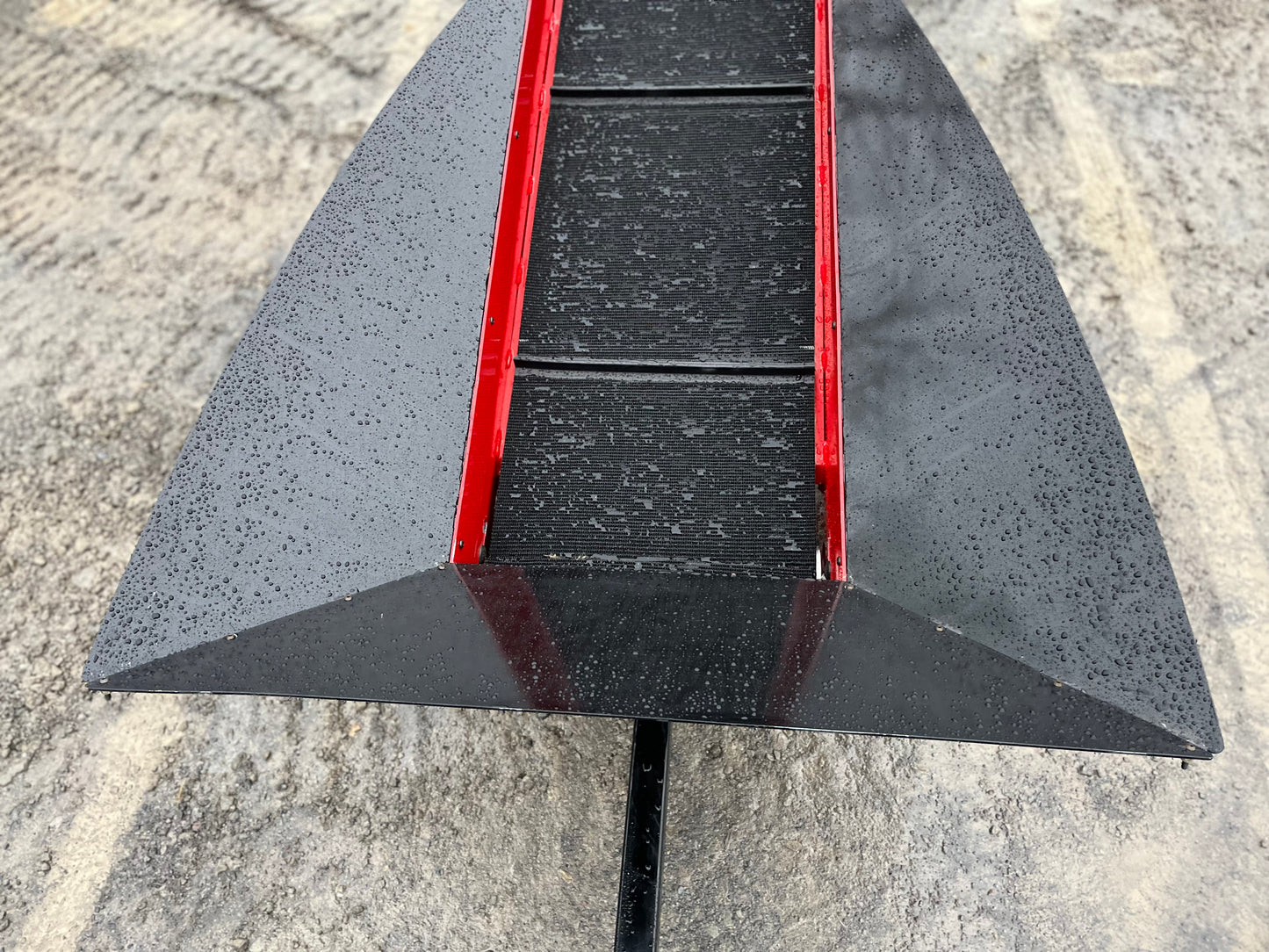

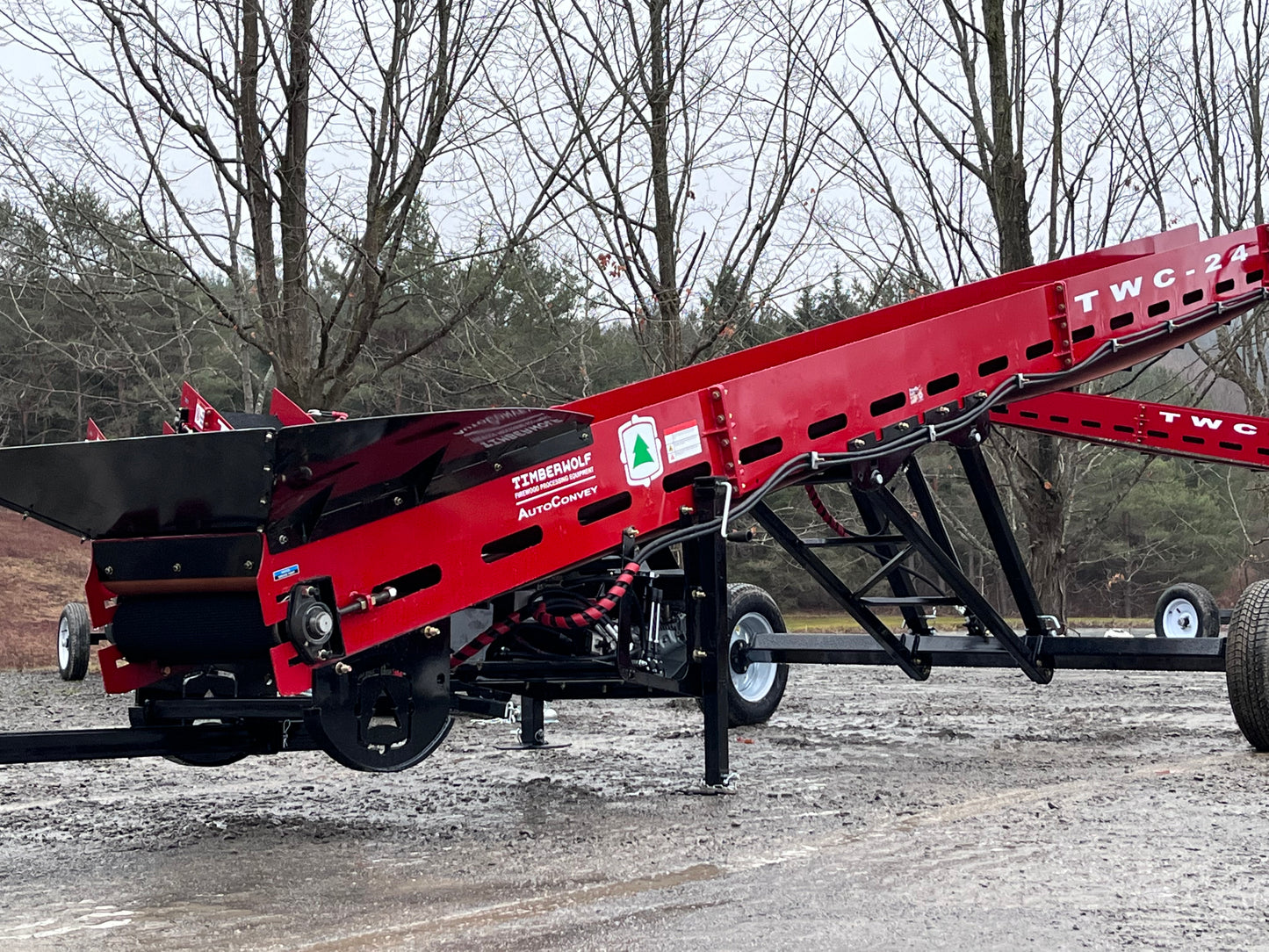

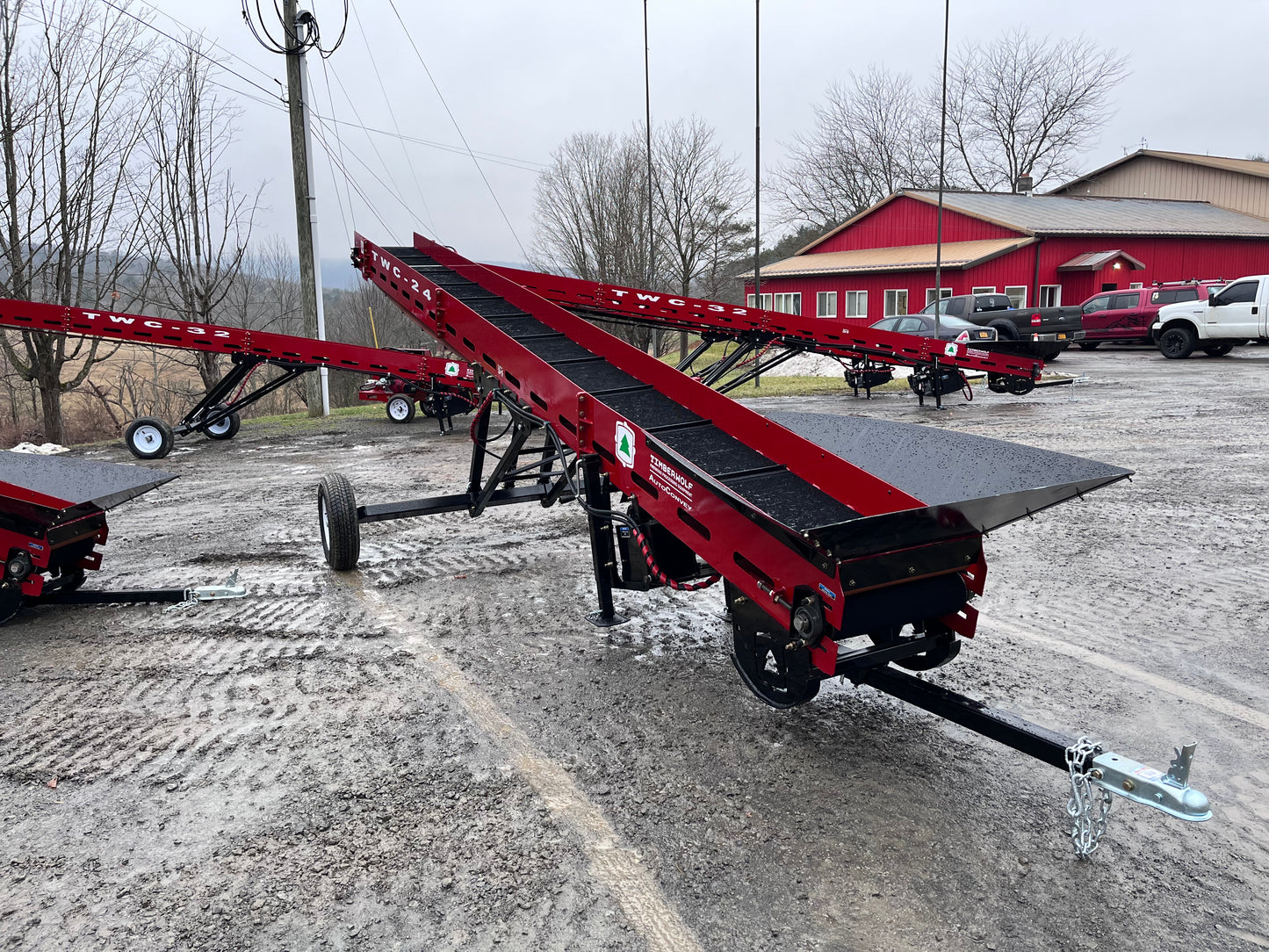

Funnel Your Firewood from One Stage to the Next

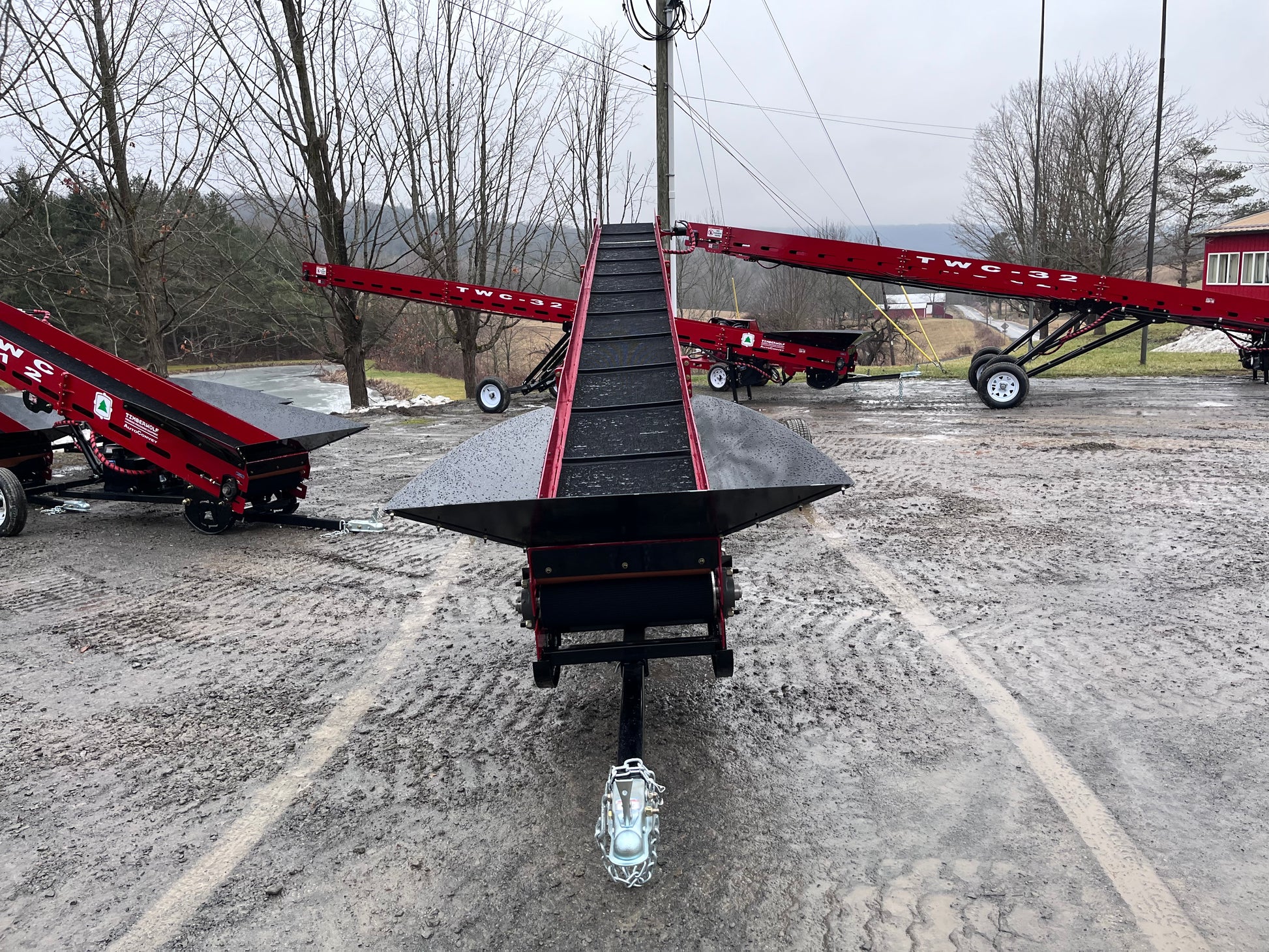

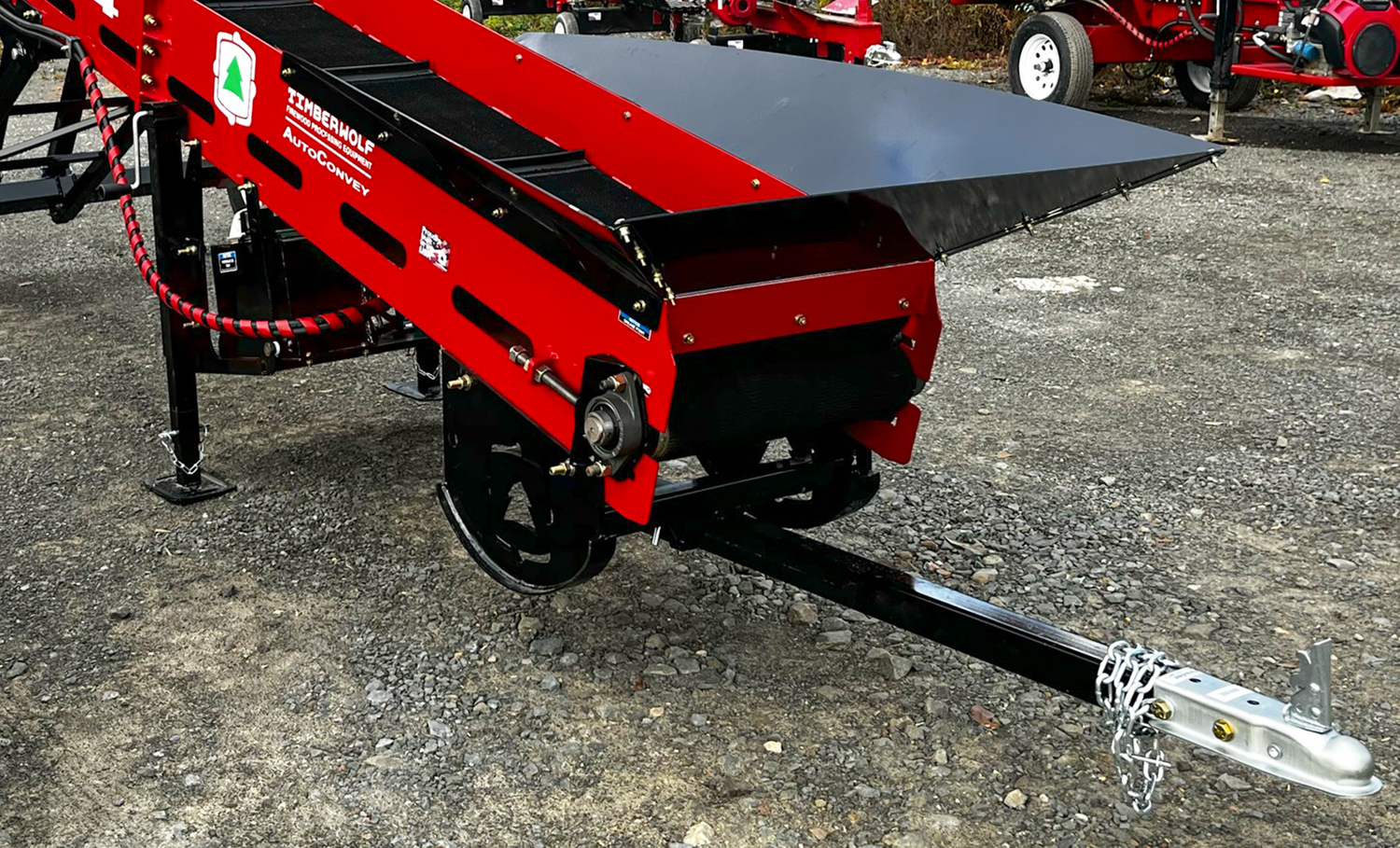

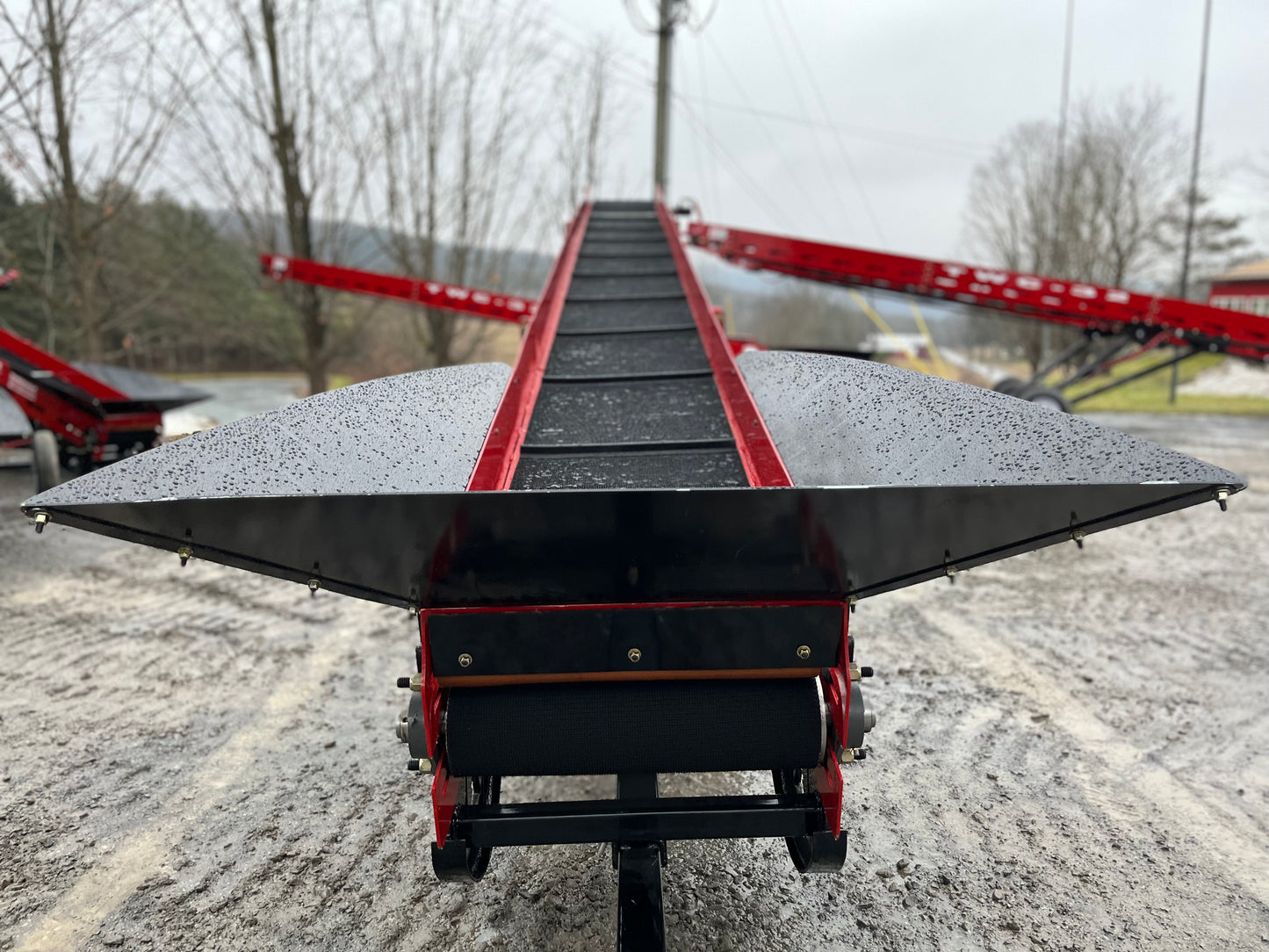

The high-strength steel modular hopper on the TWC-24 is designed to function as a controlled funnel for incoming firewood, helping guide material directly onto the conveyor belt while preventing logs from spilling over the sides or falling outside the intended loading area. This improves loading efficiency, reduces waste, and ensures a smoother, more consistent flow of material into the conveyor system during operation.
This design makes the TWC-24 an ideal addition to a Timberwolf firewood processing setup, especially when paired with a log splitter equipped with a table grate. Because both systems use a funnel-style flow design, firewood can move seamlessly from the splitter, onto the conveyor, and directly into a truck bed or storage pile with minimal handling. This continuous transfer process improves workflow efficiency and helps maintain a clean, organized production line from start to finish.

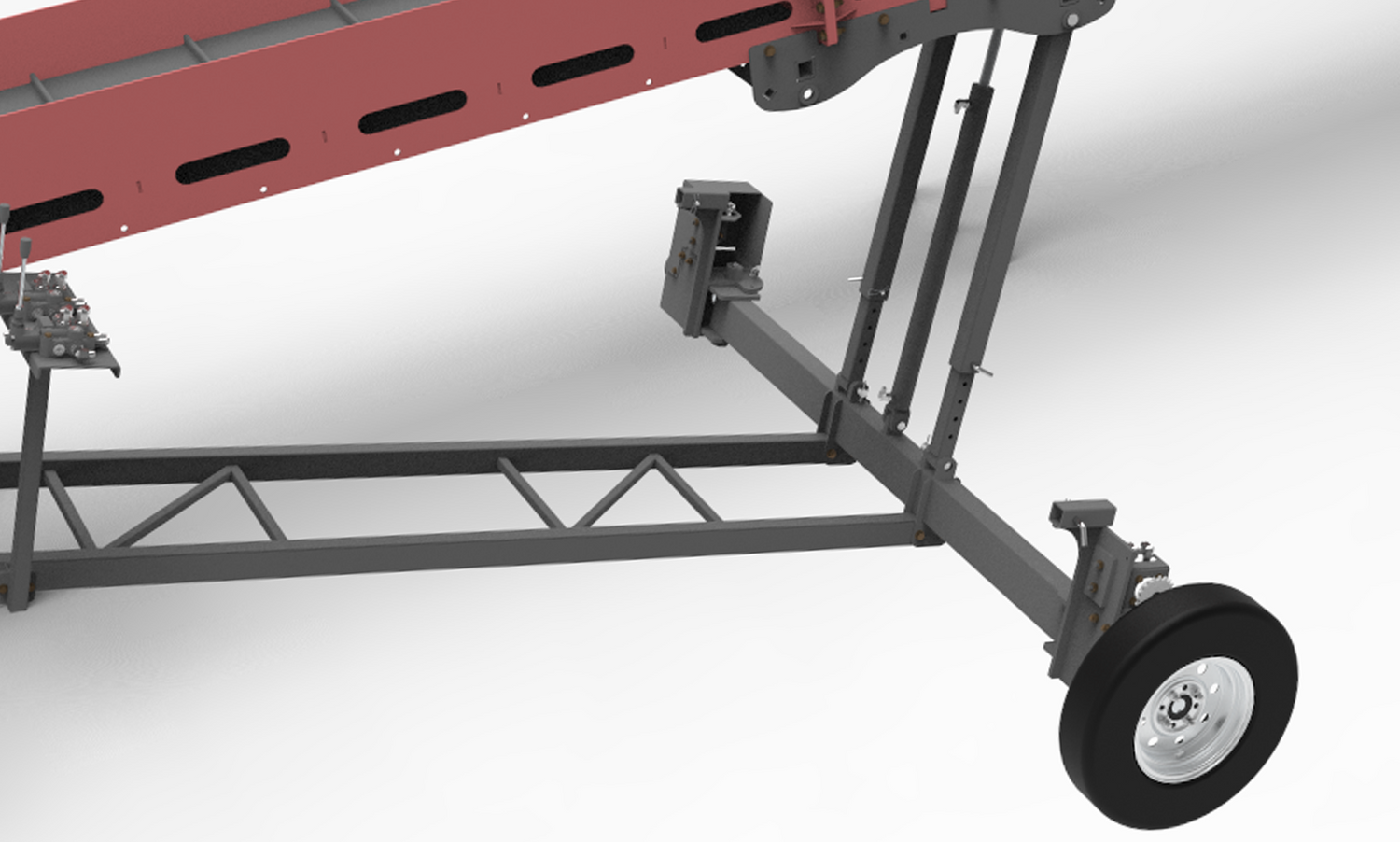

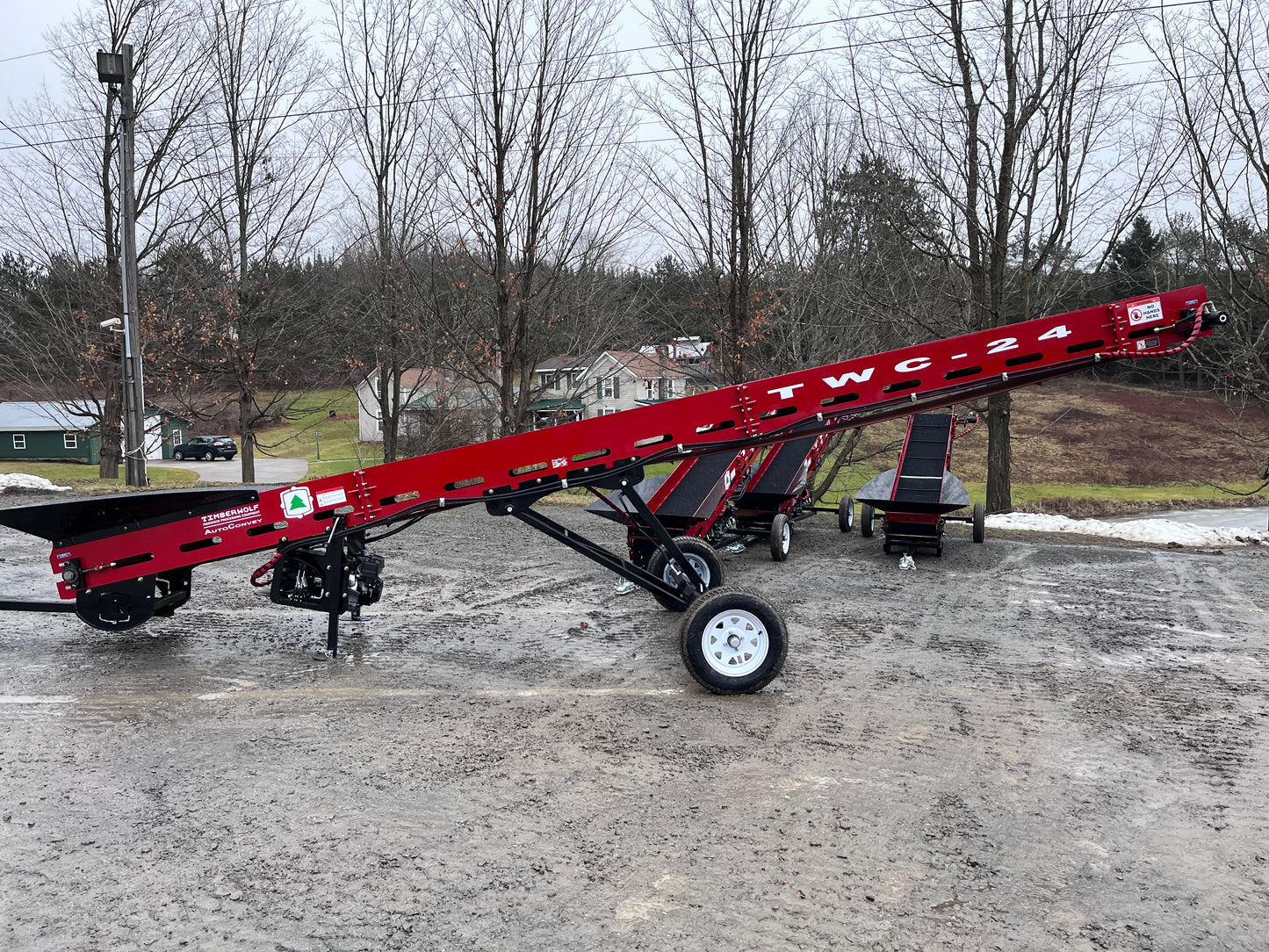

Firewood Conveyor With an Oscillating Axle
With the TWC-24 firewood conveyor, operators can quickly shift the machine side-to-side to move away from growing piles of firewood, improving efficiency and reducing downtime during continuous production. This capability is made possible by the conveyor’s oscillating axle system, which is designed specifically for lateral movement in demanding firewood processing environments.
Unlike standard axles that are fixed in a forward orientation, the oscillating axle on the TWC-24 is configured to pivot inward, enabling controlled side-to-side motion of the entire unit. This allows operators to reposition the conveyor simply by pushing it in the desired direction, without needing to disconnect or relocate the machine. For even greater control and convenience, an optional drive motor can be added and operated through dual single-spool valves, allowing powered lateral movement for faster and more precise repositioning on the job site.
