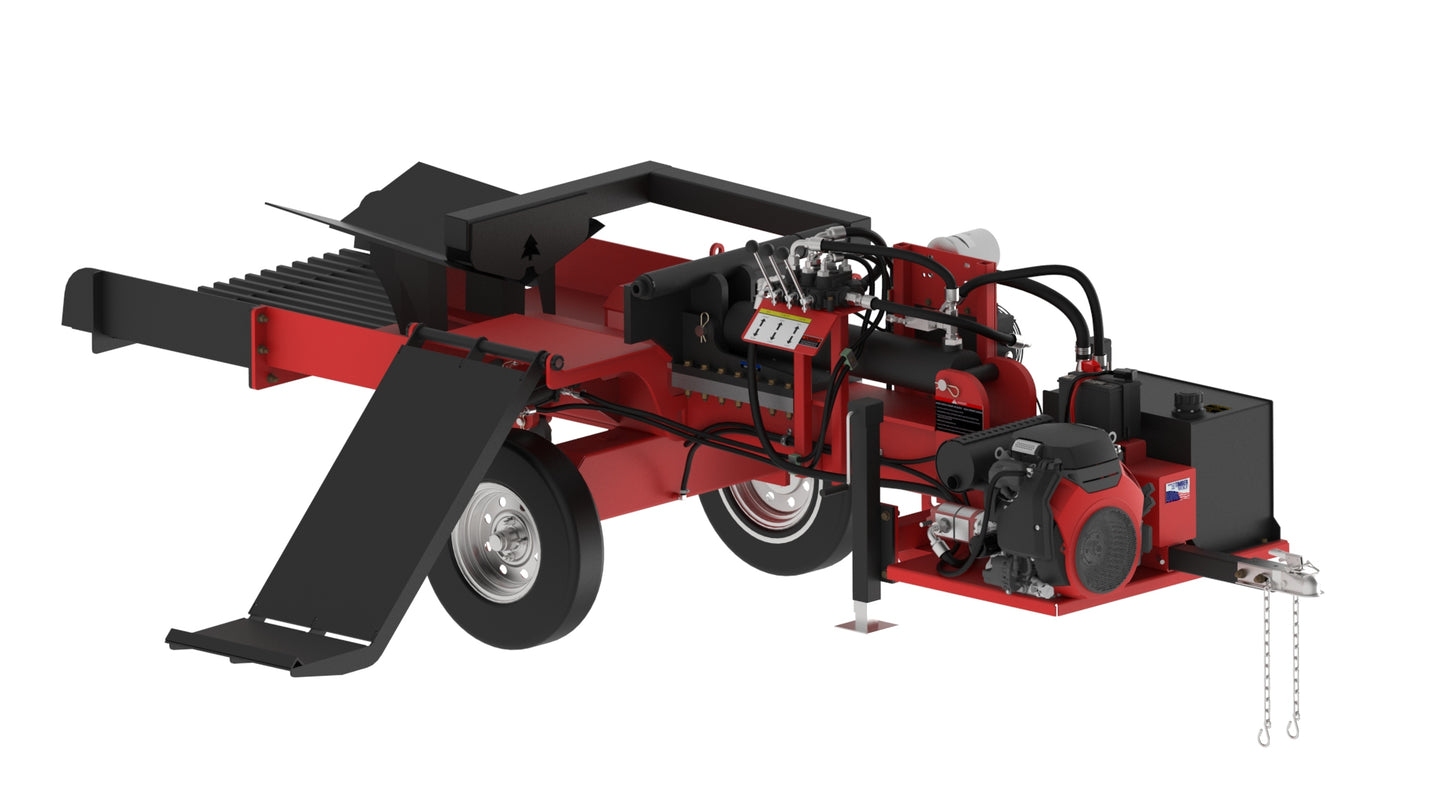

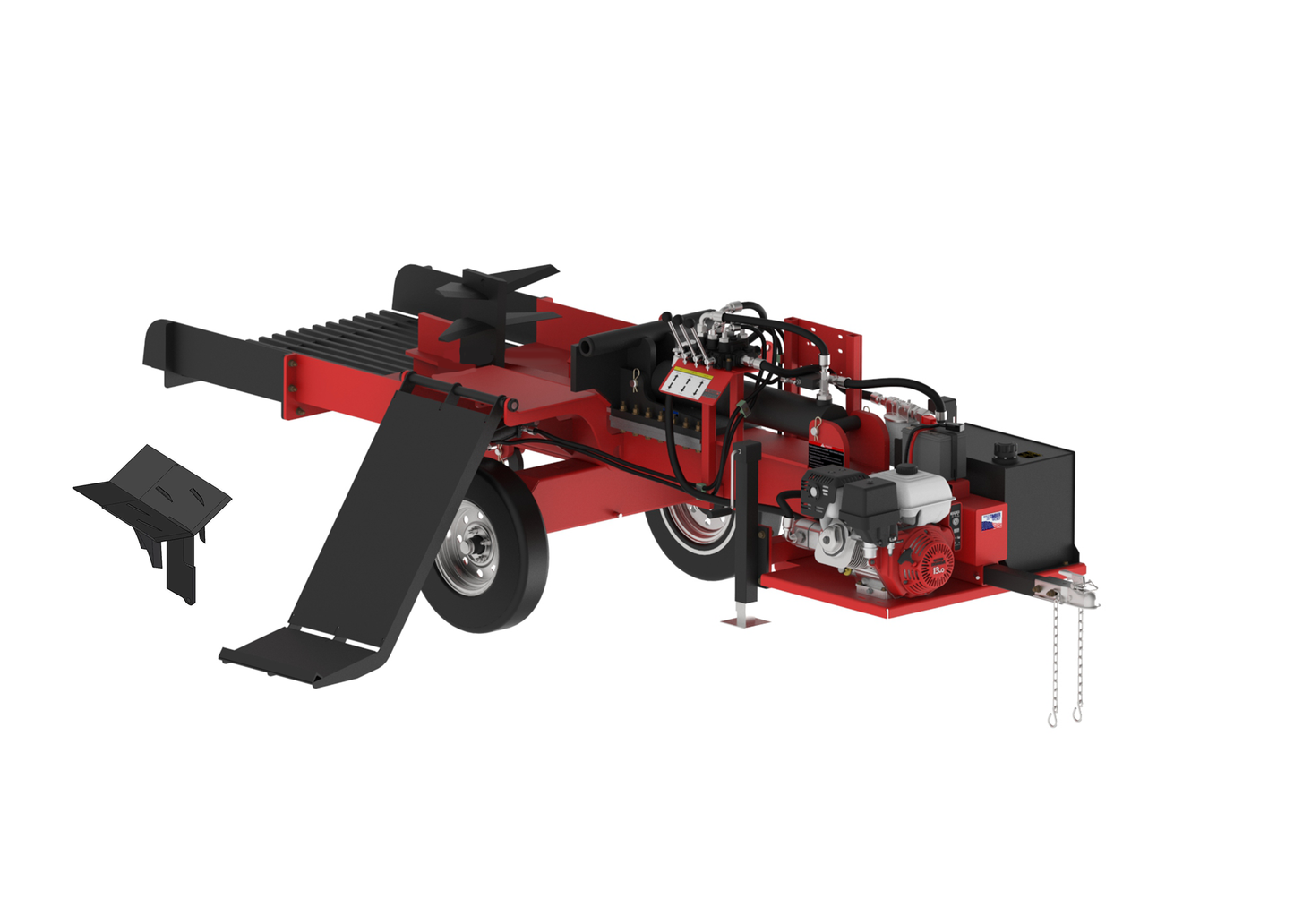

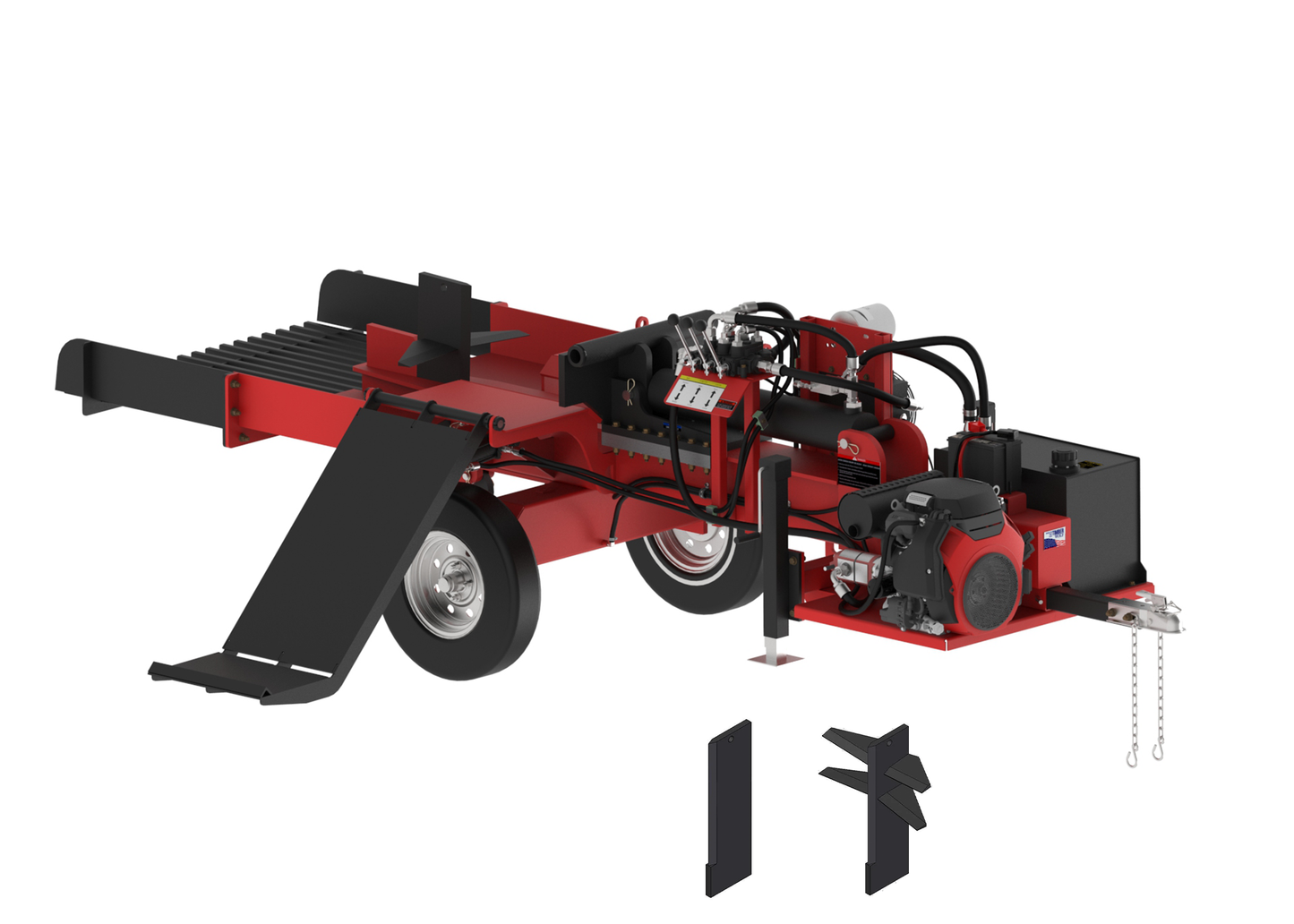

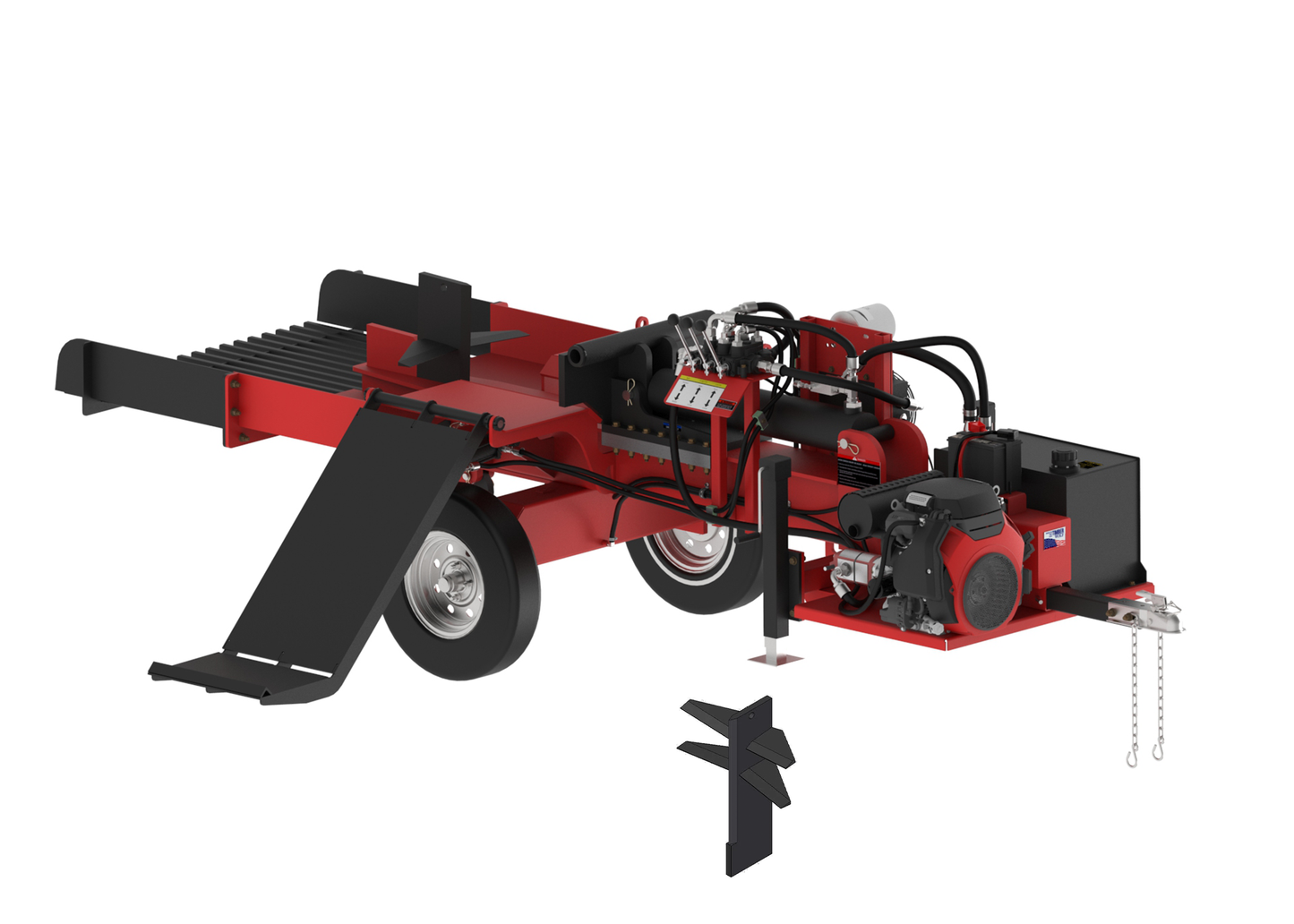

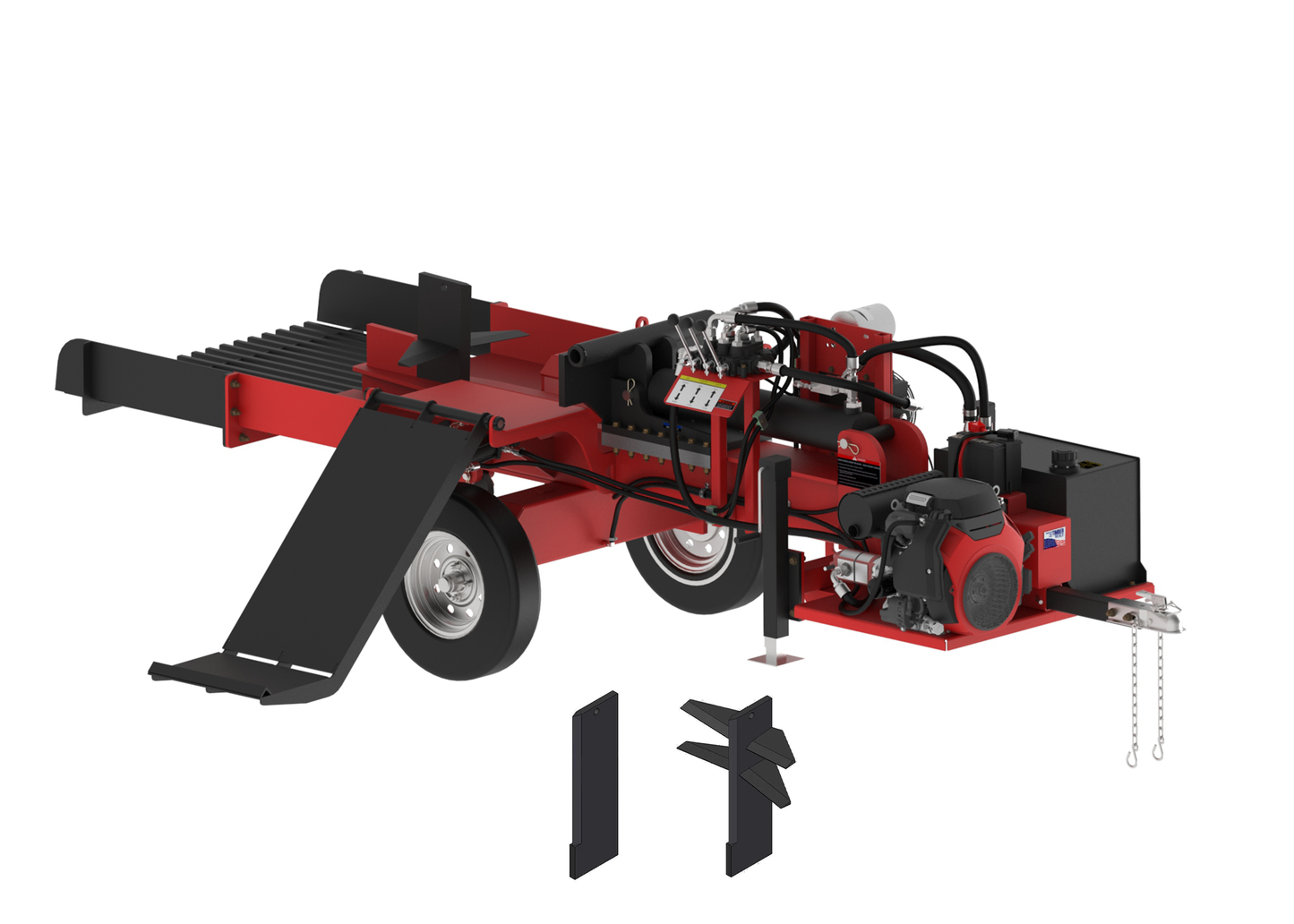

Box Wedge Advantages

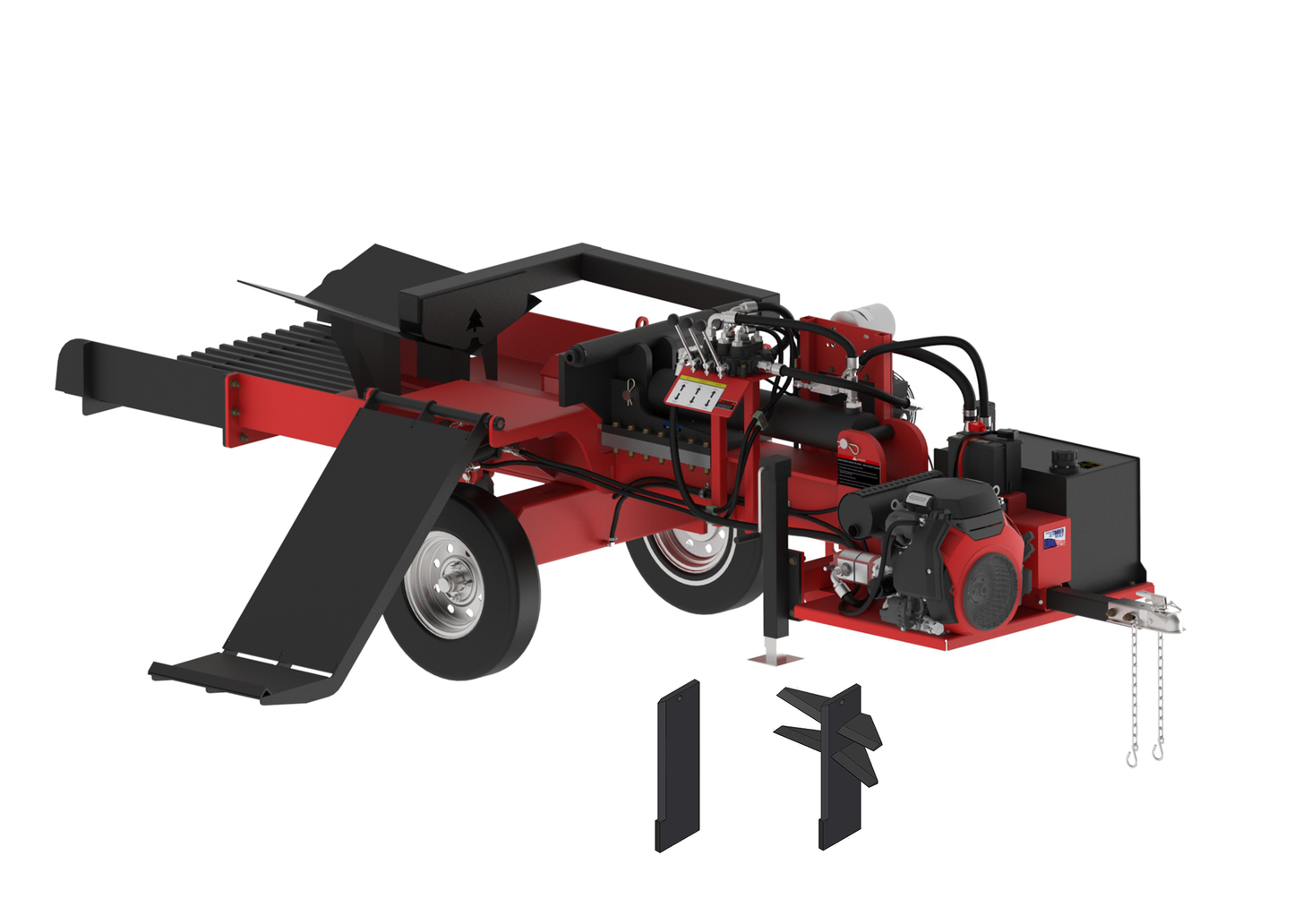

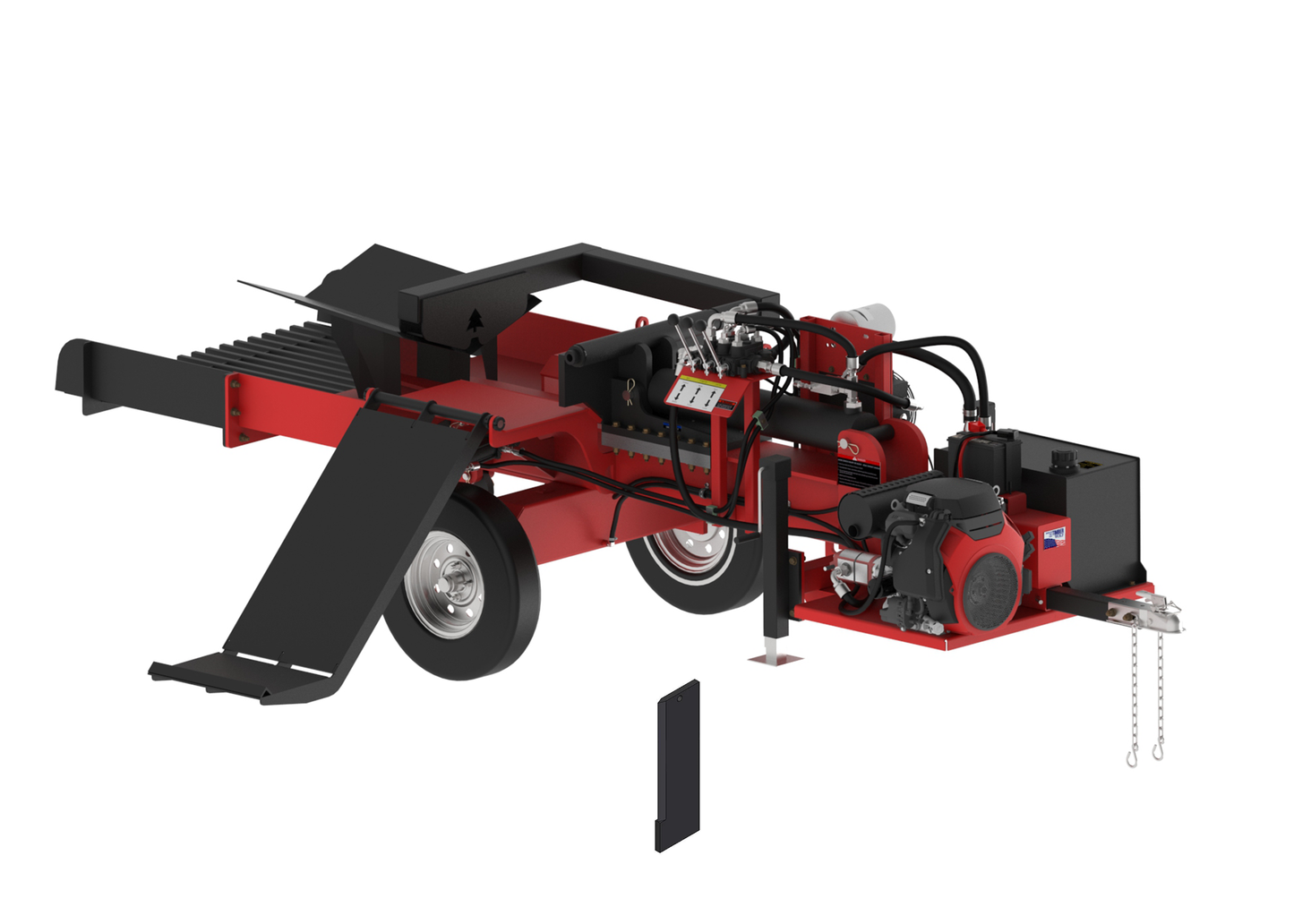

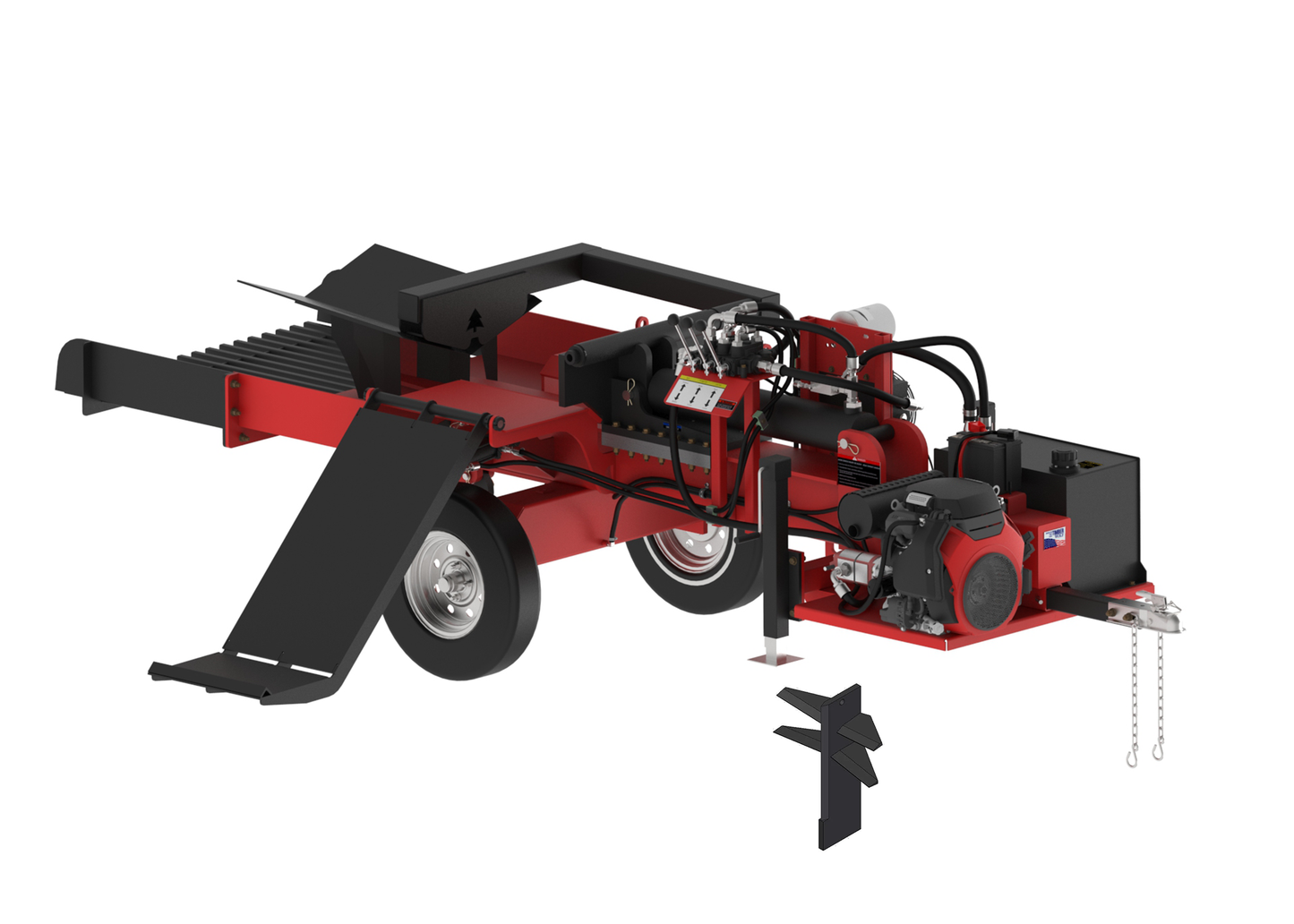

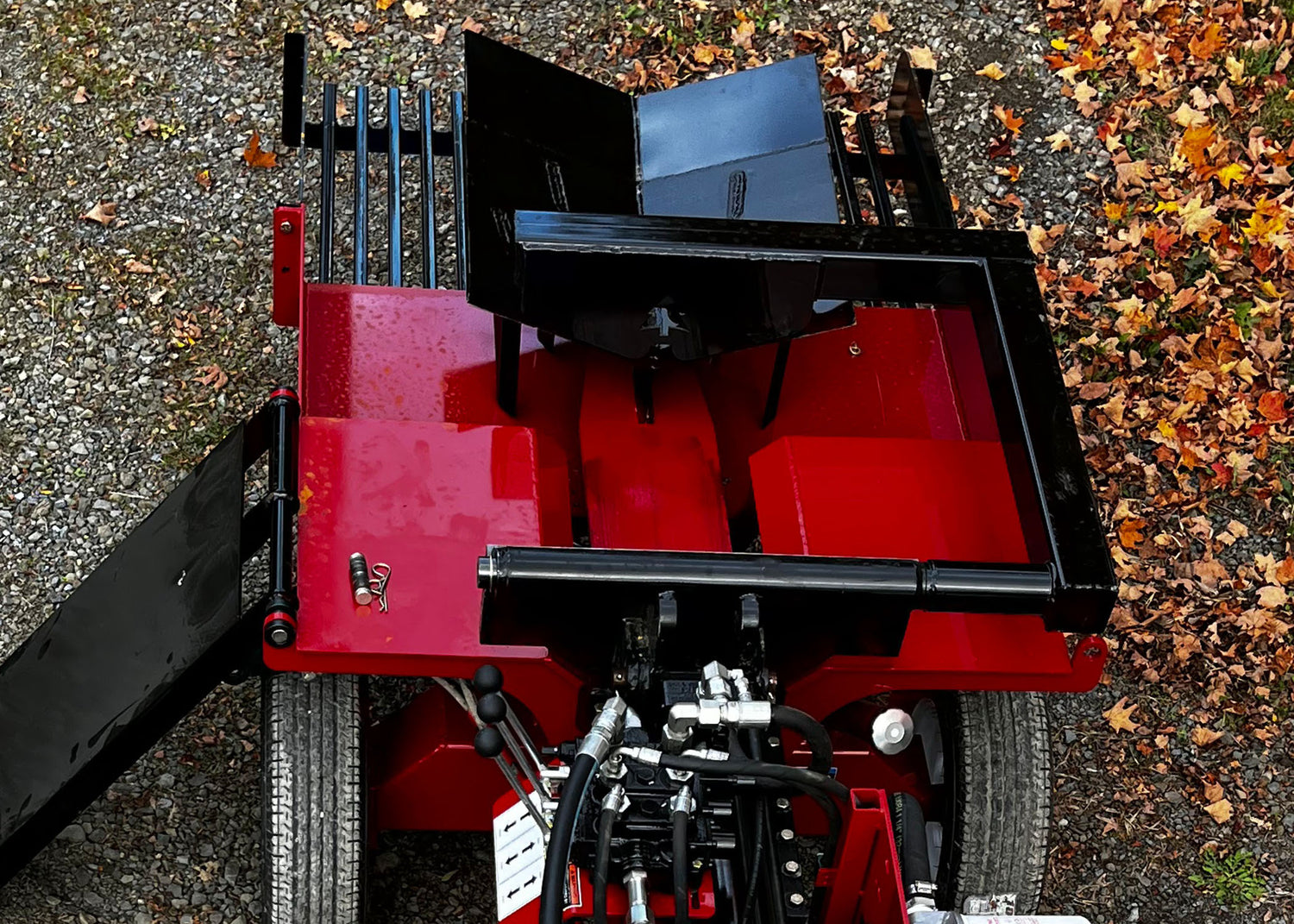

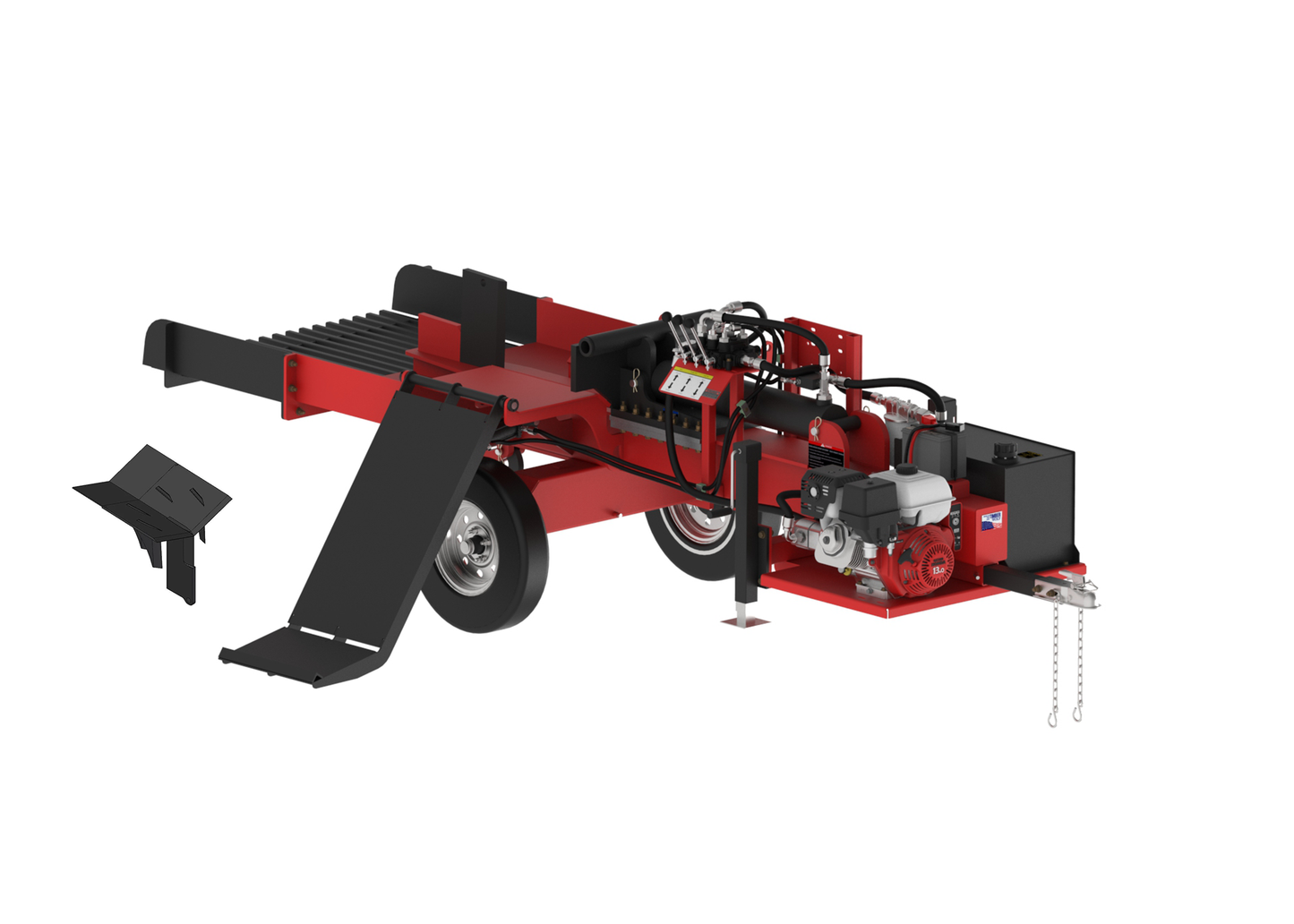

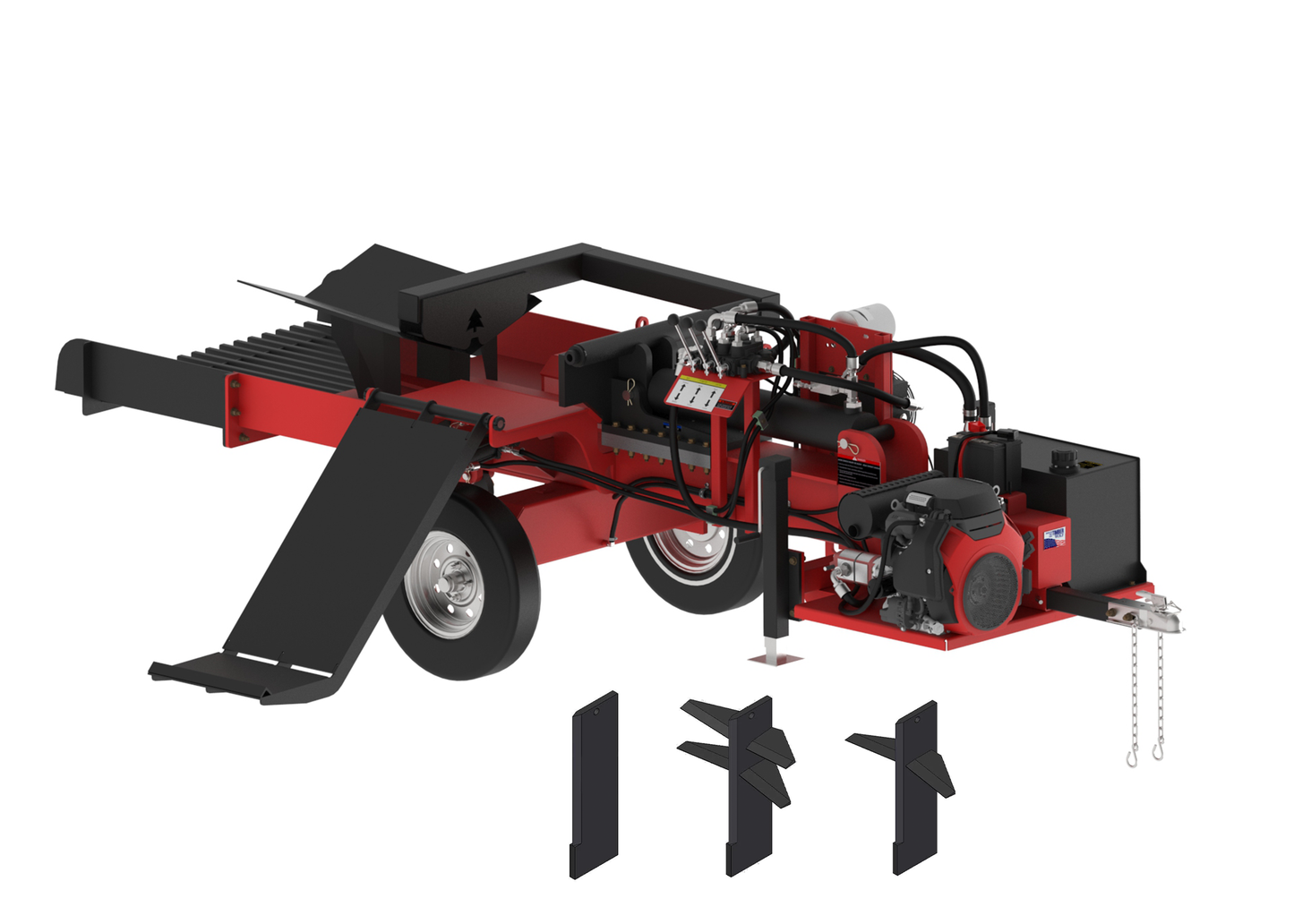

The Alpha Series box wedge options are engineered for high-efficiency, precision firewood production and feature an innovative floating auto-retract arm system that significantly reduces operator effort. As logs are pushed through the wedge, the auto-retract arm actively engages any un-split portions and pulls them back into the splitting chamber, ensuring the entire log is fully processed without requiring manual repositioning. This continuous feed-style action minimizes re-handling, reduces downtime between cycles, and helps maintain a smooth, uninterrupted workflow even when processing large or irregularly shaped blocks. Available in three different size configurations, the box wedge system allows operators to tailor output based on material type and production goals, ensuring optimal performance across a wide range of firewood applications.
Designed for both efficiency and product quality, the Alpha Series box wedge produces consistently uniform firewood that is ideal for commercial sale and packaged distribution. By splitting logs into evenly sized pieces in a single pass, it eliminates the need for secondary processing and creates a cleaner, more professional final product. This makes it especially well-suited for producing premium cord wood, packaged firewood bundles, and specialty products such as camp and cooking wood. The combination of precision splitting, automated material handling, and high-volume output allows operators to maximize profitability while delivering a high-quality, market-ready product that meets the demands of retail and wholesale customers alike.

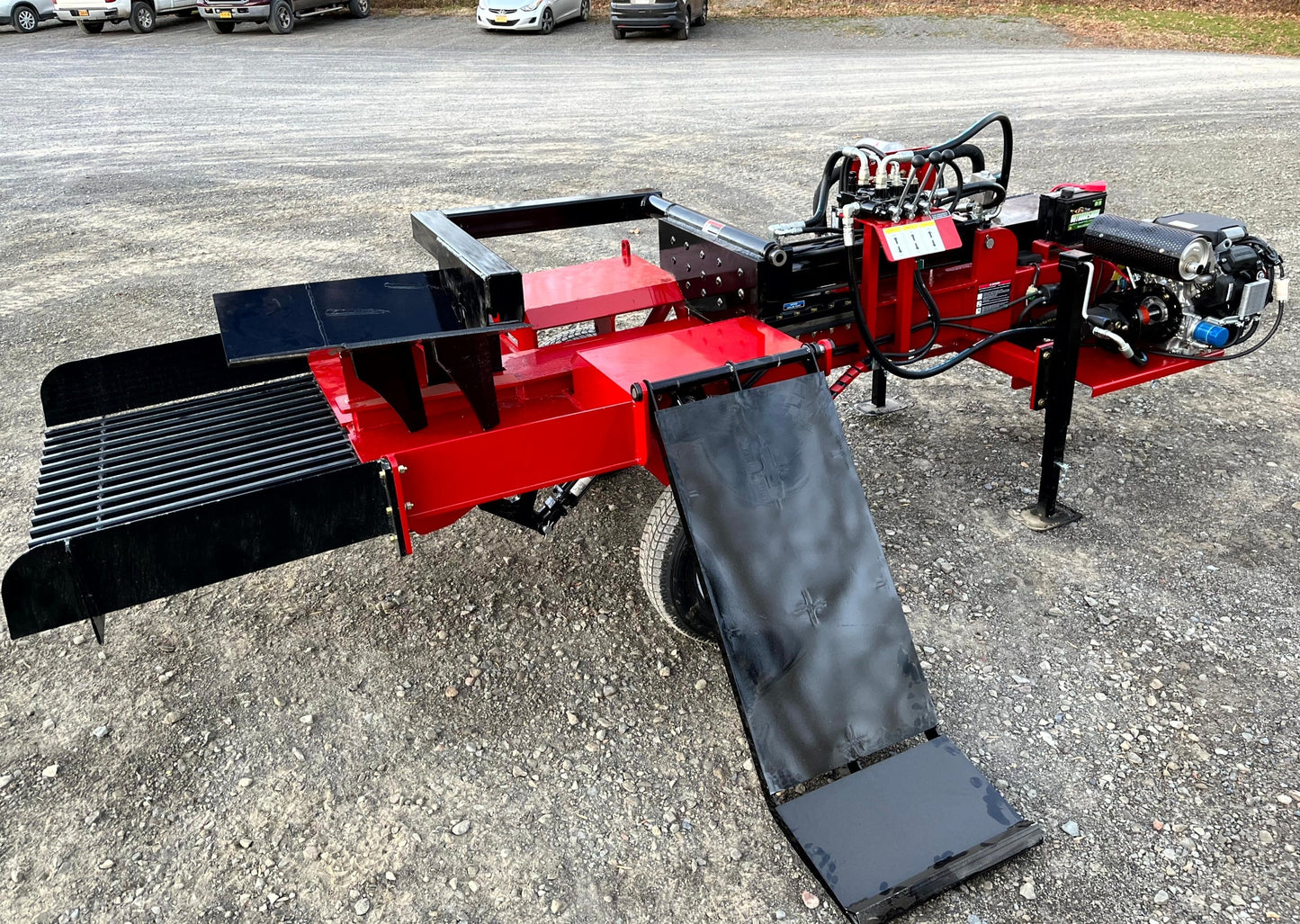

Minimal Debris, Maximum Production

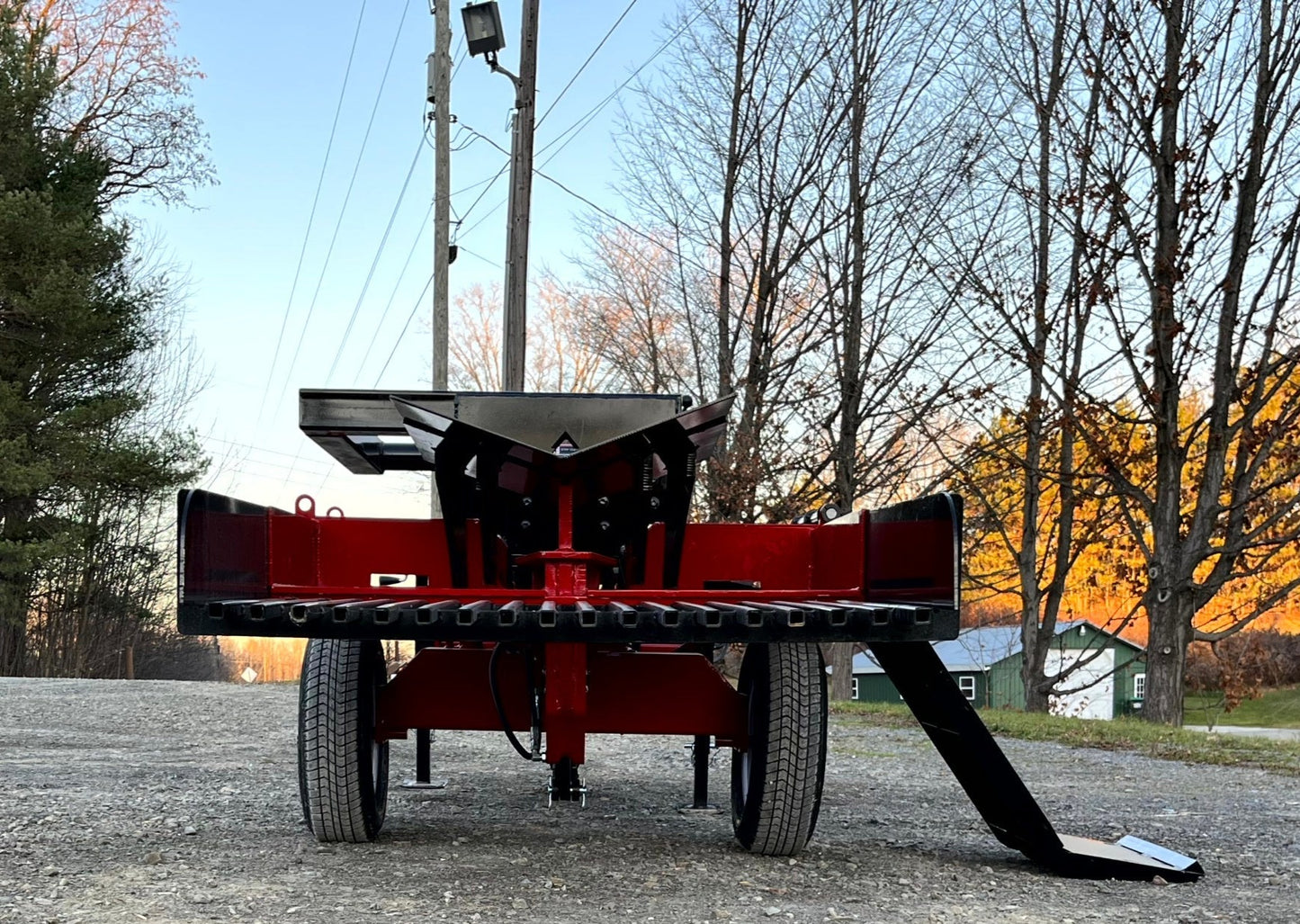

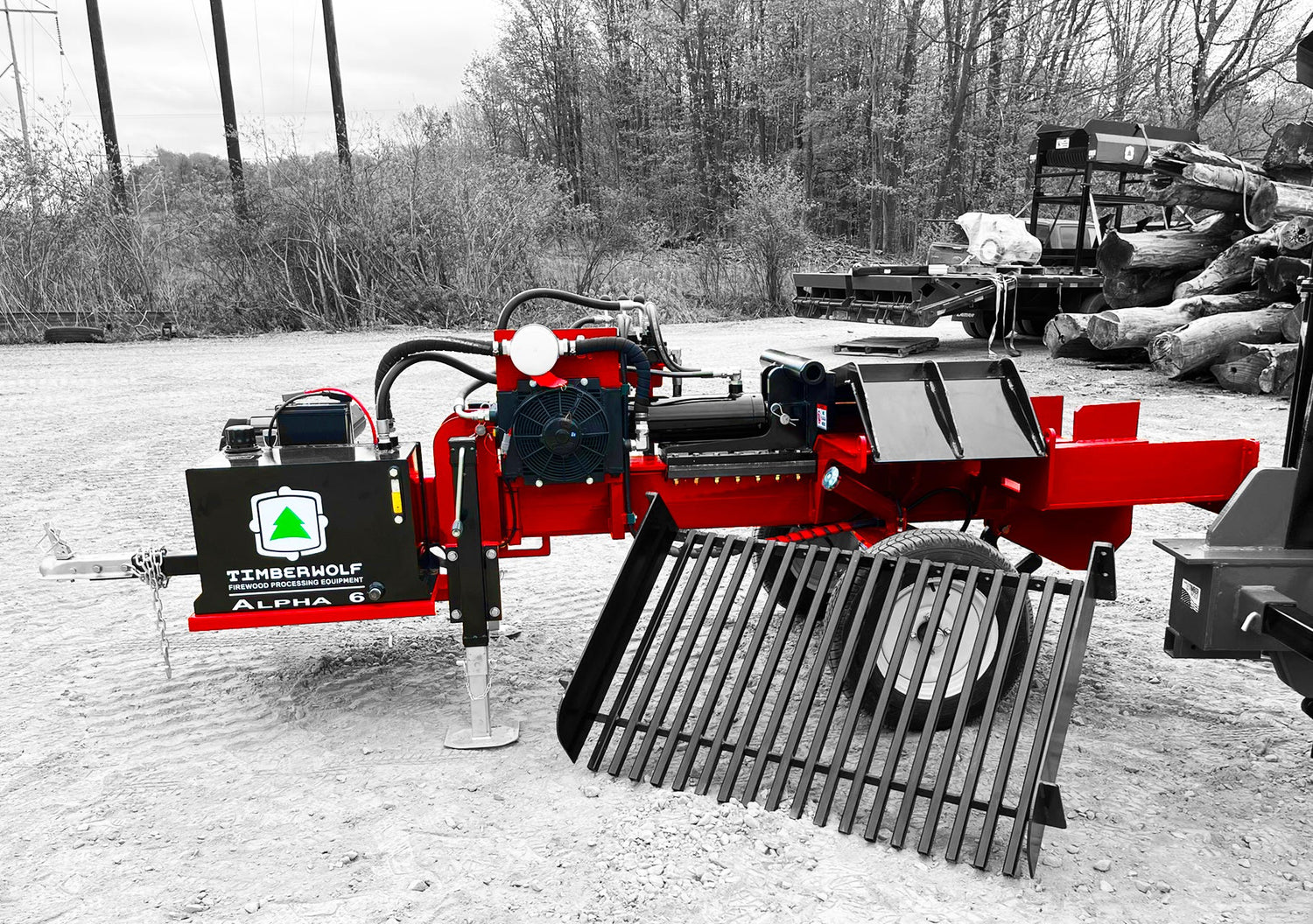

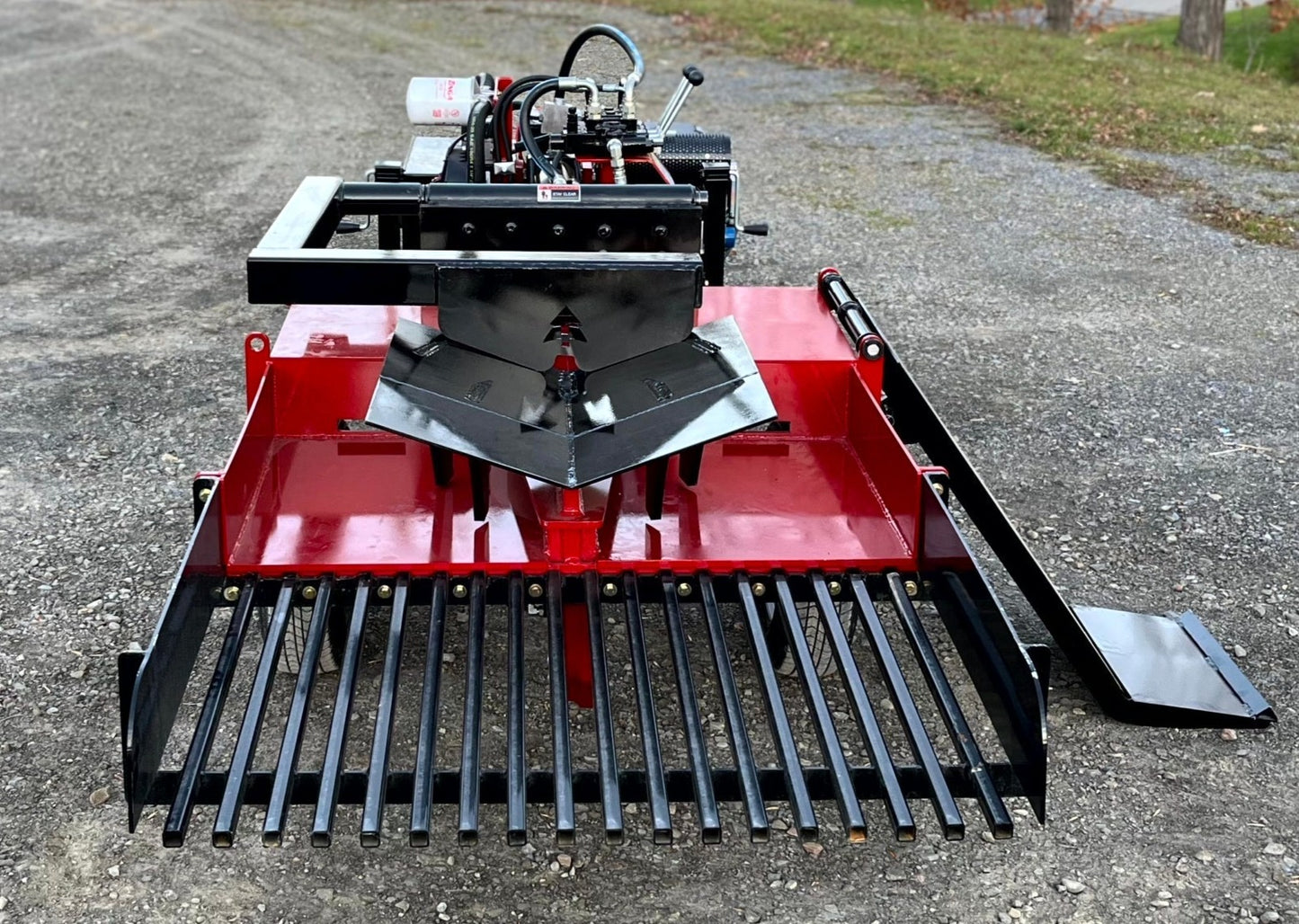

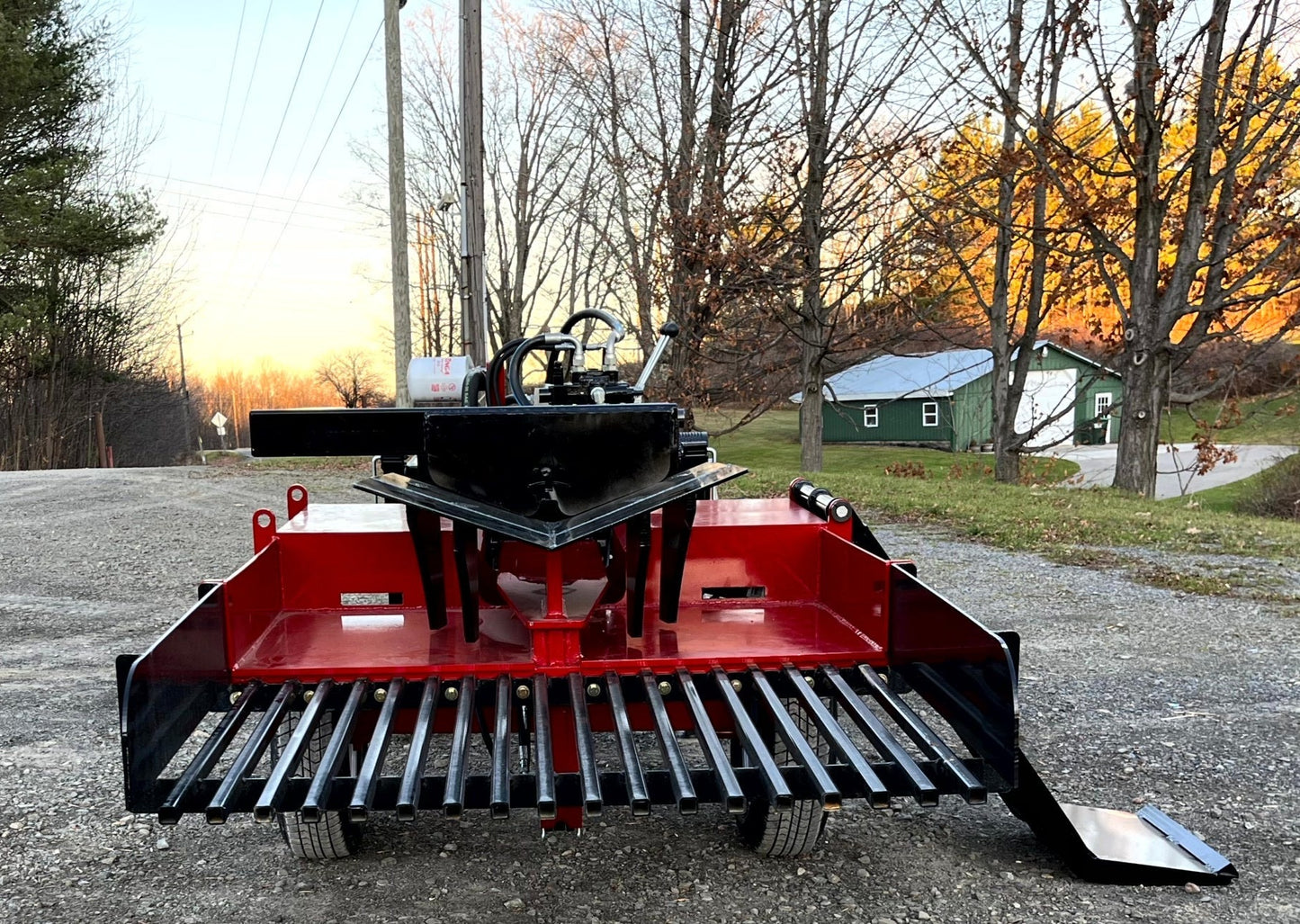

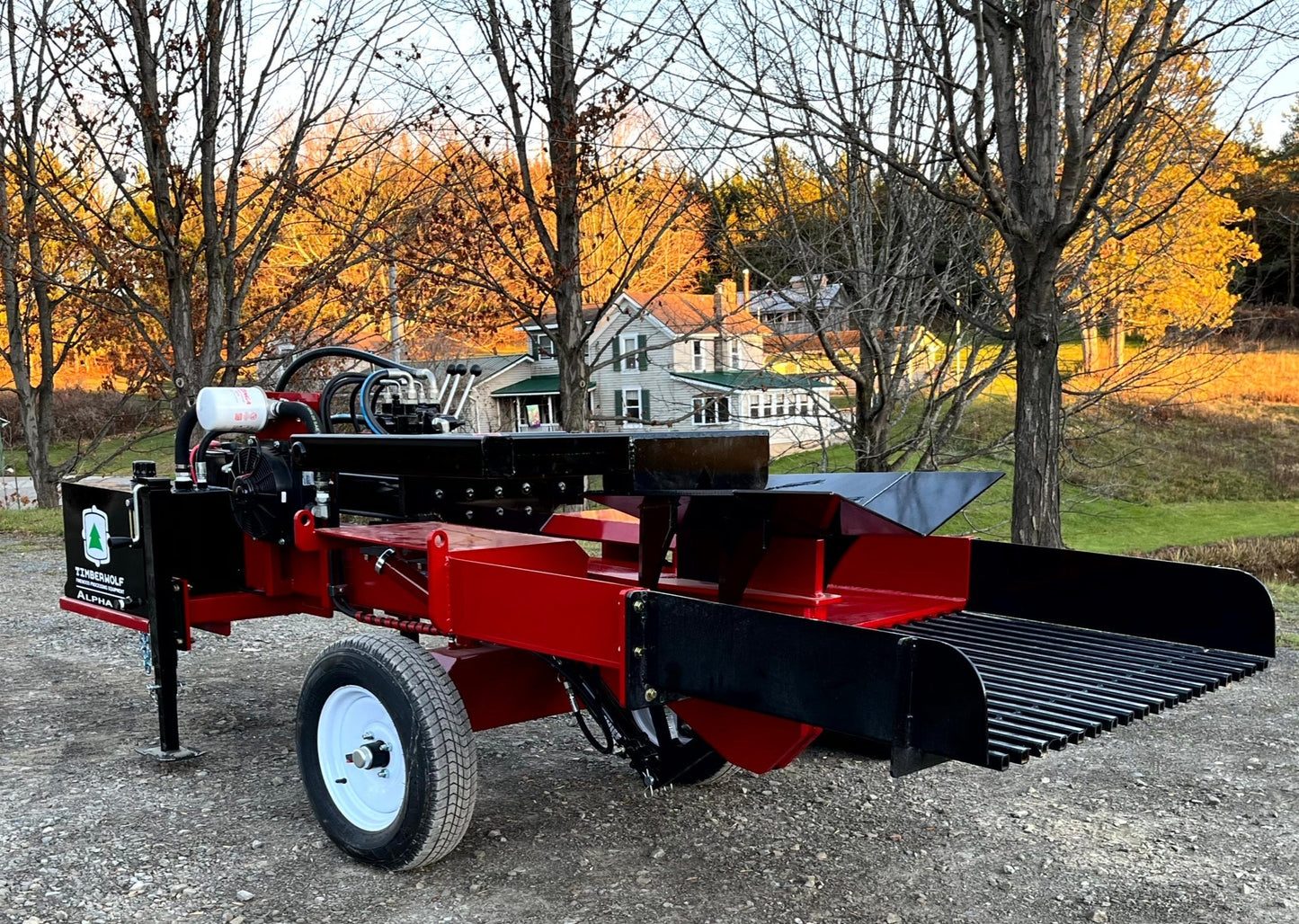

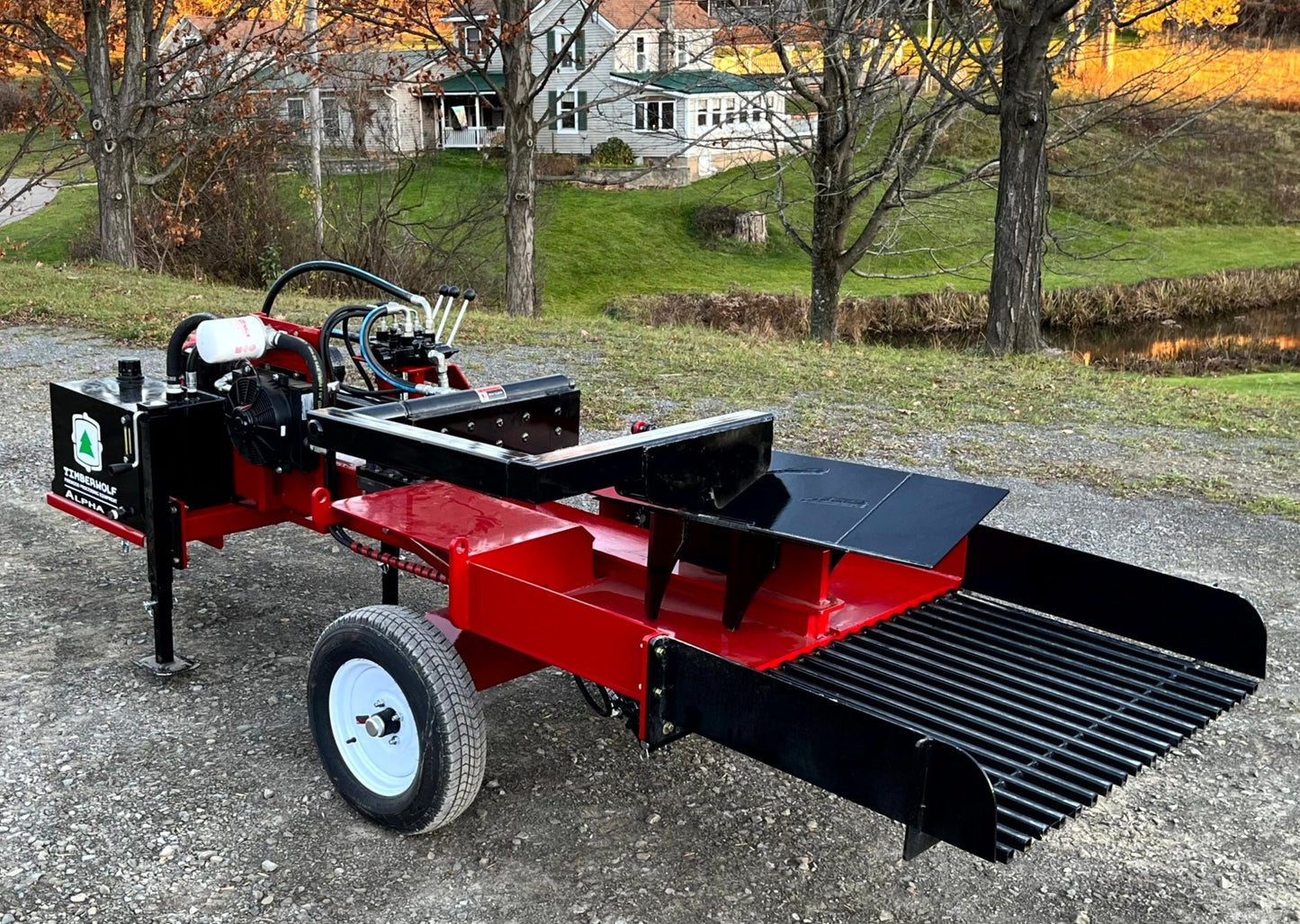

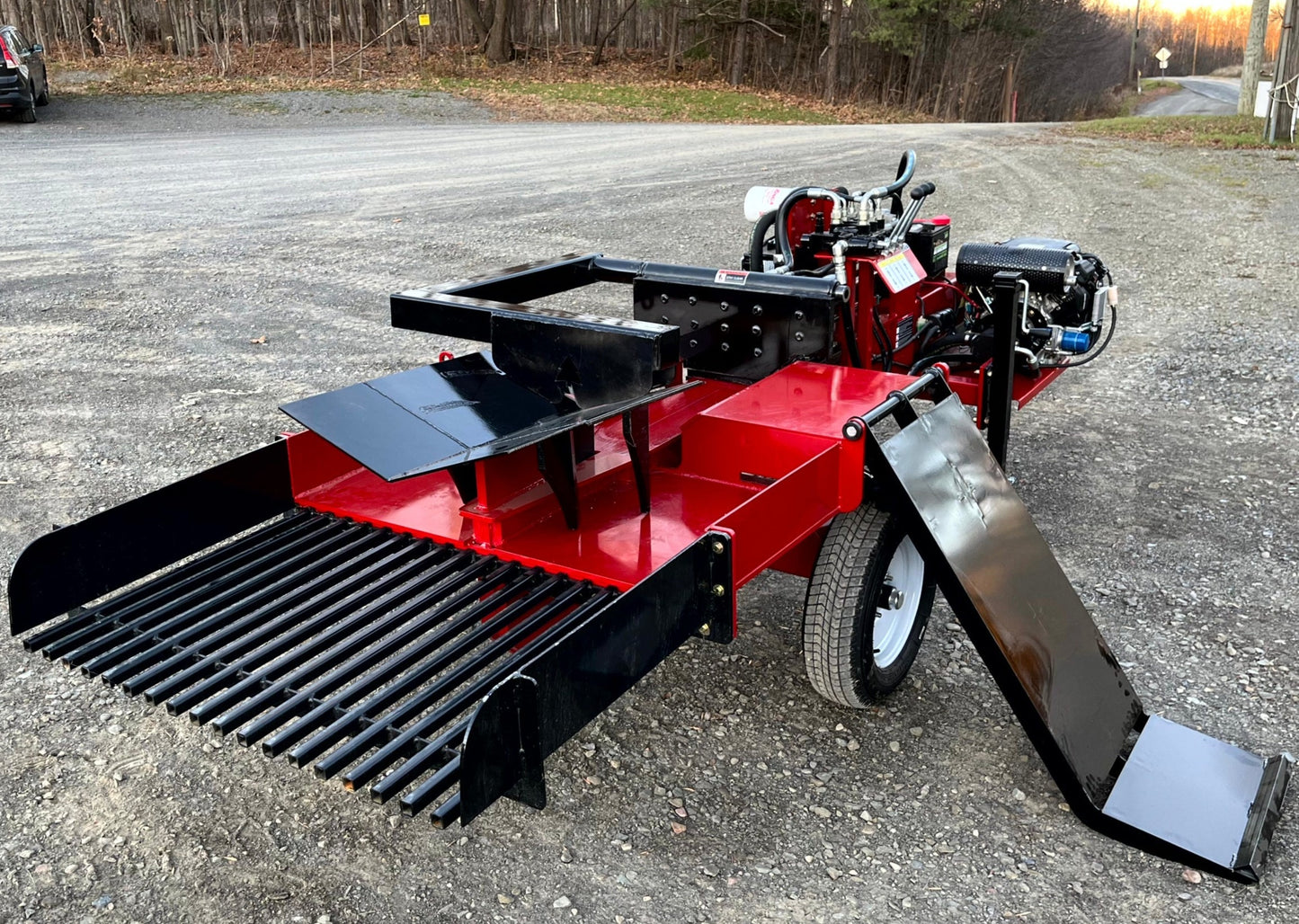

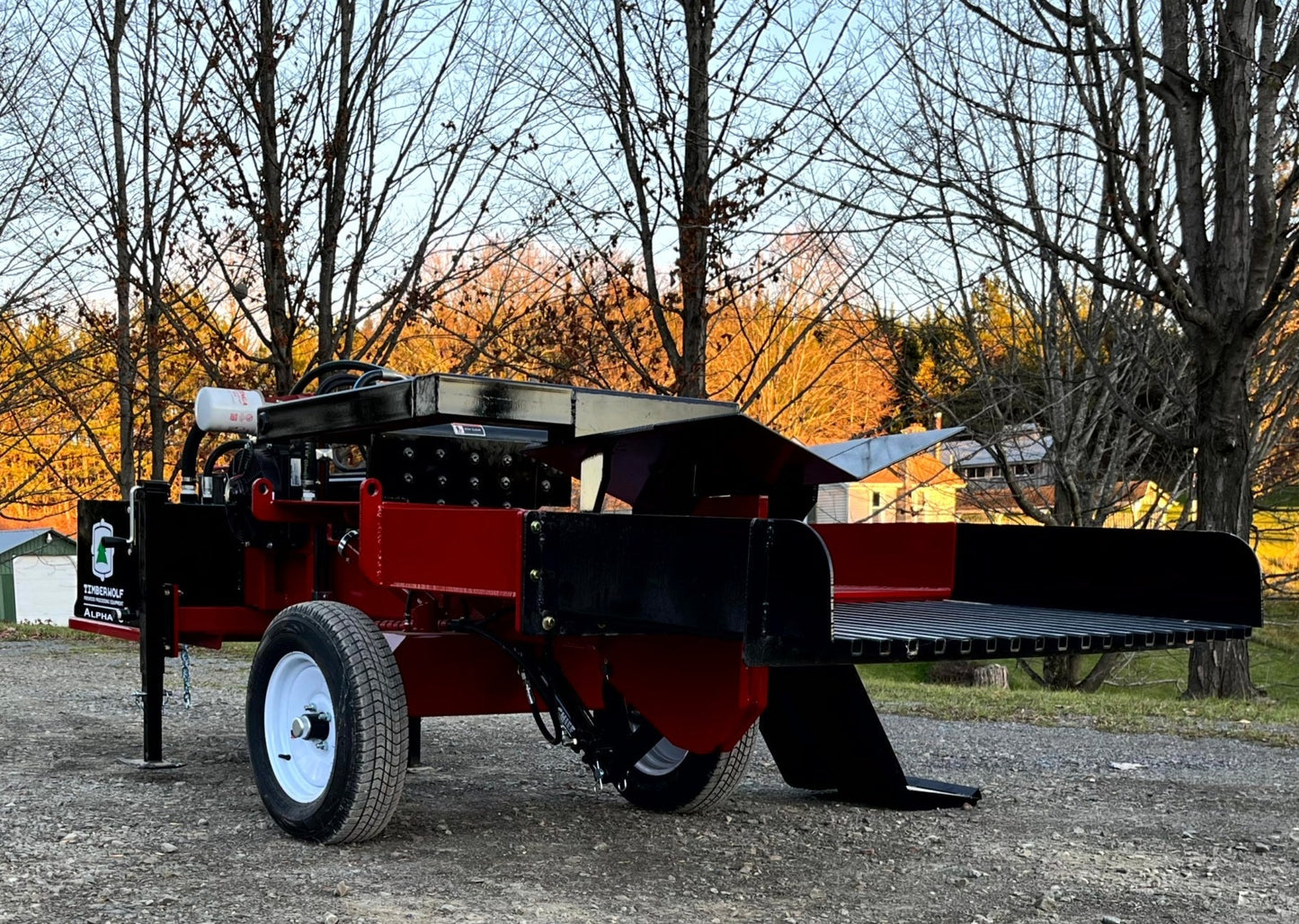

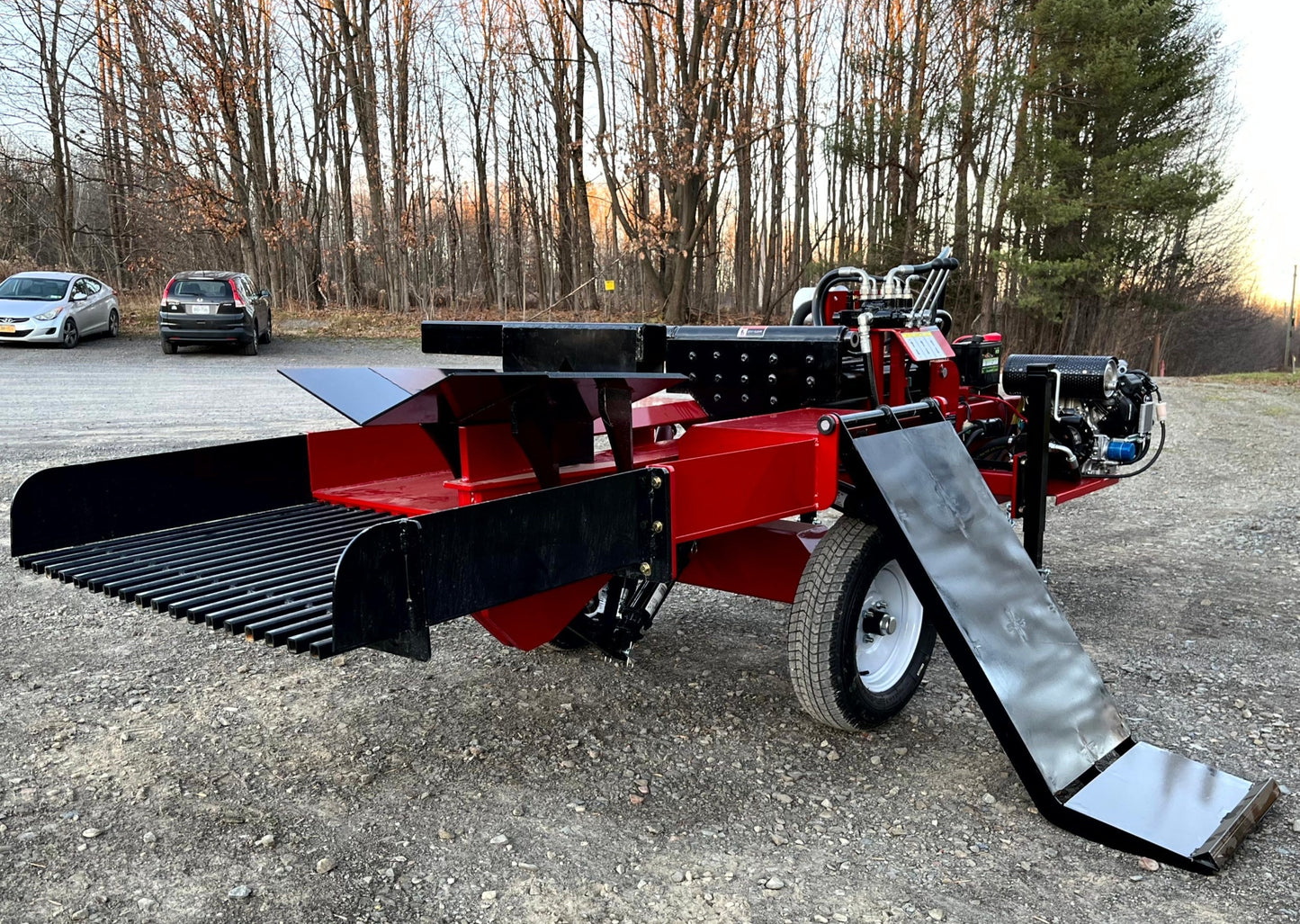

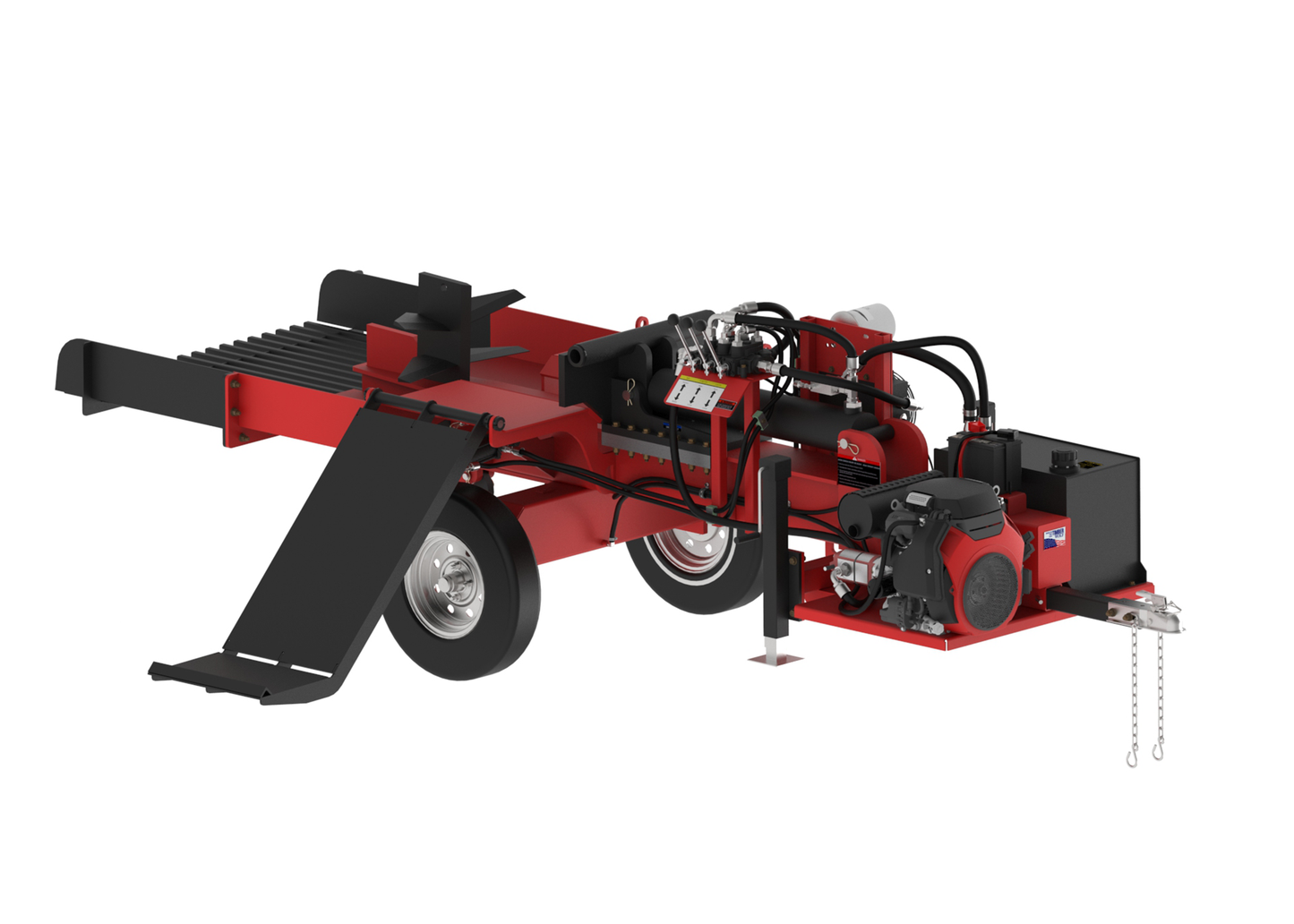

A 40” wide by 36” long table grate comes standard on the Alpha heavy-duty wood splitter, engineered for both durability and high-volume workflow efficiency. Constructed from heavy gauge pipe and American-made plate steel, this industrial-grade table is built to withstand constant impact, heavy loads, and continuous daily use in demanding firewood production environments. Its reinforced design ensures long-term structural integrity while maintaining stability during rapid, high-output splitting operations, making it a dependable component in any serious firewood processing setup.
Beyond its strength, the table grate plays a critical role in streamlining production by improving both material handling and worksite organization. As logs are split, the grate naturally separates unwanted debris, bark, and fine material from usable firewood, helping maintain a cleaner and more efficient working area. At the same time, its funnel-style design directs processed firewood into a centralized, controlled pile, reducing scattered buildup and minimizing manual cleanup. This makes it especially effective for operations that rely on conveyors or automated transfer systems as the next step in production, allowing material to flow seamlessly from splitting to transport with minimal interruption or handling.

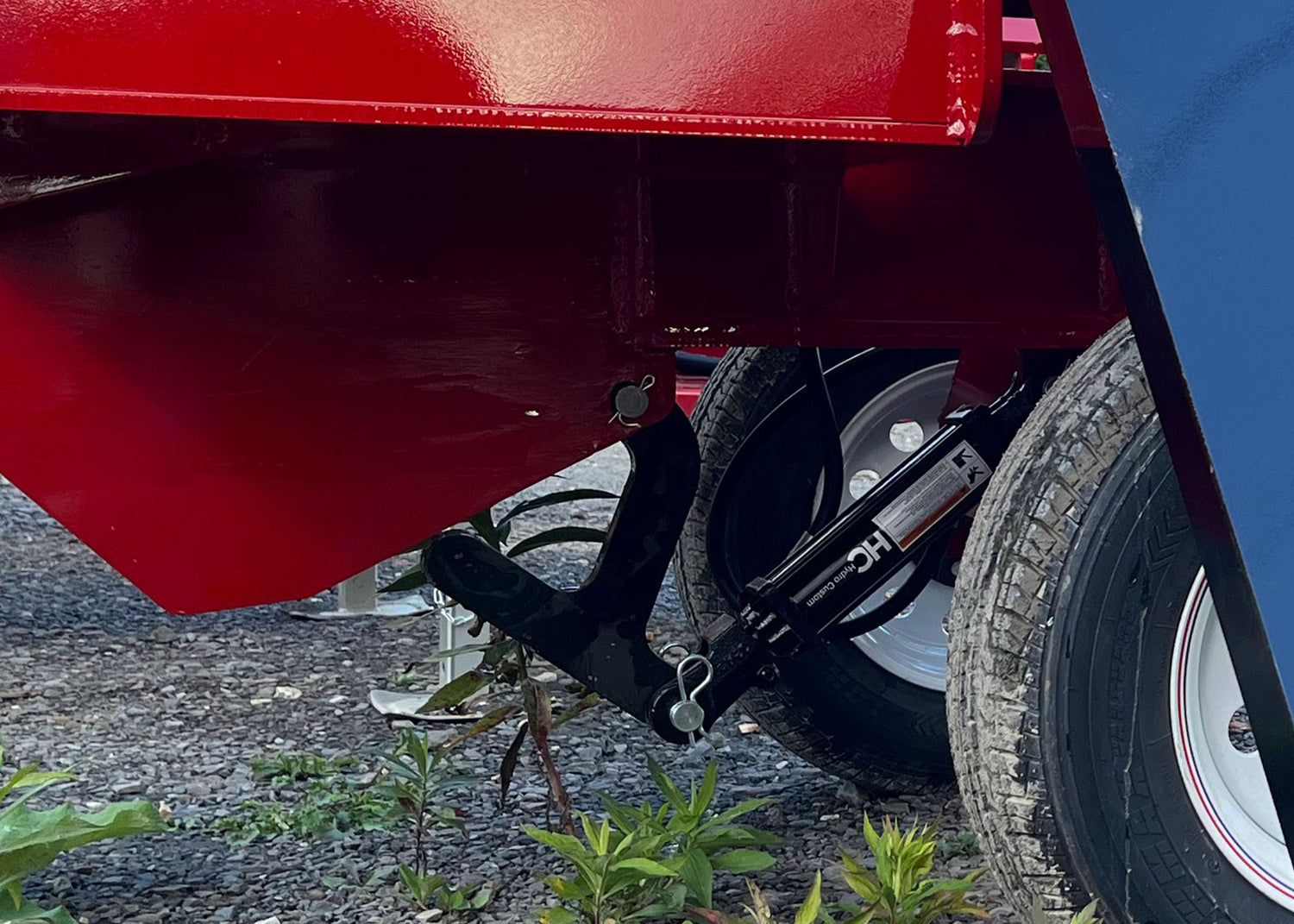

Hydraulic Wedge Lift
With 5.5 inches of vertical travel, the operator-controlled wedge lift provides precise and effortless height adjustment, allowing you to match the wedge position to different log sizes without stopping production. Instead of manually repositioning equipment or swapping out wedges, operators can make quick, on-the-fly adjustments directly from the control lever, keeping the workflow smooth and uninterrupted. This flexibility improves efficiency when processing mixed or irregular logs, reduces downtime between cycles, and ensures consistent, accurate splits across a wide range of material sizes, making the entire operation faster, easier, and more productive.

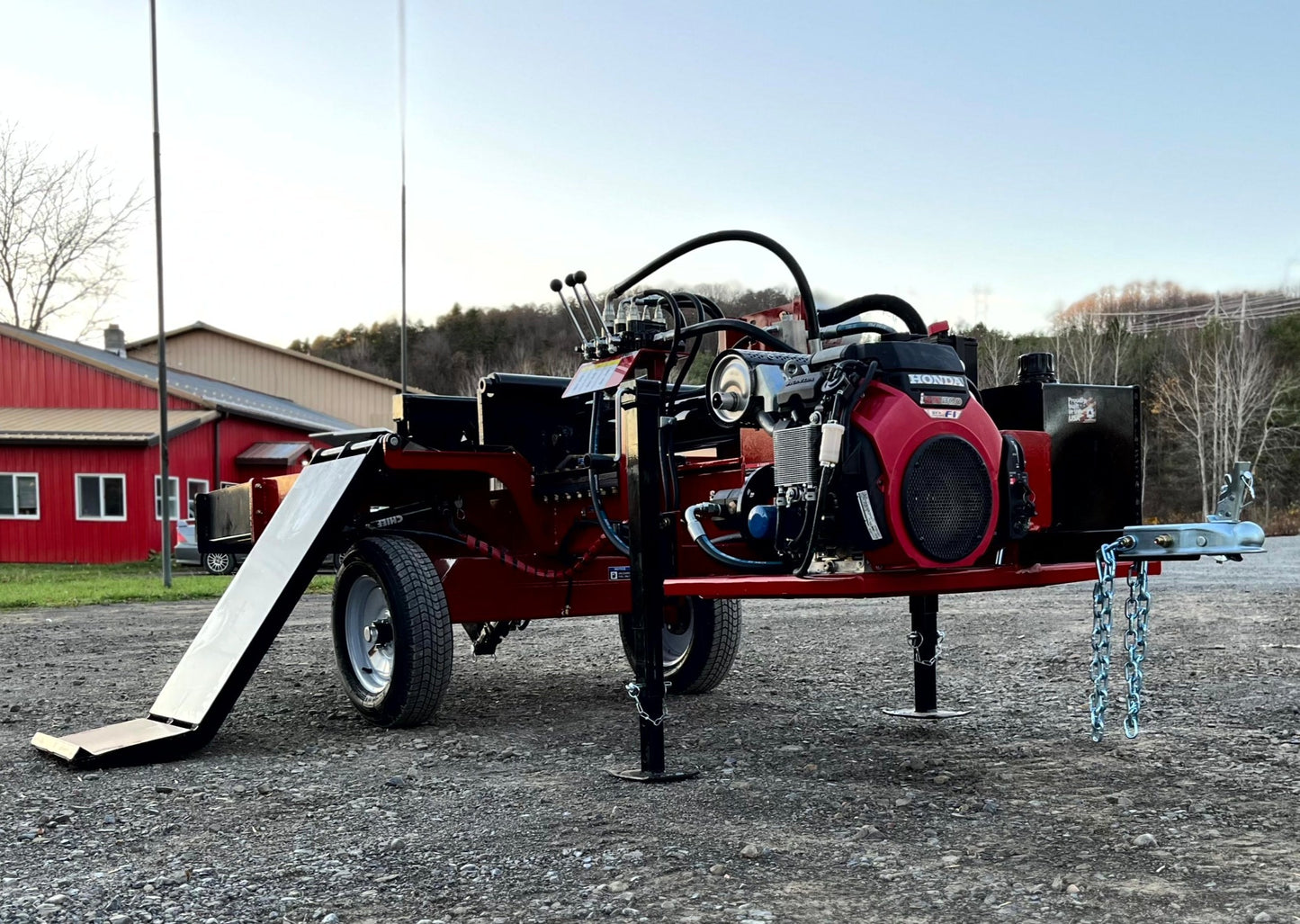

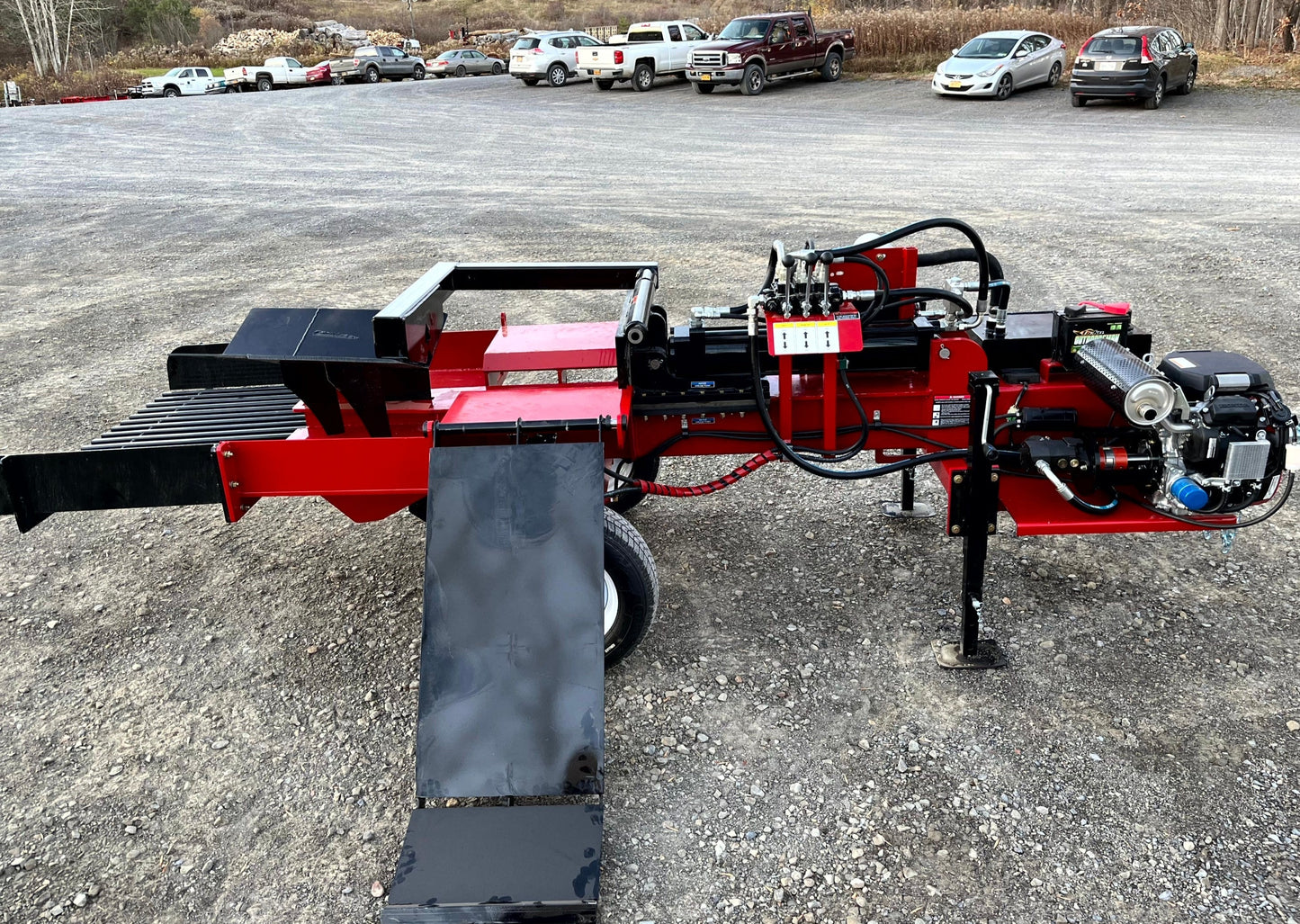

Load Large Blocks Without the Sweat

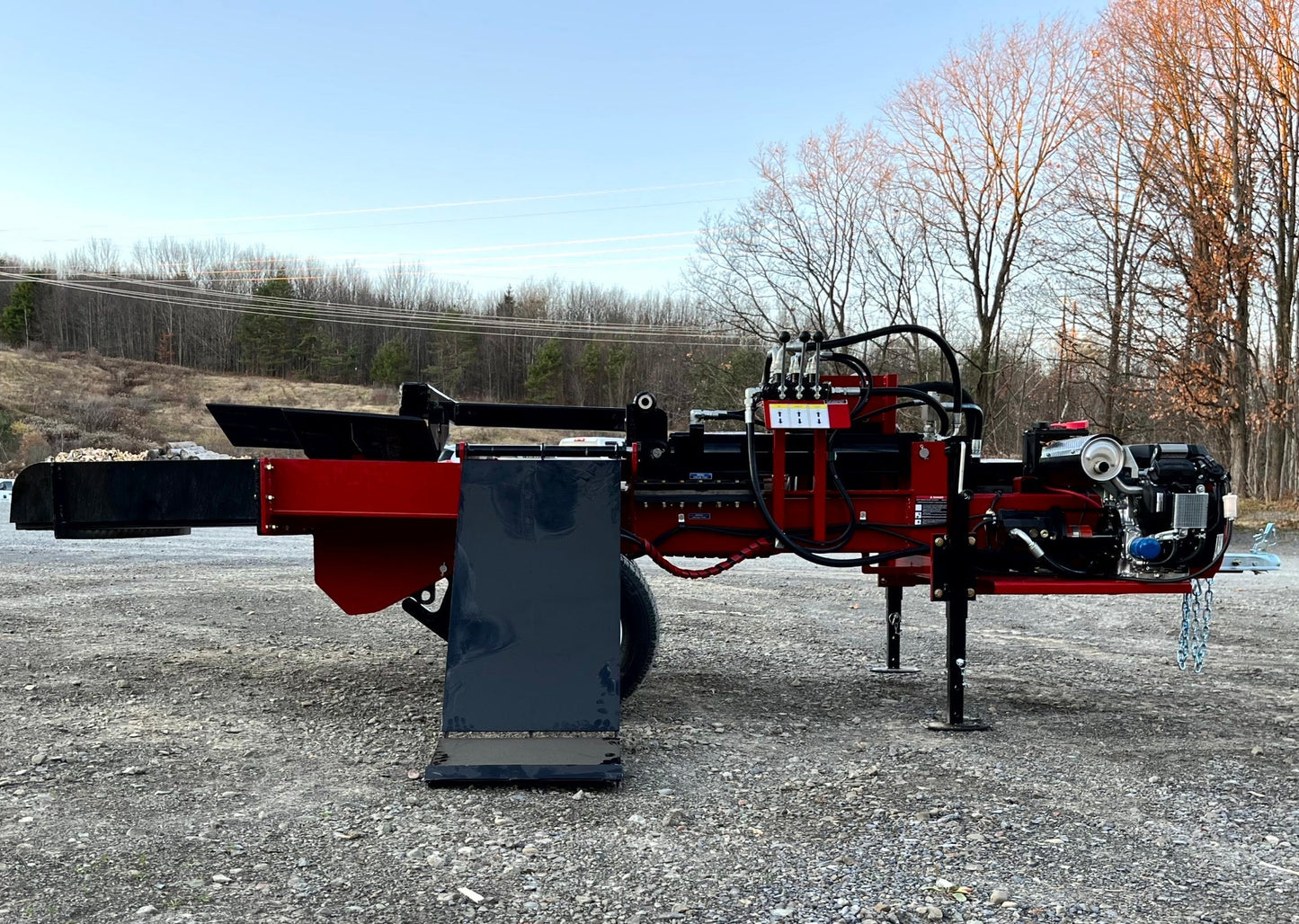

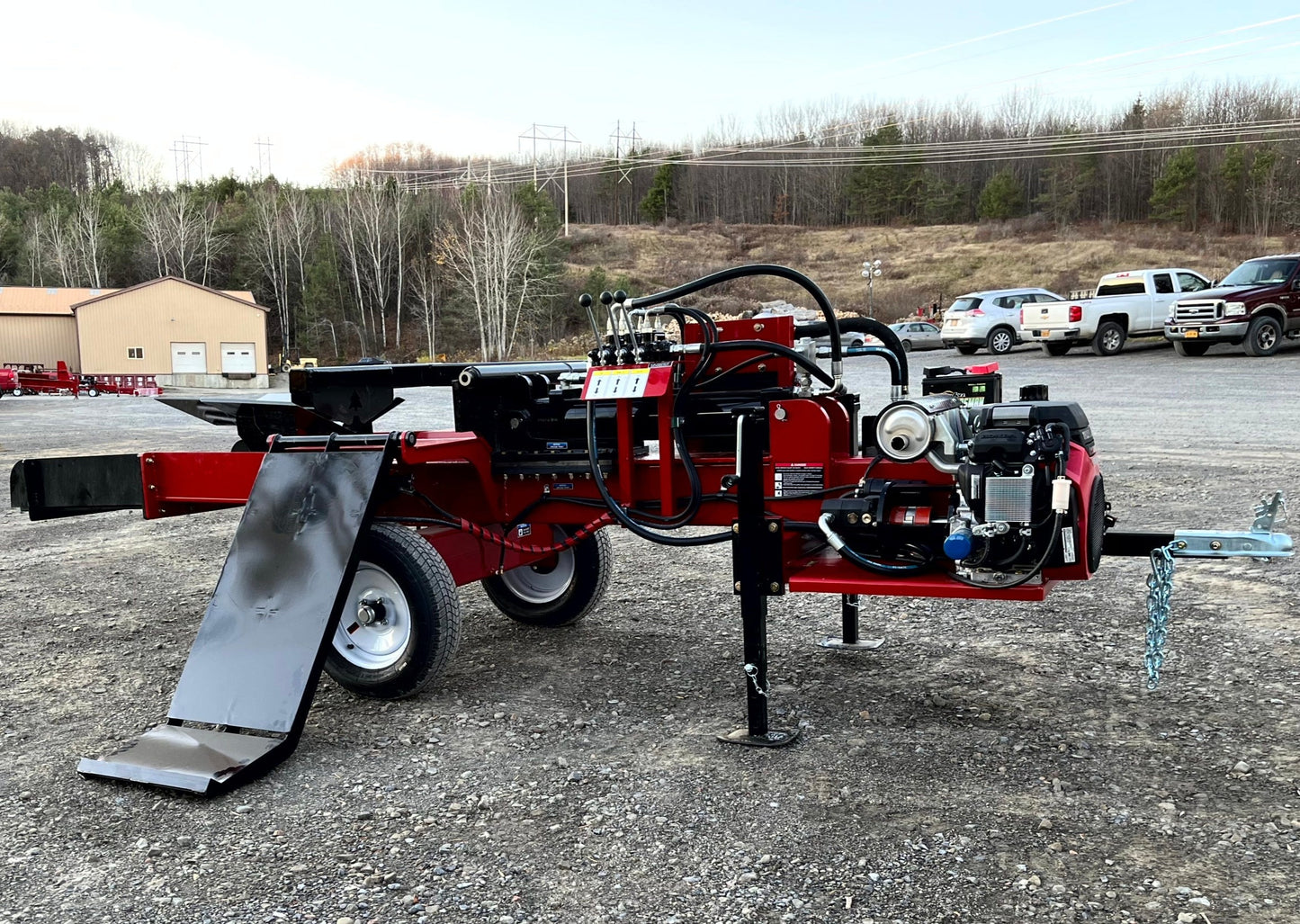

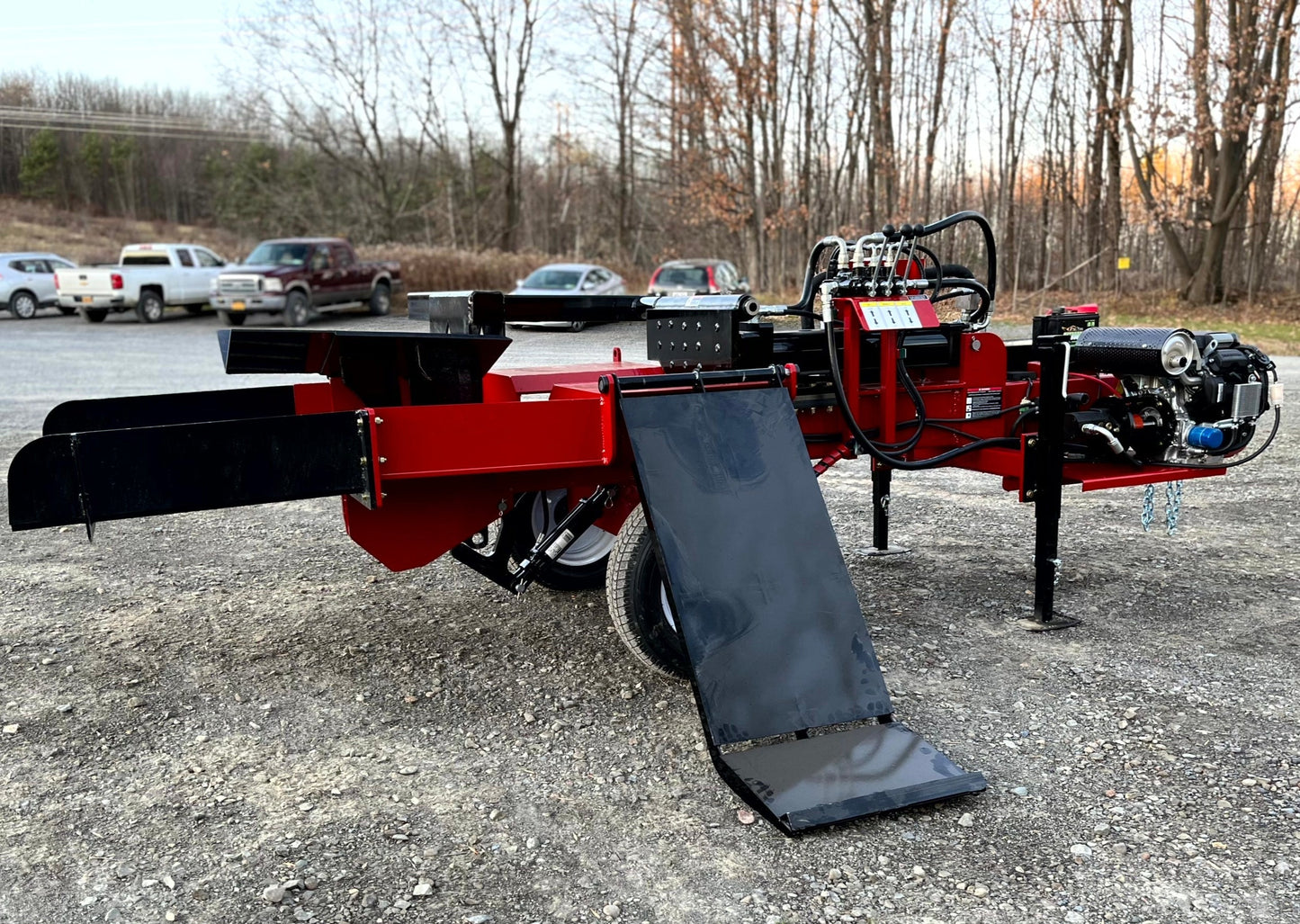

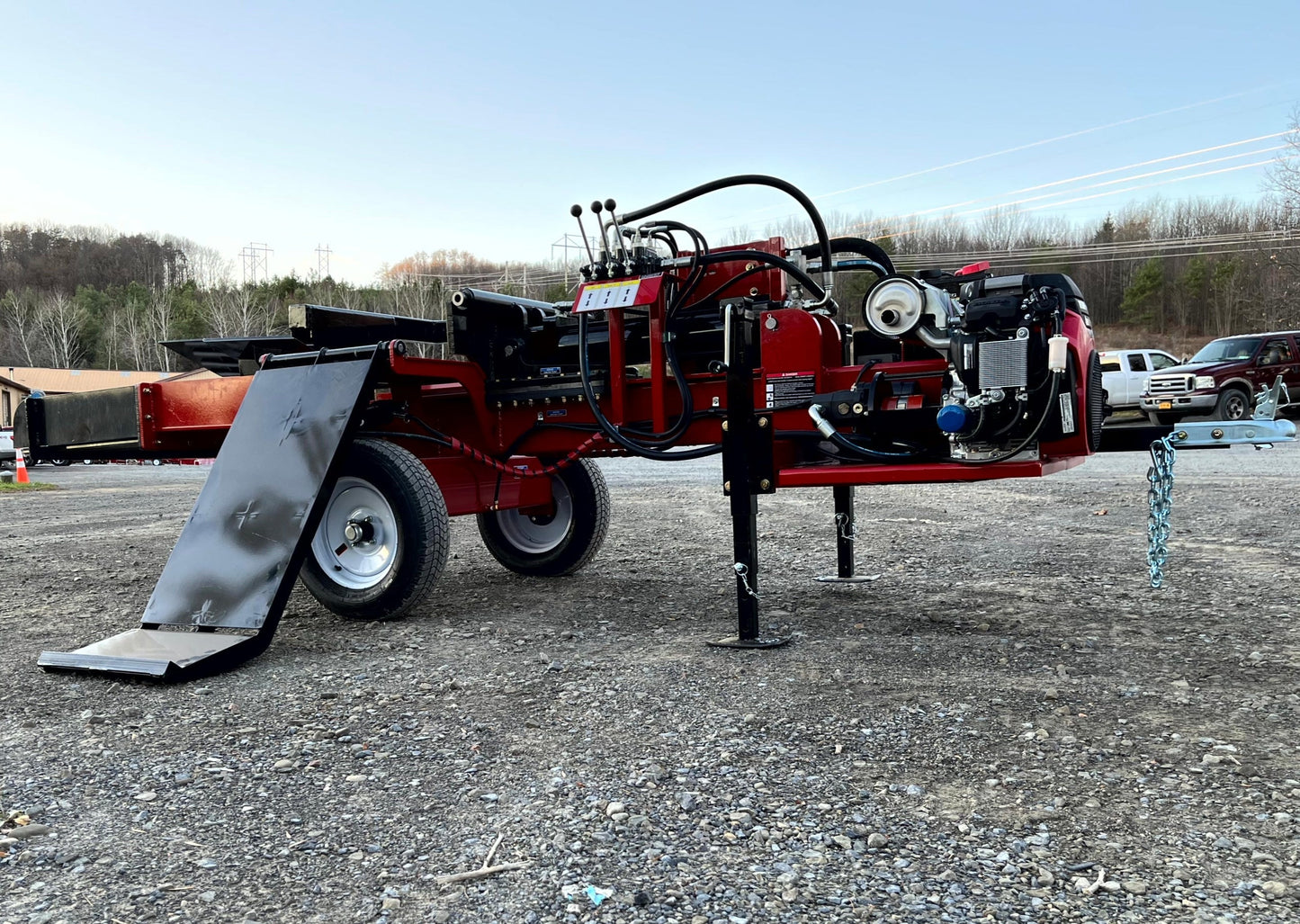

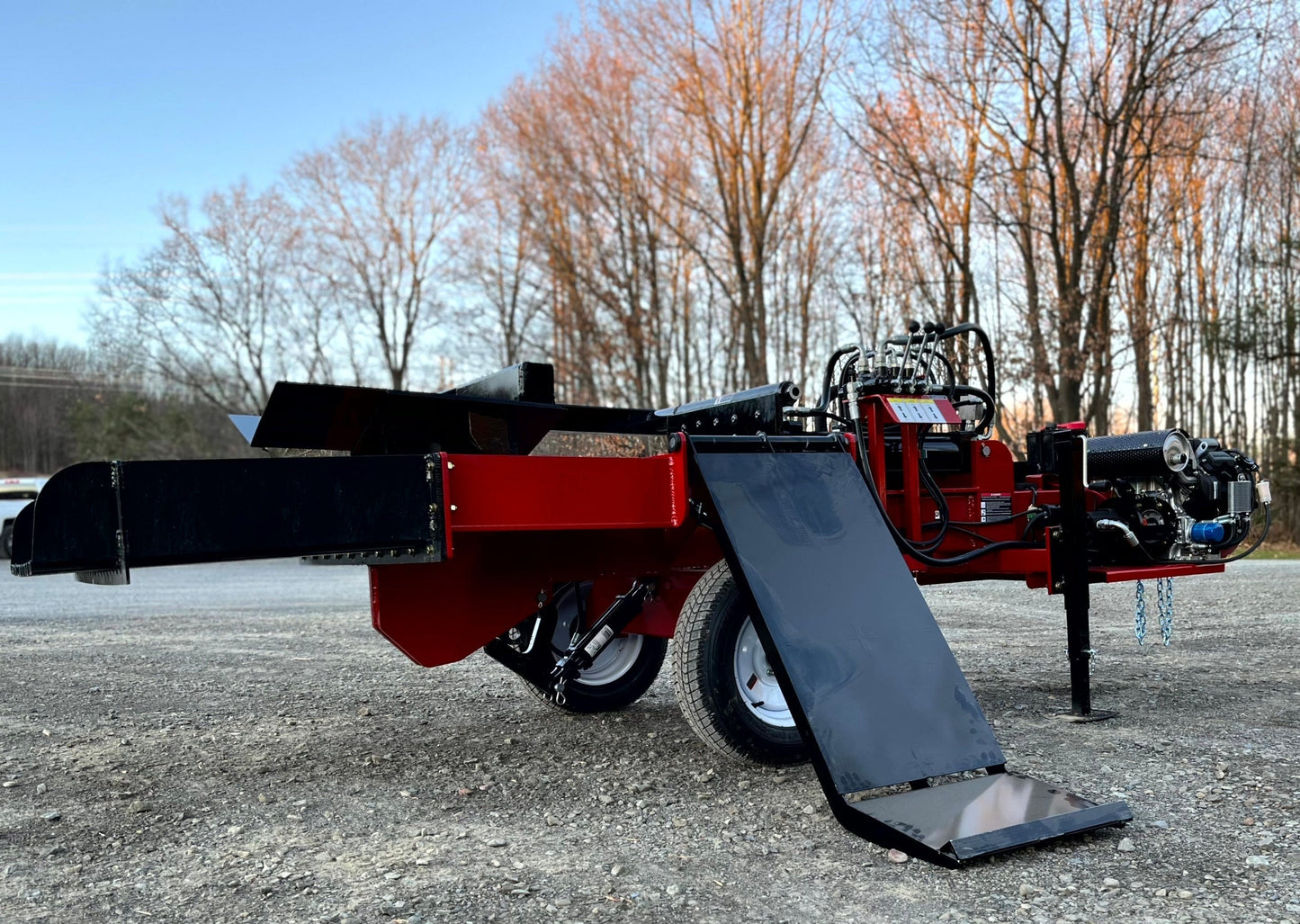

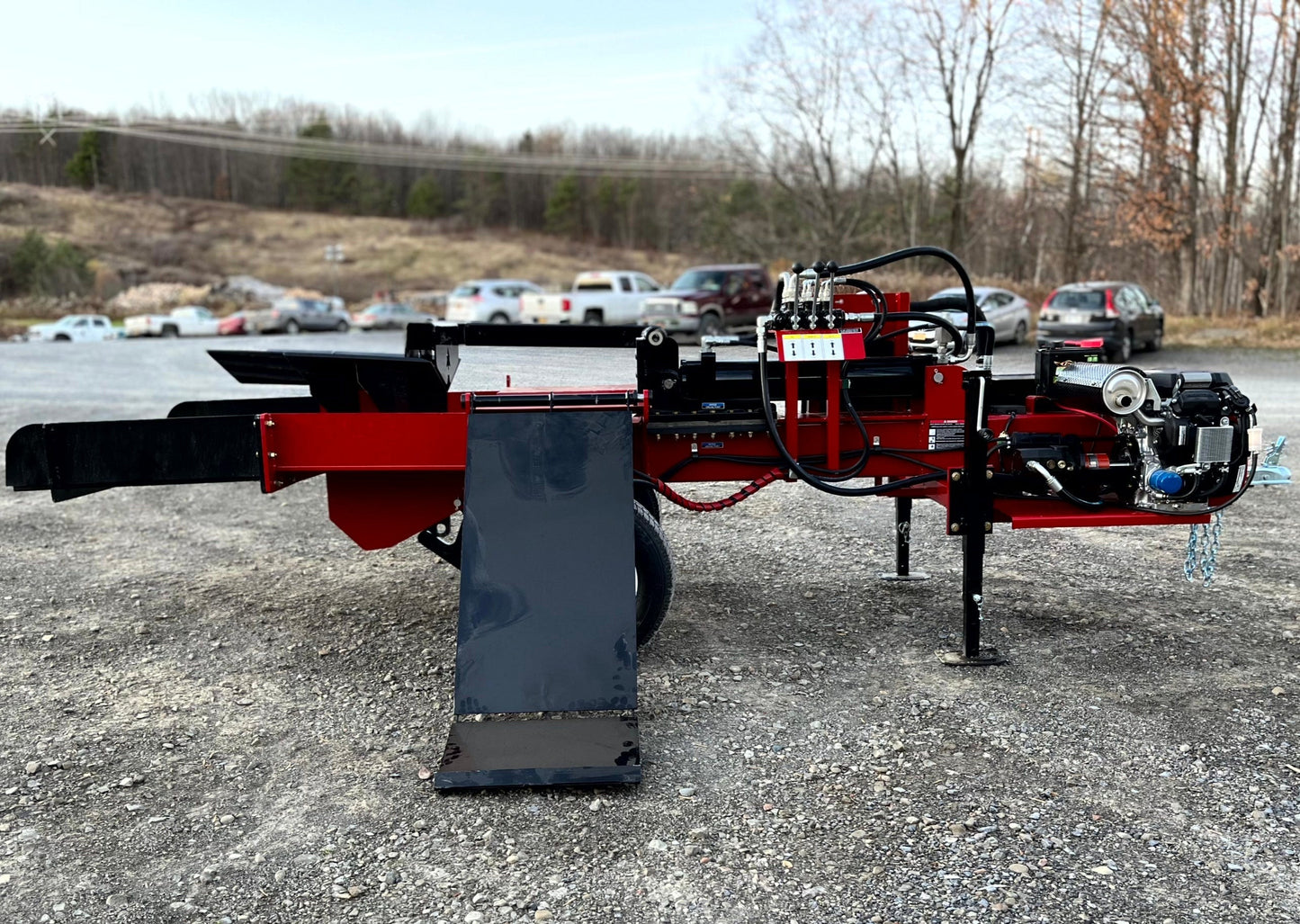

This plate steel–constructed hydraulic log lift is built for serious, high-volume firewood production and is capable of handling logs weighing up to 500 pounds with ease, operated smoothly with the flick of a lever. Designed to reduce manual labor and improve workflow efficiency, it allows operators to lift and position extremely heavy logs safely and consistently without additional equipment or assistance. For added versatility, the log lift can be mounted on either side of the heavy-duty wood splitter, allowing operators to configure the machine based on personal preference, job site layout, or specific production needs. This flexible design ensures optimal accessibility and comfort while maintaining continuous productivity. Simply put, if you can load it, the Alpha Series box wedge firewood splitters are engineered to split it—delivering unmatched power, efficiency, and reliability in demanding firewood operations.

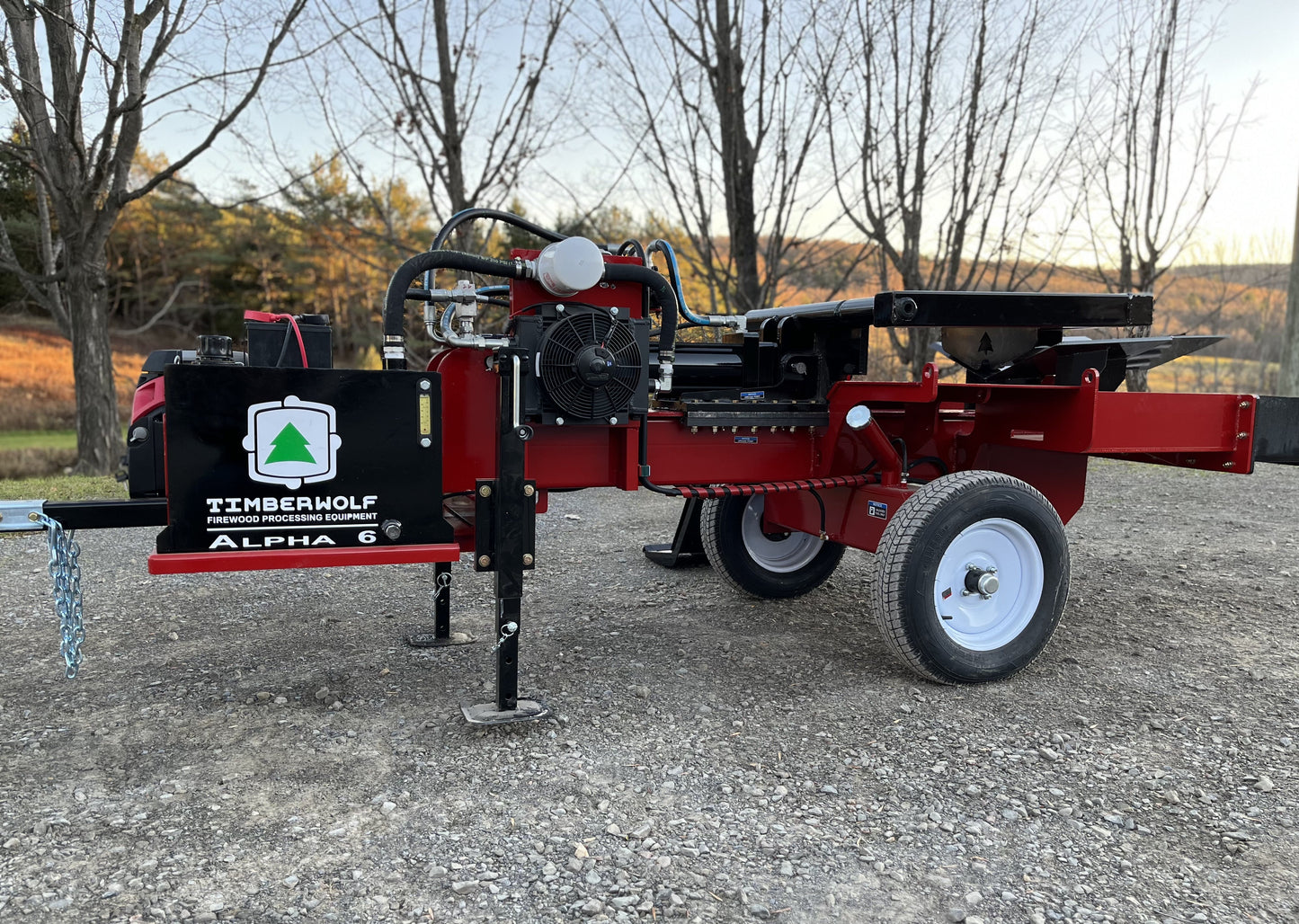

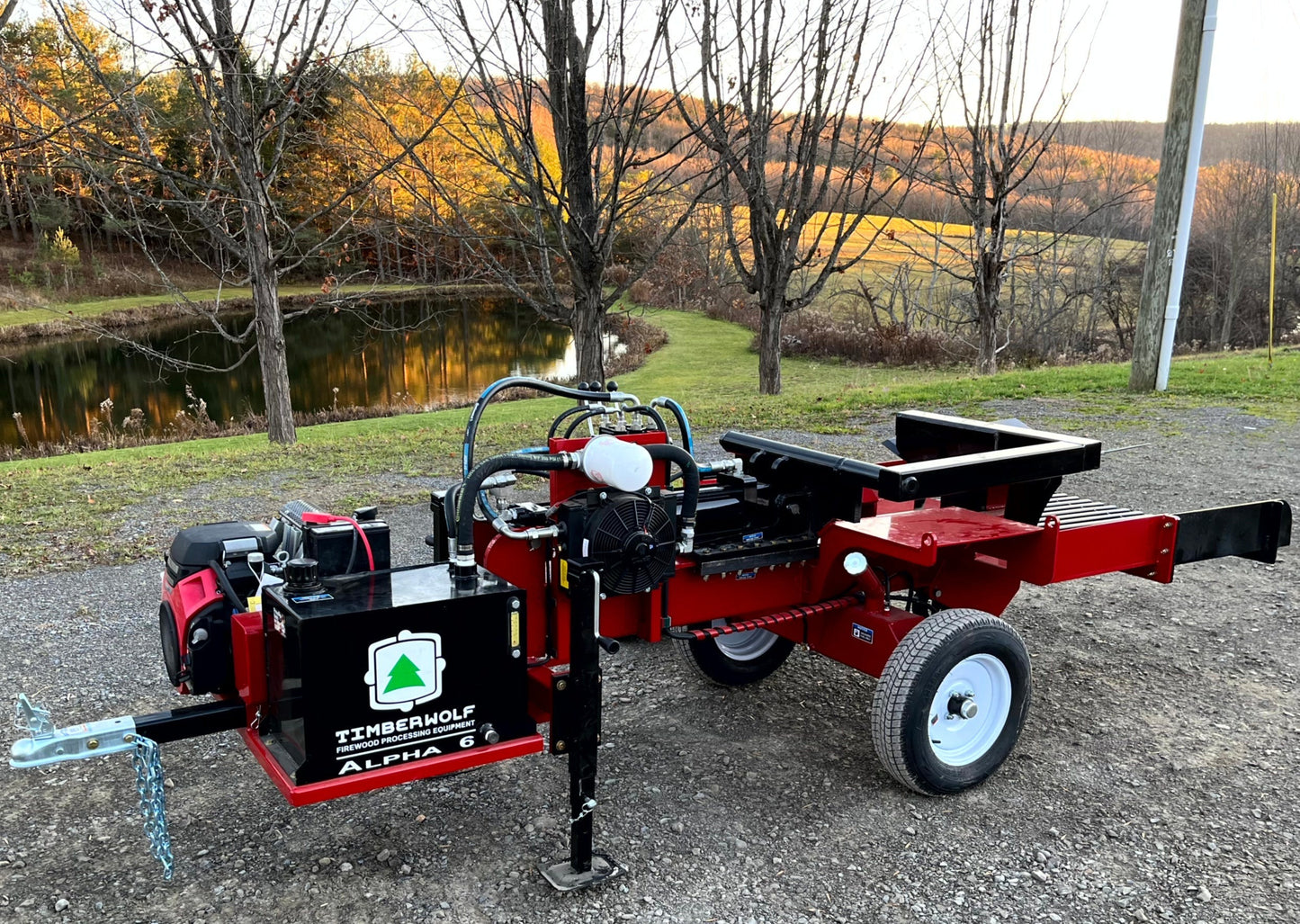

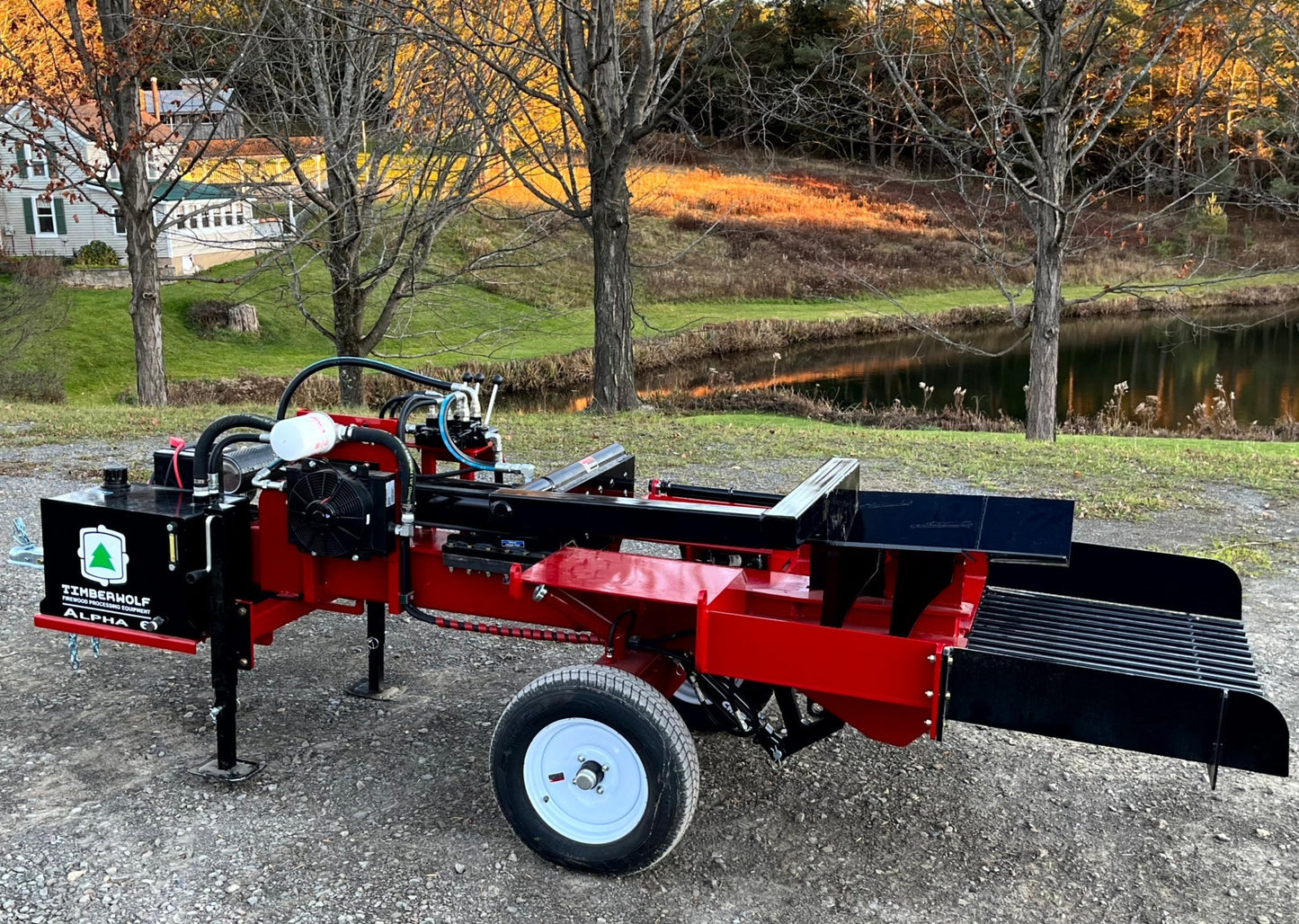

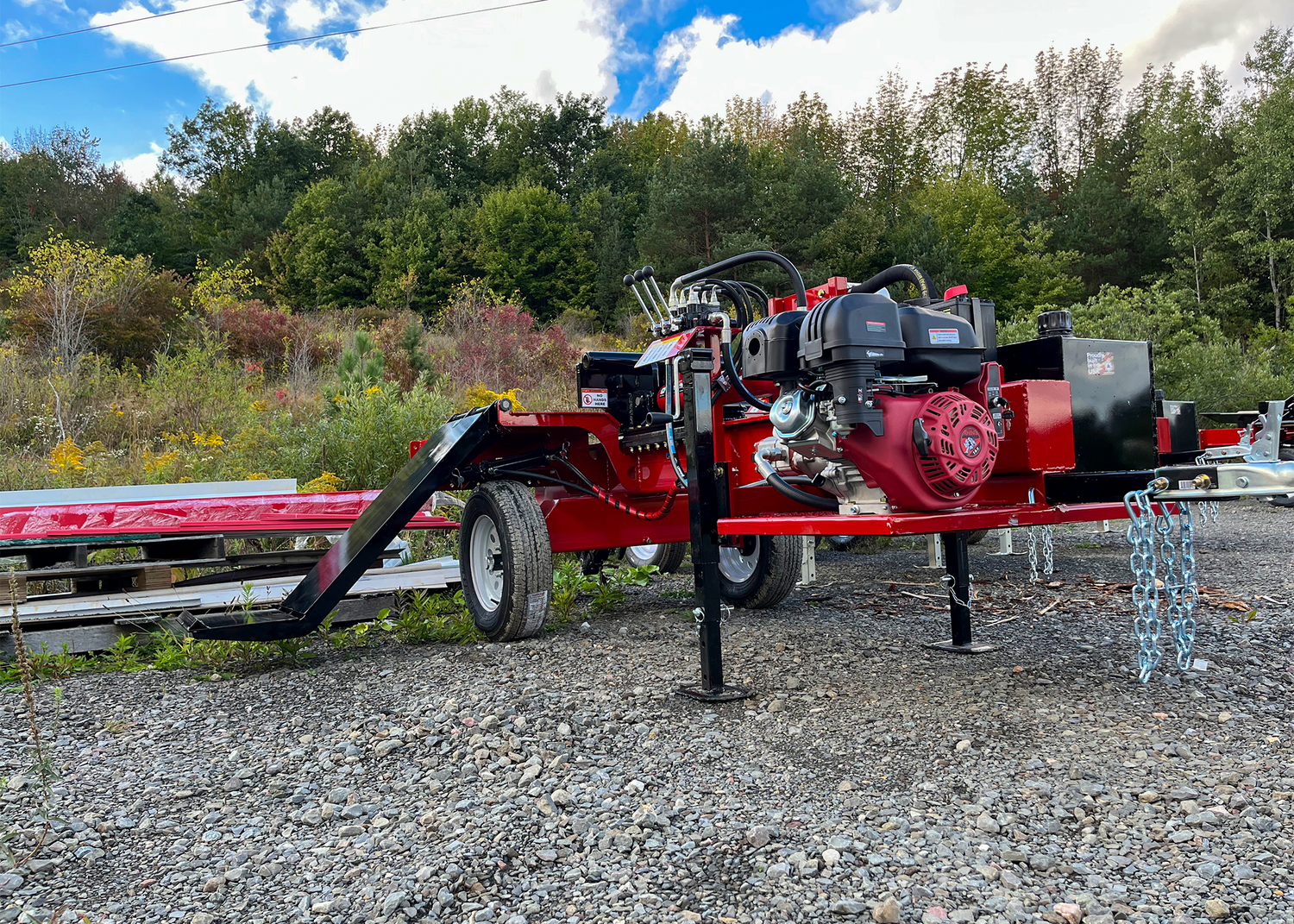

Dual Jack Stability

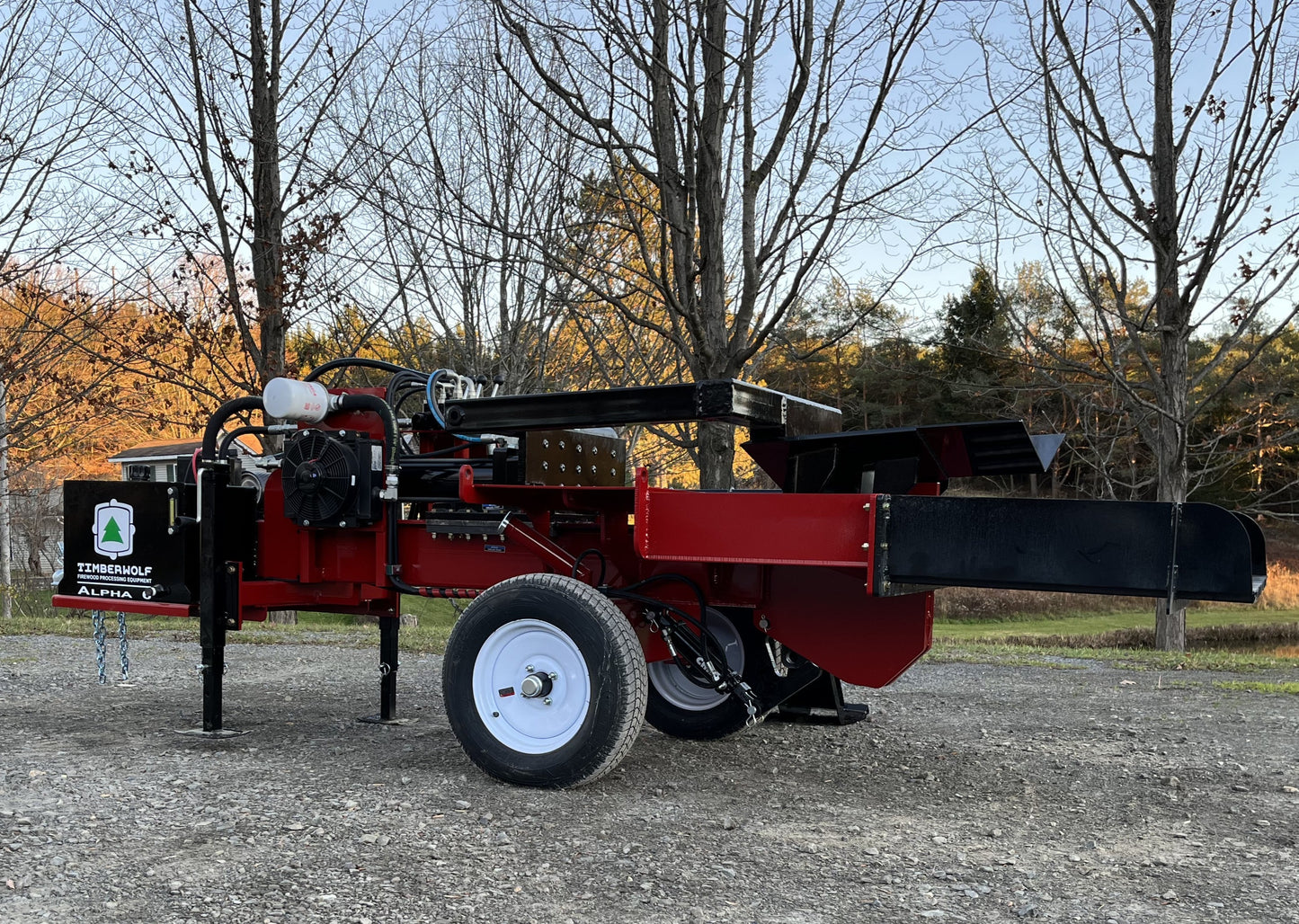

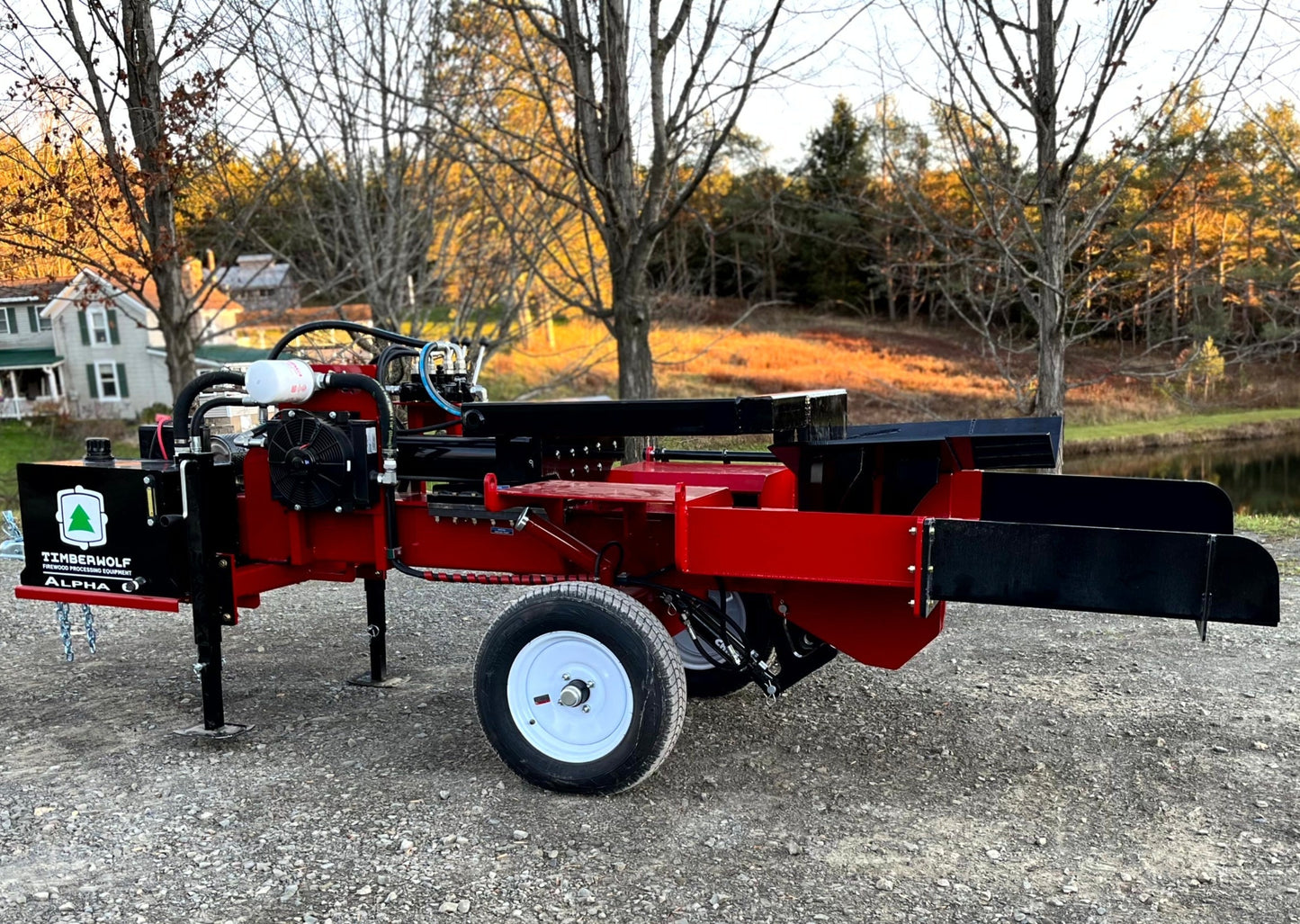

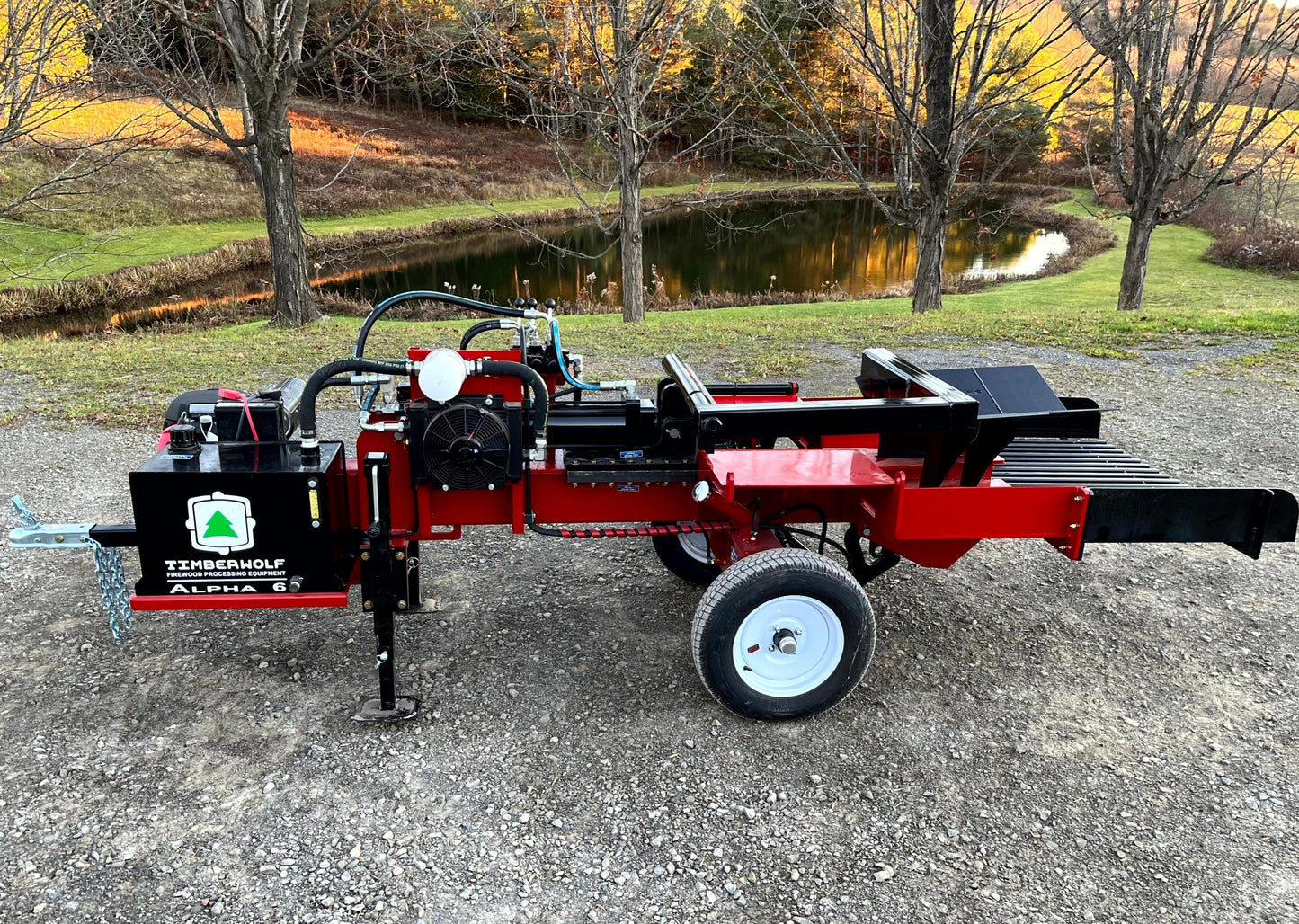

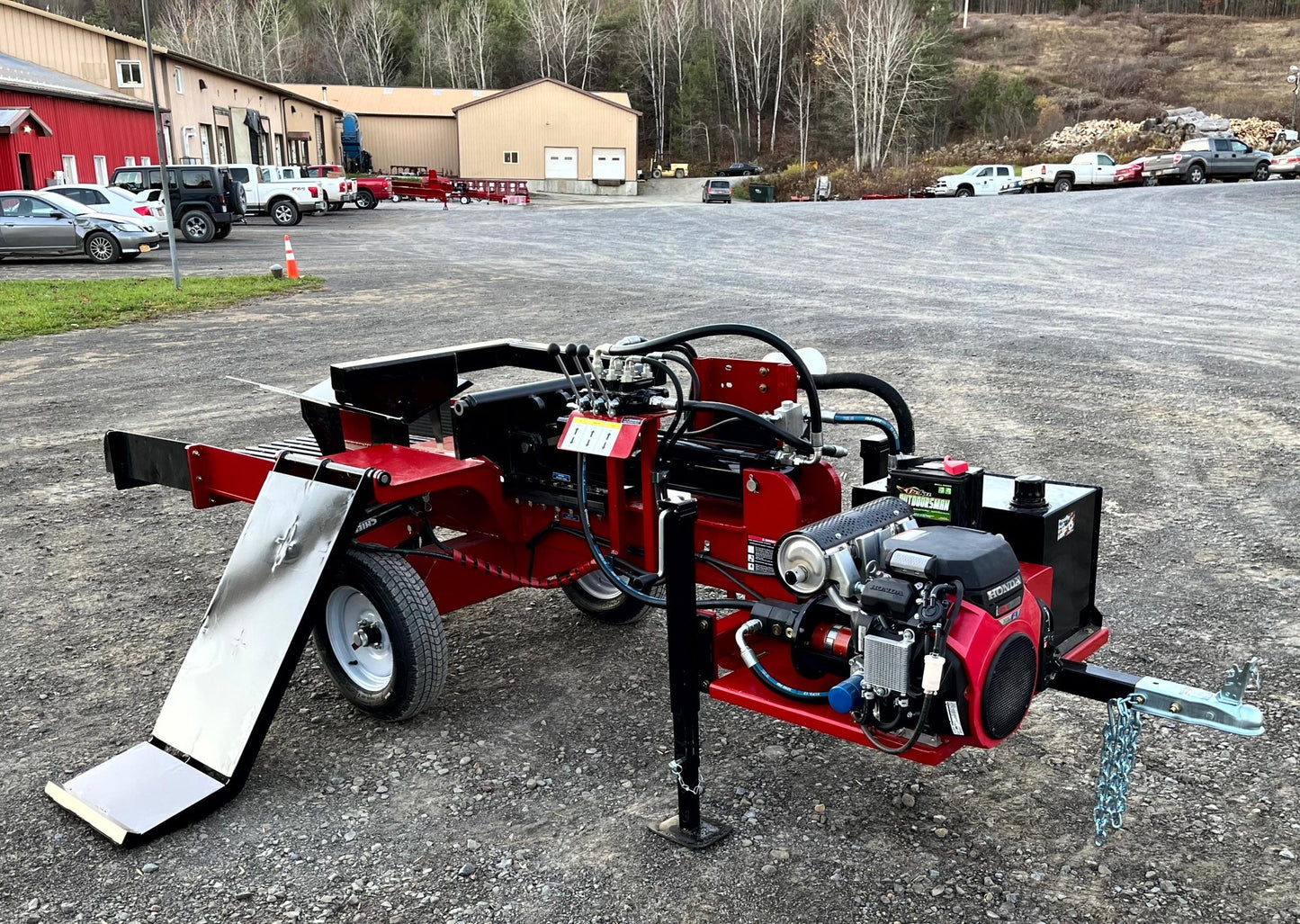

With a 12-foot-long plate steel frame weighing 2,600 pounds, the Alpha commercial wood splitter is engineered for long-term durability and unwavering performance in the most demanding firewood operations. This heavy-duty construction provides exceptional rigidity and stability, ensuring the machine can handle continuous, high-volume splitting tasks year after year without compromise. Every component is built with strength in mind, delivering a solid foundation that supports consistent, high-output production in commercial environments.

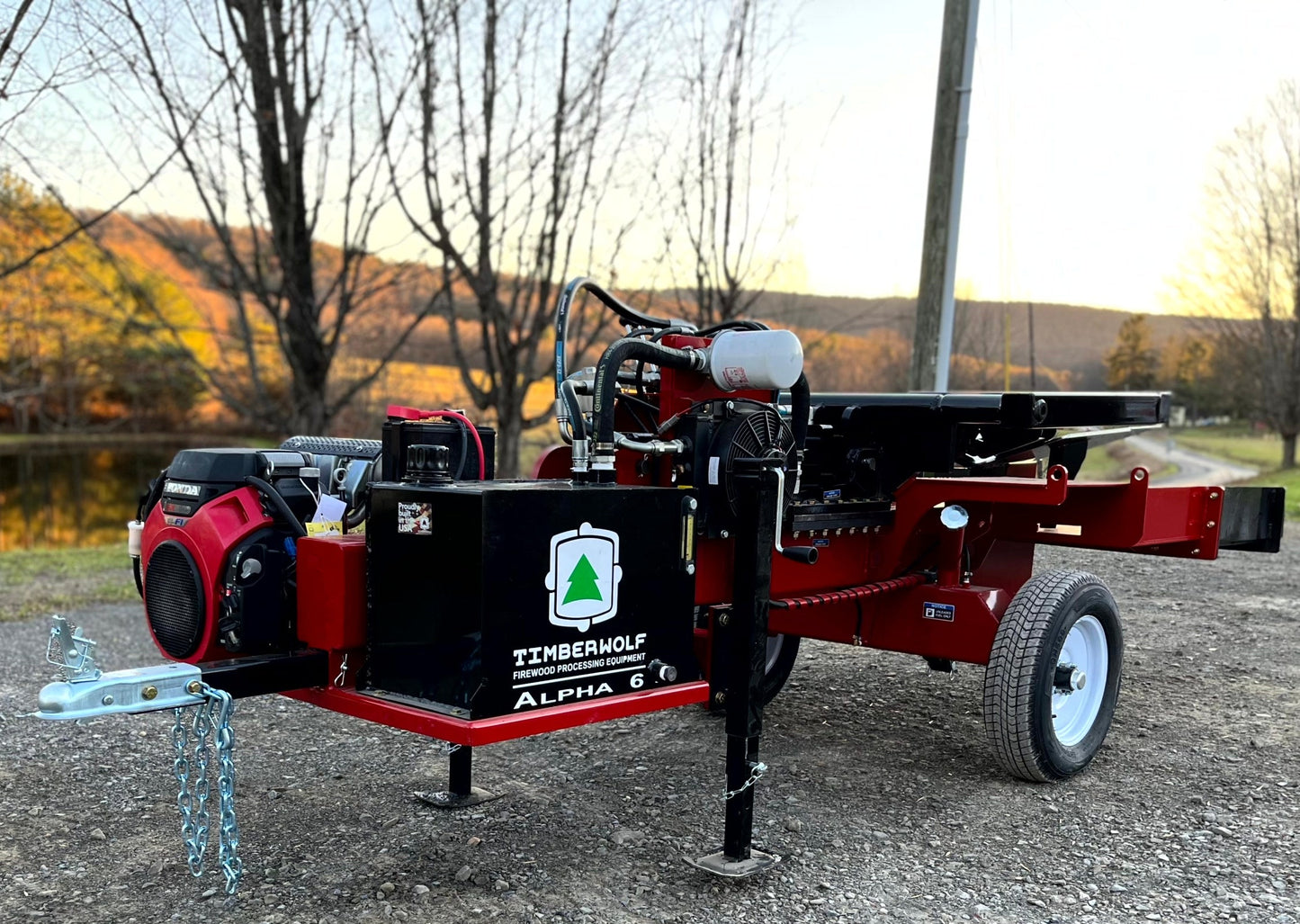

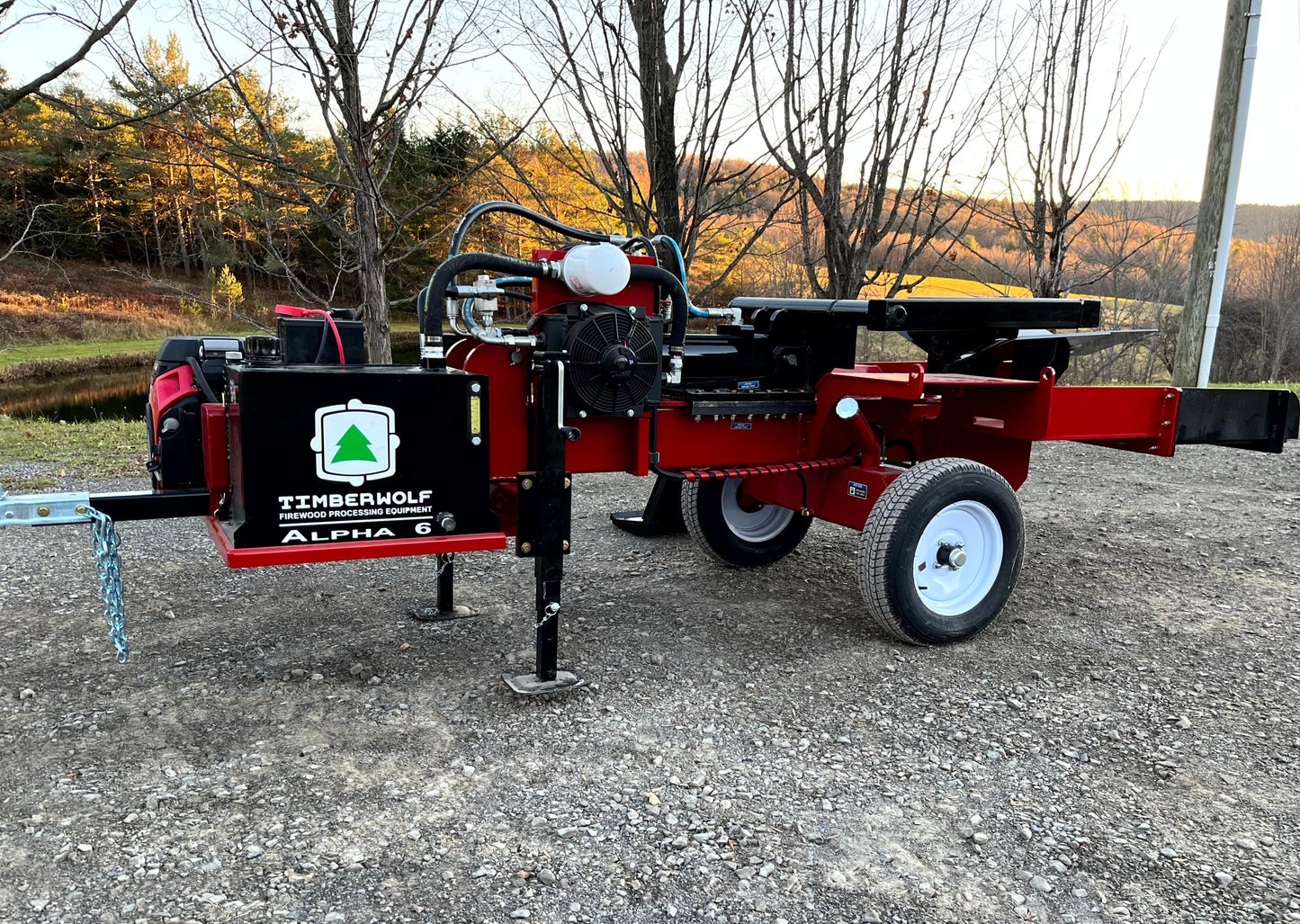

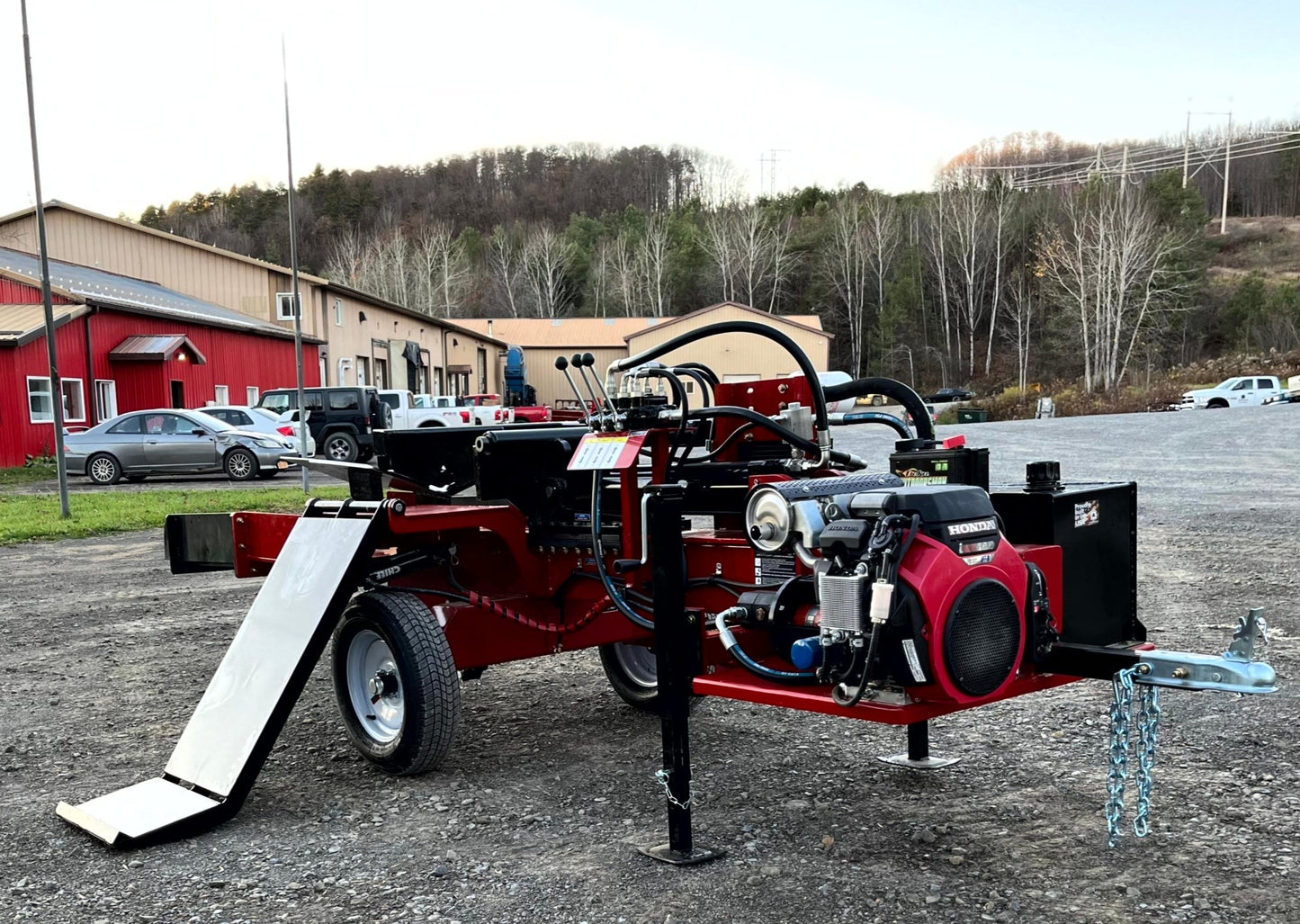

To further enhance stability and operational confidence, the Alpha is equipped with dual stabilizing jacks that keep the machine firmly anchored during use. Once set up, the splitter remains securely in place, allowing operators to focus entirely on production rather than repositioning or adjustments. This “set it and run it” design supports continuous splitting, helping maximize efficiency and output—so you can keep processing firewood steadily and watch productivity, and revenue, grow with every load.
5" Hydraulic Cylinder

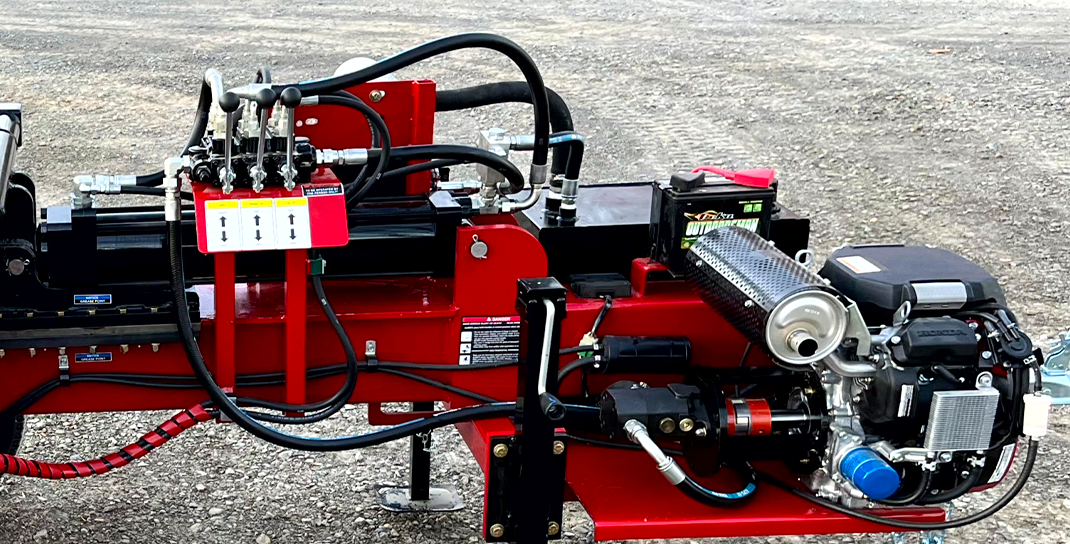

Timberwolf’s Alpha 6 heavy-duty log splitter is engineered for serious firewood production and is equipped with a powerful 5" hydraulic cylinder designed to handle demanding workloads with ease. Built for strength, speed, and efficiency, this cylinder setup is ideal for operators who need consistent, high-output performance when processing large volumes of wood.
- 5" hydraulic cylinder designed for heavy-duty splitting applications
- 3.5" rod with a 26" stroke for strong, controlled splitting action
- 5–7 second cycle time for efficient, continuous operation
- 58,905 pounds of splitting force for tackling large, tough logs

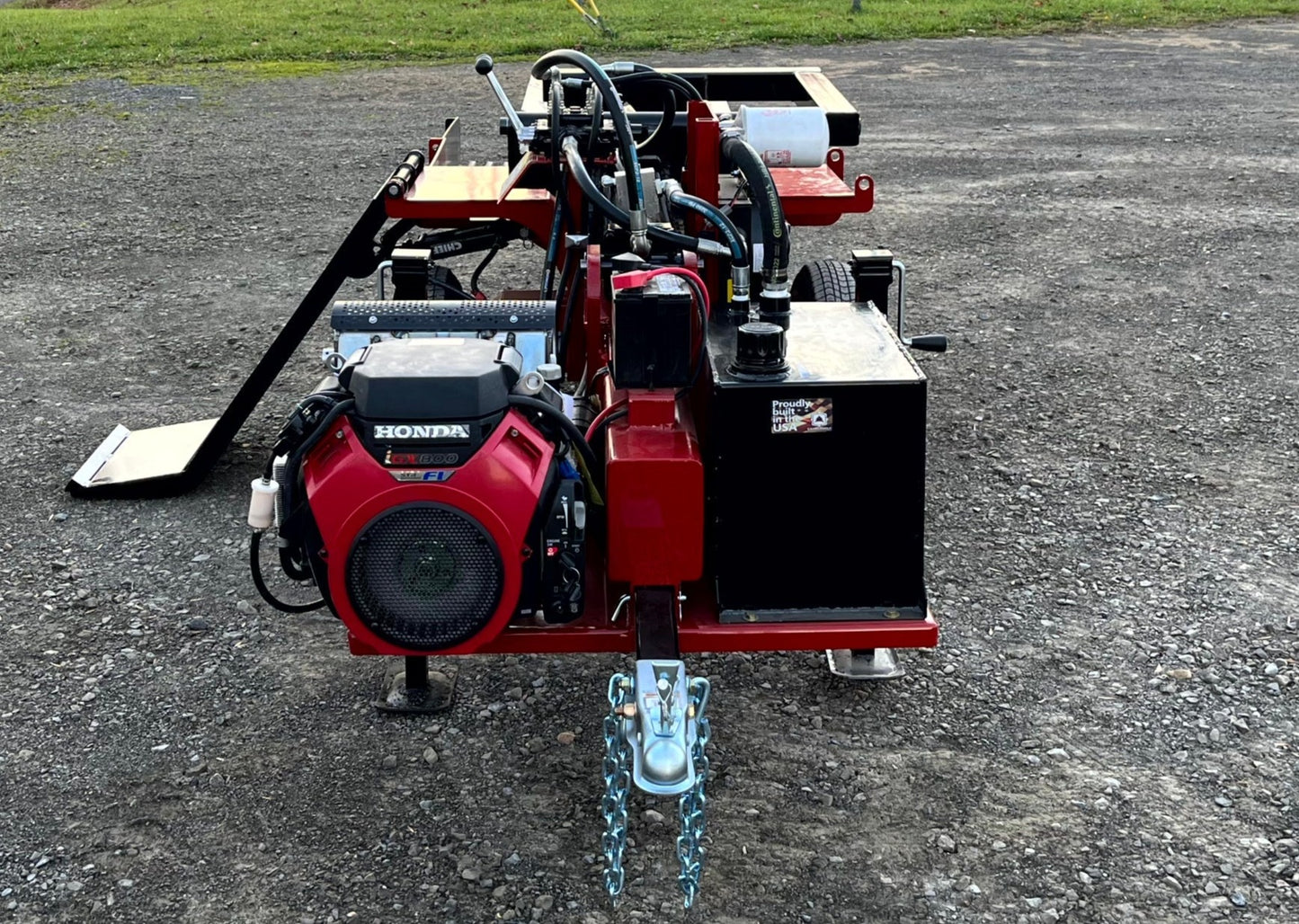

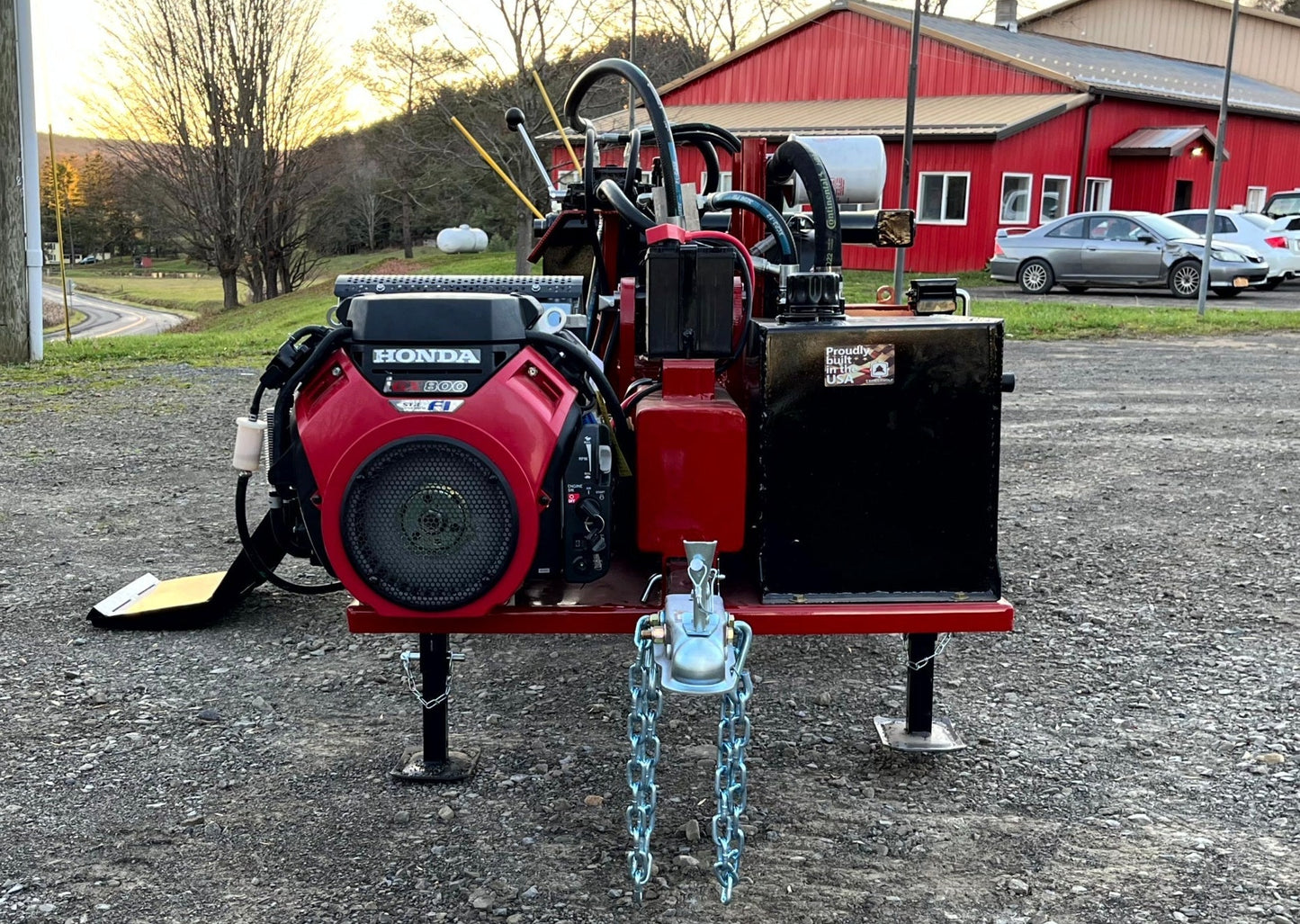

- 28 GPM pump flow powered by a 22 HP engine for reliable hydraulic performance
If your goal is to split large blocks efficiently and maximize cord output, the 5" cylinder configuration is the ideal choice. It delivers the power and speed needed to keep production moving while maintaining consistent, professional-grade results in high-demand firewood operations.
The Fastest Commercial Log Splitter
If you increase splitting speed, you directly increase total throughput over time—more cycles per hour translates into more firewood processed, which is simple but critical production math. One of the most effective ways to achieve this without increasing engine size or pump capacity is through hydraulic regeneration technology. The Alpha Series box wedge wood splitter comes standard with a regeneration manifold, which enables a regeneration cycle that significantly improves cycle efficiency.
In practical terms, the regen manifold redirects hydraulic flow during the extend stroke, allowing the cylinder rod to advance more quickly while still operating within the same 28 GPM pump flow. Instead of relying solely on full-pressure extension, the system combines hydraulic volume in a way that accelerates rod movement until higher resistance is encountered. This results in faster approach and splitting cycles without requiring additional horsepower, ultimately improving cycle time, increasing operational efficiency, and maximizing firewood output per hour without compromising force.
