TWC-12

  • Sale
  • Regular price $4,295.95
Shipping calculated at checkout.


Specs
TWC-12
Travel Height
6' 4"
Max Height 8' 9"
Max Angle
27 degrees
Weight
1075 lb

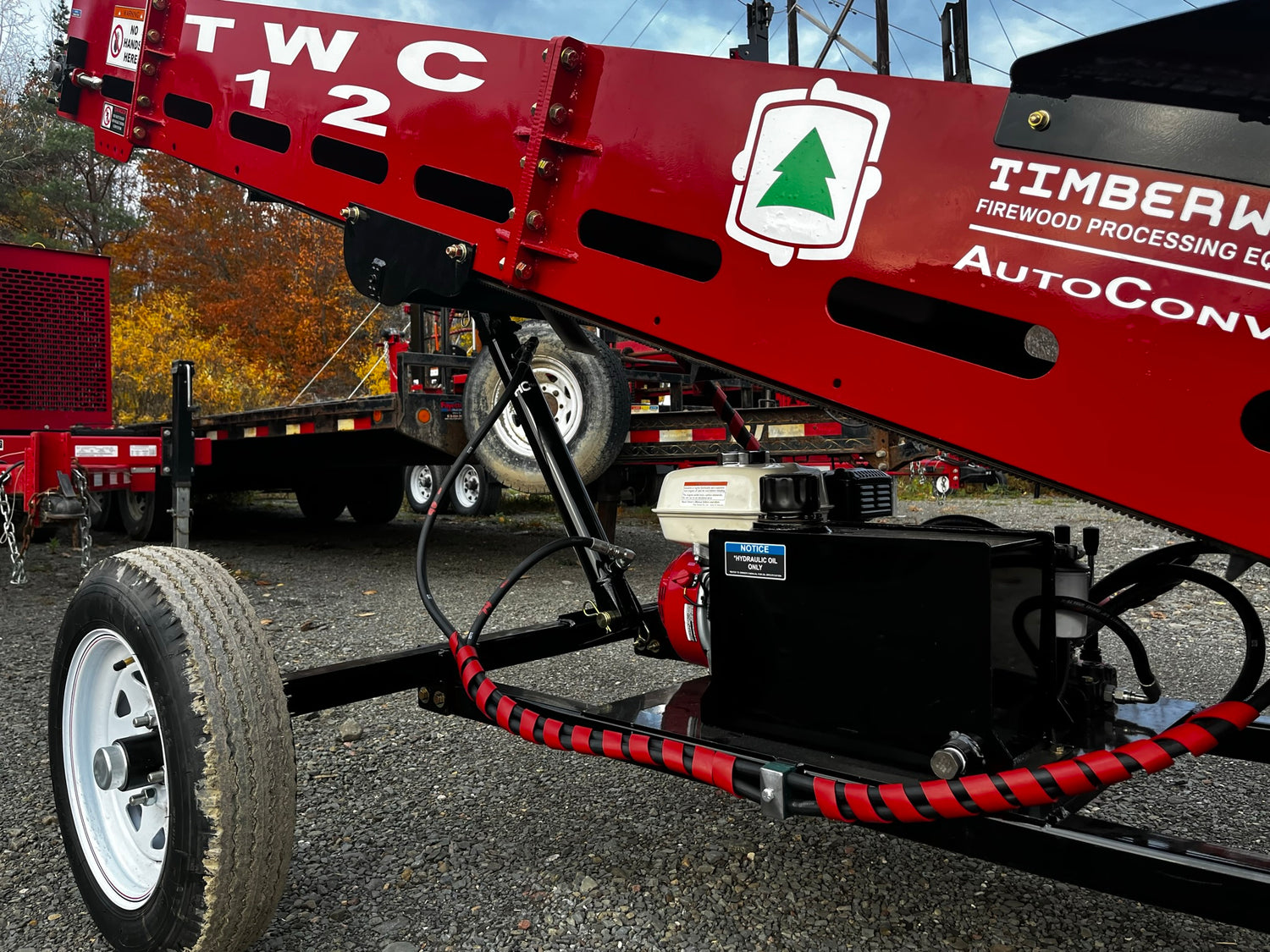

Engine
GC-160

Product Description

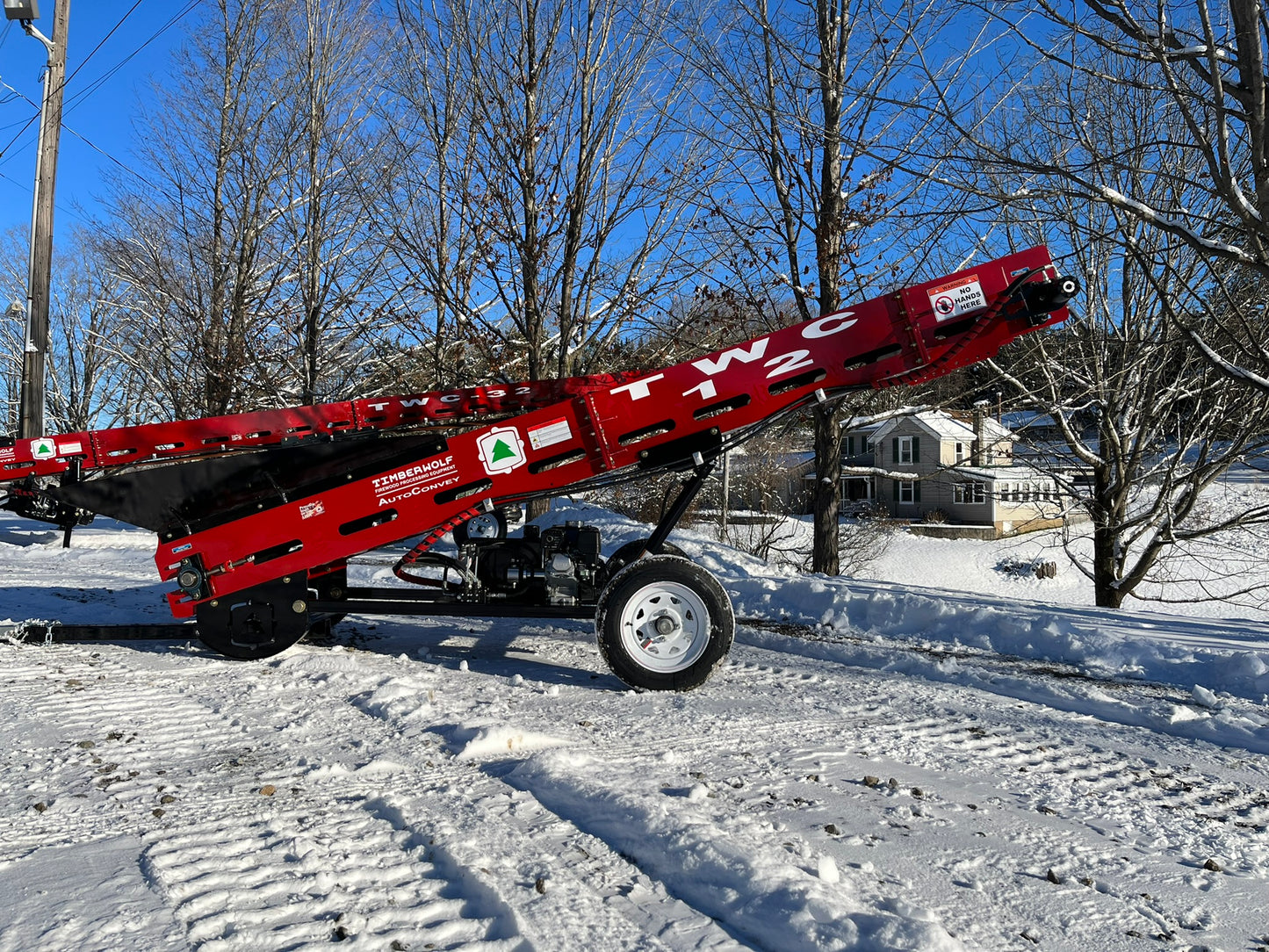

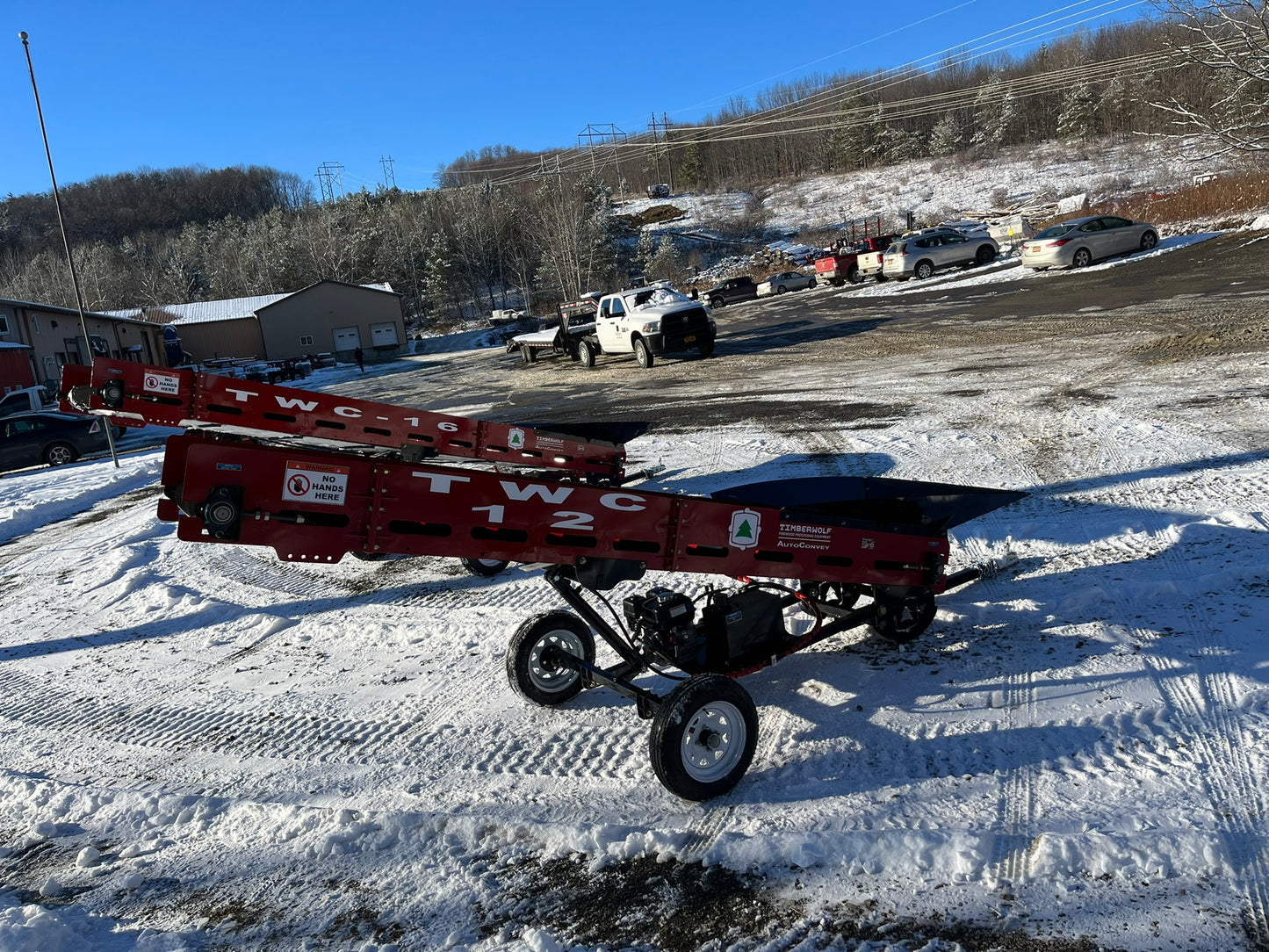

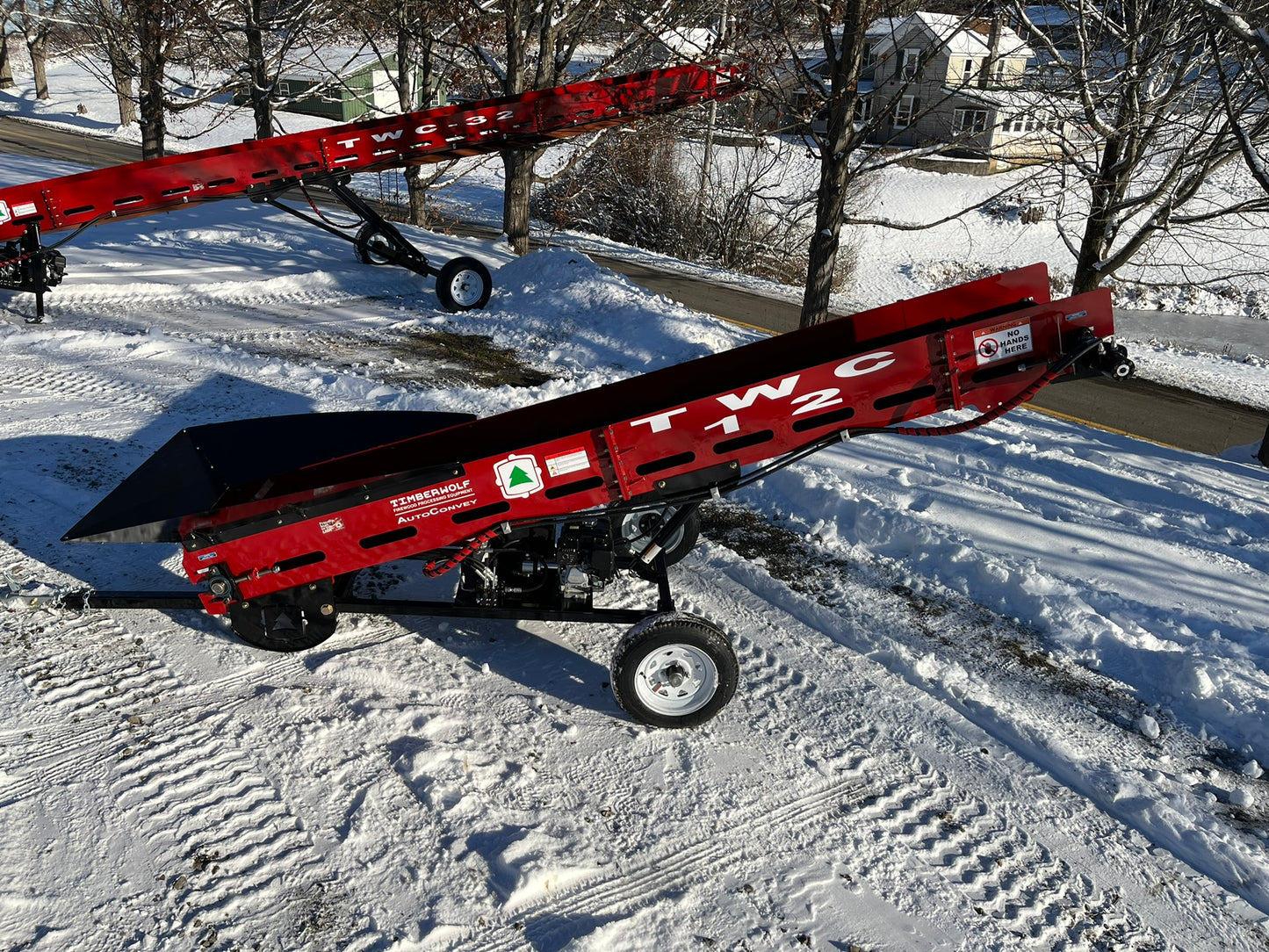

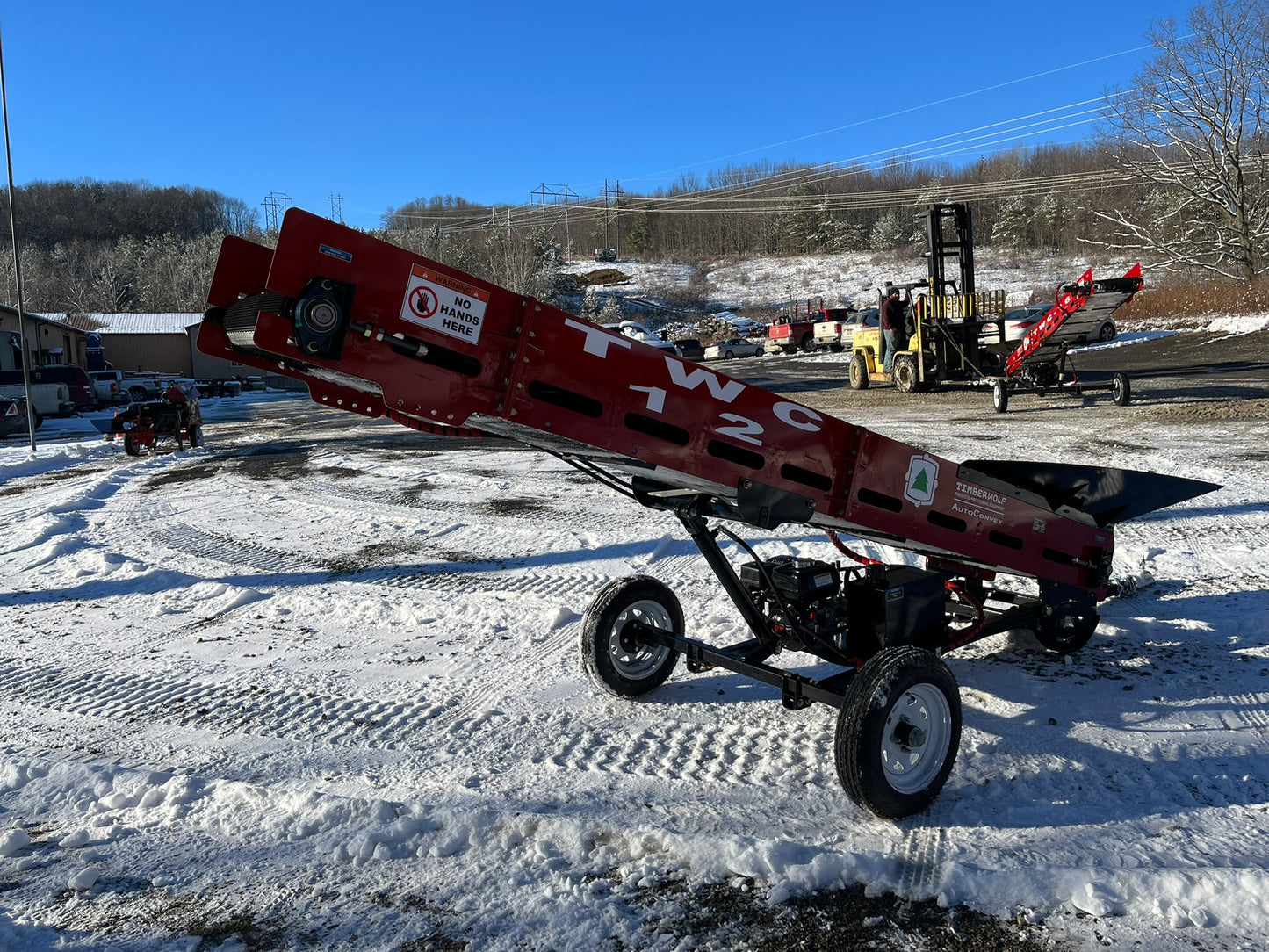

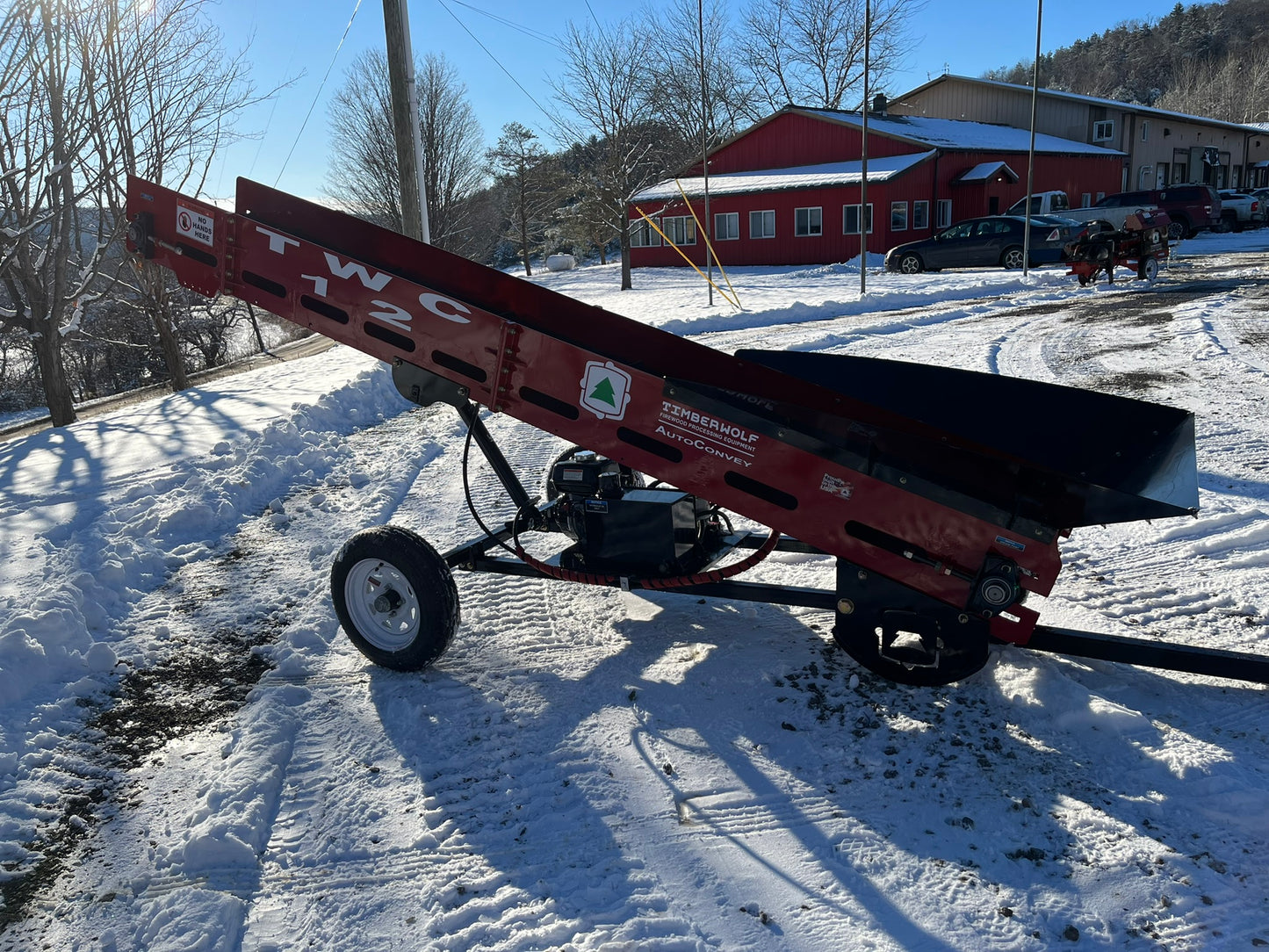

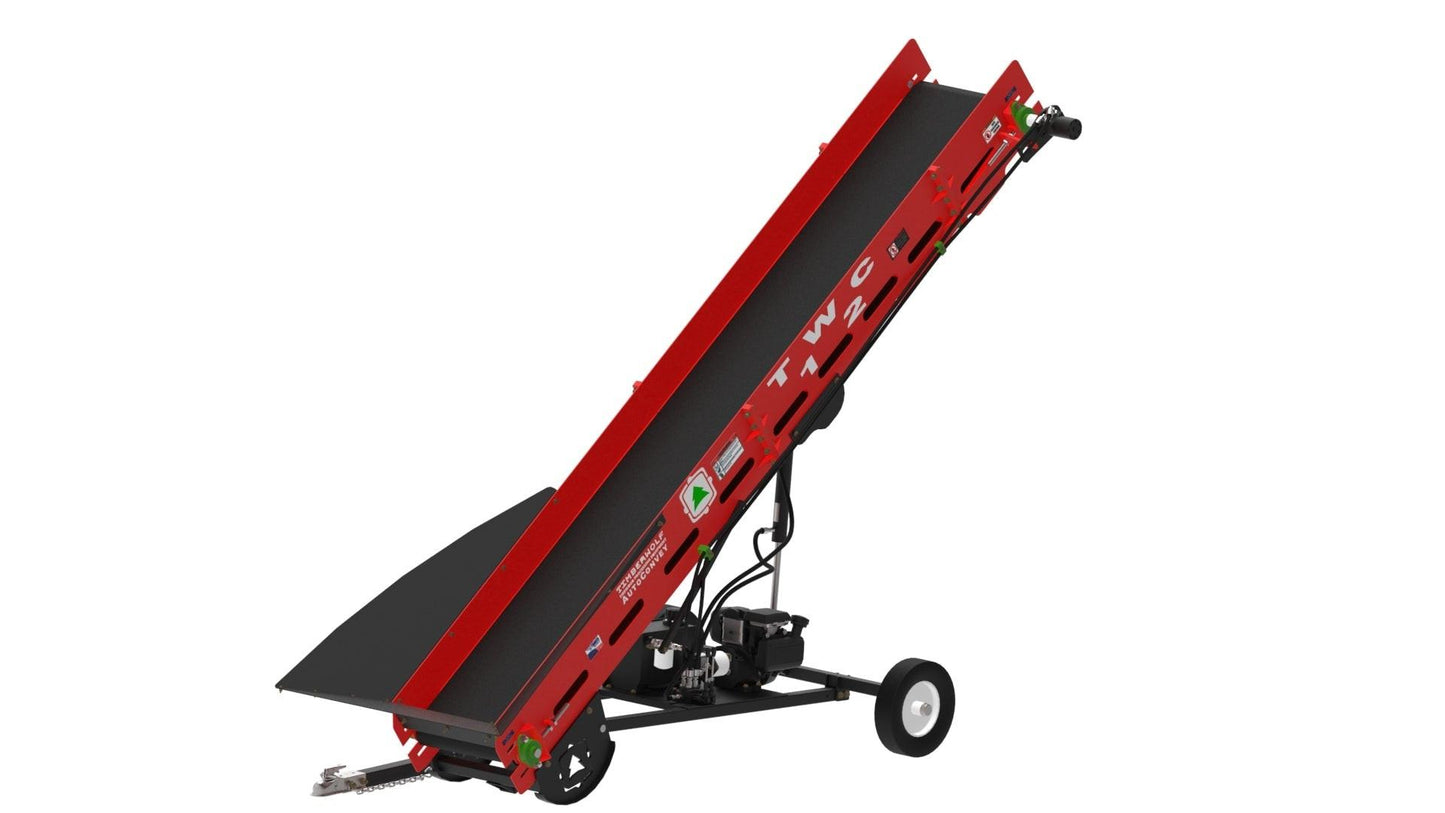

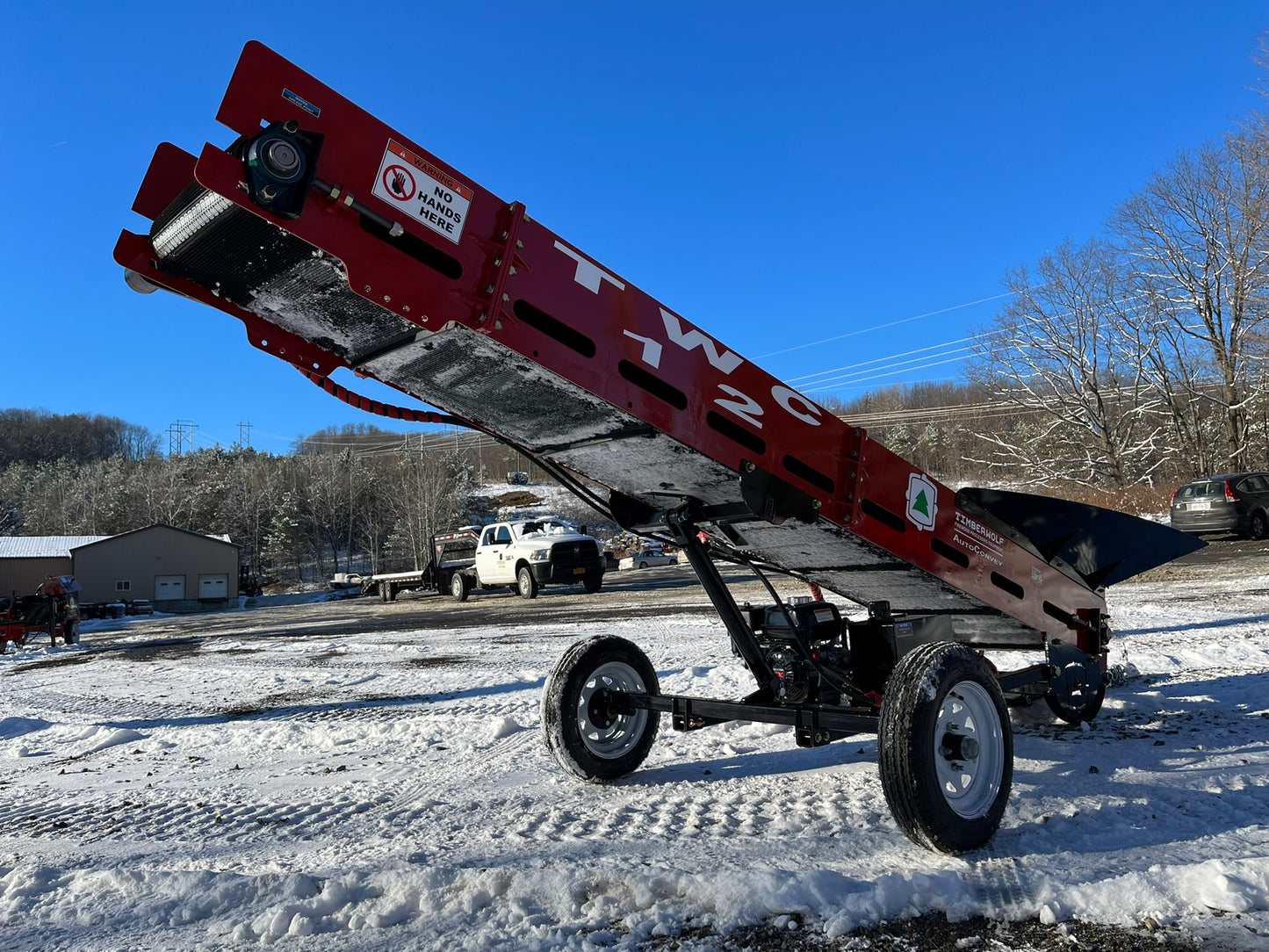

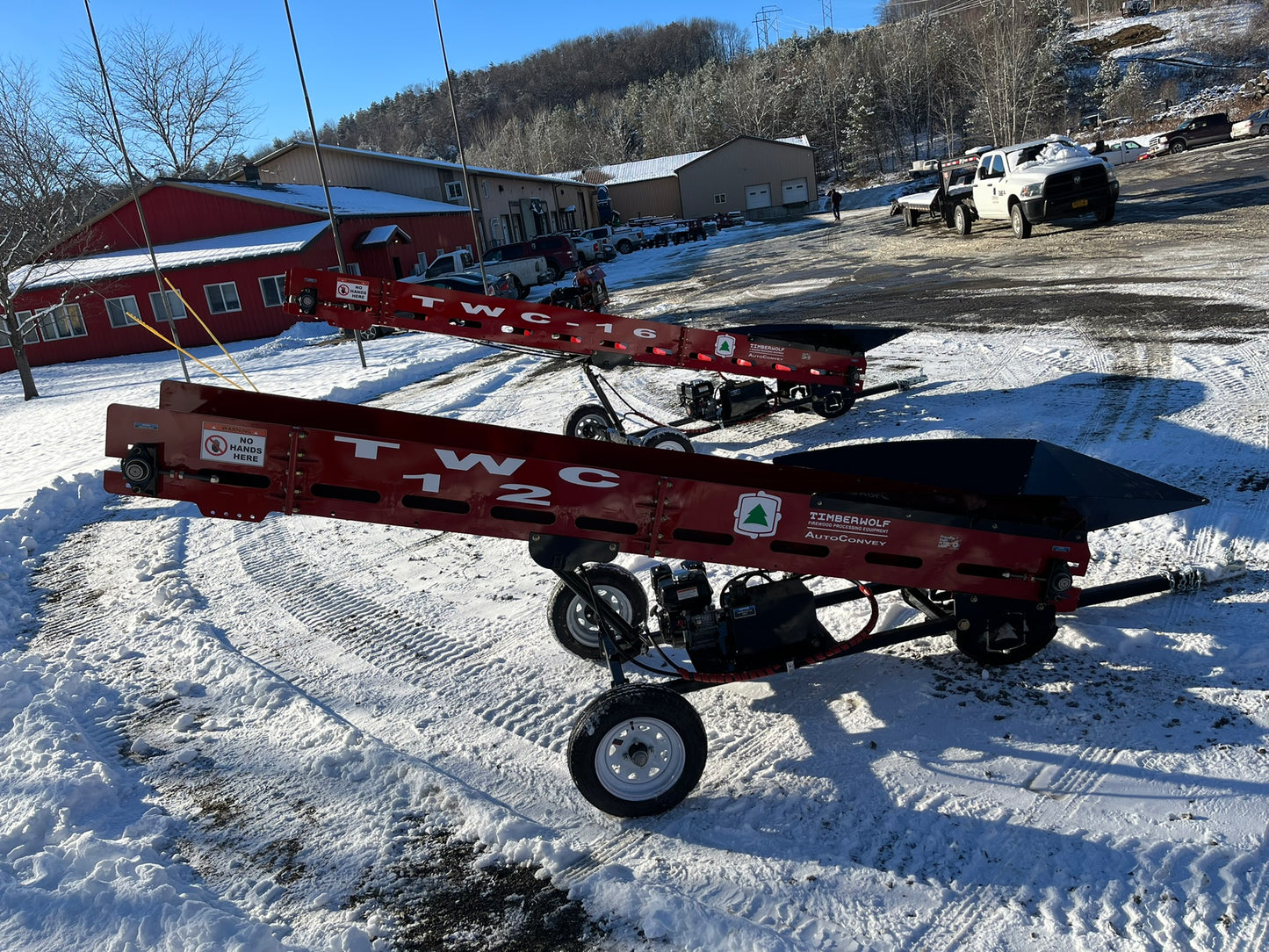

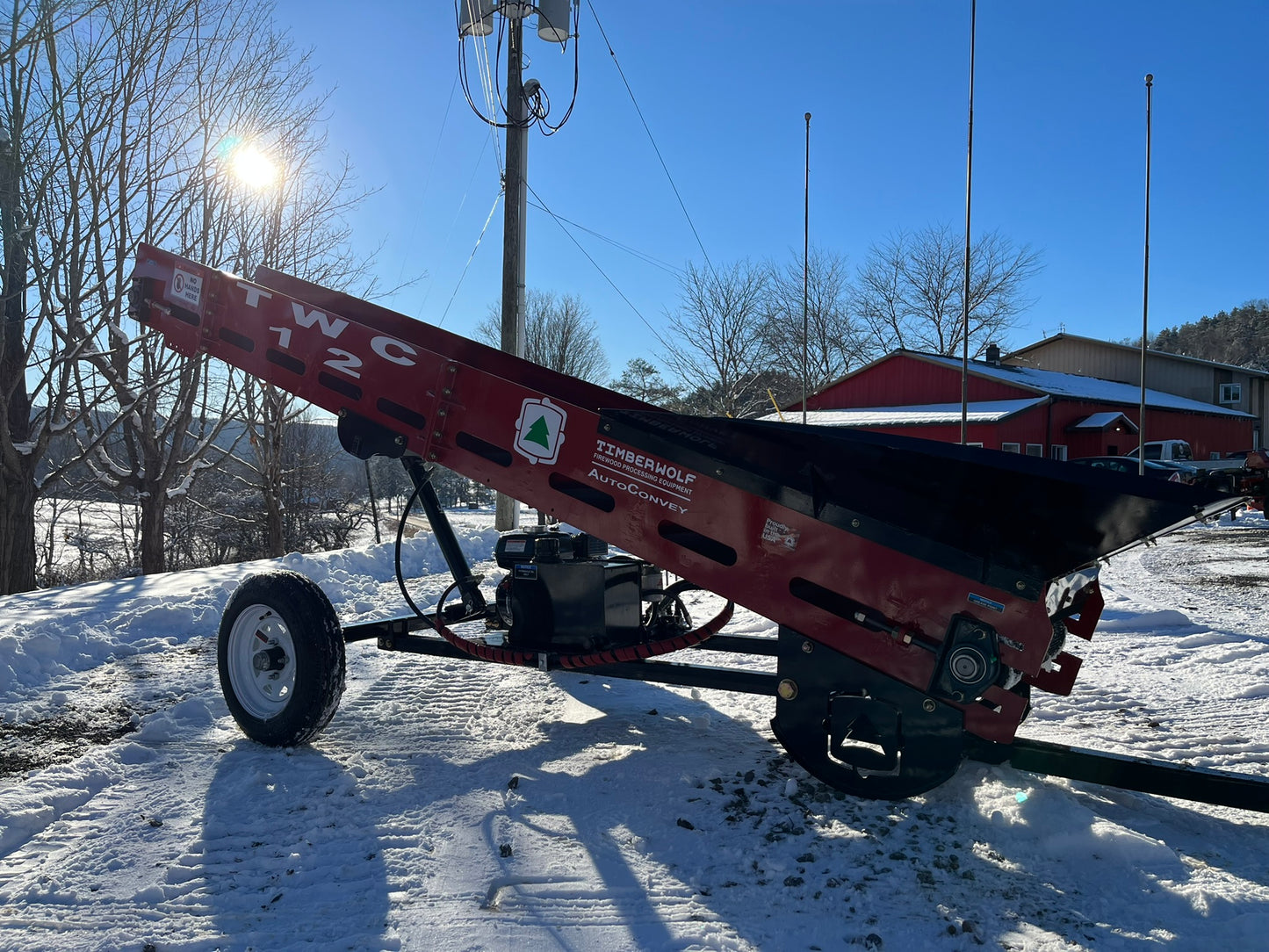

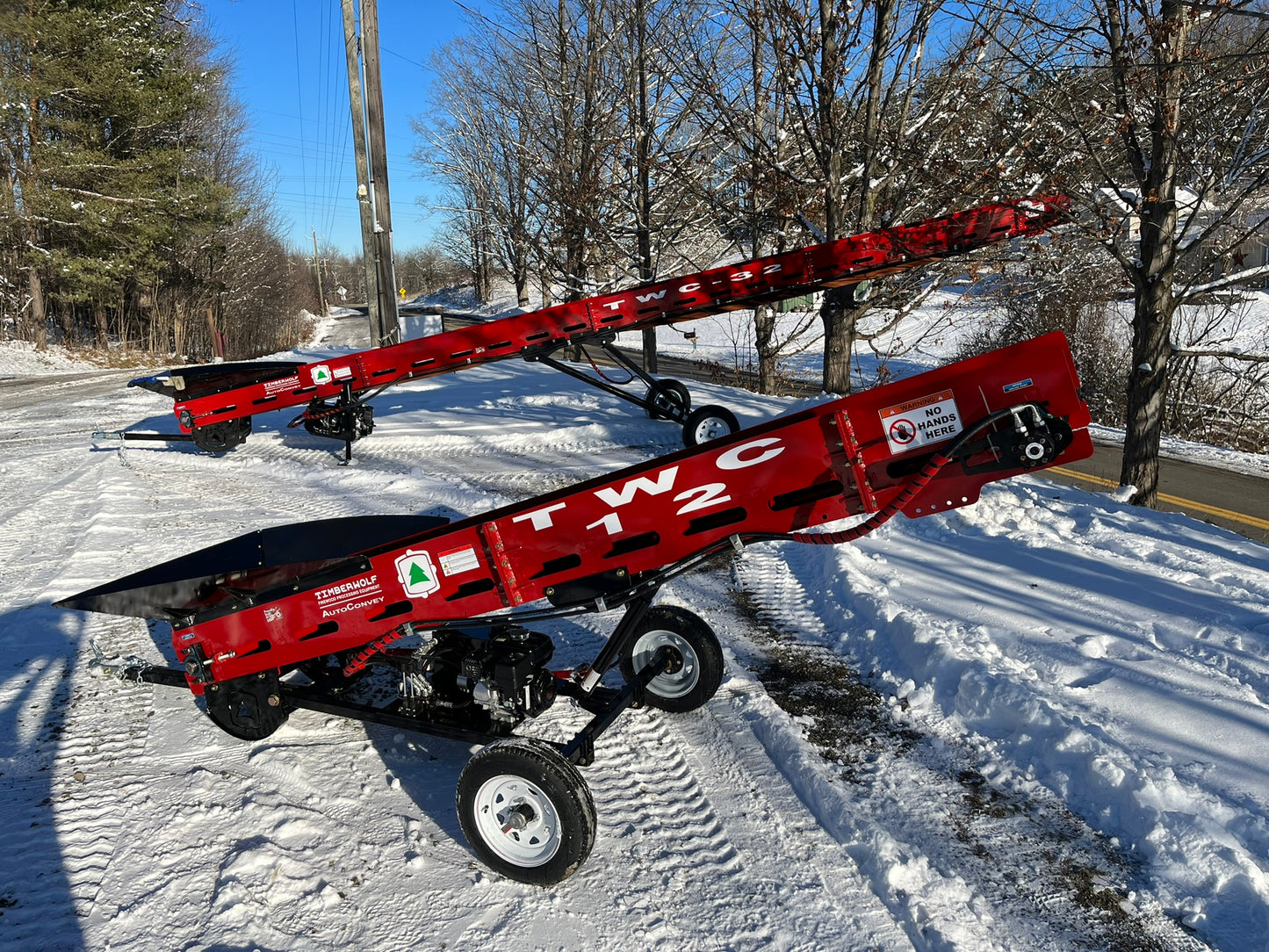

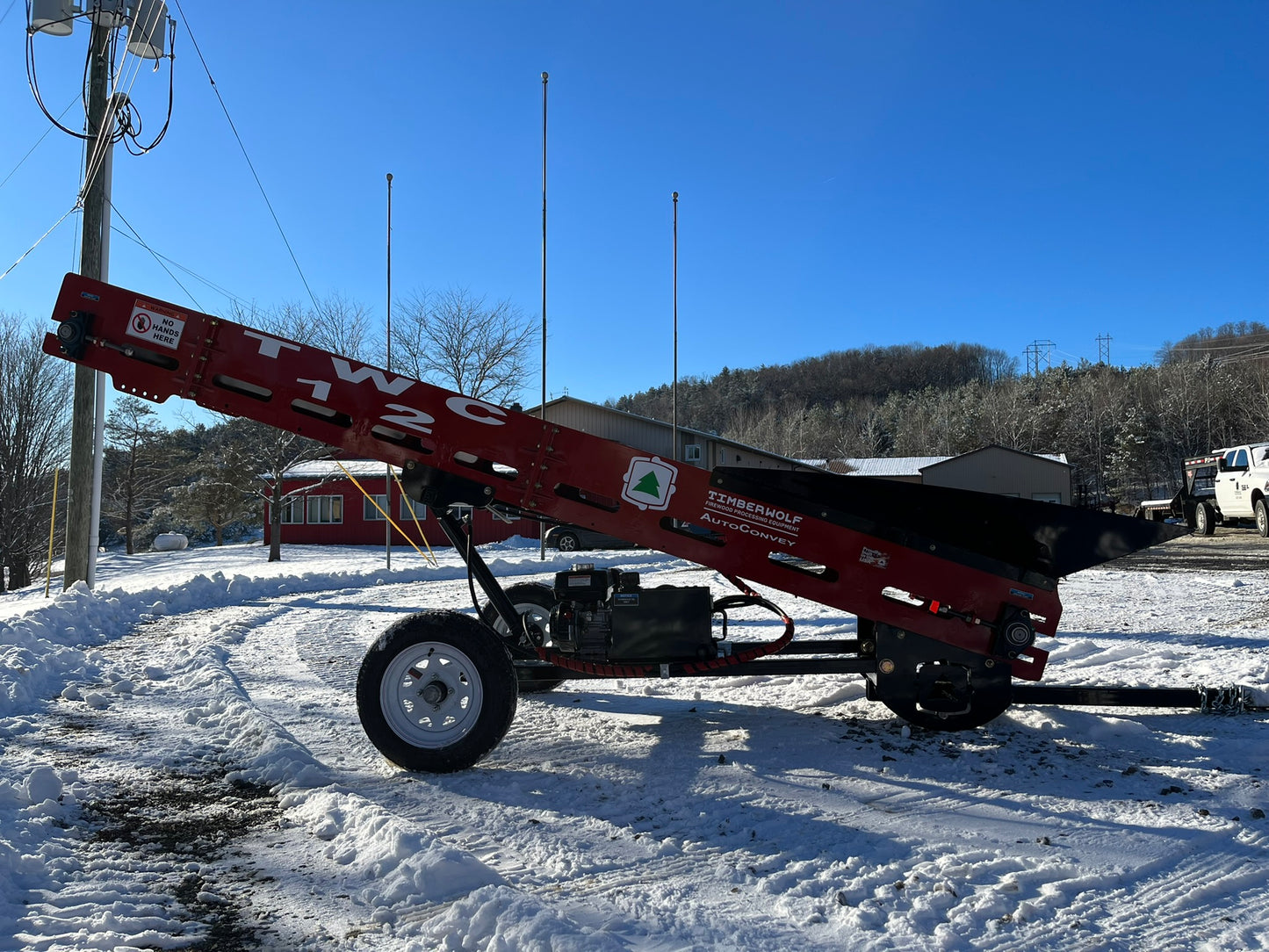

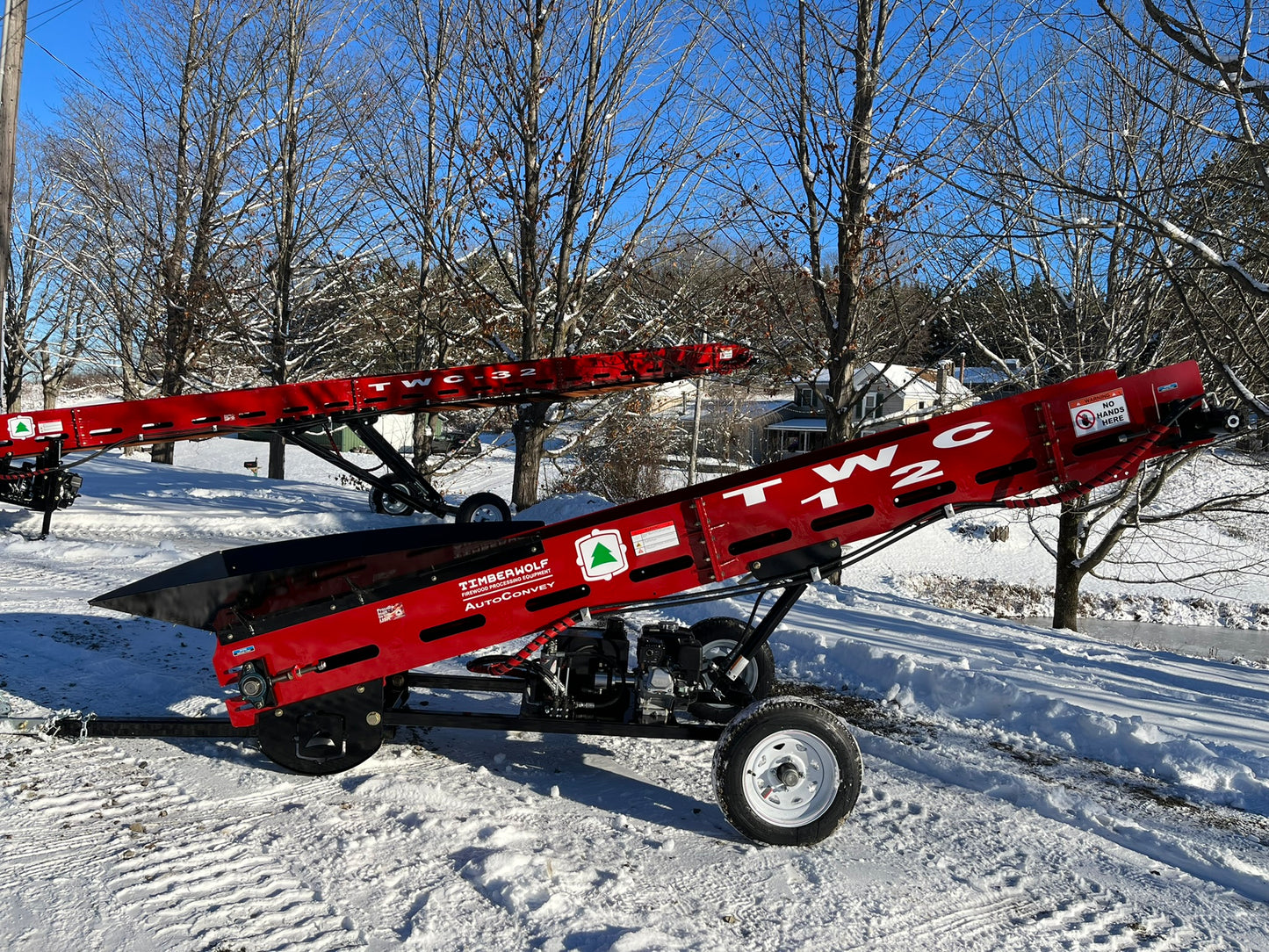

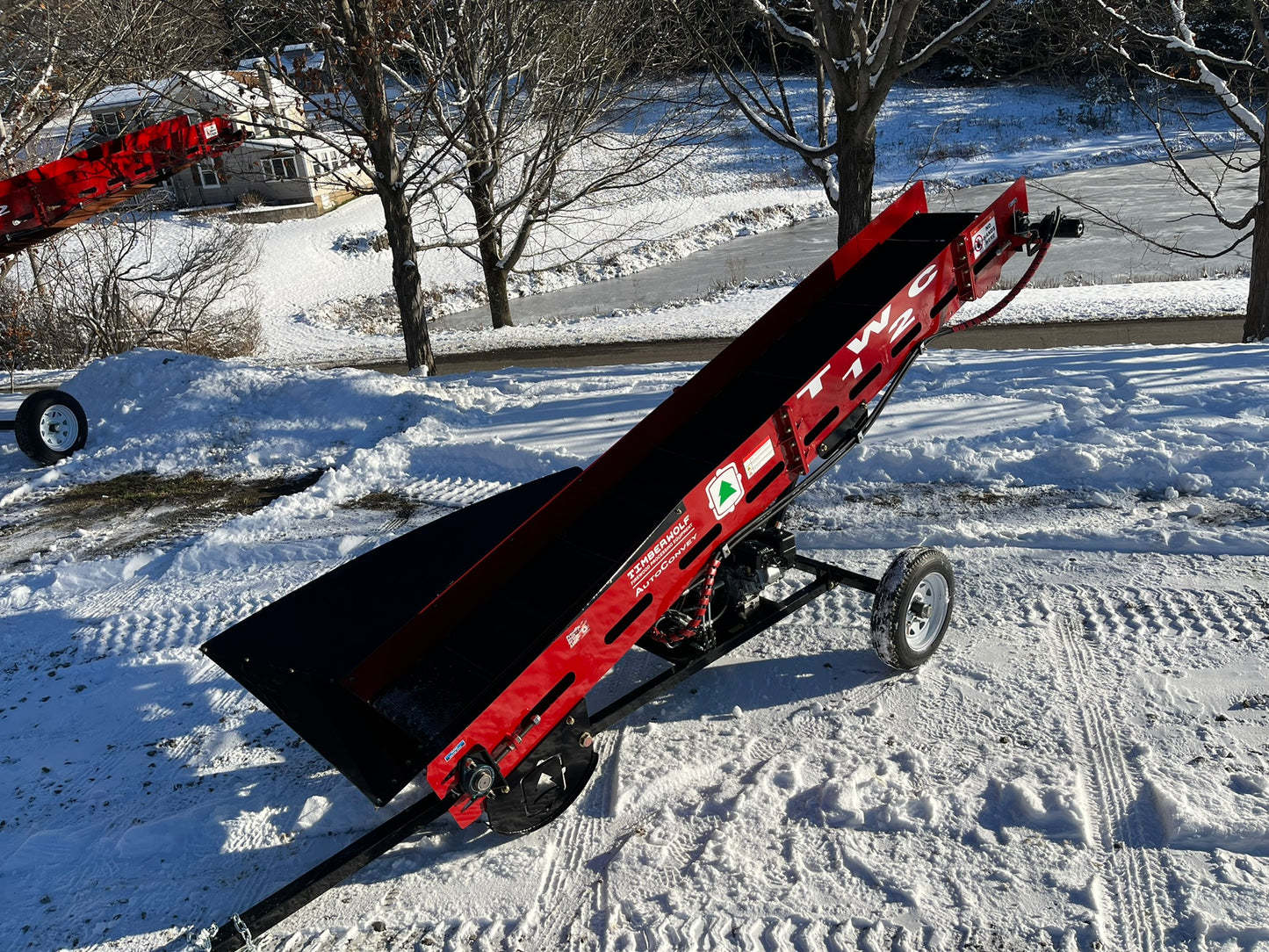

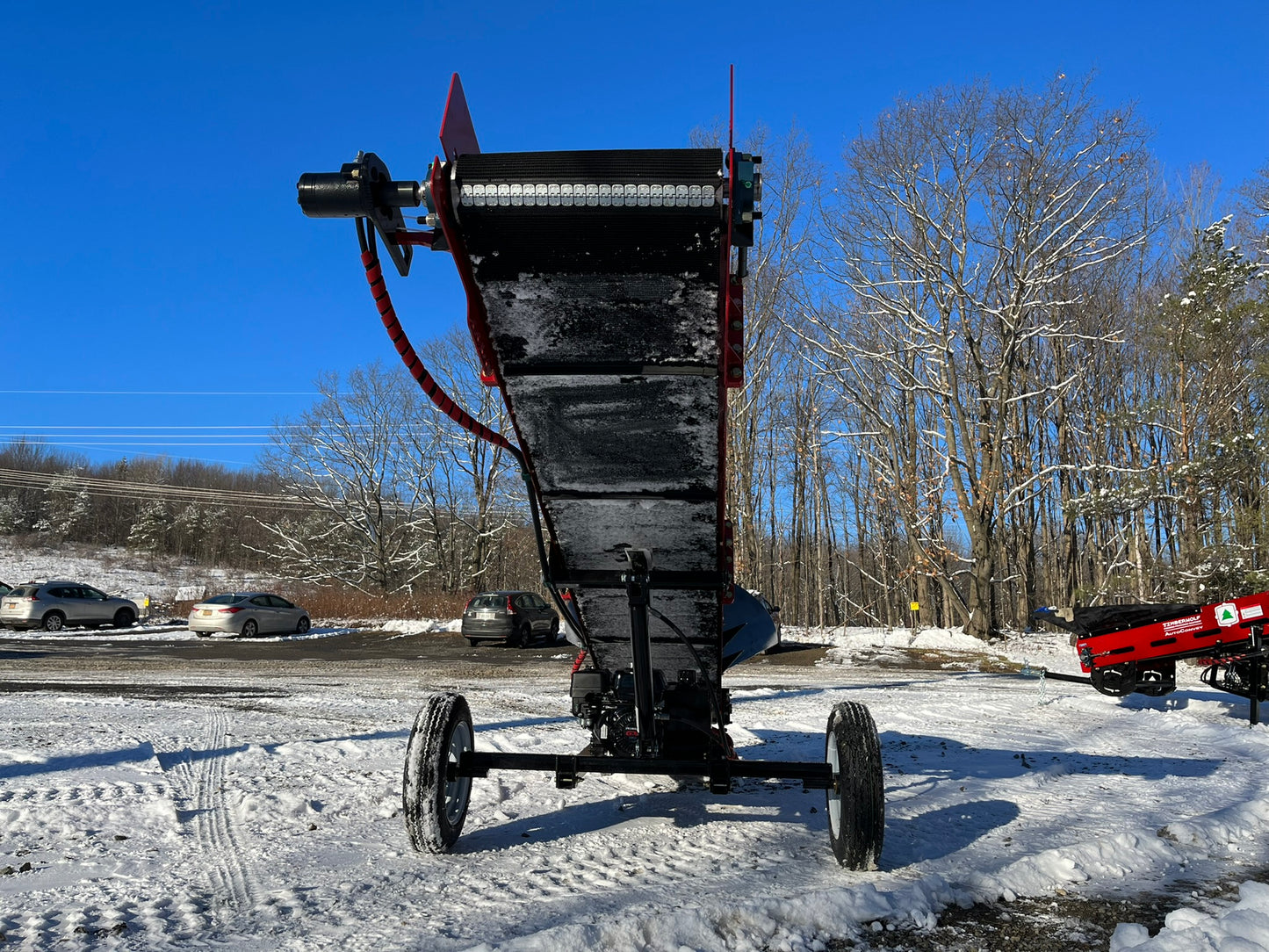

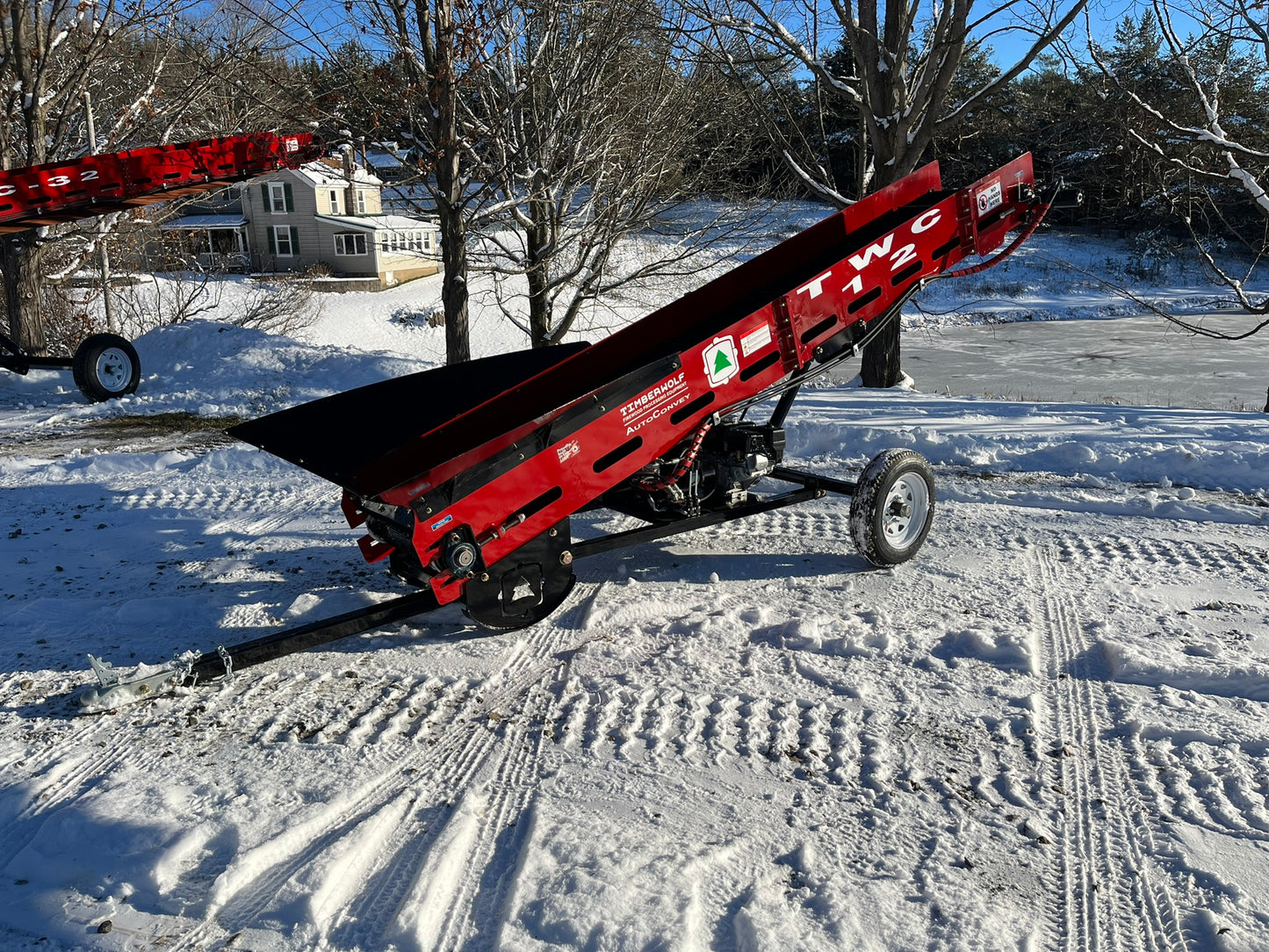

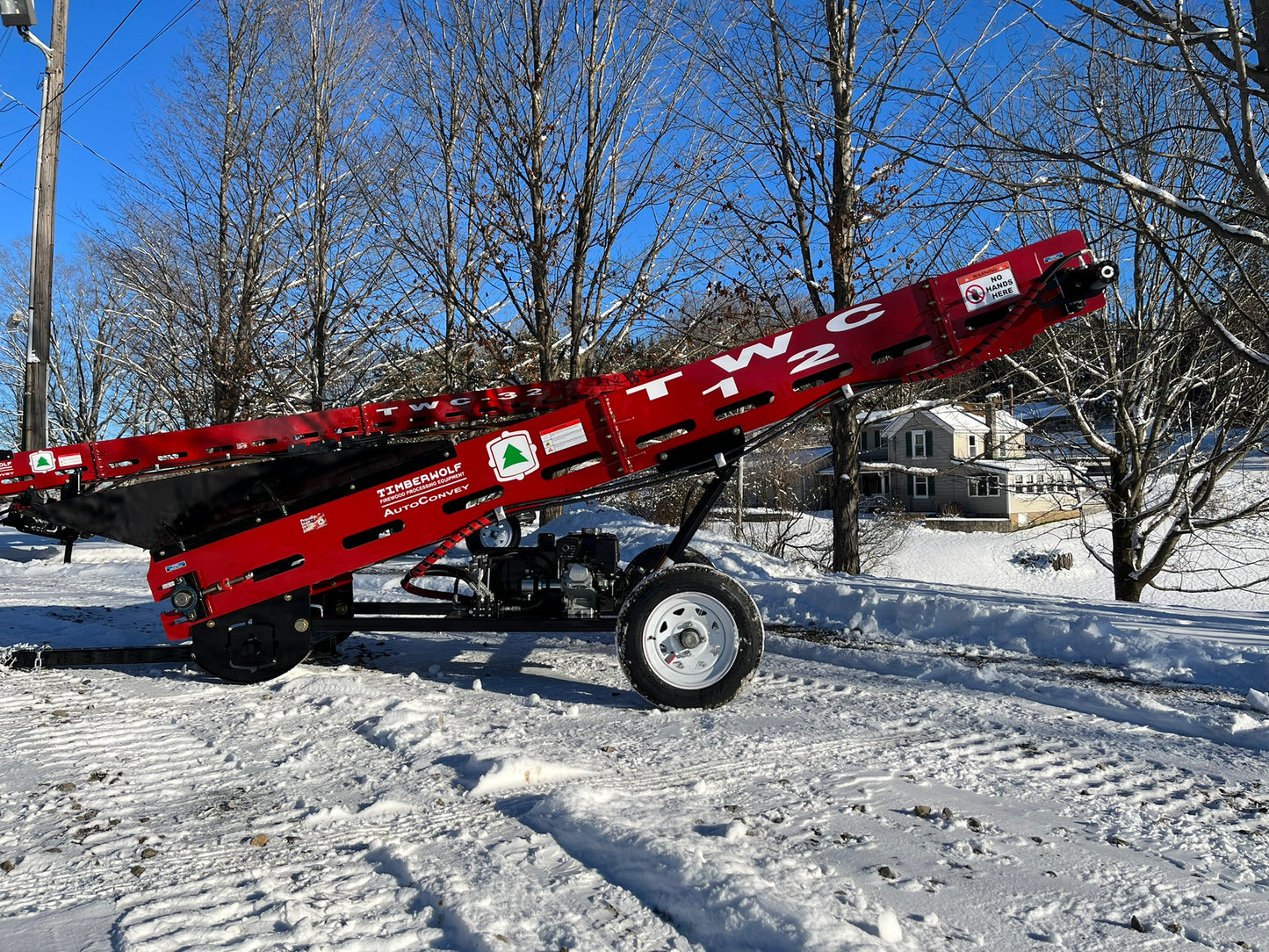

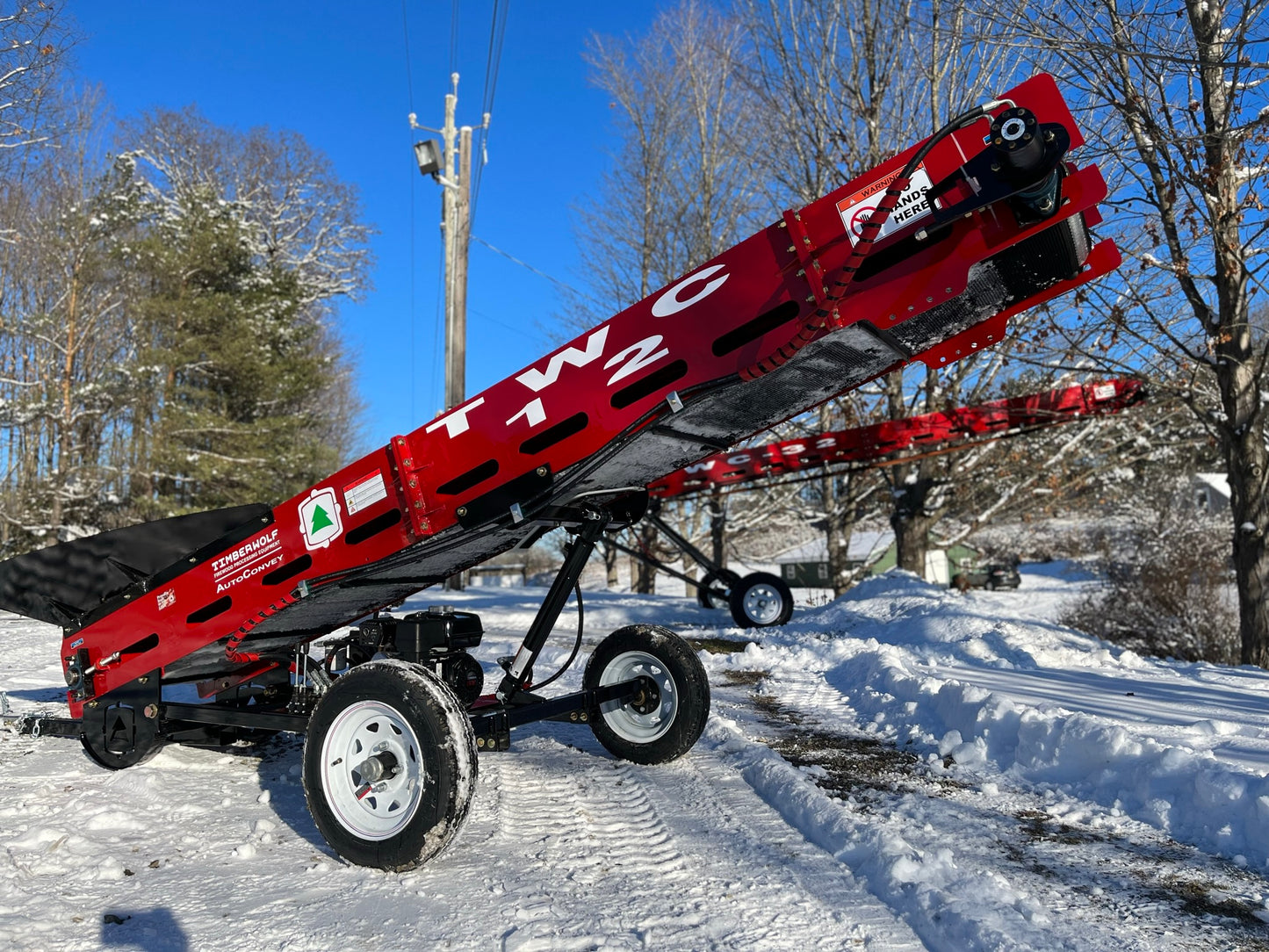

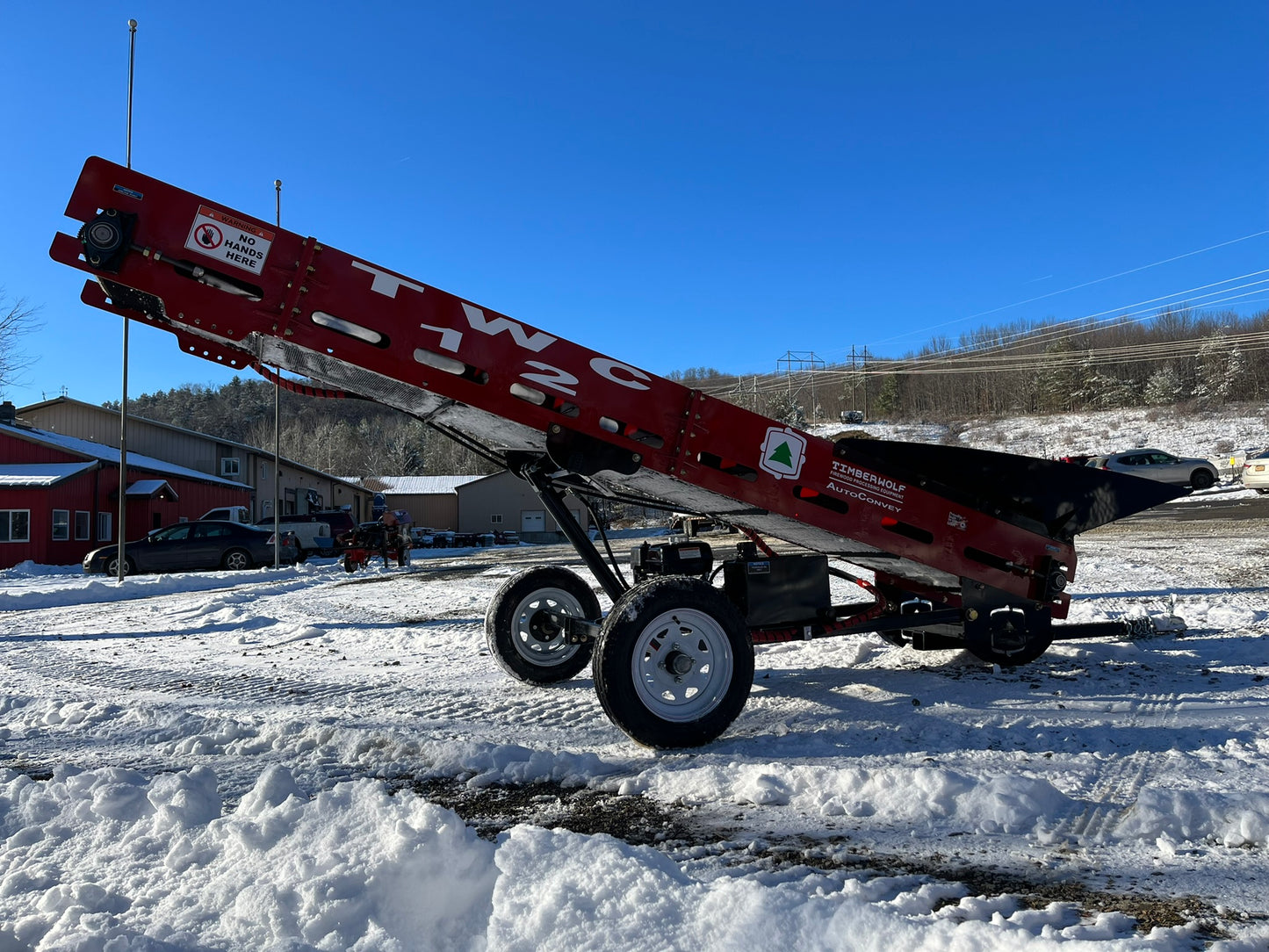

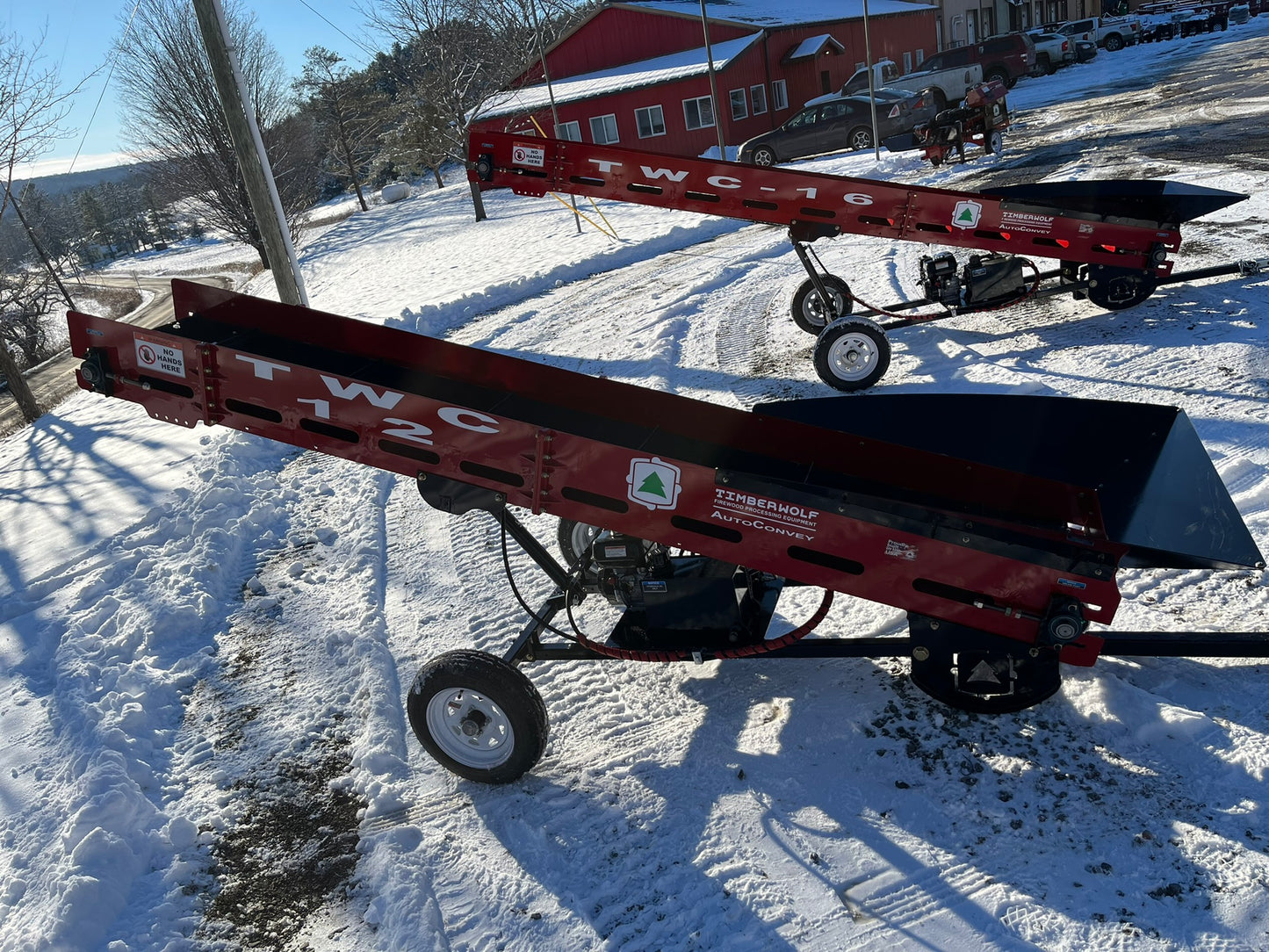

The TWC-12 conveyor has a 20” wide 3 ply rubber belt with an overall length of 12’. Capable of reaching up to 8’9” into the air this conveyor is ideal for large firewood operations storing piles of seasoned wood or loading walking floor trailers.



Standard Features

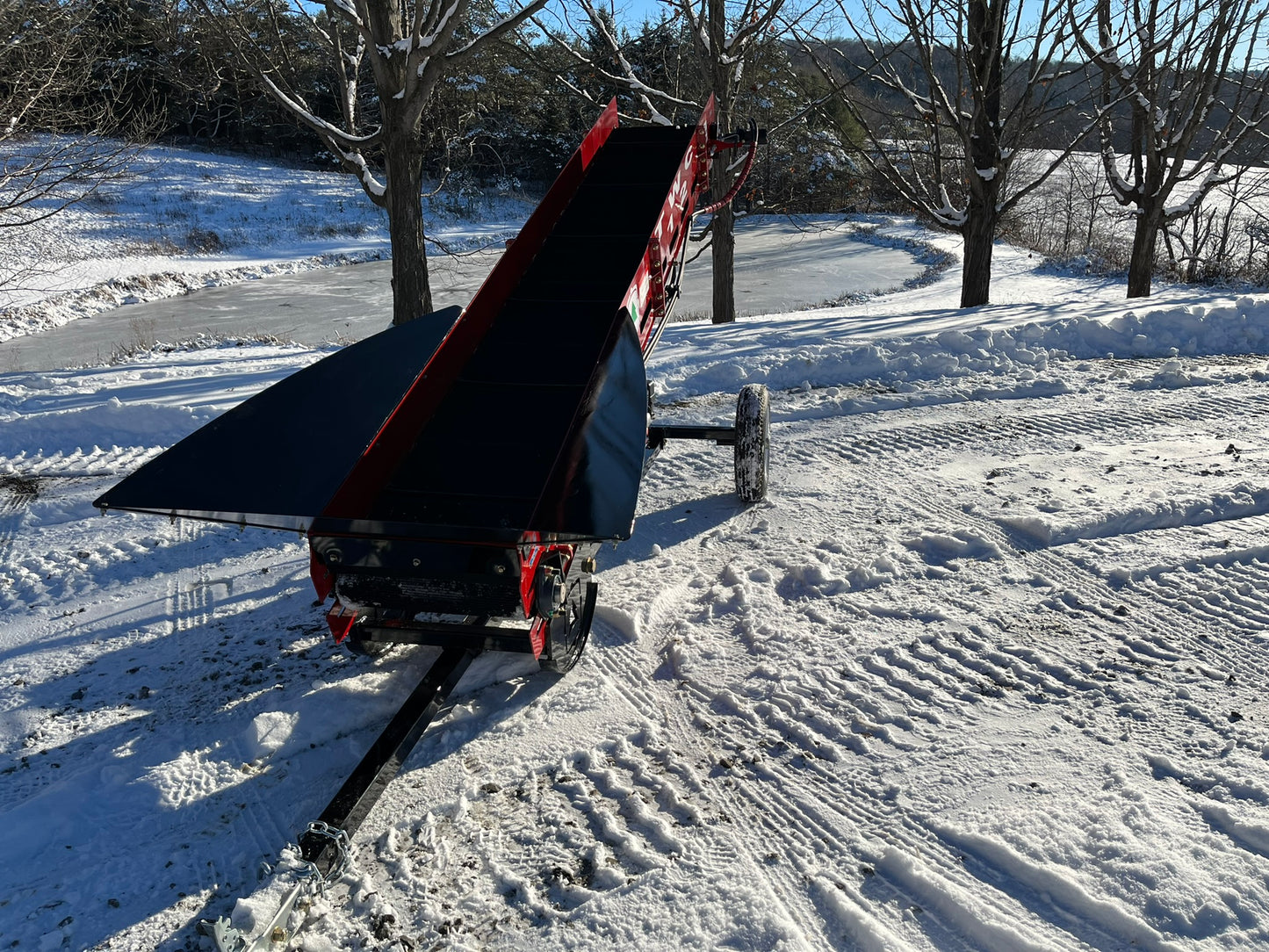

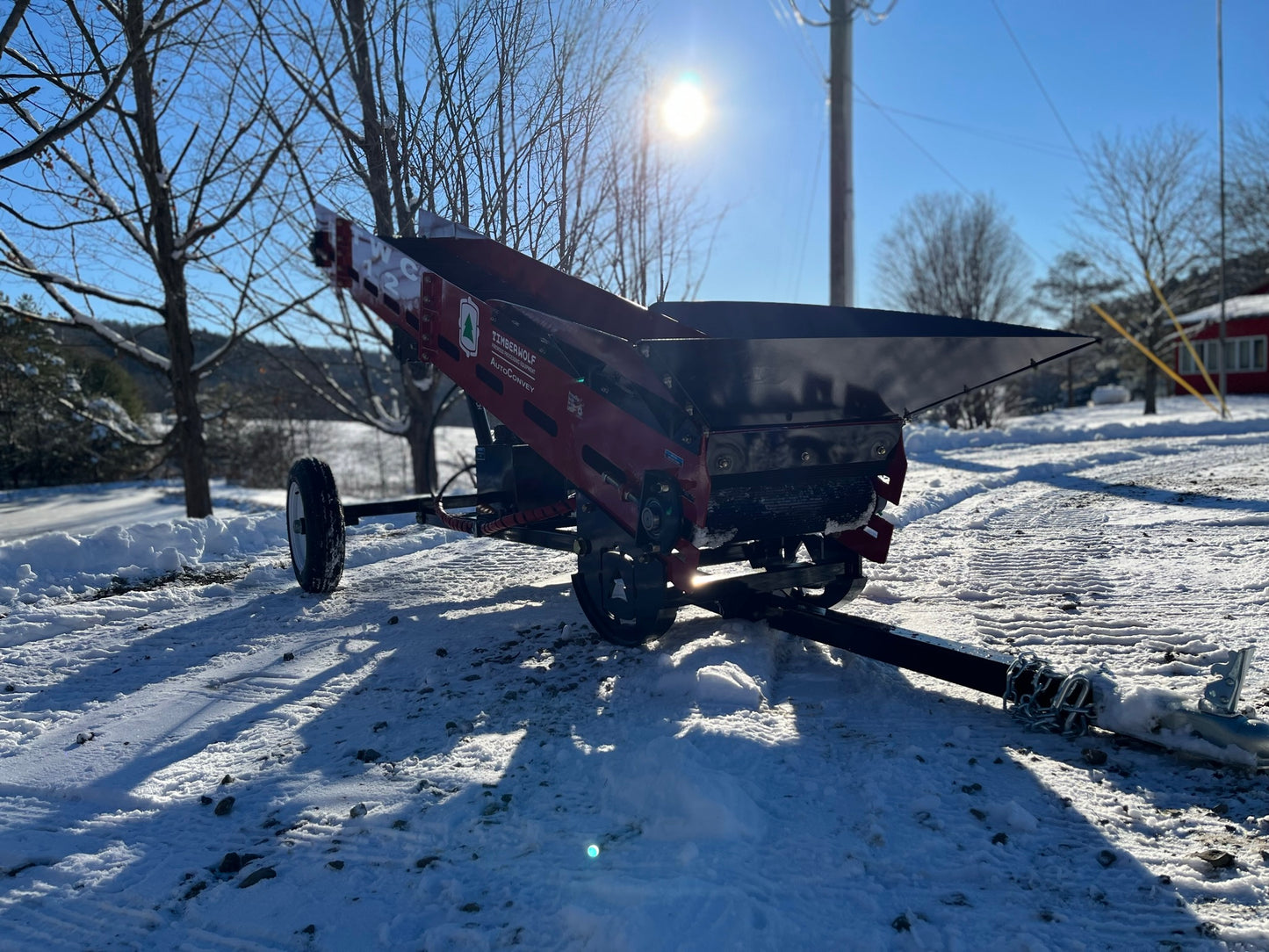

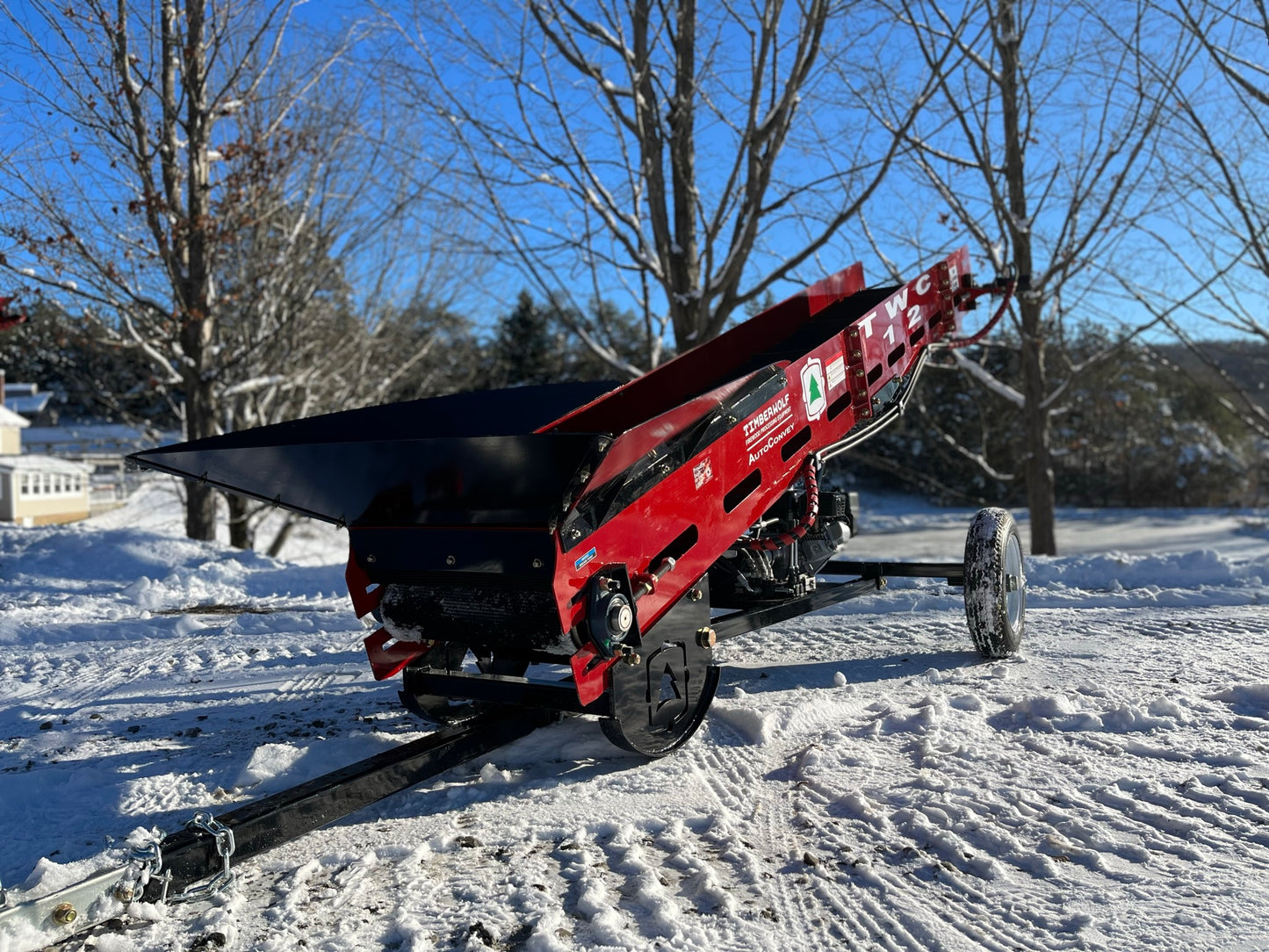

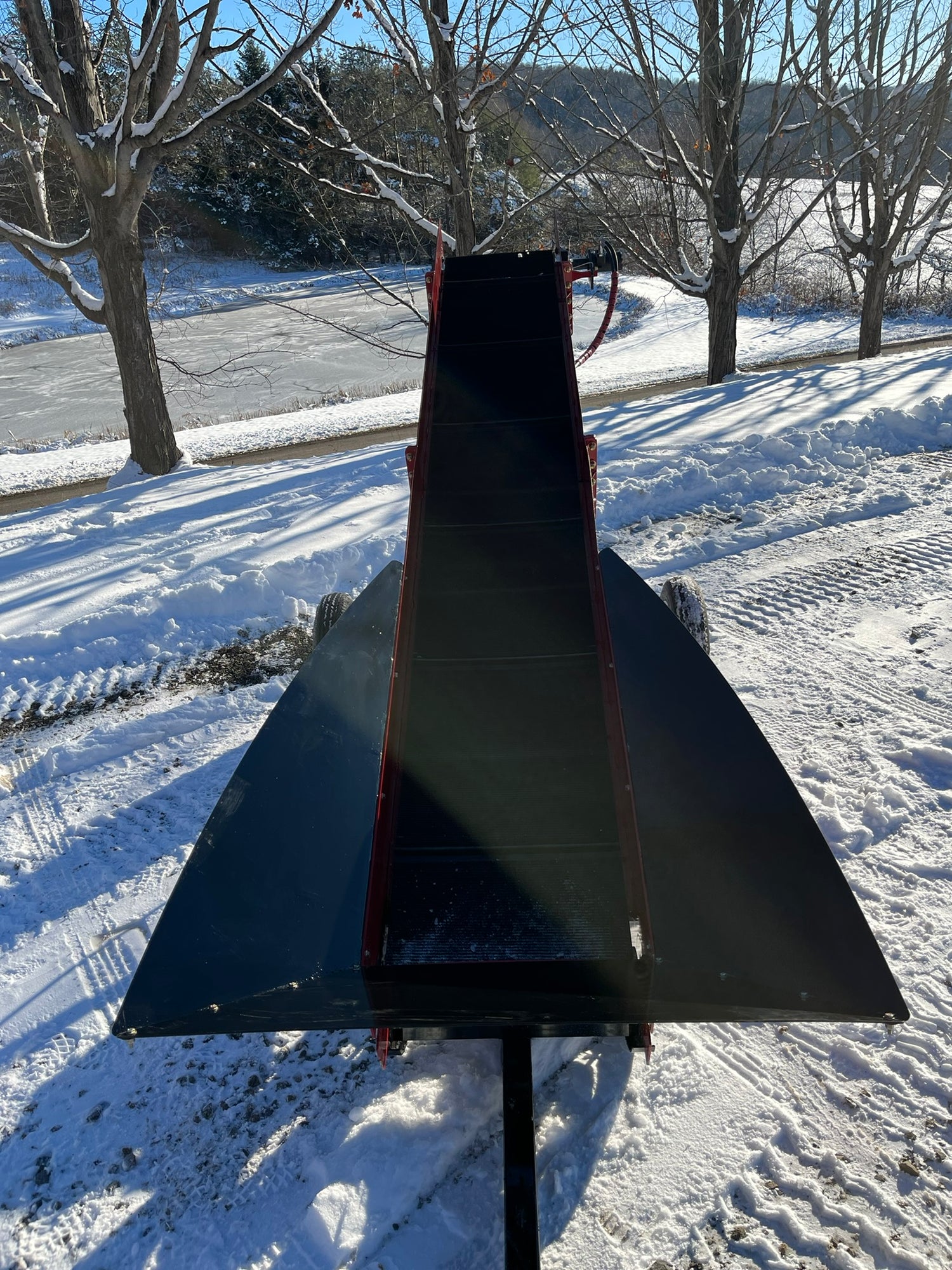

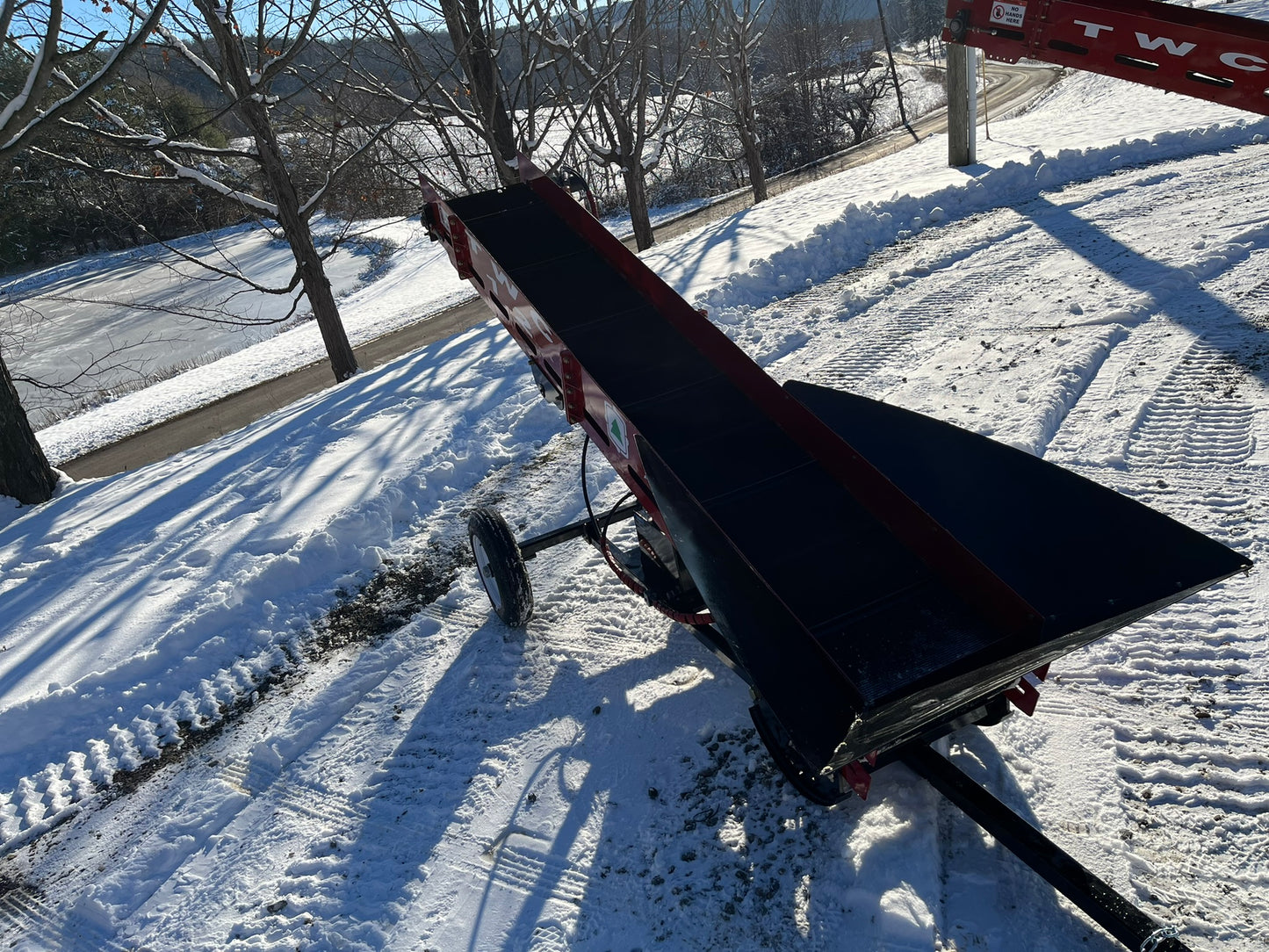

Modular HopperOur hoppers are bolt on allowing them to be replaced should they become damaged over time. This also allows us to easily offer different hopper sizes. We even make custom hoppers upon request. Constructed out of 3/16” plate steel for the bottom and 1/8” for the sides these hoppers can be filled directly with loader buckets.

Our lift cylinder, when coupled with a tandem center spool valve, can be adjusted to whatever height you need between 6′ 4″ and 8’9″. Easily load a pickup or low profile dump body.

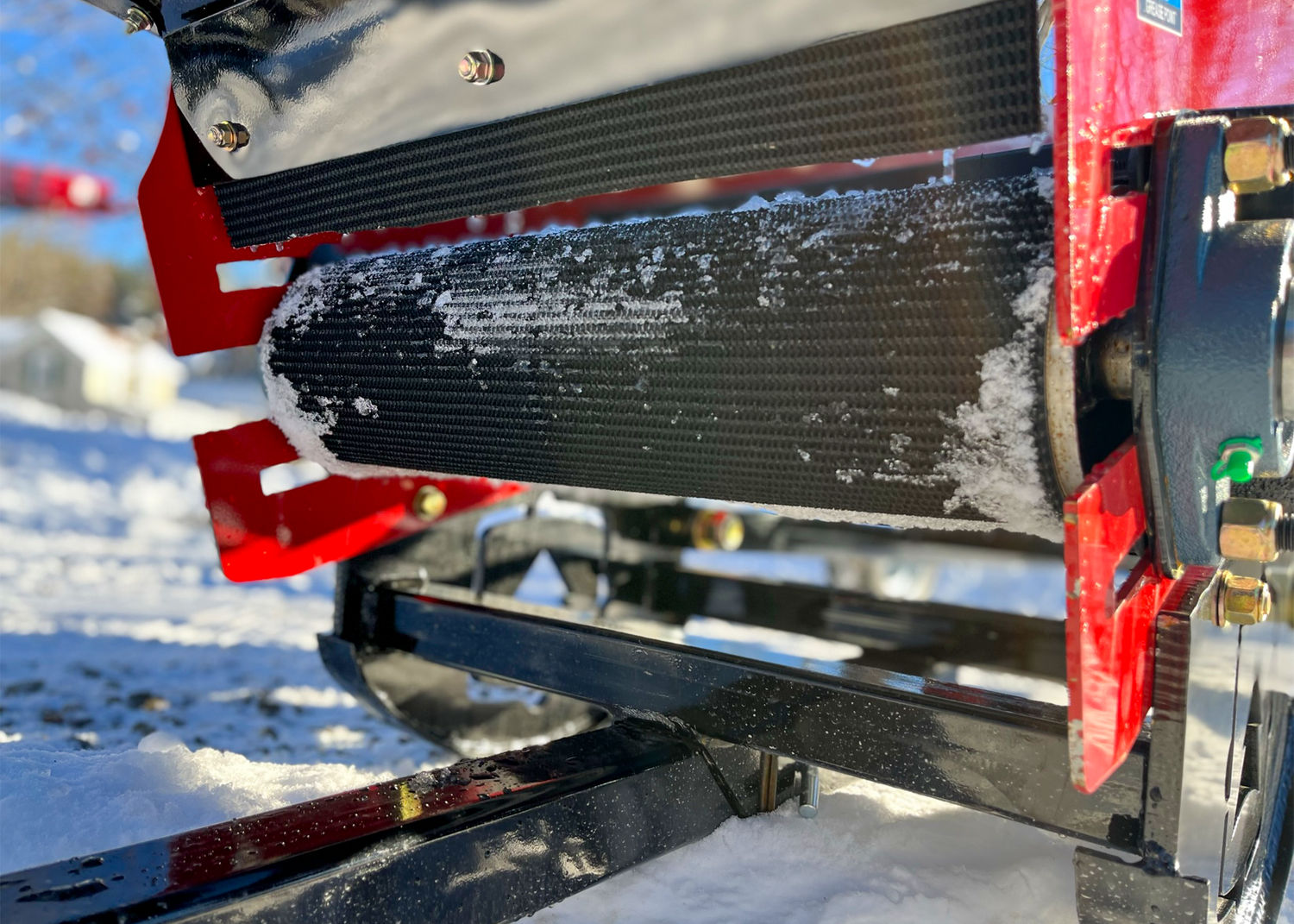

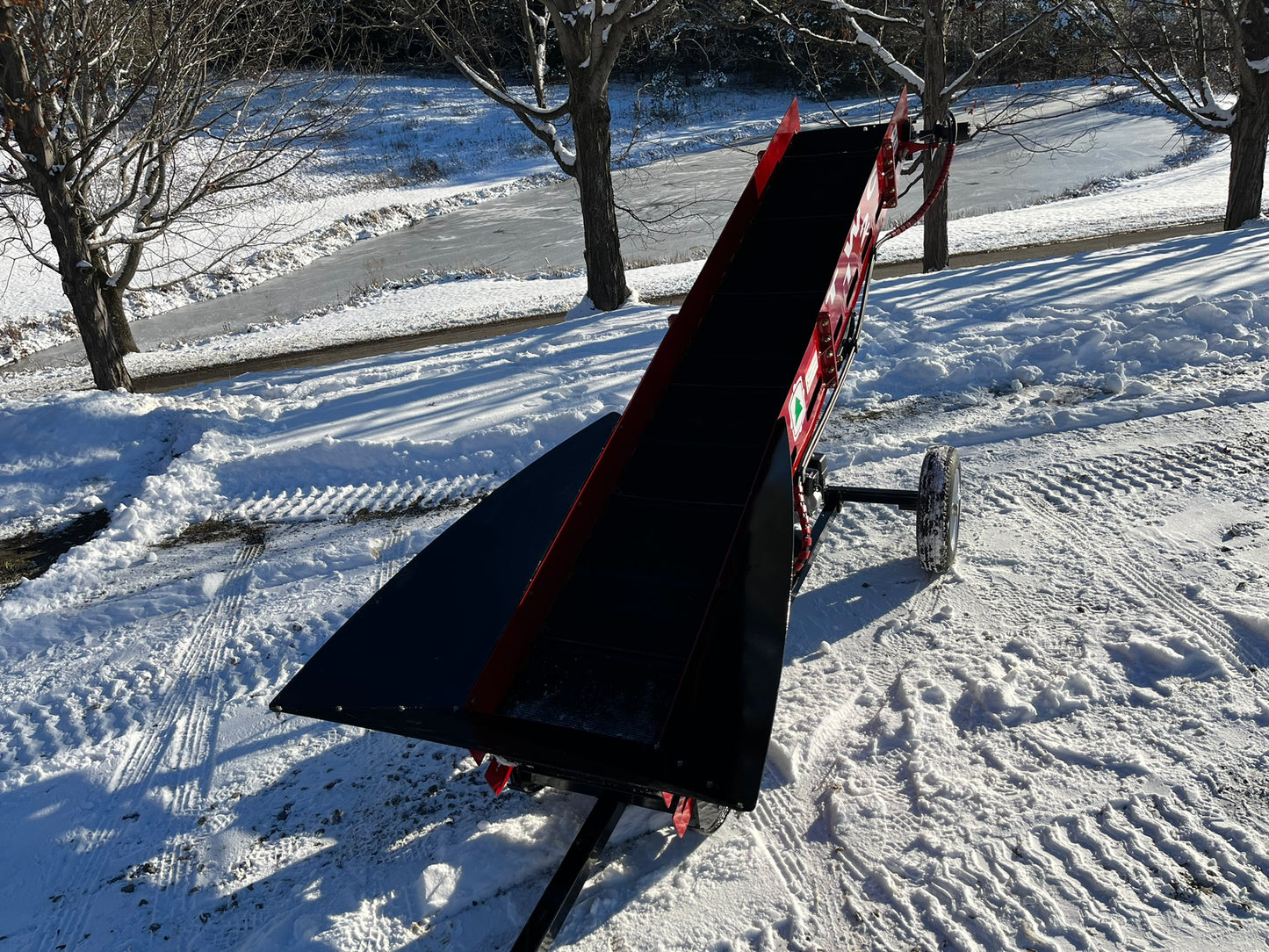

Rough Top BeltOur standard belt is a 20” wide 3 ply belt with a heavily textured surface to ensure the ultimate in wood grip. This allows firewood to be propelled even at the 27 degree angle required to achieve full height. The thick material is specially formulated to resist degradation from UV rays. Designed to provide thousands of hours of worry free service.

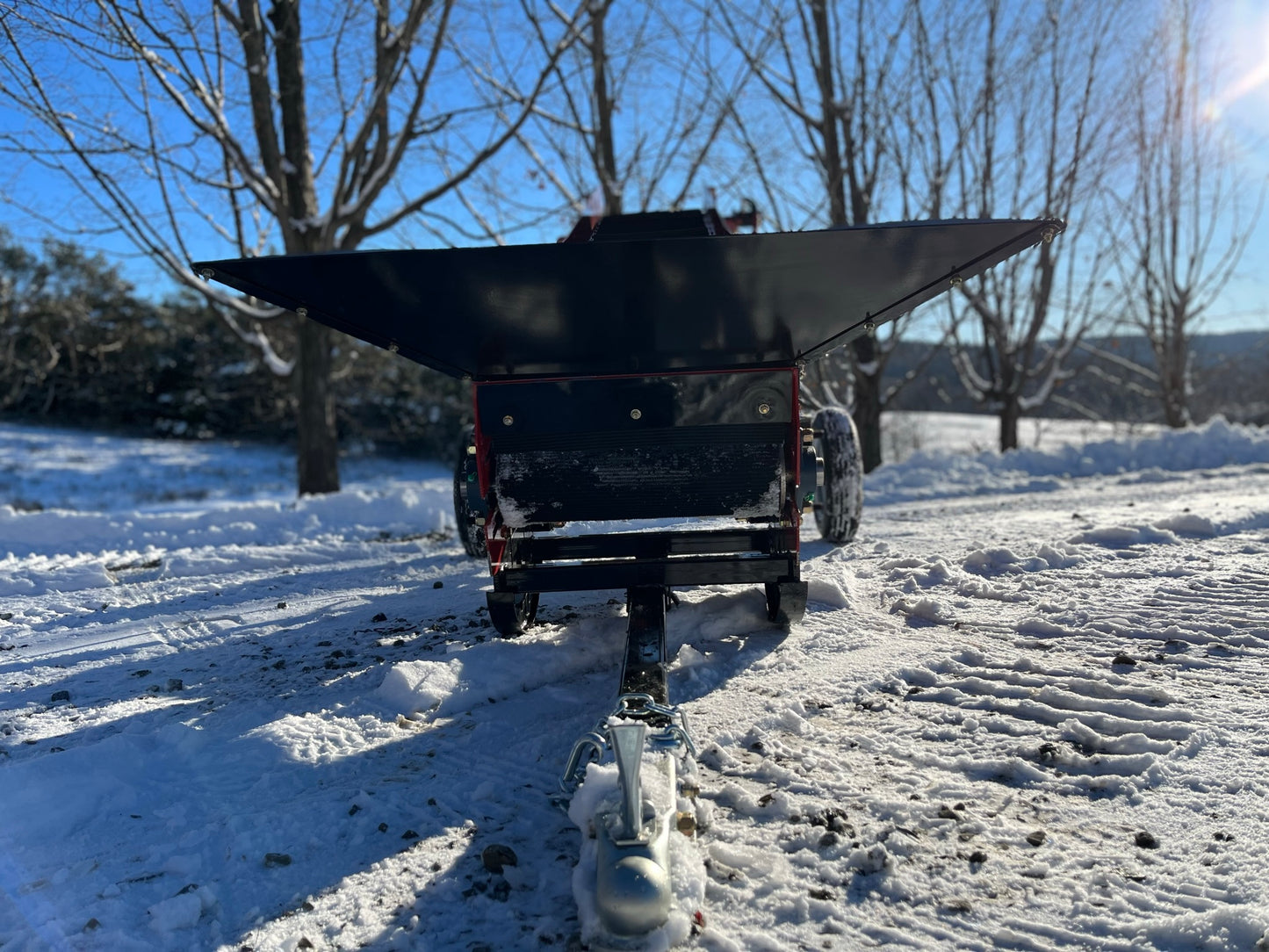

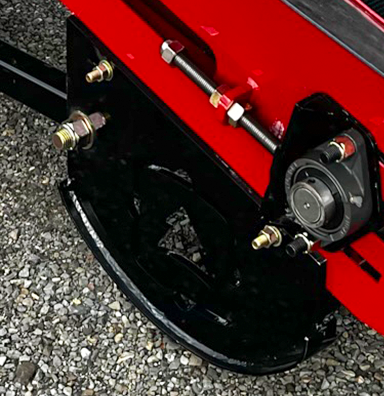

Ground SkidGround Skid Our conveyors are equipped with a ground skid and removable trailer hitch to facilitate positing the machines under the outlet of processors or splitters. This ground skid also helps with stability as it provides a wide contact patch on the bottom. Finally, the ground skid lifts the roller off the ground to provide more space for debris separation.

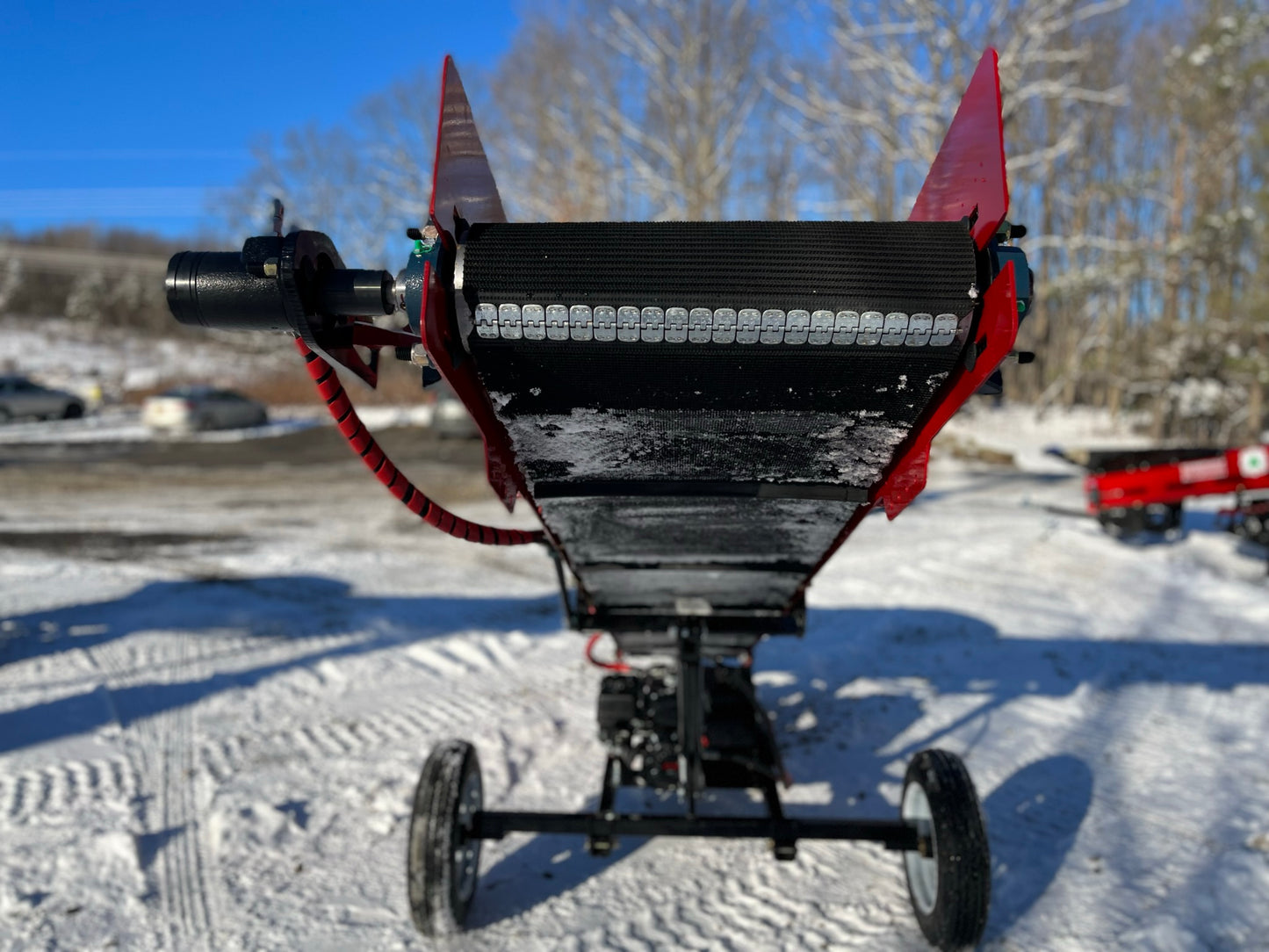

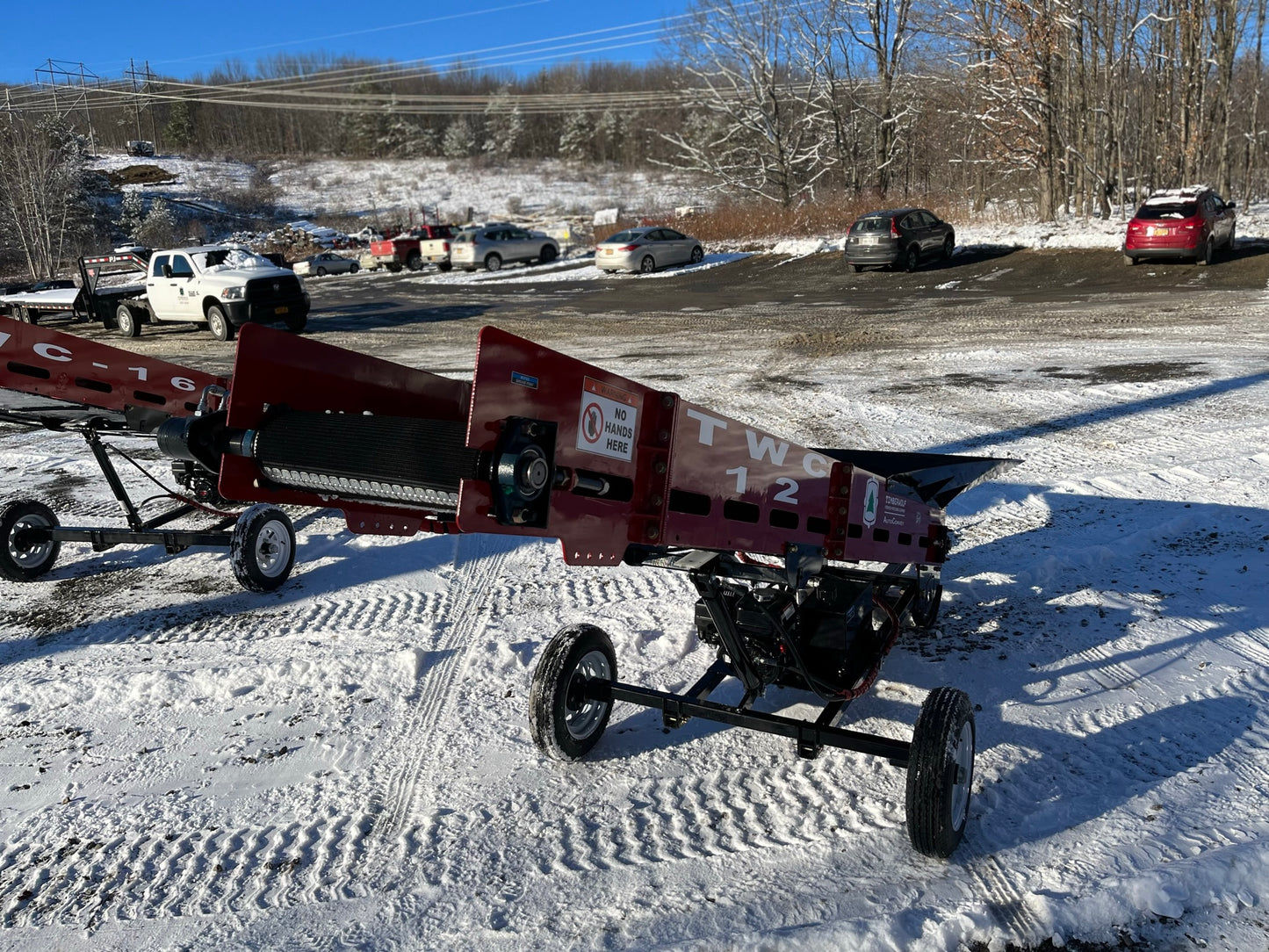

Debris WipersOur conveyors are all equipped with two debris wipers that aim to keep our rollers clean to extend belt life. The top wiper plows debris from the top of the conveyor off each side while the roller wiper actually scrapes the belt and the roller clean ensuring that a minimum of debris gets caught behind the roller causing undue stress on the belting which can lead to premature failure.

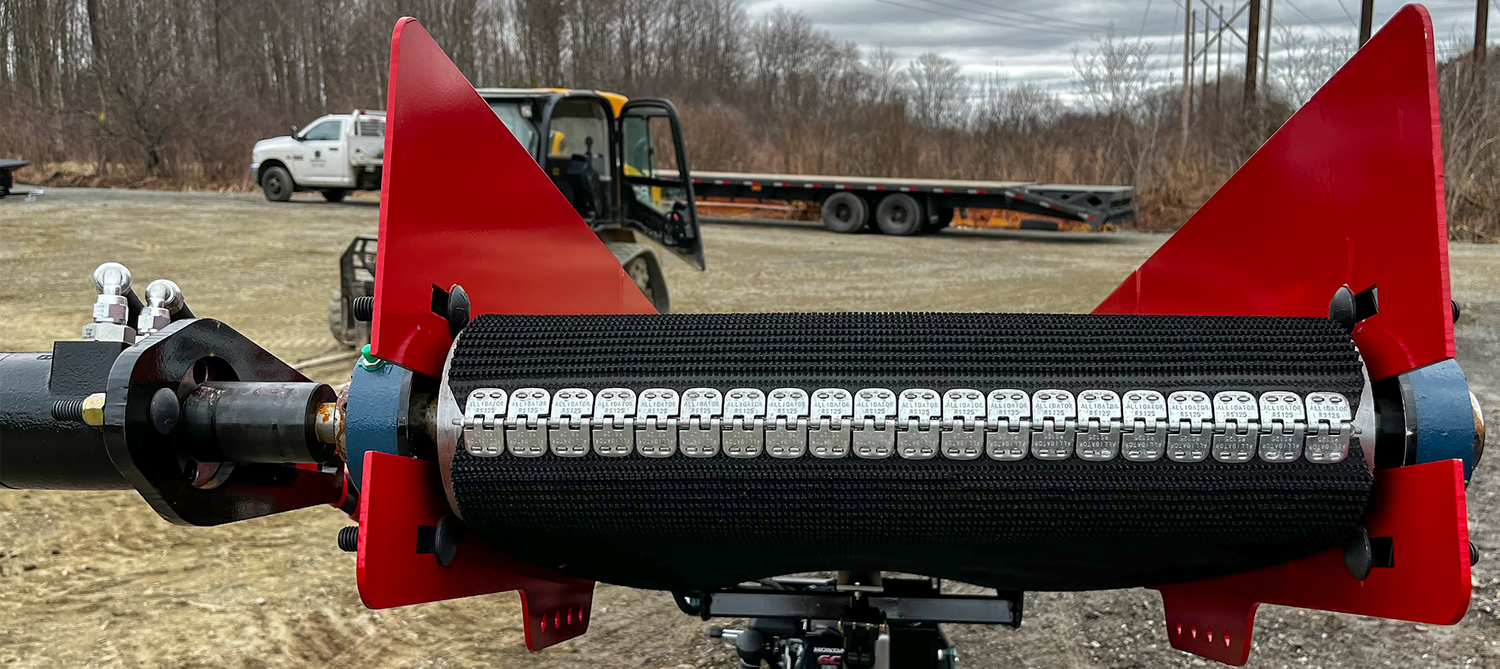

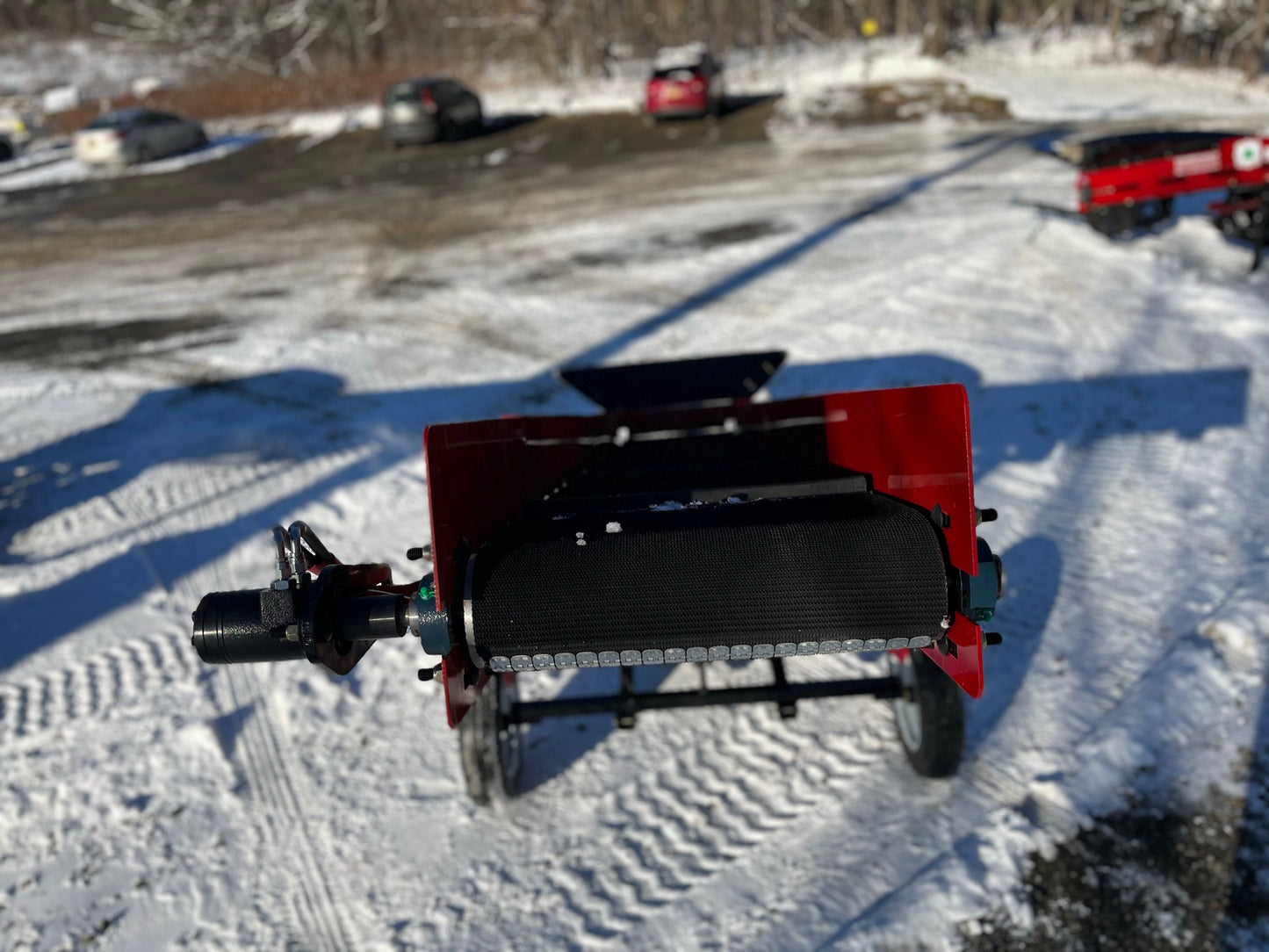

Tapered RollersAll of our rollers have a distinct taper which assists in belt tracking. The centers are .25” wide the edges. This pulls the belt back to center even if the tensioner rods are not perfectly aligned or if the conveyor is on uneven ground.

Honda GC-160

Optional Features

Optional Paddle BeltFor operations in inclement weather such as snow and ice the popular cleated belting allows for full performance in almost any geographic area. Unlike many of our competitors, our cleats are vulcanized to the belting through a combination of high pressure and heat. This work is performed for us in Ohio by one of our suppliers.

Power Pack Delete OptionA lot of our conveyors operate at the end of firewood processors. We provide the cost saving option of deleting the power pack so hat the conveyor can be run from the hydraulics on the processor. Talk to our salesman about configuring your next conveyor to work with any firewood processor on the market.
