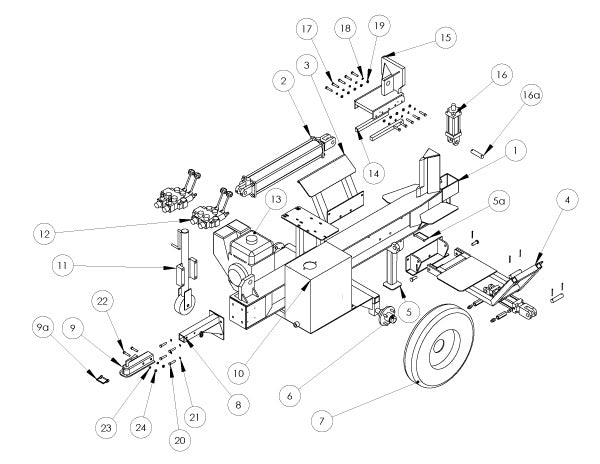

Parts Breakdown |

TW-5

Part Number Description Quantity
1 020-062 TW-5 Frame Weldment 1
2 093-103 5" x 24" Cylinder (Fig 1) 1
3 023-019 24" Log Cradle 1
4 LS10-021-A Hydraulic Log Lift Kit (Fig 2) 1
5 021-010 Leg 1
5a 063-001 TW-5 Leg Pin 1
6 082-100-A 4 Bolt Hub (Fig 3) 2
7 90000-00004 12" Tire 2
8 063-016 Hitch Weldment 1
9 90000-00006 2" Ball Coupler 1
10 094-119 TW-5 Tank (Fig 4) 1
11 063-005 Splitter Jack 1
12 50000-10025 Valve Assembly (Fig 5) 1
13 040-108-A Motor Assembly (Fig 6) 1
14 R-9010-0010 Wear Plates 2
15 R-9010-0006 TW-5 Push Block 1
16 R-50000-30005 Wedge Lift Cylinder (Fig 7) 1
16a 083-001 Wedge Lift Cylinder Pin 1
17 3/8-16 x 2" Long Grade 8 10
18 3/8 Lock Washer Grade 5 10
19 3/8-16 Nut Grade 8 10
20 1/2-13 x 1 1/4 Long Grade 5 Bolt 4
21 1/2 Lock Washer Grade 5 4
22 7/16-14 x 3 Bolts Grade 5 2
23 7/16 Lock Washer Grade 5 2
24 7/16 Nuts Grade 5 2
9a 063-003 Ball Coupler Pin 1

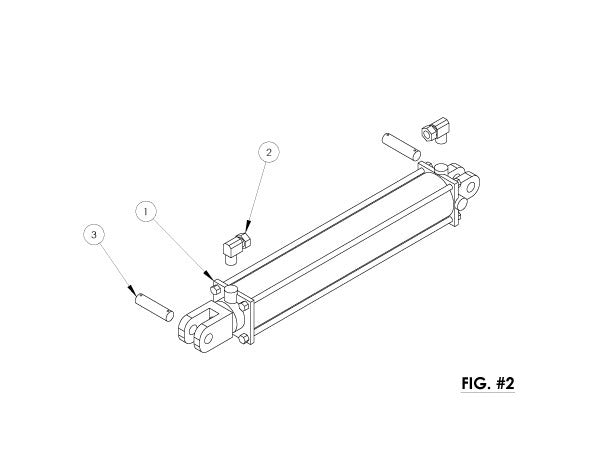

Figure 1 | Cylinder

Part Number Description Quantity
1 093-103 5" x 24" Cylinder 1
2 102-091 1/2" 90 Deg Swivel 2
3 093-035 1 1/4" Pins 2
4 102-027 3/4" Branch Tee 1
5 083-131 1 1/4" Front Pin 1
6 083-132 1 1/4" Back Pin 1

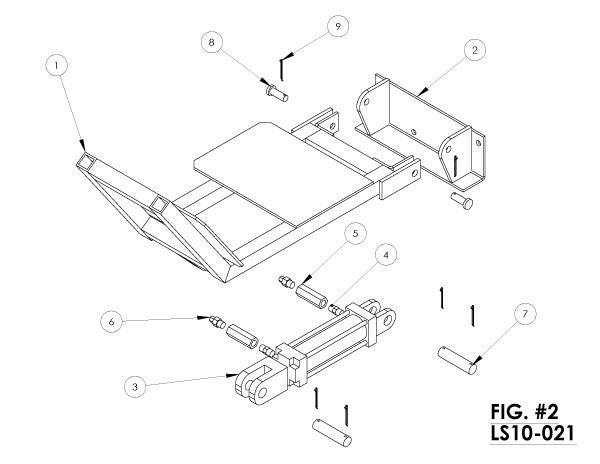

Figure 2 | Hydraulic Log Lift

Part Number Description Quantity
1 9010-0019 24" Log Lift 1
2 R-9010-0062 Bolt On Beam Bracket 1
3 901-035 2" x 6" Log Lift Cylinder 1
4 102-090 1/2 MB x 1/2 NPT Adapter 2
5 094-116 Flow Restrictor 2
6 102-021 1/2 NPT x 1/4 NPT Straight Swivel 2
7 083-001 1" Cylinder Pin 2
8 083-007 5/8 Log Lift Pin 2
9 5/32 x 2" Cotter Pin 6

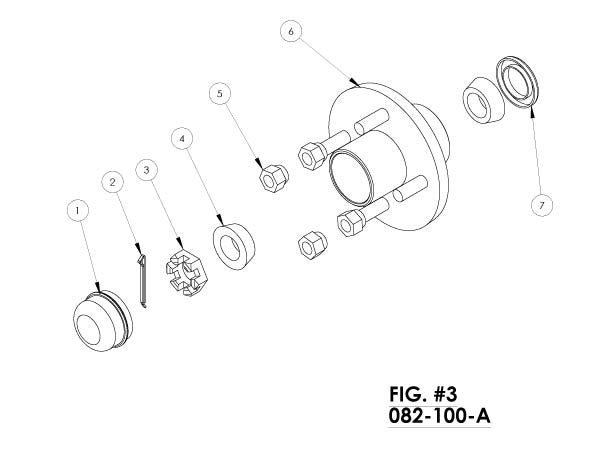

Figure 3 | 4 Bolt Hub

Part Number Description Quantity
1 065-003 Dust Cap 1
2 Cotter Pin 1
3 062-022 1" Castle Nut 1
4 082-101 Wheel Bearings 2
5 Lug Nuts 4
6 082-100 4 Bolt Hub 1
7 061-106 Dust Seal 2

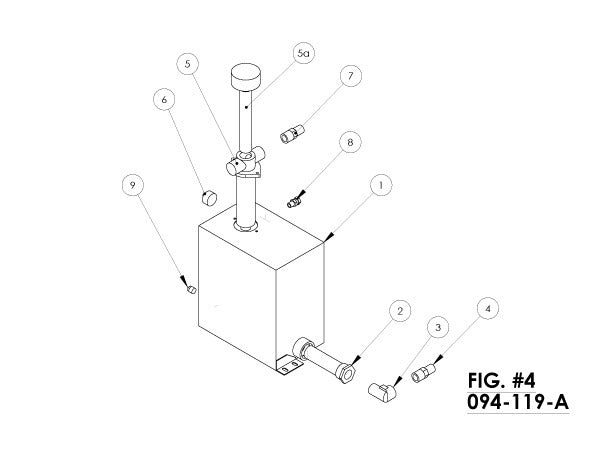

Figure 4 | Tank Assembly

Part Number Description Quantity
1 094-119 Tank 1
2 094-110 Suction Strainer 1
3 102-005 1 1/4" Street 90 1
4 083-124 1 1/4" x 1" Bushing 1
5 102-034 1" Hose Barb 1
6 205-105 1/2" Tank Plug 2
7 102-102 1" MB x 1 1/4" Hose Barb 1
8 20000-20041 Filter Housing 1
9 20000-20040 Intank Filter 1
10 20000-20042 Filter Gauge 1

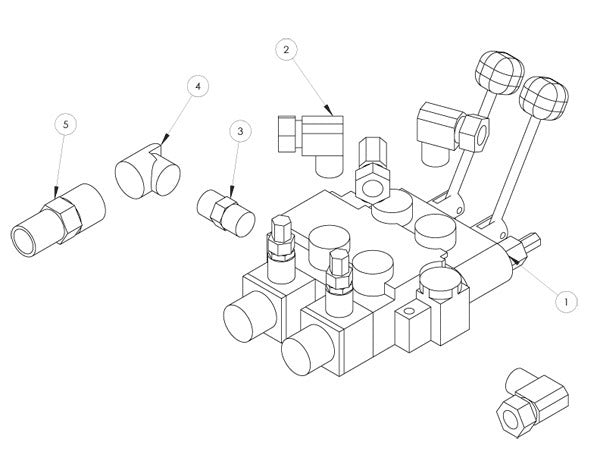

Figure 5 | Valve Assembly

Part Number Description Quantity
1 104-101 LS3000 Valve 1
2 104-118 2 Spool Valve 1
3 102-043 3/4" x3 HD Pipe Nipple 1
4 102-010 3/4" 90 Deg Swivel 4
5 102-037 3/4" Male to 1/2" 90 Deg Swivel 1
6 083-126 1/2" MNPT x 1/4" Bushing 4
7 102-020 90 Deg Swivel 4
8 102-006 3/4" Hex Nipple 1
9 102-104 King Combo 1
10 102-039 3/4" x 1 1/4 90 Deg Elbow 1

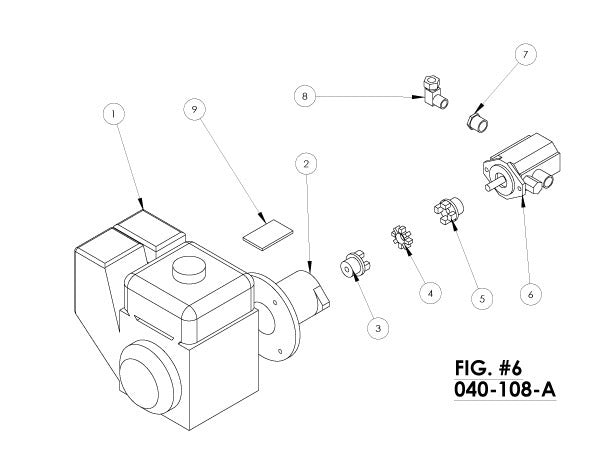

Figure 6 | Motor Assembly

Part Number Description Quantity
1 040-108 GX-340 Honda Engine 1
2 022-001 Large Pump Bracket 1
3 075-004 1" Love Joy 1
4 080-001 Spider 1
5 075-008 5/8" Love Joy 1
6 091-106 22 GPM Pump 1
7 083-127 1" x 3/4" NPT Bushing 1
8 102-010 3/4" 90 Deg Swivel 1
9 022-068 Access Cover 1

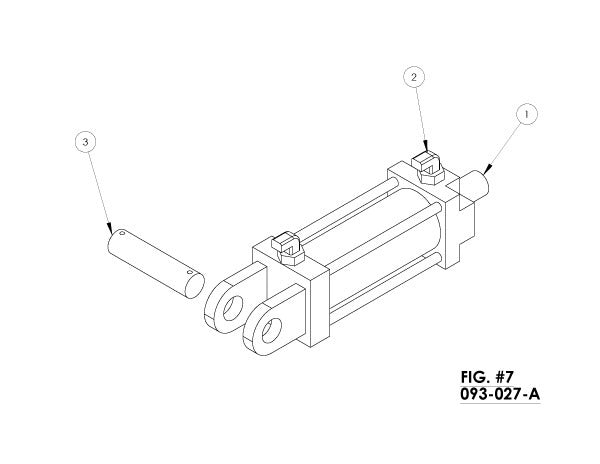

Figure 7 | Wedge Lift Cylinder

Part Number Description Quantity
1 093-027 2" x 4" Cylinder 1
2 102-094 1/2" MB x 1/2 90 Deg Swivel 2
3 1" x 4" Pin 1
