Parts Breakdown |

Alpha Series

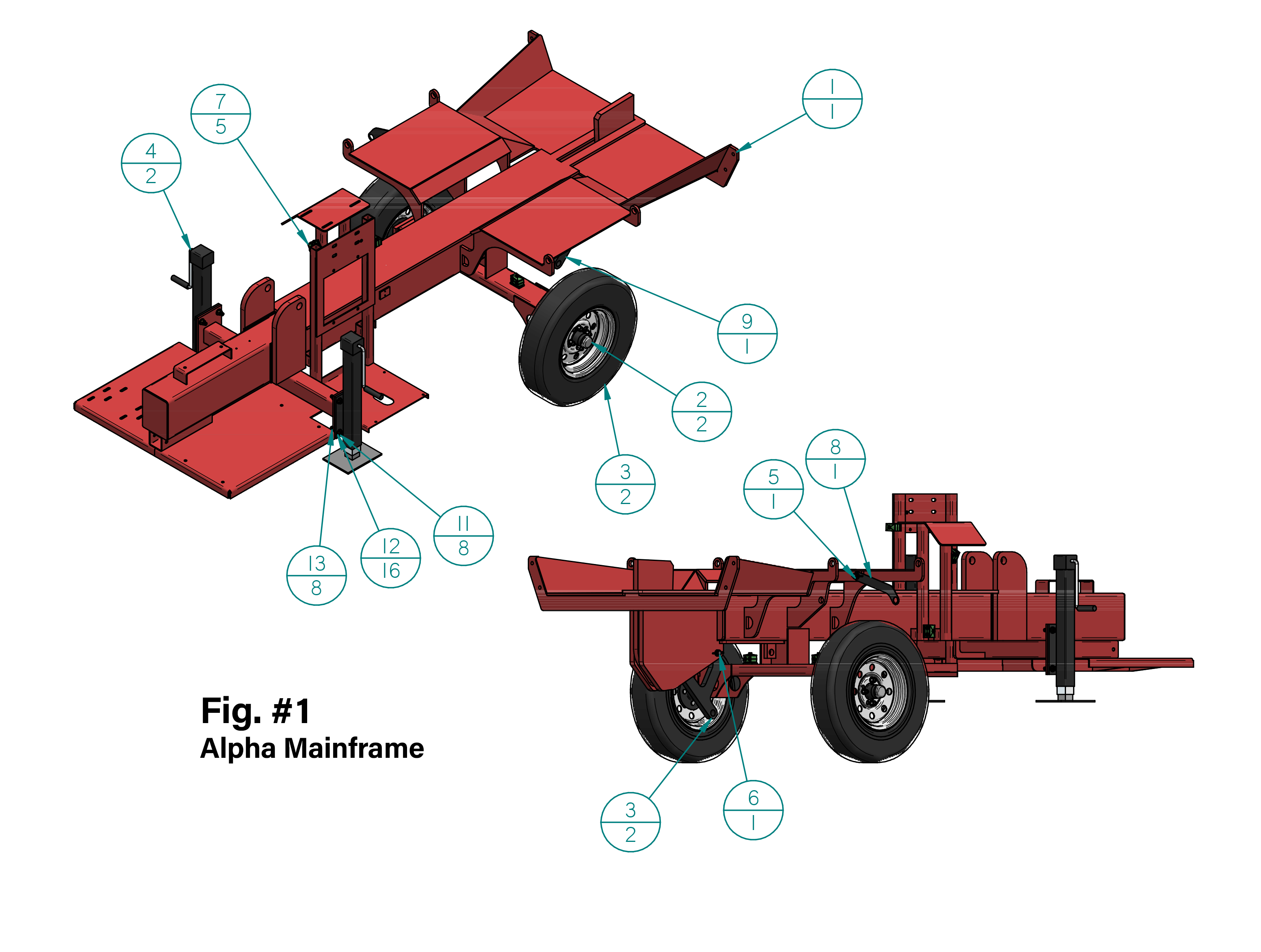

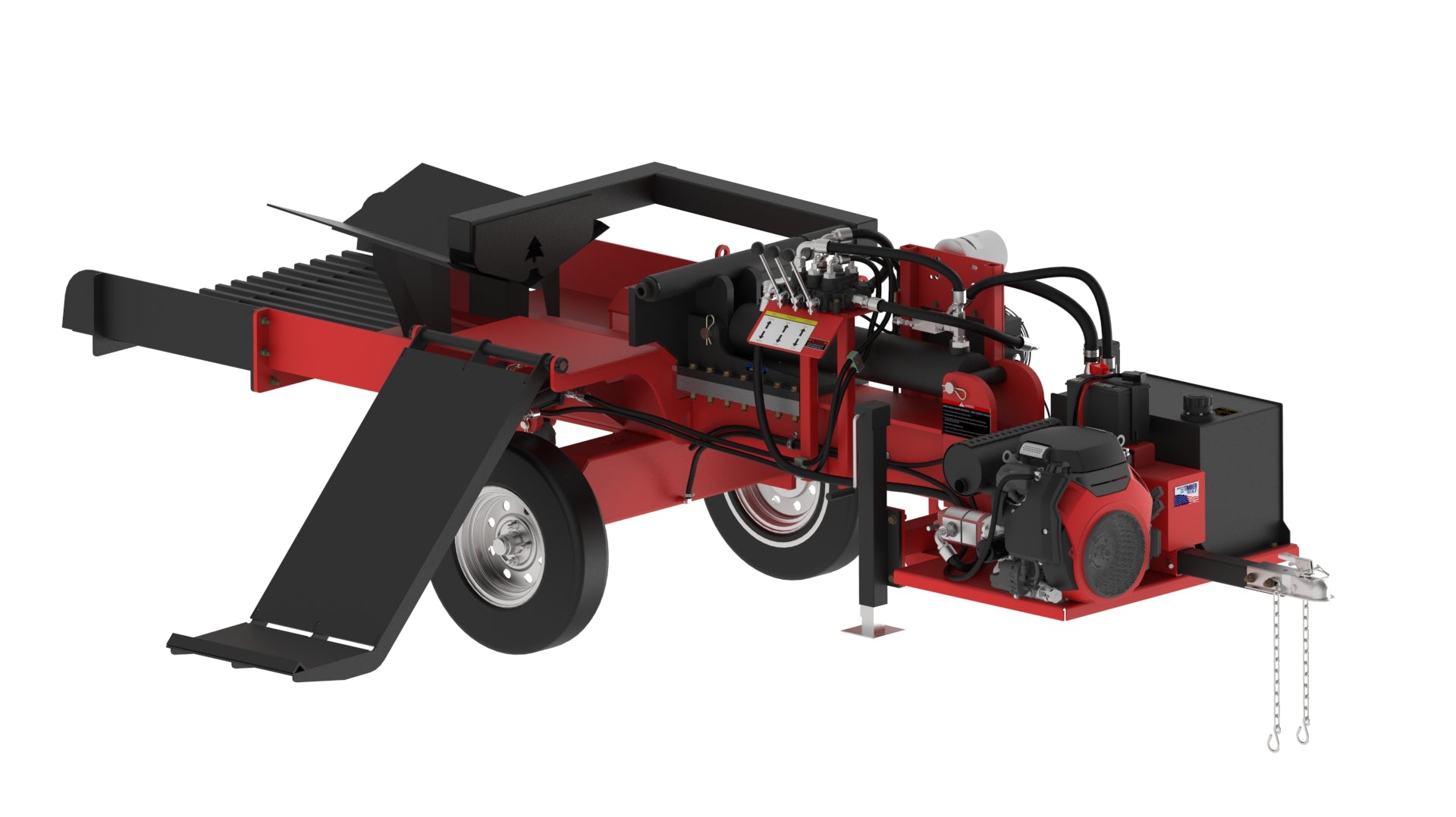

Figure 1 | Alpha Mainframe

Part Number Description Quantity
1 9001-0220 Alpha Mainframe 1
2 90000-00002 4 Bolt Hub Kit 2
3 90000-00001 13" Tire 4 Lug 2
4 9000-0047 Jack 1
5 9001-0150 Pin 1"x1.25" 1
6 9001-0007 Pin1"x3.125" 3
7 20000-30000 #6 Soft Line Clamp Plastic 5
8 9001-0138 Alpha BL Cylinder Plate 1
9 9001-0044 Alpha WL Rocker 1
10 40000-10002 Zn Cotter Pin 3/16"x1-1/2" L 4
11 HH1/2x2 .5x13 2 Bolt 8
12 W1/2 .5 Washer 16
13 N1/2 N1/2 8

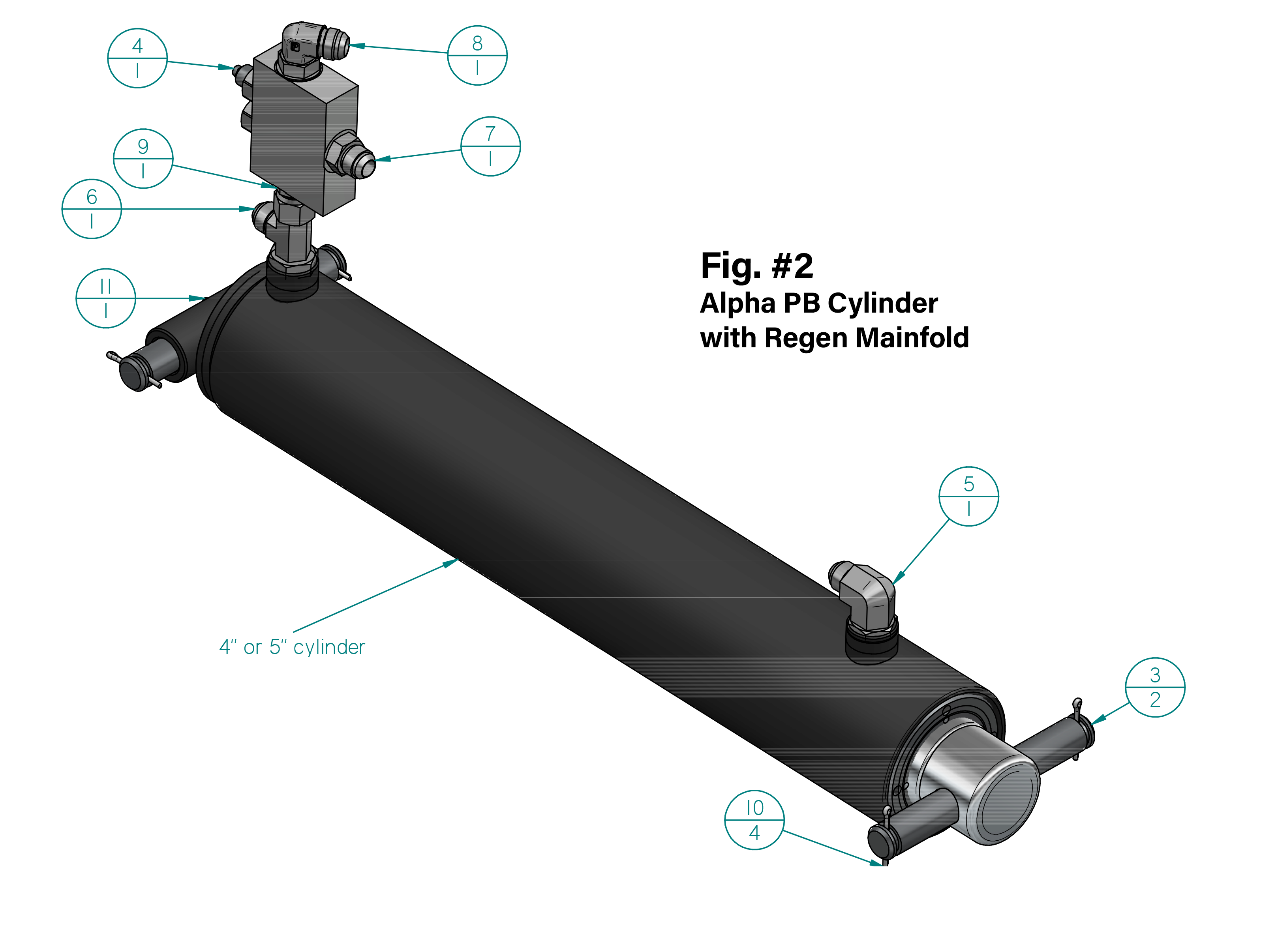

Figure 2 | Push Block Cylinder with Regen Manifold

Part Number Description Quantity
1 901-018 4x26x3 Alpha Cylinder 1
2 901-016 5x26x3.5 Alpha Cylinder 1
3 9001-0071 Pin 1.25x9.688 2
4 902-004 Alpha Regeneration Manifold 1
5 815-245 #12 JIC M to #16 ORB M 90 1
6 800-170 #12 JIC M to #12 JIC M #16 ORB M 1
7 815-144 #12 JIC M to #12 ORB M 1
8 815-244 #12 JIC M to #12 ORB M 90 1
9 825-144 #12 JIC F to #12 ORB M 1
10 40000-10002 Zn Cotter Pin 3/16" x 1-1/2" L 4
11 Grease Fitting 1/4 1/4 Grease Fitting 1

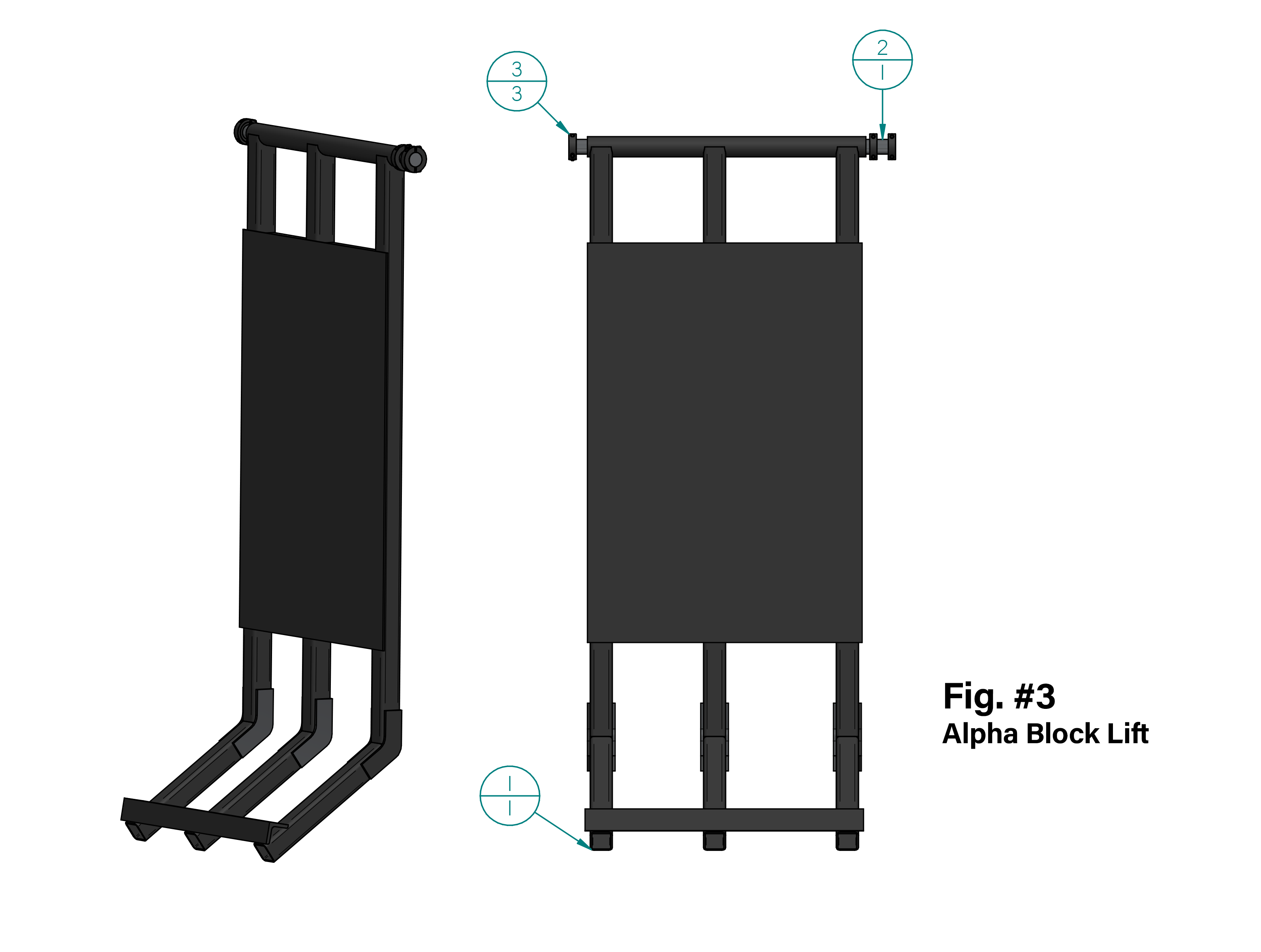

Figure 3 | Alpha Block Lift

Part Number Description Quantity
1 9001-0203 Alpha Tube Block Lift 1
2 9001-0024 Block Lift Shaft 1
3 40000-10012 1" C Clamp Collar 3

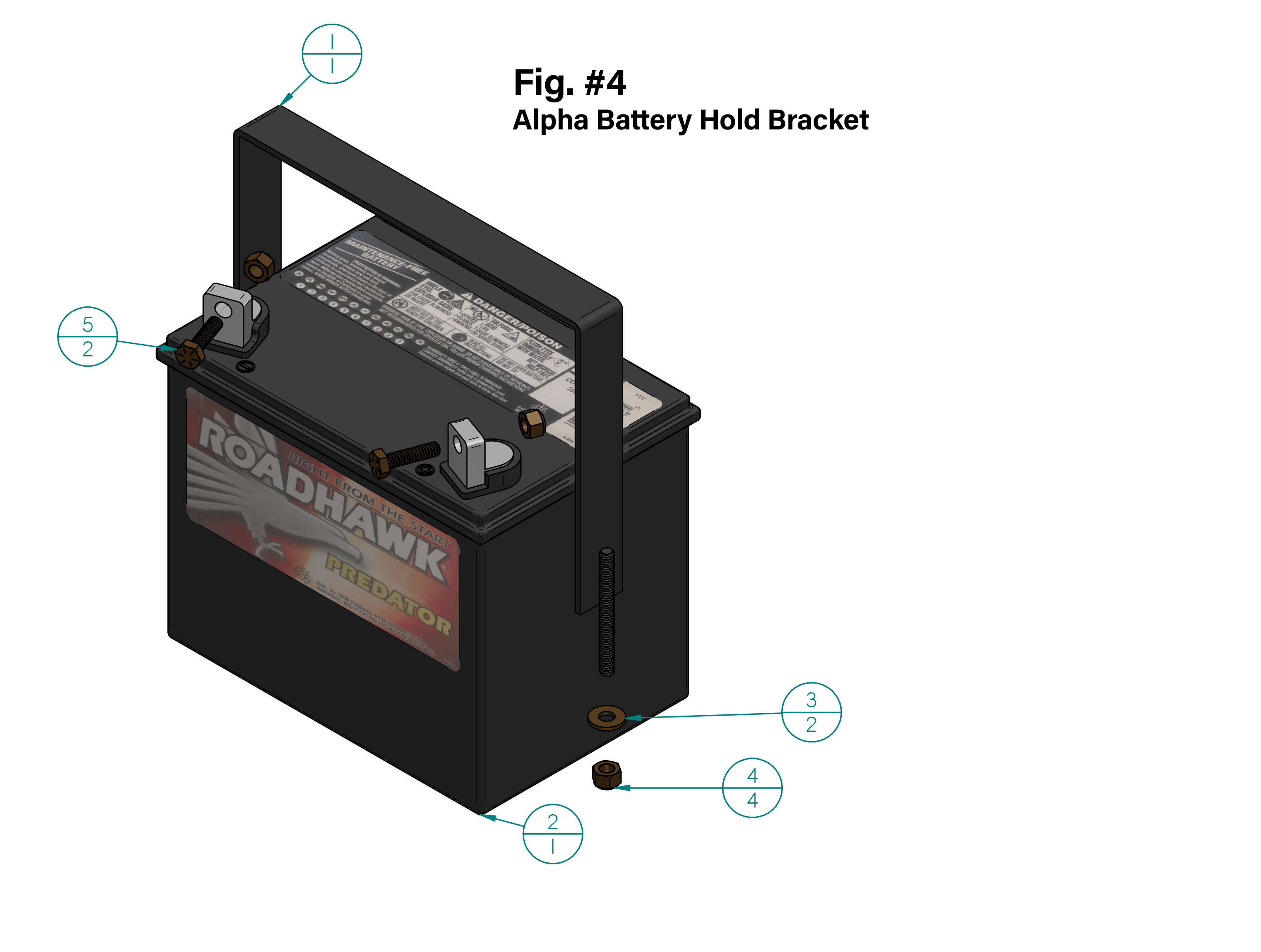

Figure 4 | Battery Hold Bracket

Part Number Description Quantity
1 9001-0011 TW Battery Hold Bracket 8in 1
2 60000-20015 Battery 8U1R (230 CCA) 1
3 W1/4 .25 Washer 2
4 .25 Lock Nut .25 Lock Nut 4
5 HH1/4x1 .25x20 I Bolt 2

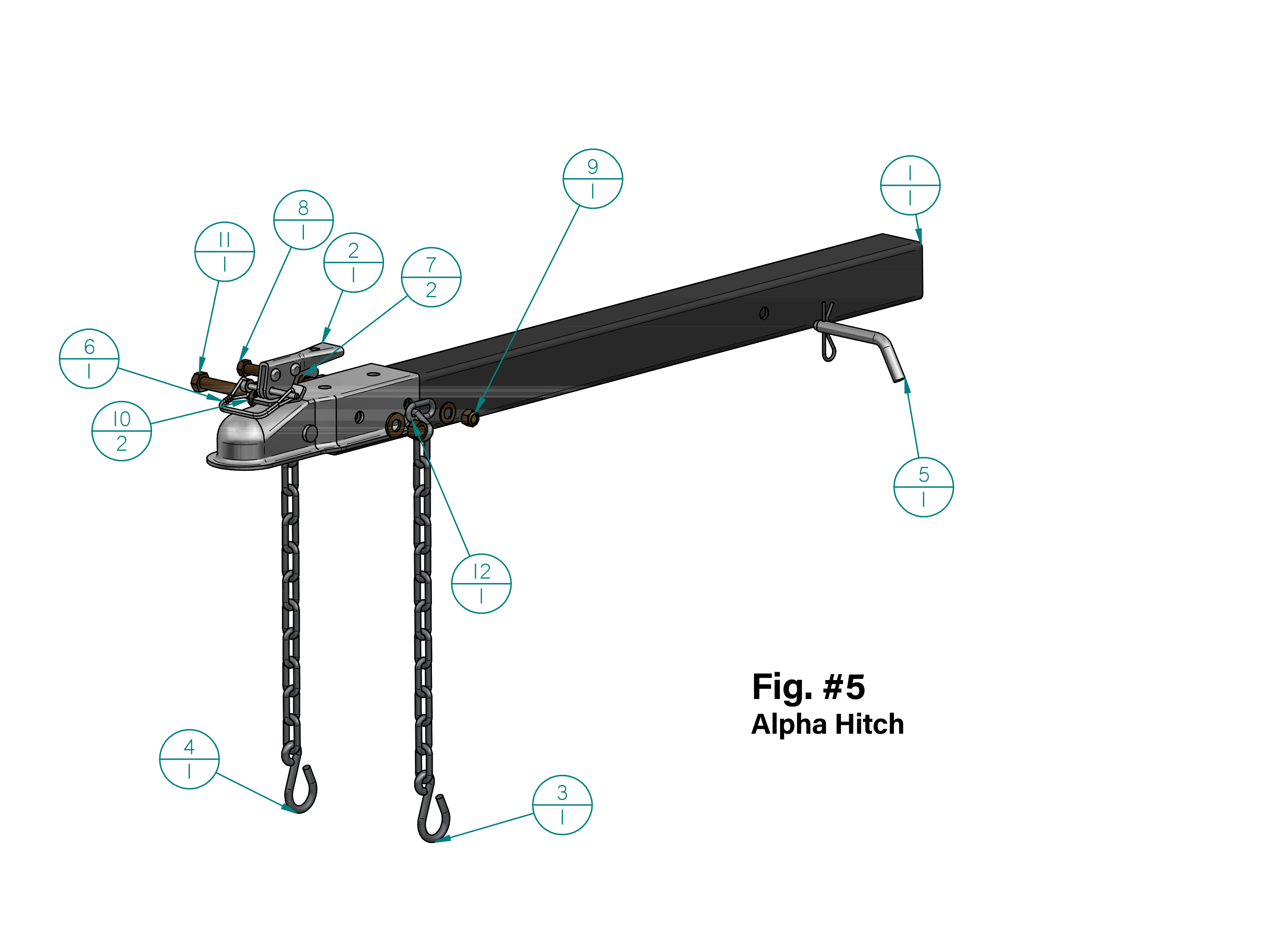

Figure 5 | Alpha Hitch

Part Number Description Quantity
1 9001-0180 Alpha 36" Hitch Tube 1
2 90000-00003 2" Ball Couplter 2.5" Channel 1
3 90000-00000 1/4" Safety Chain 1
4 90000-00000 1/4" Safety Chain 1
5 40000-10005 Pull Pin 1/2 D x 3" UL 1
6 40000-10001 Coupler Snapper Pin 1/4" x 2" 1
7 W7/16 .4375 Washer 2
8 .4375x14 4.5 Bolt .4375x14 4.5 Bolt 1
9 NN7/16 .4375 Lock Nut 1
10 W1/2 .5 Washer 2
11 HH1/2x4 .5x13 4 Bolt 1
12 N1/2 .5 Nut 1

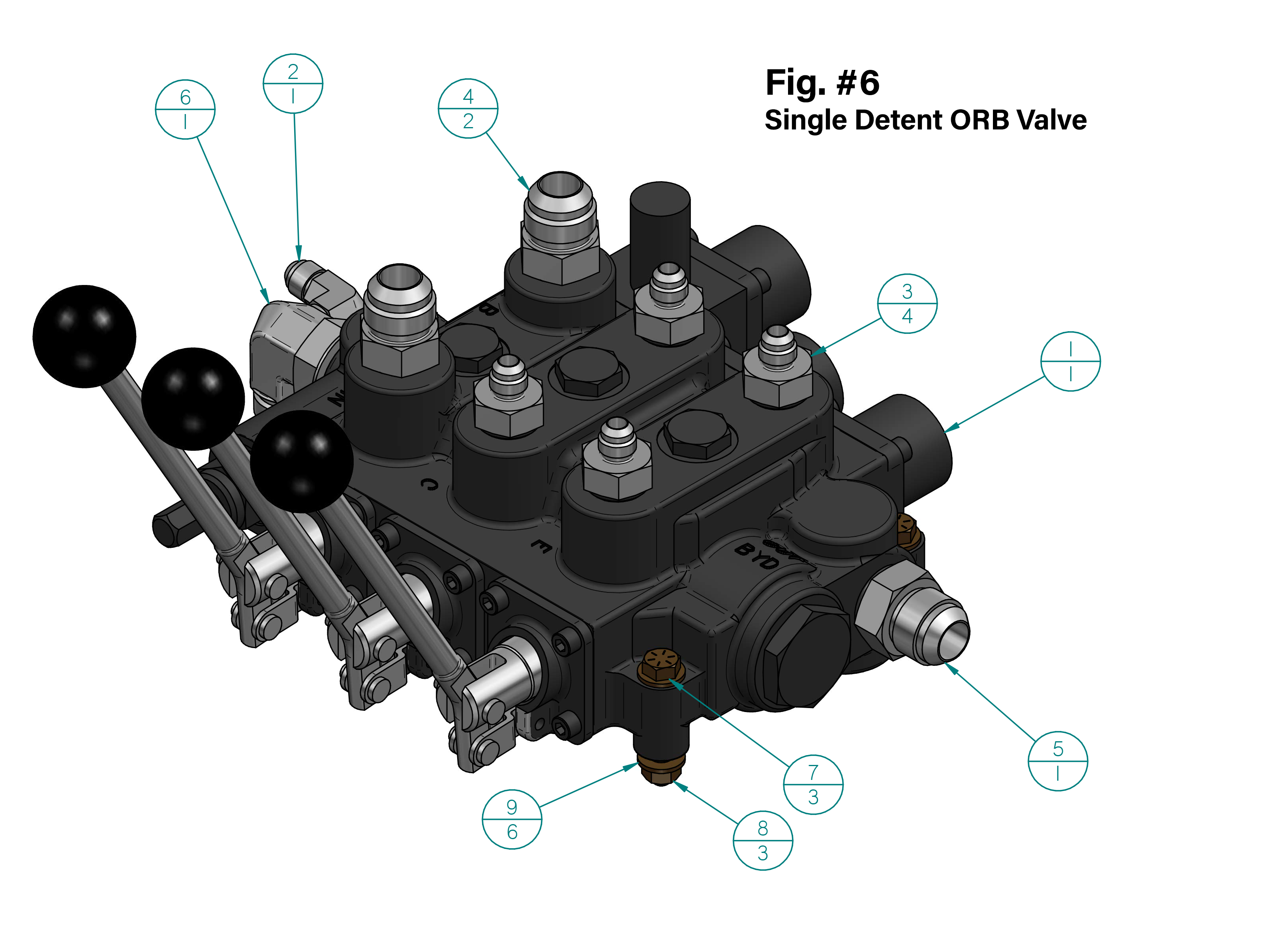

Figure 6 | Single Detent ORB Valve

Part Number Description Quantity
1 50000-10027 3 Spool Valve Single Detent ORB Ports #12 1/0, #10 work 1
2 813-210 #6 JIC M to #4 NPT M 90 1
3 815-113 #6 JIC M to #10 ORB M 4
4 815-143 #12 JIC M to #10 ORB M 2
5 815-144 #12 JIC M to #12 ORB M 1
6 816-244-D #12 JIC M to #12 ORB M 90 Drilled 1
7 HH5/16x2.5 .3125x18 2 Bolt 3
9 N5/16 .3125 Nut 3
9 W5/16 .3125 Washer 6

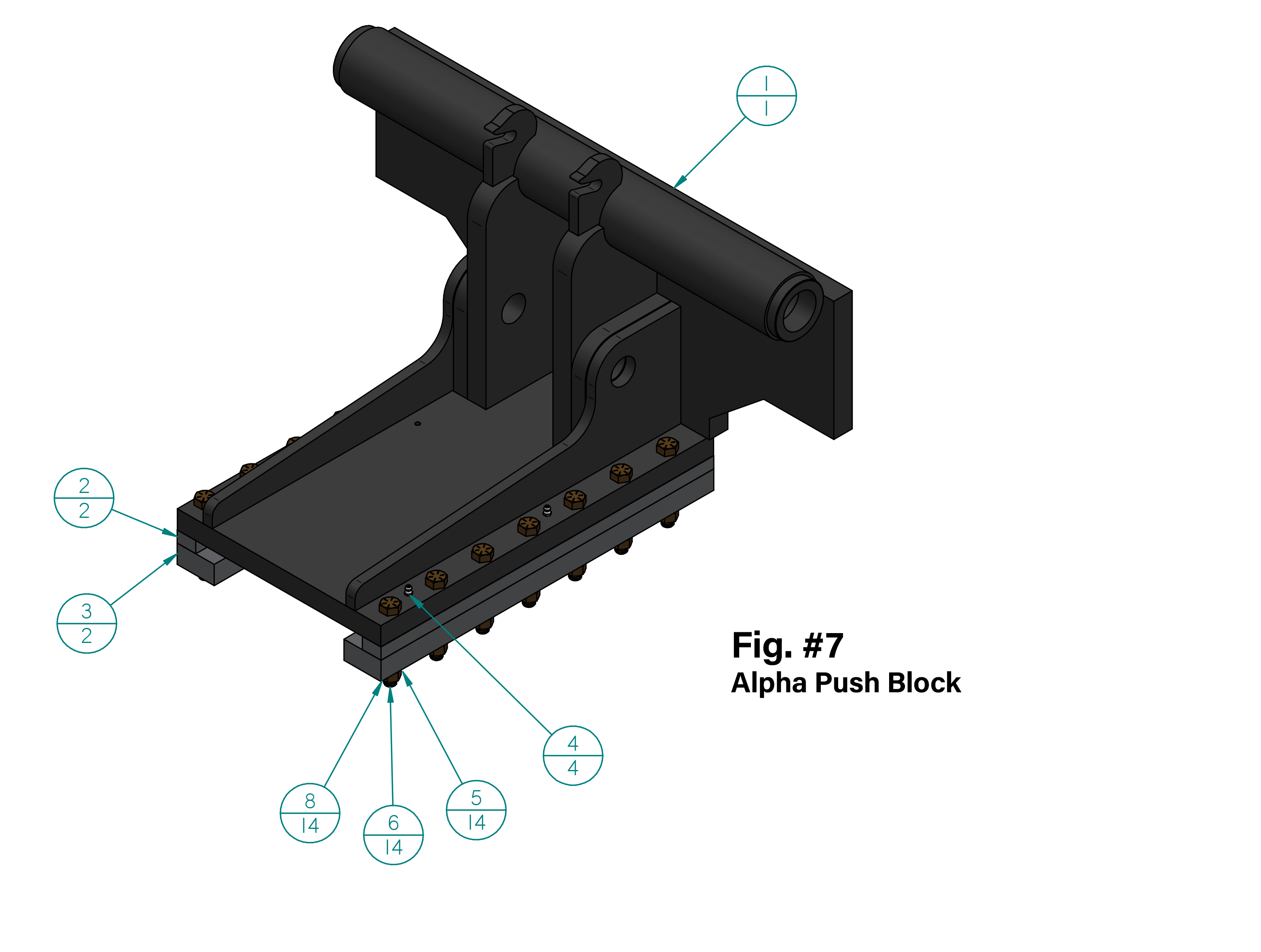

Figure 7 | Alpha Push Block

Part Number Description Quantity
1 9001-0108 Alpha Push Block 1
2 9001-0035 Alpha 5/8" Push Block Shim 1
3 9001-0003 18" x 1" x 2" Wear Plate 1
4 Grease Fitting 1/4 1/4 Grease Fitting 4
5 LW1/2 W .5 Wedge Lock Washer 14
6 HH1/2x3.5 HH1/2x3.5 14
7 Grease Fitting 1/4 90 .25 Grease Fitting 90 4
8 N1/2 N1/2 14

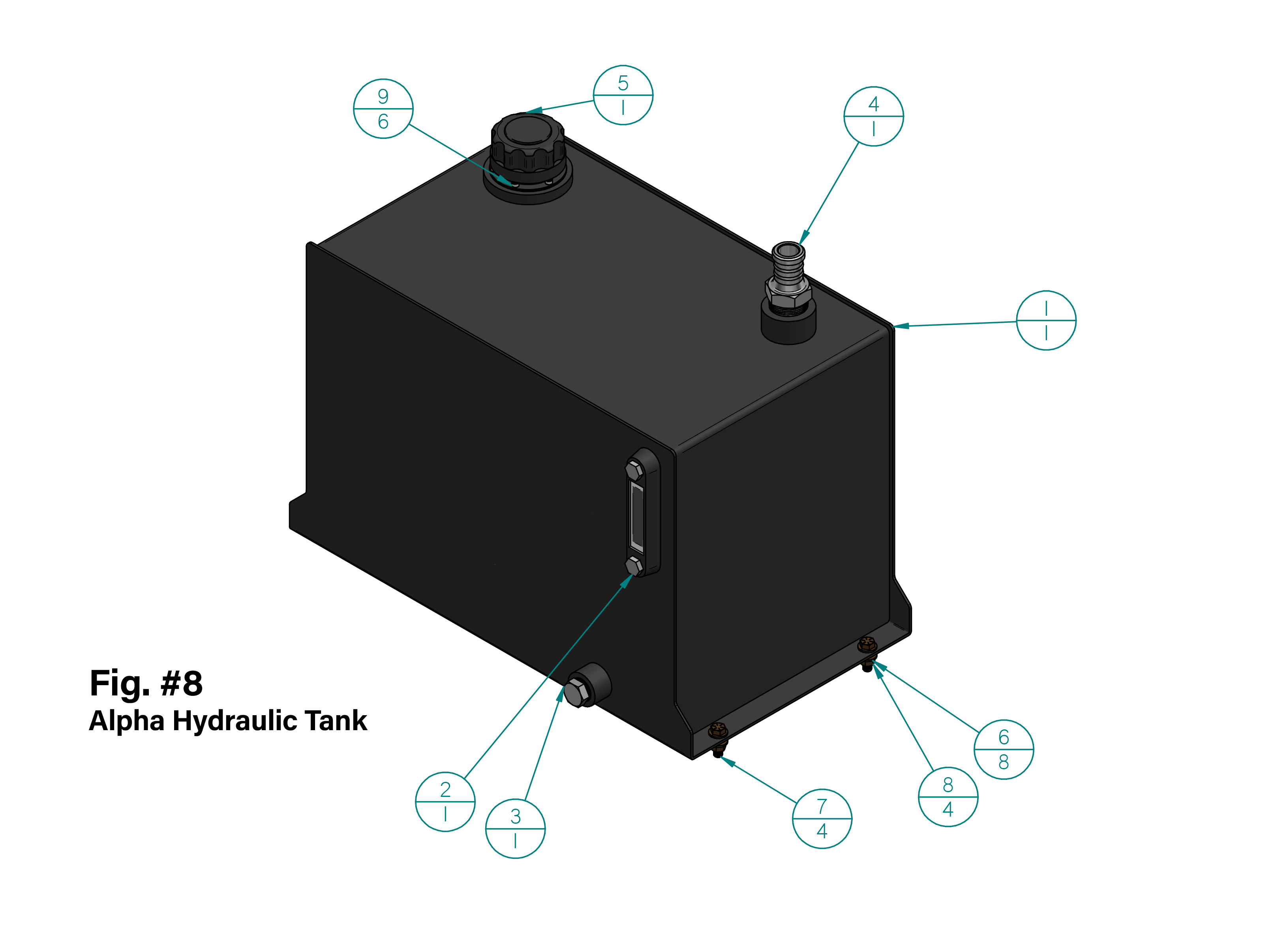

Figure 8 | Alpha Hydraulic Tank

Part Number Description Quantity
1 9001-0214 Alpha Hydraulic Tank 1
2 20000-20027 Sight Level Gauge 1
3 9001-0212 Magnet Plug 1
4 873-166 #20 Barb to #20 NPT M 1
5 20000-10004 Breather Filter 1
6 W3/8 W3/8 8
7 HH3/8x1.25 HH3/8x1.25 4
8 N3/8 N3/8 4
9 SHCS10-32x1/2 SHCS10-32x1/2 6

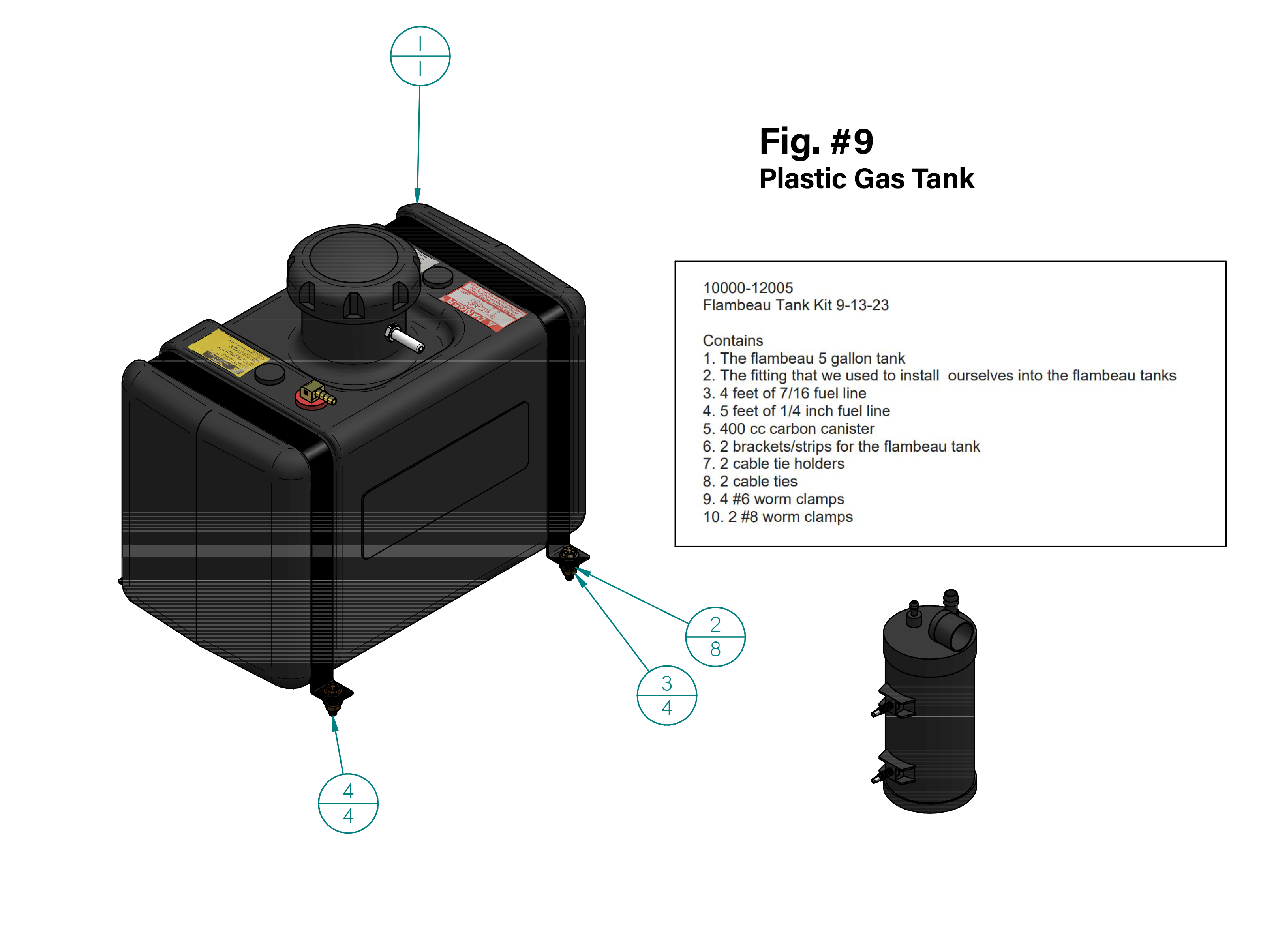

Figure 9 | Plastic Gas Tank

Part Number Description Quantity
1 10000-12005 Flambeau 5 Gallon Tank 1
2 W1/4 W1/4 8
3 NN1/4 .25 Lock Nut 4
4 HH1/4x1 HH1/4x1 4
5 FH1/4x1 .25x20 1 Flat Head Cutting Screw 2

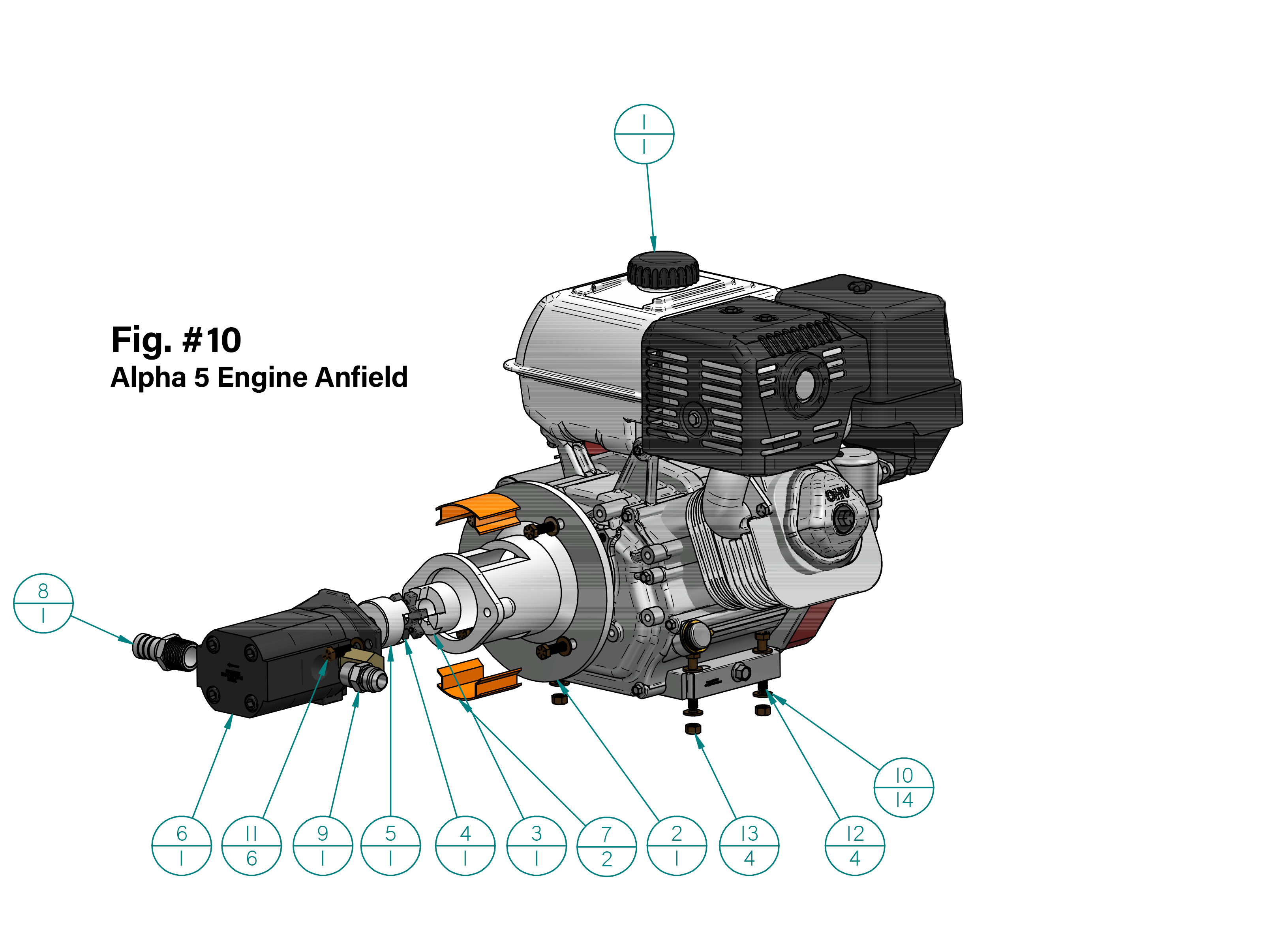

Figure 10 | Alpha 5 Engine

Part Number Description Quantity
1 70000-00003 GX 390 1
2 10000-10003 Bell Housing 5-1/2" 1
3 10000-11006 L-095 x 1" Jaw Coupler 1
4 10000-11008 Hytel L-095 Spider 1
5 10000-11004 L-095 5/8" Jaw Coupler 1
6 50000-20001 22GPM Pump 1
7 10000-12001 Medium Access Covers 2
8 873-165 #20 Hose Barb to #16 NPT M 1
9 813-144 #12 JIC M to #12 NPT M 1
10 W3/8 .375 Washer 14
11 HH3/8x1.25 .375x16 1.25 Bolt 6
12 .375x16 2.25 3/8"x16 2.25 Bolt 4
13 N3/8 .375 Nut 4

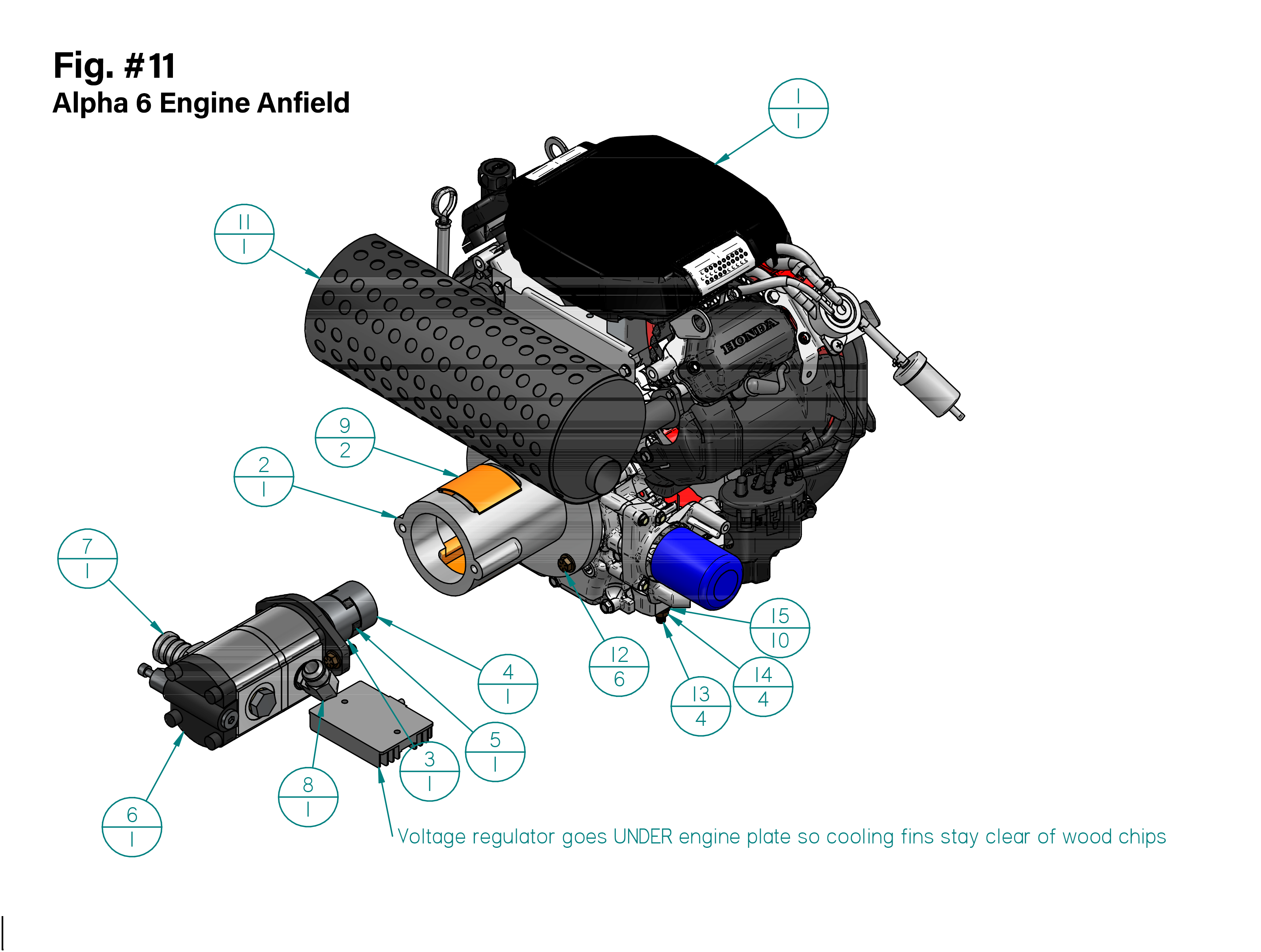

Figure 11 | Alpha 6 Engine

Part Number Description Quantity
1 70000-00000 GX 700 1
2 10000-10000 SAE A 2-Bolt 6.00" Bellhousing 1
3 10000-11004 L-095 5/8" Jaw Coupler 1
4 10000-11009 L-095 1.125 Jaw Coupler 1
5 10000-11008 L-095 Hytrel Spider 1
6 50000-20031 Hi/lo Gear Pump 28GPM 1
7 875-165 #20 Hose Barn to #16 ORB M 1
8 815-243 #12 JIC M to #10 ORB M 90 1
9 10000-12001 Medium Access Covers 2
10 10000-11012 1/4"x1.5" Key 1
11 70000-00002 Muffler for GX630 Right Side 1
12 HH3/8x1.25 HH3/8x1.25 6
13 HH3/8x2 .375x6 2 Bolt 4
14 N3/8 .375 Nut 4
15 W3/8 .375 Washer 10

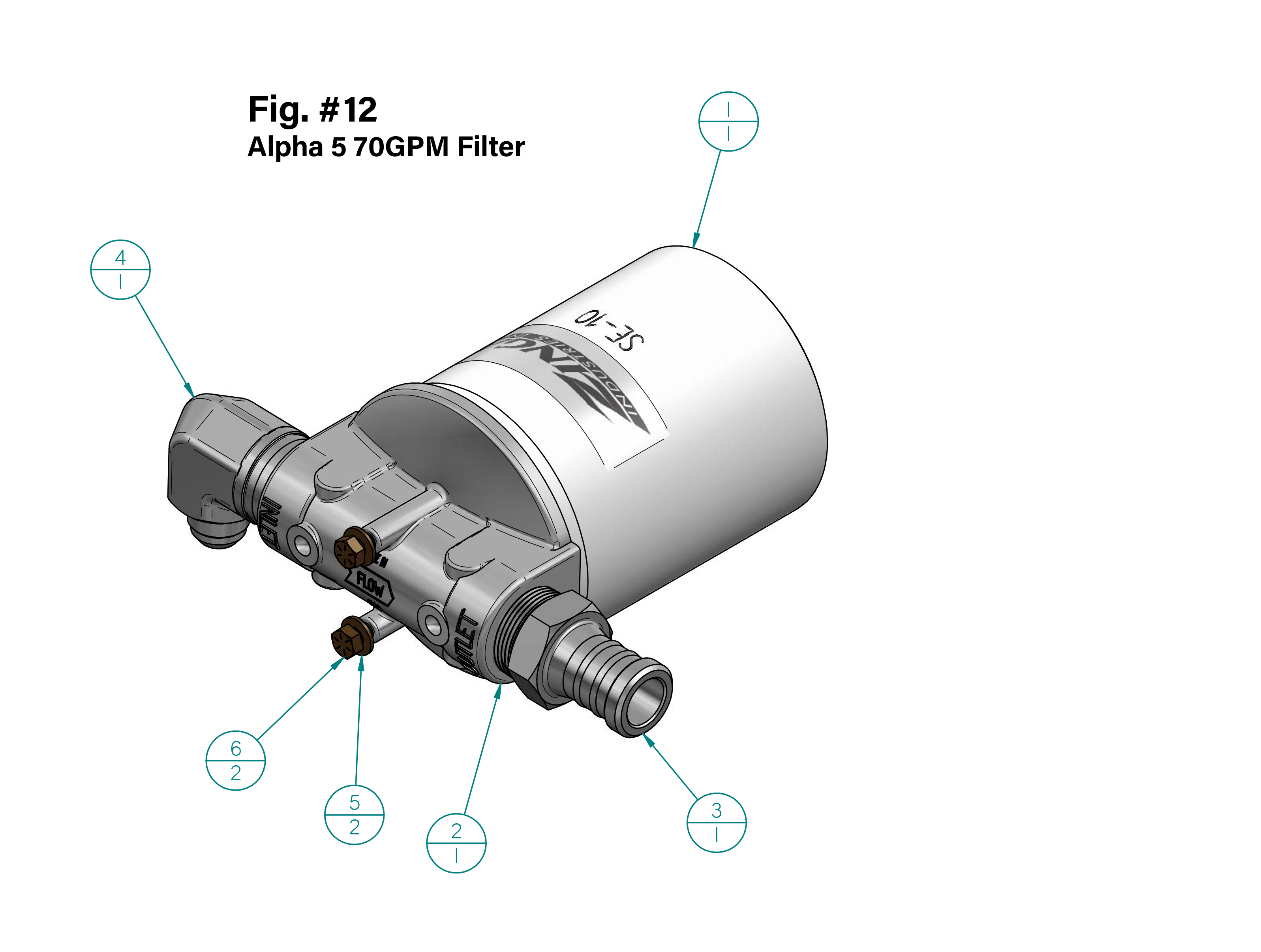

Figure 12 | Alpha 5 70 GPM Filter

Part Number Description Quantity
1 20000-20018 70 GPM Filter 1
2 20000-20019 70 GPM Filter Head 1
3 873-166 #20 Barb to #20 NPT M 1
4 813-246 #12 JIC M to #20 NPT M 90 1
5 W5/16 .3125 Washer 2
6 5/16"x18 1.25 Bolt .3125x18 1.25 Bolt 2

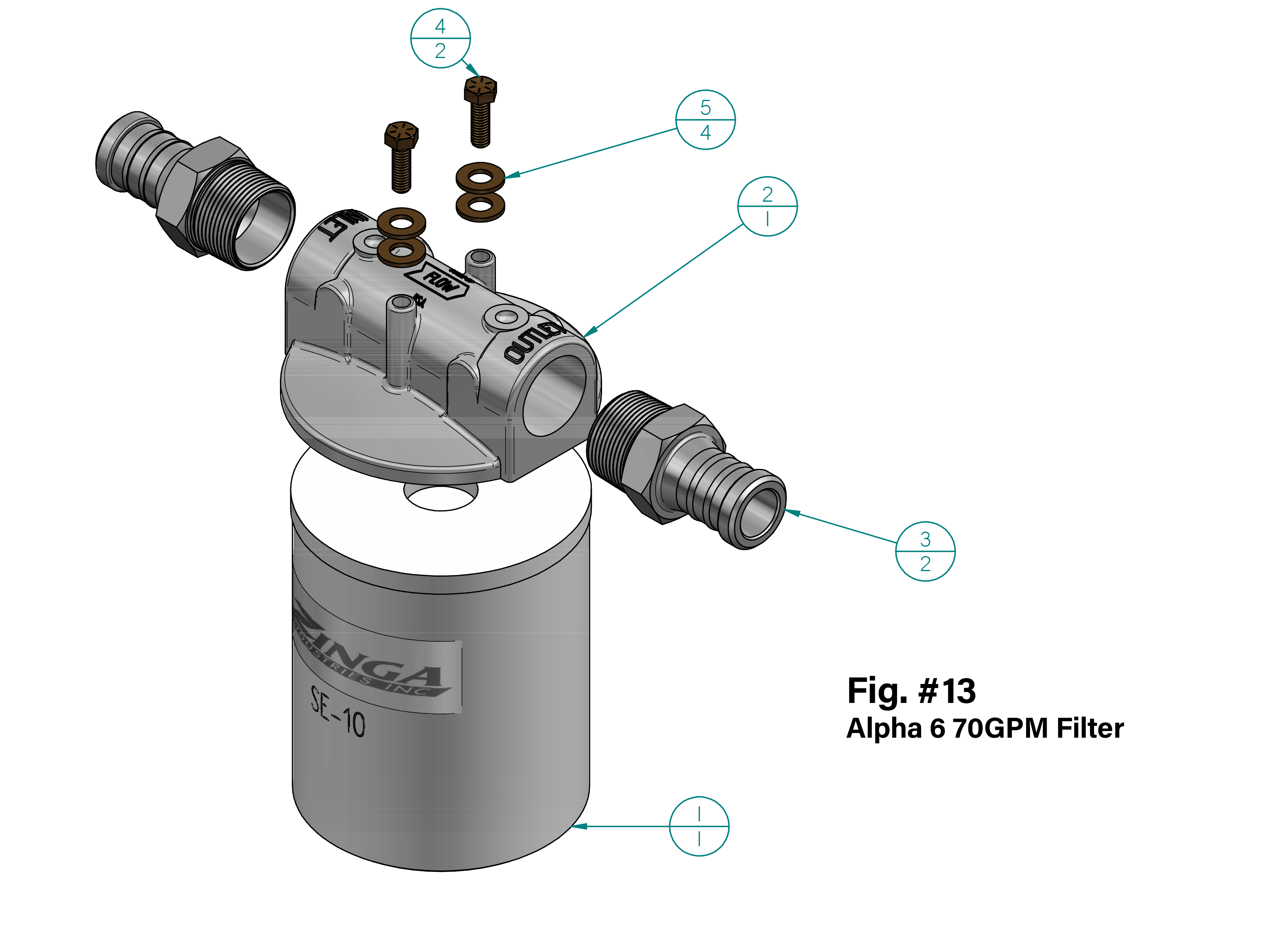

Figure 13 | Alpha 6 70 GPM Filter

Part Number Description Quantity
1 20000-20018 70 GPM Filter 1
2 20000-20019 70 GPM Filter Head 1
3 873-166 #20 Barb to #20 NPT M 2
4 HH5/16x1 .3125x18 1 Bolt 2
5 W3/8 .375 Washer 4

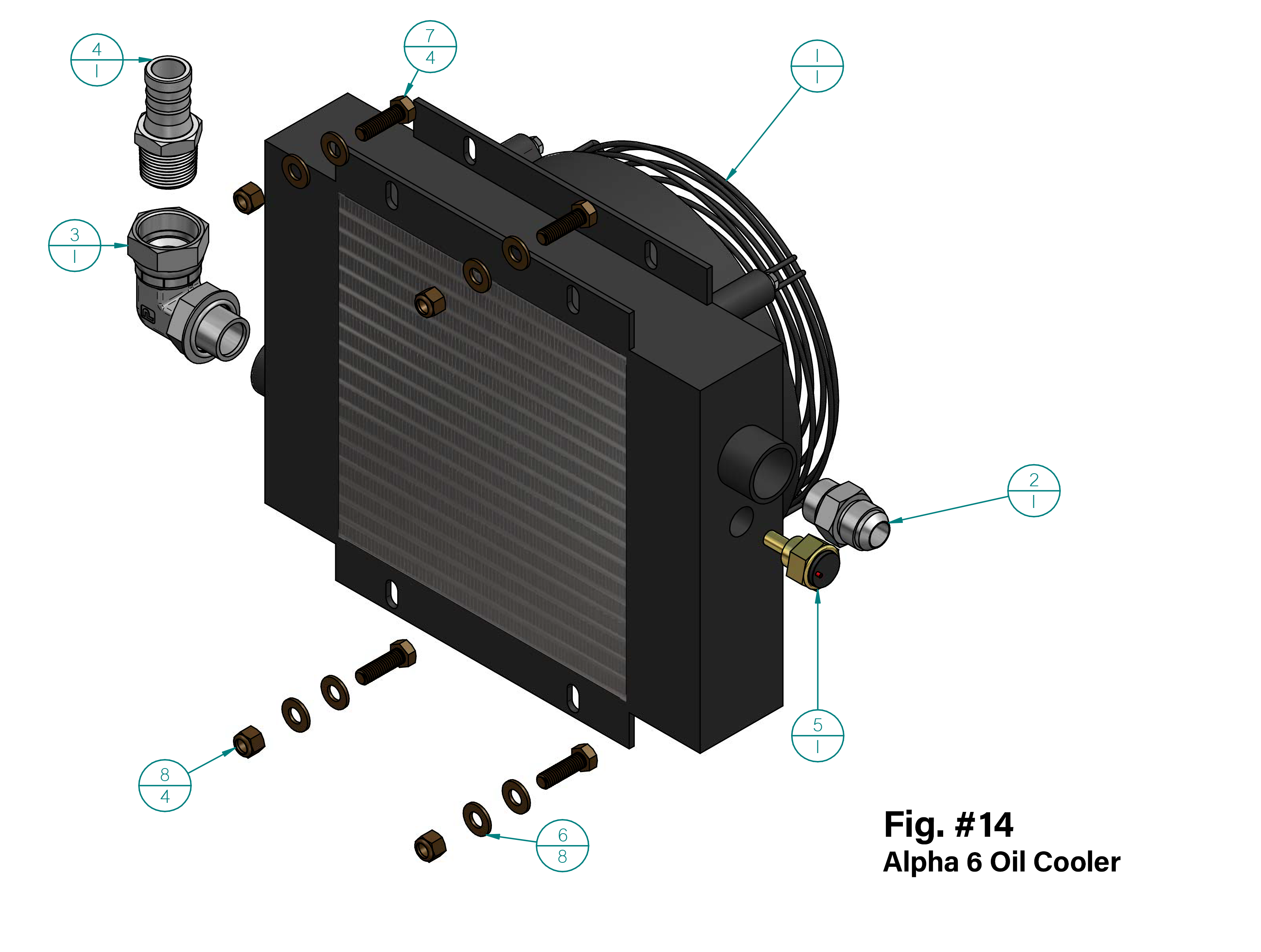

Figure 14 | Alpha 6 Oil Cooler

Part Number Description Quantity
1 20000-30002 Oil Cooler 1
2 815-144 #12 JIC M to #12 ORB M 1
3 854-245 #12 ORB M to #16 NPT F 1
4 873-165 #20 Hose Barb to #16 NPT M 1
5 60000-10037 Cooler Temp Switch 1
6 .375 Washer .375" Washer 8
7 3/8"x16 1.25 Bolt .375x16 1.25 Bolt 4
8 .375 Lock Nut .375 Lock Nut 4

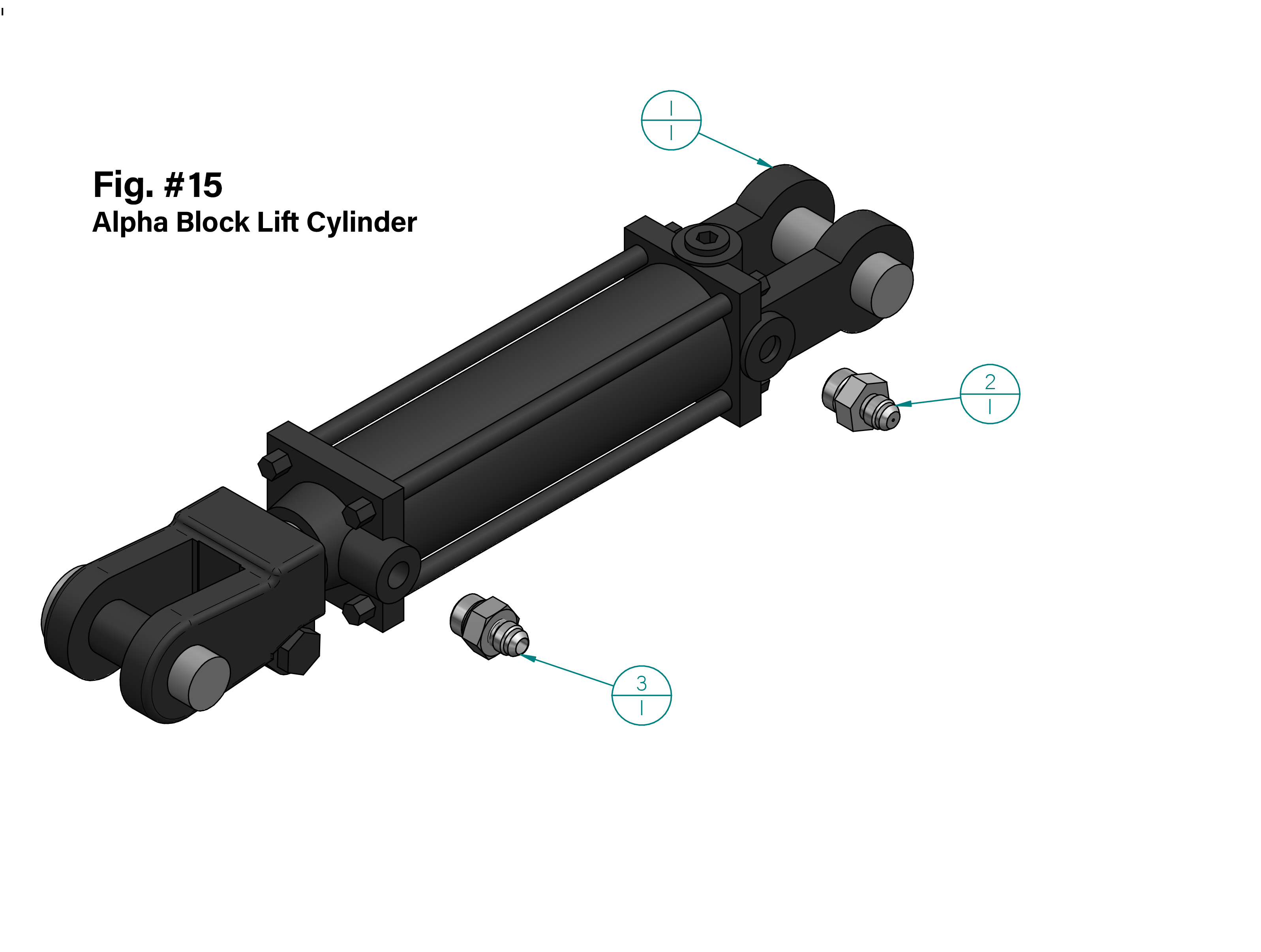

Figure 15 | Block Lift Cylinder

Part Number Description Quantity
1 254-611 2"x6" Log Lift Cylinder 1
2 9001-0145 Orifice Fitting 1
3 815-112 #6 JIC M to #8 ORB M 1

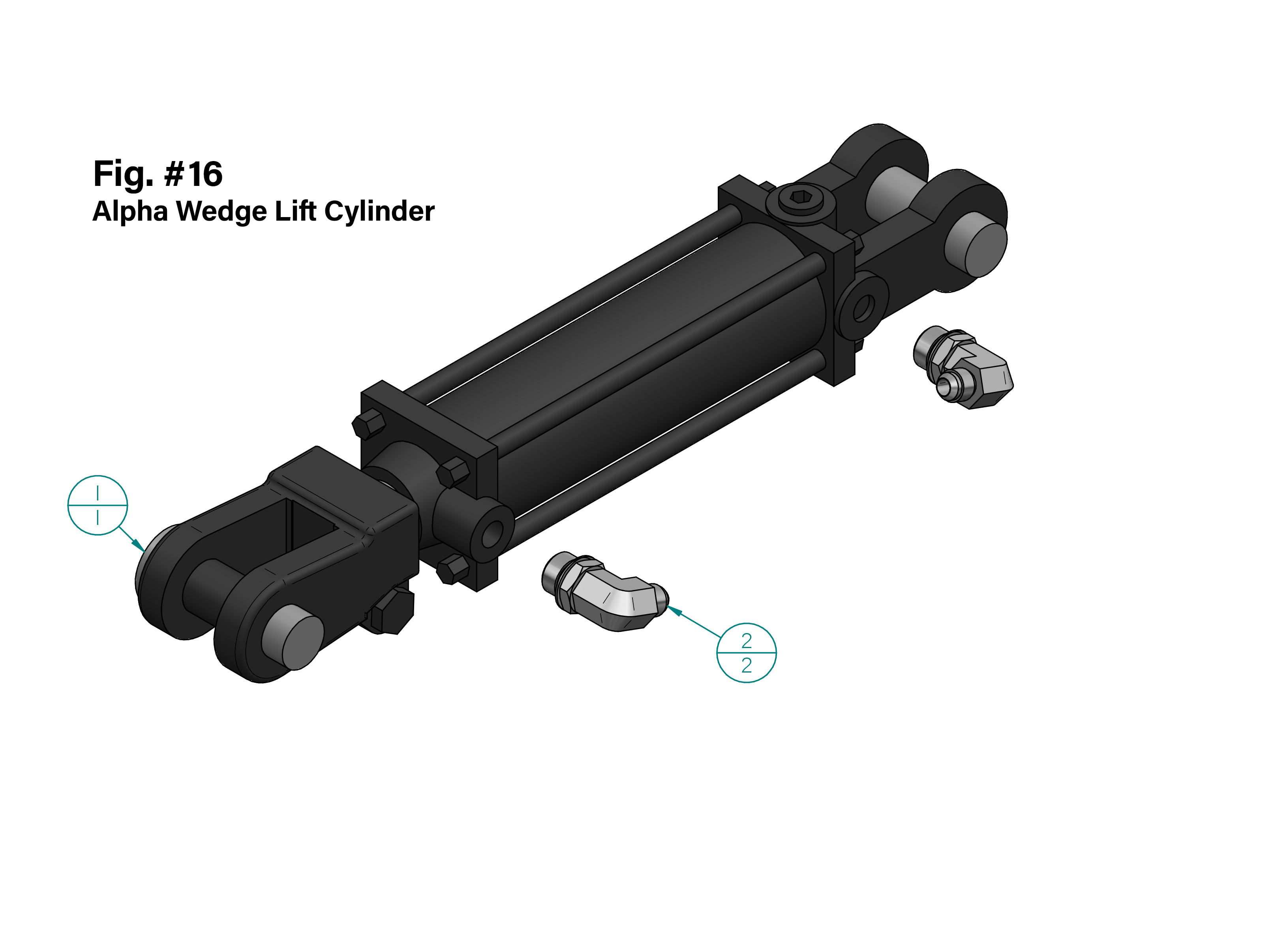

Figure 16 | Wedge Lift Cylinder

Part Number Description Quantity
1 254-611 2"x6" Log Lift Cylinder 1
2 815-212 #6 JIC M to #8 ORB M 2

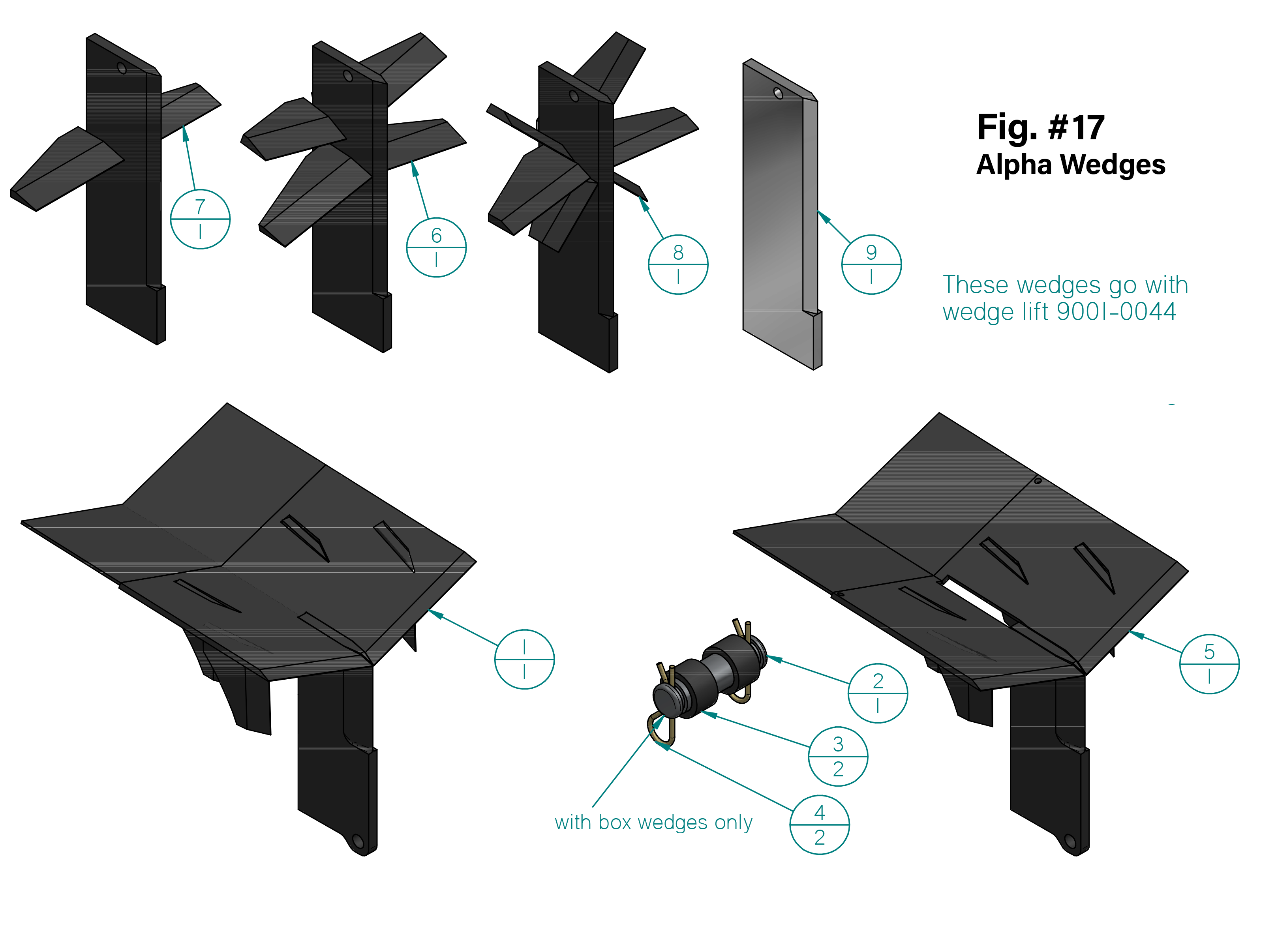

Figure 17 | Alpha Wedges

Part Number Description Quantity
1 9001-0230 4.5" Box Wedge 1
2 9001-0009 Pin 1.25D 3.412UL 1
3 9001-0010 Alpha Box Wedge Pin Boss 2
4 40000-10010 Hairpin for 3/4" to 1-1/8" pin, .14 wire diameter 2
5 9001-0231 3.5" Box Wedge 1
6 9001-0259 6-Way Wedge 1
7 9001-0258 4-Way Wedge 1
8 9001-0355 8-Way Wedge 1
9 9001-0187 Center Wedge Plate 1

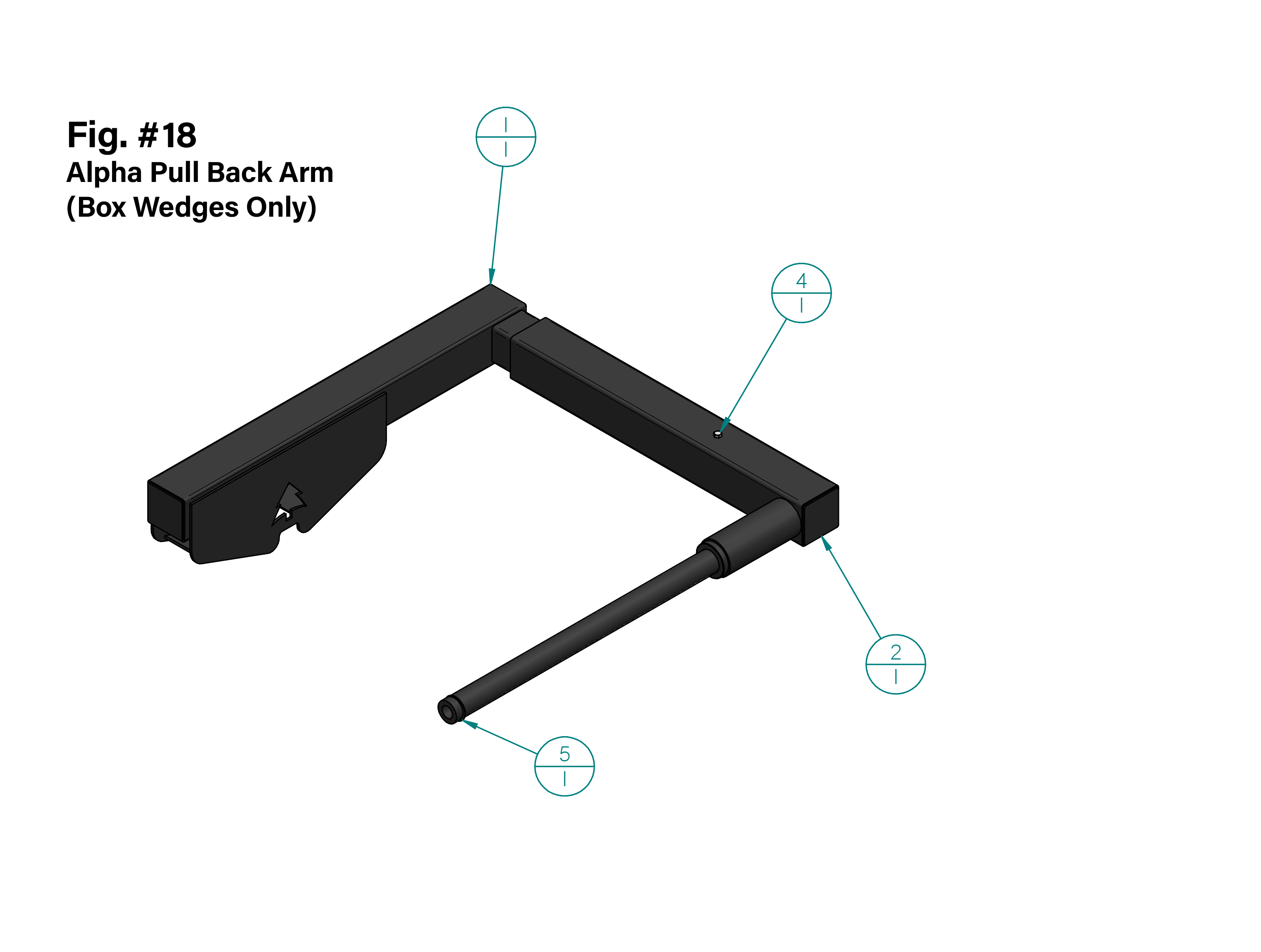

Figure 18 | Pull Back Arm

Part Number Description Quantity
1 9001-0222 Alpha PB Arm End 1
2 9001-0221 Alpha PB Arm Pivot 1
3 N5/16 N5/16 1
4 HH5/16x4 5/16" 4in Bolt Grade 5 1
5 40000-20003 1.75" Retaining Ring 1

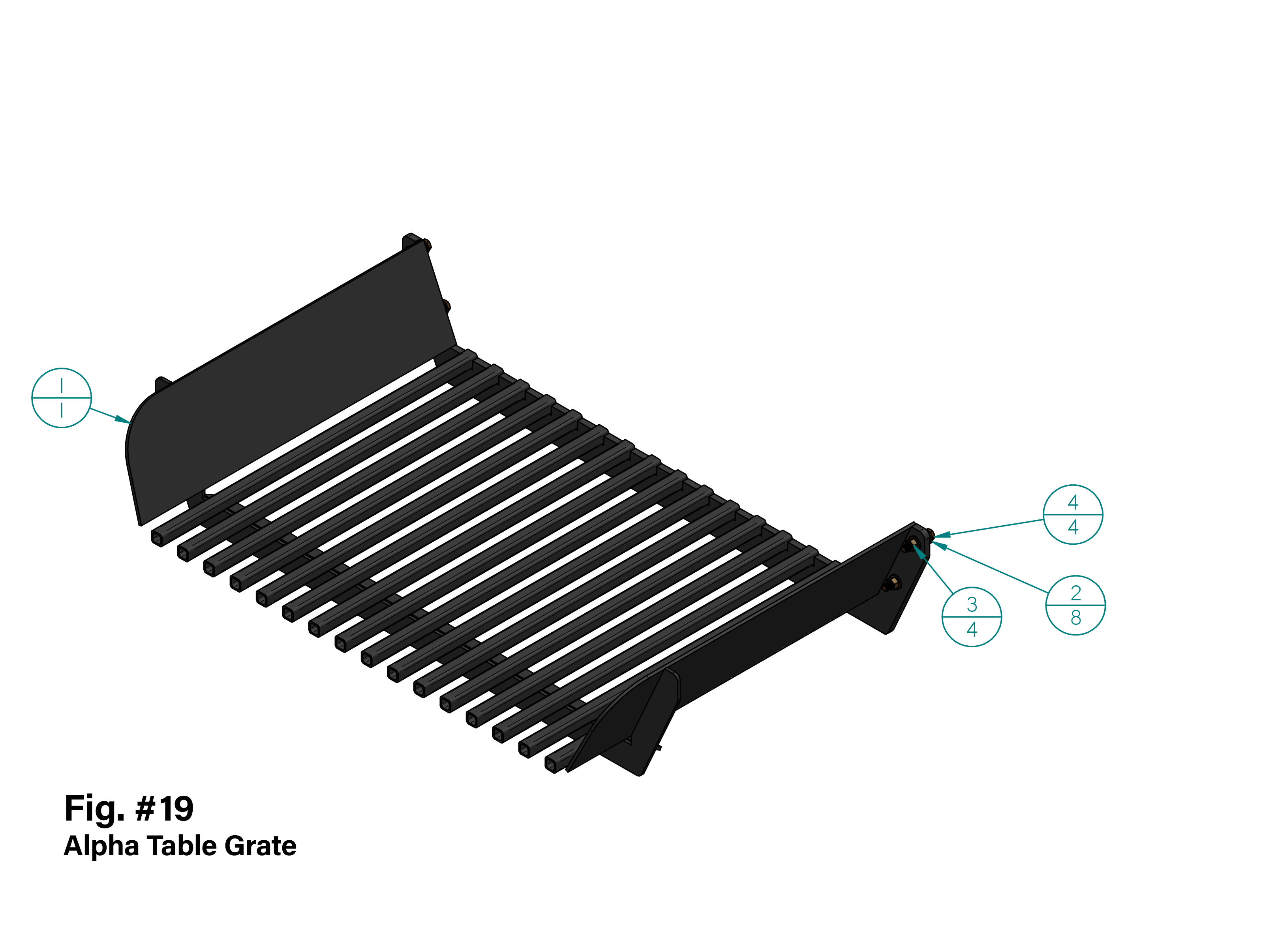

Figure 19 | Table Grate

Part Number Description Quantity
1 9001-0223 Alpha Table Grate 1
2 W1/2 W1/2 8
3 N1/2 N1/2 4
4 52.2x2/1HH 52.2x2/1HH 4
